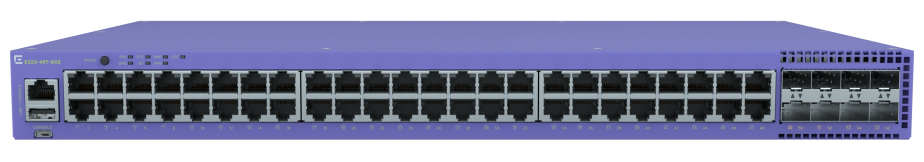

Extreme Networks 5320-48P-8XE
5320 48port PoE+ Switch


Extreme Networks 5320-48P-8XE


Extreme Networks Products
Extreme Networks Products
5320 48port PoE+ Switch
#5320-48P-8XE
Our Price: $7,482.00

More pricing below, click here!

Overview:

The 5320 Series is a family of feature-rich edge switches designed for the next-generation digital enterprise. As a universal hardware platform, the 5320 Series end-to-end secure network segmentation, in addition to advanced policy capabilities, and offers a user-selectable choice of Extreme’s flagship switch operating systems. This makes the 5320 a uniquely flexible platform that can be deployed across a range of edge and wiring-closet environments.

The 5320 Series includes fixed 16, 24, and 48-port 1 Gigabit models that are available in 30W PoE and non-PoE versions. The family also includes 16 port PoE models available with either AC or DC power options.


Universal Hardware Platform

The 5320 Series comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the Switch Engine (EXOS)* or Fabric Engine (VOSS)* persona can be enabled on 5320 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected, the 5320 assumes the features/capabilities of the selected OS.

5320 persona activation can be done manually at boot-up, including via the system CLI. Or, it can be automated by pre-provisioning the 5320 persona in ExtremeCloud IQ. When first booted, the 5320 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 5320 system – eliminating the need for manual selection.

Features:

ExtremeNetworks

Silent Operation

Silent mode operation at temperatures up to 35⁰C is supported on 5320 16-port AC and DC-powered models. This makes these models ideal for classrooms, hospitality suites, retail sites or other noise sensitive environments, especially outside of the wiring closet environment.

ExtremeNetworks

Universal Hardware

The 5320 as a universal hardware platform simplifies your deployment experience through powerful cloud management and simplified licensing. It also helps avoid technology lock-in by enabling you to select your desired use case through a simple change of operating software and/or feature set. A 1-year ExtremeCloud IQ Pilot subscription is also included with each 5320 switch.

ExtremeNetworks

High-Performance Stacking

Two of the 5320’s built-in SFP+ uplink ports can be used for high-speed stacking when running Switch Engine (EXOS). Up to eight systems can be stacked using qualified 10Gb direct attach cables and optical transceivers. (Note: Stacking is not supported when running Fabric Engine (VOSS)).

Specifications:


Switch Model Max Active 10/100/ 1000Mb ports Max Active 1Gb/10Gb SFP/SFP+ ports Max Active 10Gb Stacking ports Aggregated Switch Bandwidth Max Frame Forwarding Rate
5320-16P-4XE 16 4 2 112 Gbps 83.3 mpps
5320-16P-4XE-DC 16 4 2 112 Gbps 83.3 mpps
5320-24T-8XE 24 8••• 2 208 Gbps 154.8 mpps
5320-24P-8XE 24 8••• 2 208 Gbps 154.8 mpps
5320-48T-8XE 48 8••• 2 256 Gbps 190.5 mpps
5320-48P-8XE 48 8••• 2 256 Gbps 190.5 mpps
Switch Model Weight Physical Dimensions
5320-16P-4XE 6.6 lb/3.0 kg 12.2 in W/1.7 in H/11.8 in D
310 mm/43.6 mm/300 mm
5320-16P-4XE-DC 6.6 lb/3.0 kg
5320-24T-8XE 8.2 lb/3.7 kg 17.3 in W/1.7 in H/11.0 in D
440 mm/43.6 mm/280 mm
5320-24P-8XE 8.8 lb/4.0 kg
5320-48T-8X 9.3 lb/4.2 kg 17.3 in W/1.7 in H/11.0 in D
440 mm/43.6 mm/280 mm
5320-48P-8XE 11.0 lb/5.0 kg 17.3 in W/1.7 in H/13.0 in D
440 mm/43.6 mm/330 mm

Documentation:

Download the Extreme Networks 5320-48P-8XE Data Sheet (PDF).

Pricing Notes:

  • Pricing and product availability subject to change without notice.
