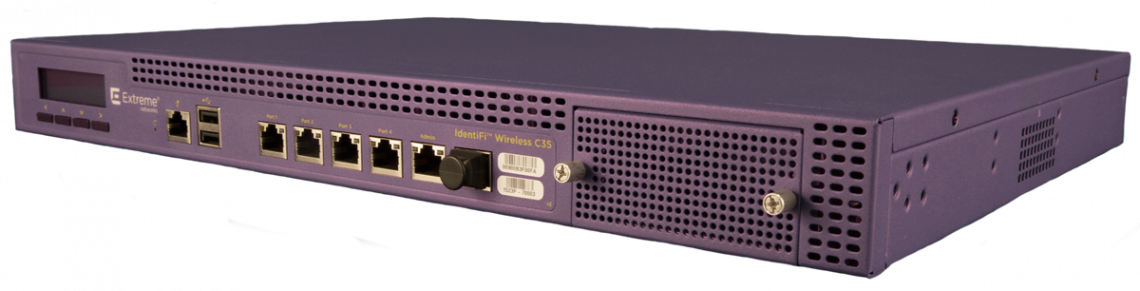

Extreme Networks C35 Physical Appliance
The C35 supporting up to 250 APs
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
The award-winning ExtremeWireless Appliance family provides a scalable range of solutions that are ideal for managed WLAN deployments supporting demanding voice/video/data applications. Our wireless appliances are simple to deploy and manage, yet provide advanced functionality to allow organizations to define how wireless voice/video/data traffic is processed without architectural constraints and in accordance with the business needs. The ExtremeWireless Appliance portfolio includes:
The V2110 is available as a virtual appliance for easy deployment in VMware or Microsoft Hyper-V cloud environments. Scalable up to 1,050 APs with VMware, the V2110 extends all the cost savings, hardware independence, and resiliency benefits of data center virtualization to the wireless infrastructure.
ExtremeWireless appliances enable role-based management for users, devices, and applications with individualized services including quality of service (QoS), call admission control, secure access policies, network access control (NAC), captive portals, rate limiting, multicast, filtering, and traffic forwarding. These services are enabled by the unique and flexible ExtremeWireless Virtual Network Service (VNS) architecture and easily provisioned and managed by an intuitive web interface. Each appliance supports mixed mode deployments of 802.11ac, 802.11n and 802.11a/b/g APs along with the ability to seamlessly roam between wireless appliances and access points, providing scalability and ease of deployment.
High Scalability
The ExtremeWireless portfolio supports from a single AP to 2,000 APs per wireless appliance, providing linear scalability from small to large wireless deployments. In addition, wireless appliances can be networked to scale beyond the limits of a single appliance or availability pair to offer a multi-wireless appliance mobility zone. Mobility zones enable seamless roaming across a large number of wireless appliances.
Fast and Secure Roaming for Seamless Voice and Data Mobility
ExtremeWireless Appliances manage sessions centrally to ensure fast, secure, and seamless roaming as users and devices move across the campus. Seamless roaming greatly improves productivity by providing true mobility across the enterprise, all transparent to the user.
High Availability and Self-Healing
Redundant ExtremeWireless Appliances can be deployed across the network and operate in failover or load sharing mode. Access points can be configured for fast-failover mode to allow configuration and service restoration (in tunnel mode) in less than two seconds, thus enabling user sessions to continue uninterrupted. When switching traffic locally, APs continue to provide service even when the link to the wireless appliance is severed.
Features:
Easy to deploy
The C35 wireless appliance is simple to deploy and manage, yet provides advanced functionality to allow organizations to define how wireless voice/video/data traffic is processed without architectural constraints and in accordance with the business needs
Integrated management and control across wireless and wired networks
Control with a web-based centralized management via Wireless Assistant. Supports multi-appliance management with integrated security.
Integrated management and control across wireless and wired networks
Control with a web-based centralized management via Wireless Assistant. Supports multi-appliance management with integrated security.
Specifications:
|
Supported Features |
C35 |
C5210 |
C5215 |
|---|---|---|---|
|
Capacity |
|||
|
Total APs supported per appliance |
250 |
2,000 |
2,000 |
|
Total APs supported in standard mode |
125 |
1,000 |
1,000 |
|
Additional APs supported in high-availability mode |
125 |
1,000 |
1,000 |
|
Total simultaneous users per appliance |
4,000 |
32,000 |
32,000 |
|
Total simultaneous users in standard mode |
2,000 |
16,000 |
16,000 |
|
Additional simultaneous users in high-availability mode |
2,000 |
16,000 |
16,000 |
|
Manageability |
|||
|
Pre-standard (CAPWAP) |
|
|
|
|
Integrated VLAN-VNS |
|
|
|
|
Auto-discovery of new APs |
|
|
|
|
CDR/RADIUS accounting |
|
|
|
|
Visibility through Extreme Control Center |
|
|
|
|
Integration with Extreme Identity and Access Control |
|
|
|
|
Integration with ExtremeSecurity |
|
|
|
|
Supported Features |
C35 |
C5210 |
C5215 |
|---|---|---|---|
|
Performance and Availability |
|||
|
High availability with automatic failover to a backup controller (license included) |
|
|
|
|
Client mobility with fast failover and session availability |
|
|
|
|
Dynamic Radio Management (DRM), Flexible Client Access (airtime fairness), Load Balancing and Band-steering |
|
|
|
|
Client load balancing with 802.11k (37XX and 38XX Series) |
|
|
|
|
Management Frame Protection (802.11w) |
|
|
|
|
Automatic discovery of networks by pre-authenticated devices (802.11u) |
|
|
|
|
Support for hybrid traffic forwarding: local switching at AP or controller-based switching (based upon user, application or segment) |
|
|
|
|
Dynamic load balancing of clients across multiple subnets |
|
|
|
|
Dual, hot swappable power supplies |
N/A |
|
Sold Separately |
|
Maximum Throughput (Mbps): Mixed (RFC2544)/Encrypted |
3730/2140 |
18500/14500 |
18500/18000 |
|
Security |
|||
|
Robust standards-based security: 802.11i, WEP, WPA, WPA2, TKIP, AES |
|
|
|
|
802.1x Authentication: EAP-TLS, EAP-SIM, EAP-TTLS, PEAP, EAP-MD5, EAP-FAST |
|
|
|
|
Protected Management Frames (802.11w) |
|
|
|
|
RADIUS Authentication and Accounting |
|
|
|
|
Encryption Algorithms: AES (CCMP), RC4-40, 104, 128-bit (TKIP, WEP) |
|
|
|
|
Guest Services (captive portal, URL redirect, NAC) and Walled Garden (unauthorized access to URL) |
|
|
|
|
Advanced filtering and integration with Extreme Control Center |
|
|
|
|
Voice |
|||
|
Voice-over-WLAN Optimization: 802.11e/WMM, U-APSD, TSPEC, CAC, QBSS |
|
|
|
|
Fast Roaming with 802.11r (AP37XX, AP38XX, and AP39XX Series) |
|
|
|
|
Wired-Wireless (DSCP/TOS-to-WMM) QoS Mapping |
|
|
|
|
Roaming between IP subnets |
|
|
|
|
Roaming between multiple appliance |
|
|
|
|
Networking |
|||
|
SNMPv2c/v3 |
|
|
|
|
Routing – OSPF v2 |
|
|
|
|
CSMA/CD |
|
|
|
|
802.11-802.3 bridging |
|
|
|
|
IEEE 802.1D-compliant bridging |
|
|
|
|
IEEE 802.1Q VLAN tagging and trunking |
|
|
|
|
Proxy ARP |
|
|
|
|
Link Aggregation (Static LAGs) |
|
|
|
Documentation:
Download the Extreme Networks Wireless Controllers Datasheet (PDF).
