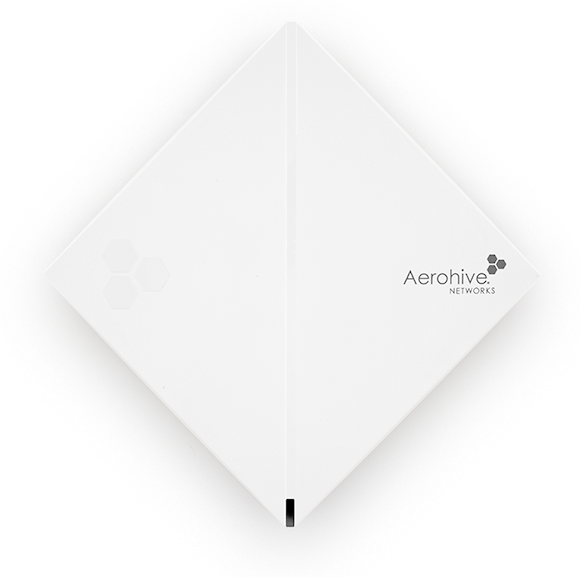

Extreme Networks AP130
802.11ac Dual-Radio 2x2:2 Access Point with Internal Antennas

Extreme Networks AP130


Extreme Networks Products
ExtremeWireless AP130
ExtremeWireless AP130 Indoor Access Point
2 radio 2x2:2 802.11a/b/g/n/ac, 1 10/100/1000 Ethernet port, without power supply (Internal Antenna only). Includes HiveManager Connect & HiveCare Community.
#AH-AP-130-AC-FCC
Get a Quote!

Overview:

802.11ac Dual-Radio 2x2:2 Access Point with Internal Antennas; offering a full scope of enterprise-grade features for medium density environments. This device is powerful enough to provide all the services needed for an enterprise network, and cost-effective enough to deploy at scale.

The AP130 provides high-performance aggregate data rates up to 1167Mbps, with dual 2.4 GHz 802.11b/g/n and 5 GHz 802.11a/n/ac radios. This access point is powerful enough to provide all the services needed for an enterprise network, and cost-effective enough to deploy for the higher capacity needs of every office, classroom, or store.

The AP130 benefits from an AI-driven Wi-Fi architecture capable of selforganizing, self-healing, and self-optimizing connectivity in the most challenging environments, helping eliminate single points of failure and data bottlenecks. Underlying the AP130 is a powerful operating system driving a stateful L2-L7 DPI firewall for context-based access security, advanced and customizable QoS for traffic optimization, intelligent meshing algorithms, Private Pre-Shared Key (PPSK) security, and much more.

Highlights

Radio Technology

  • 802.11ac - 5 GHz 2x2:2
  • 802.11ac - 2.4 GHz 2x2:2

Management and Analytics with ExtremeCloud IQ

  • Automated deployments
  • Simplified network operations
  • Advanced reporting and network insights

Self-Driving Architecture

  • Distributed control Wi-Fi delivers self-optimizing and self-healing mobility
  • Automated client distribution between radios or neighboring access points
  • Dynamic mesh backhaul

Secure Network Access

  • Broad range of authentication modes for all devices from Corporate to IoT
  • Integrated enterprise protection mechanisms including WIPS and VPN

Features:


Advance Security

This access point delivers the highest level of security services, including a fully stateful L2-L7 DPI firewall for context-based access security, Private PreShared Key (PPSK) authentication, on-board RADIUS services, WIPS, VPN tunnelling, and much more.

Management Analytics

In conjunction with Extreme’s management system, this access point provides a rich set of data displayed via context driven widgets, detailing historical data and real-time analytics. This provides context-specific granularity with perspective views for locations, network, network devices, individual client devices, as well as policy roles. In each context, administrators can adjust dashboards from the widget library.


Automated Deployments

Powered by cloud networking, this access point can easily be deployed alongside thousands of others in no time at all. Extreme’s management system provides granular templates and auto provisioning to enable centralized enterprise plug-and-play rollouts.

RF Monitoring

Adaptive RF algorithms provide intelligent selection of the best channels and transmit power for unimpaired network access. Load balancing, band steering and many other attributes of the RF can all be automated. In addition, administrators can view network health through Extreme’s management system.


Performance Optimization

With a performance optimized operating system, this access point works collectively with neighboring devices to fine tune overall network health for connected clients, utilizing a granular, customizable QoS engine that adjusts performance based on user, device, and application privileges.

Eliminate Downtime

Identifying when network challenges arise, the operating system of this access point will automatically determine how to reroute clients and traffic to avoid performance dips or stranded devices. If any wired backhaul connection issues are detected, the access point can dynamically enable a wireless mesh backhaul link to a neighboring access point to keep data flowing.


Specifications:


Radio Specifications

802.11a

  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM Modulation)
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11b

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback

802.11g

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11n

  • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
  • 802.11n Modulation
  • Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps)
  • 2x2 Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
  • HT40 High-Throughput (HT) Support for 5 GHz
  • A-MPDU and A-MSDU Frame Aggregation

802.11ac

  • 5.150–5.850 GHz Operating Frequency
  • 802.11ac Modulation (256-QAM)
  • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2.
  • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • VHT20/VHT40/VHT80 support
  • TxBF ( Transmit Beamforming)

Interfaces

  • Autosensing 10/100/1000 BASE-T Ethernet PoE (Power over Ethernet 802.3af) Port

Power Specifications

  • IEEE 802.3af PoE Power

Power Options

  • Power Draw: Typical 9.05W, Max 11W
  • 802.3af Power over Ethernet (PoE) capable
  • Gigabit Ethernet port (RJ-45 power input pins:
  • Wires 4,5,7,8 or 1,2,3,6)
  • 802.3af Power over Ethernet injector

Physical

  • LxWxH 147X147X42 mm (5.79x5.79x1.65in). (w/o mounting brackets)
  • .51kg (1.13 lbs) (w/o mounting brackets)

Antennas

  • 2x Integrated single band, 2.4-2.5 GHz omnidirectional antennas
  • 2x Integrated single band, 5.1-5.8 GHz omnidirectional antennas

Mounting

  • Desktop
  • Wall Mount included as part of AP
  • Built-in slot for Kensington type locks
  • Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory
  • Ceiling Tile flush 3/8”, 9/16” sold as an accessory
  • Suspend Mount sold as an accessory
  • Plenum Mount sold as an accessory
  • TPM chip for added security

Environmental

  • Operating: 0 to +40°C, Storage: -40 to +70°C
  • Humidity: 95% (non-condensing)

Environmental Compliance

  • UL2043

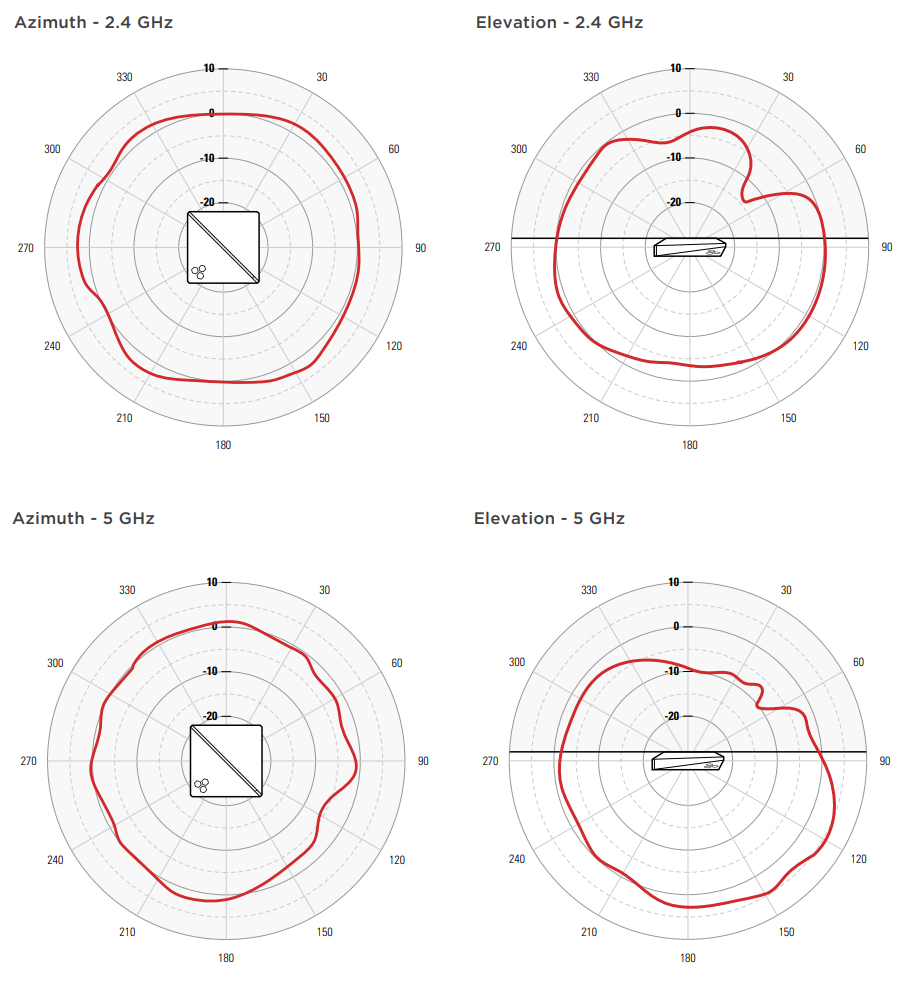

Radiation Patterns:

Documentation:

Download the Extreme Networks AP130 Datasheet (PDF).
