Extreme Networks AP245X
High Performance 802.11ac Wave 2 Dual-Radio 3x3:3 Access Point with External Antennas

Extreme Networks AP245X


Extreme Networks Products
ExtremeWireless AP245X
ExtremeWireless AP245X Indoor Plenum Rated Access Point
2 radio 3x3:3 802.11a/b/g/n/ac, MU-MIMO, external antennas, 2 10/100/1000 Ethernet ports, without power supply. Antenna sold separately. Includes HiveManager Connect & HiveCare Community.
#AH-AP-245X-AC-FCC
Get a Quote!

Overview:

This power optimized AP line uniquely incorporates 802.11ac, integrated BLE radio for iBeacon (and other beacon applications), and a standard USB port for a variety of IoT applications. AP245X smoothly integrates into your existing 802.3af or 802.3at power and network infrastructure.

The AP245X benefits from an AI-driven Wi-Fi architecture capable of self-organizing, self-healing, and self-optimizing connectivity in the most challenging environments, helping eliminate single points of failure and data bottlenecks. Underlying the AP245X is a powerful operating system driving a stateful L2-L7 DPI firewall for context-based access security, advanced and customizable QoS for traffic optimization, intelligent meshing algorithms, Private Pre-Shared Key (PPSK) security, and much more. In addition, the integrated BLE radio and a USB interface in the access point opens up a multitude of deployment use-cases in IoT and proximity/ location-oriented services.

Highlights

Radio Technology

  • 802.11ac Wave 2 - 5 GHz 3x3:3
  • 802.11ac Wave 2 - 2.4 GHz 3x3:3
  • Integrated BLE (Bluetooth Low Energy) Radio for location services

Management and Analytics with ExtremeCloud IQ

  • Automated deployments
  • Simplified network operations
  • Advanced reporting and network insights

Self-Driving Architecture

  • Distributed control Wi-Fi delivers self-optimizing and self-healing mobility
  • Automated client distribution between radios or neighboring access points
  • Dynamic mesh backhaul

Secure Network Access

  • Broad range of authentication modes for all devices from Corporate to IoT
  • Integrated enterprise protection mechanisms including WIPS and VPN

Features:


Advance Security

This access point delivers the highest level of security services, including a fully stateful L2-L7 DPI firewall for context-based access security, Private PreShared Key (PPSK) authentication, on-board RADIUS services, WIPS, VPN tunnelling, and much more.

Management Analytics

In conjunction with Extreme’s management system, this access point provides a rich set of data displayed via context driven widgets, detailing historical data and real-time analytics. This provides context-specific granularity with perspective views for locations, network, network devices, individual client devices, as well as policy roles. In each context, administrators can adjust dashboards from the widget library.


Automated Deployments

Powered by cloud networking, this access point can easily be deployed alongside thousands of others in no time at all. Extreme’s management system provides granular templates and auto provisioning to enable centralized enterprise plug-and-play rollouts.

Performance Optimization

With a performance optimized operating system, this access point works collectively with neighboring devices to fine tune overall network health for connected clients, utilizing a granular, customizable QoS engine that adjusts performance based on user, device, and application privileges.


RF Monitoring

Adaptive RF algorithms provide intelligent selection of the best channels and transmit power for unimpaired network access. Load balancing, band steering and many other attributes of the RF can all be automated. In addition, administrators can view network health through Extreme’s management system.

Integrated BLE and Zigbee

To support both IoT and guest engagement services this access point integrates Bluetooth to connect with IoT devices or engage loyalty customers with beacon services. Enterprises can use Google Eddystone to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app download pages, captive portals, or site-specific information.


Specifications:


Radio Specifications

802.11a

  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM Modulation)
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11b

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback

802.11g

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11n

  • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
  • 802.11n Modulation
  • Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps)
  • 2x2 Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
  • HT40 High-Throughput (HT) Support for 5 GHz
  • A-MPDU and A-MSDU Frame Aggregation

802.11ac

  • 5.150–5.850 GHz Operating Frequency
  • 802.11ac Modulation (256-QAM)
  • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2.
  • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • VHT20/VHT40/VHT80 support
  • TxBF ( Transmit Beamforming)

Interfaces

  • Two Autosensing 10/100/1000 BASE-T Ethernet ports
  • PoE (Power over Ethernet 802.3af) capability on one of the ports
  • RJ-45 console port
  • Standard USB port

Power Specifications

  • IEEE 802.3af PoE Power: Full 3x3:3 802.11ac MU-MIMO performance and BLE (No USB port, no 2nd Ethernet port)
  • IEEE 802.3at PoE Power: full set of features (all of the above plus USB port and 2nd Ethernet port)

Power Options

  • Power Draw: Typical 11.22 W; Max 15.74 W

Physical

  • WxDxH: 7.25” x 7.25” x 1.87”(18.4 cm x 18.4 cm x 1.87cm) [plus .25”, mounting hardware – 2.12” (5.4 cm) H total ]
  • Weight: 1.8 lb ( 0.81 kg)

Antennas

  • 3x RP-SMA connector 2.4 GHz
  • 3x RP-SMA connector 5 GHz
  • 1x BLE internal antenna

Additional Mounting Options

  • Wall Mount
  • Ceiling Tile flush 15/16” and Wall Mount locking accessory included with AP
  • TPM chip for added security

Additional Mounting Options

  • Desktop
  • Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory
  • Ceiling Tile flush 3/8”, 9/16” sold as an accessory
  • Suspend Mount sold as an accessory
  • Plenum Mount sold as an accessory
  • Silhouette and Interlude sold as an accessory

Environmental

  • Operating: 0 to +40°C, Storage: -40 to +70°C
  • Humidity: 95% (non-condensing)

Environmental Compliance

  • UL2043

Certifications

  • WPA/WPA2
  • Voice-Enterprise

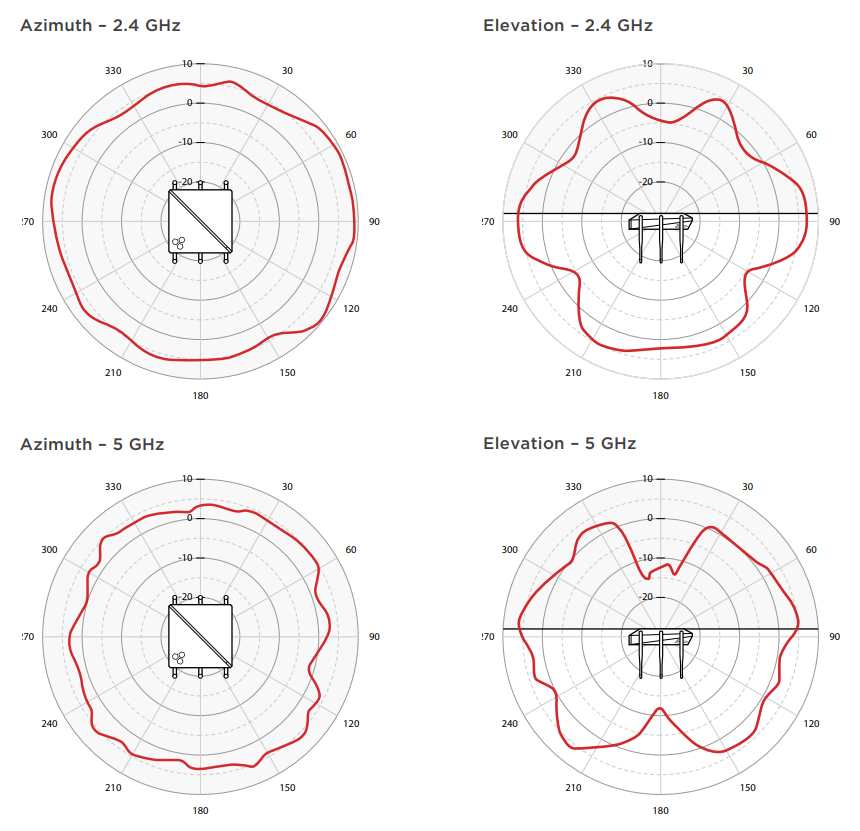

Radiation Patterns:

Documentation:

Download the Extreme Networks AP245X Datasheet (PDF).
