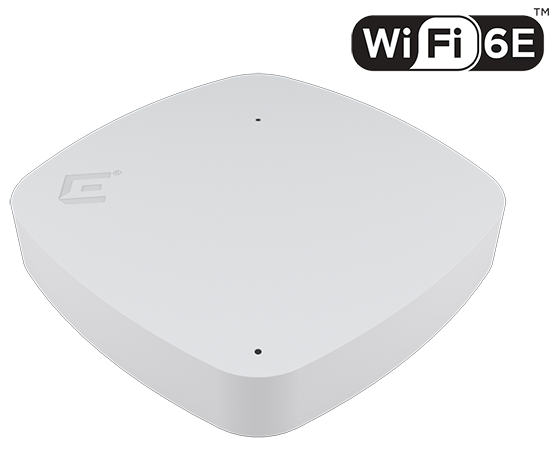

Extreme Networks AP3000
Wi-Fi 6E Dual-Radio Indoor Access Point with Integrated Antennas
2.4 GHz and 5 GHz or 5GHz and 6GHz, Multirate Port, Internal antennas. IoT Radio. Includes AH-ACC-BKT-AX-TB mounting bracket.
Our Price: $900.00
Overview:
In today’s world, as businesses make capital investments in their technology infrastructure, they must have a keen eye on how those investments can improve operational efficiency. To meet the needs of budget-conscious enterprises who do not want to sacrifice performance, the AP3000/X was engineered to deliver on those requirements. The AP3000/X combines powerful 802.11ax Wi-Fi 6E technology, advanced security, and ML/AI cloud management capabilities as an enterprise-class solution in a small, low-power package that allows you to deploy high speed and highly secure Wi-Fi.
The AP3000/X is a Universal and World SKU Wi-Fi 6E Wireless Access point. With Extreme’s Universal infrastructure, customers can take advantage of hardware agility and reduce the total cost of their network by adopting platforms that allow them to run multiple Extreme operating systems. This multi-persona capability provides increased product flexibility and reduced hardware obsolescence. The World SKU allows customers, partners, and distributors to order one model for any region, replacing the age-old problem of country specific SKUs. ExtremeCloud IQ geo-locates the Access Point and accurately provides it the corresponding set of channel and power specifications that the product can operate under in that country
The AP3000/X Wi-Fi 6E access point, with two 2x2:2 radios, provides high- efficiency, high-performance 802.11ax aggregate data rates up to 4.8 Gbps in the 6 GHz, 5 GHz, and 2.4 GHz bands. Designed for dense and/or harsh environments, such as classrooms, warehouses, healthcare clinics, and manufacturing, the AP3000/X is powerful and intelligent enough to provide the highest level of client services without compromising security. Despite powerful capabilities, the AP3000/X allows for flexible placement as the market’s smallest form-factor Wi-Fi 6E access point to emphasize aesthetics. The AP3000/X features a fully functional Multi-Band filter, enabling simultaneous operations with no performance degradation between all the 5 GHz frequencies and the entire range of 6 GHz frequencies (U-NII-5 thru U-NII-8 bands).
Wi-Fi 6E Enhanced Capacity
By utilizing the additional 6 GHz spectrum offered by Wi-Fi 6E, the AP3000/X operates up to three times as much spectrum as previous generations of Wi-Fi to deliver enhanced wireless experiences, faster speeds, and less interference.
| Band | Number of 20 MHz Channels | Maximum Channel Size | Maximum throughput |
|---|---|---|---|
| 6 GHz | 59 | 160 MHz | 2.4 Gbps |
| 5 GHz | 25 | 80 MHz | 1.2 Gbps |
| 2.4 GHz | 3 | 20 MHz | 287 Mbps |
| Total | 87 | 3.9 |
Highlights
Advanced Radio Technology
- Dual-Radio Design
- 2.4/5 GHz (2x2:2)
- 5/6 GHz (2x2:2)
Universal Hardware Platform
- On-Premises: WiNG OS (Distributed), ExtremeCloud IQ Controller (Centralized)
- Cloud: ExtremeCloud IQ
Operational Modes
- Mode 1: 2.4 GHz/5 GHz Data Radios
- Mode 2: 5 GHz/6 GHz Data Radios
Designed for harsh environments
- External antennas and extended temperature range -20°C to +55°C
Cellular Coexistence Filter (CCF)
- Minimizes the impact of interference from cellular networks
Fully Functional Wi-Fi with 802.3af Smart Management Choices
- ExtremeCloud IQ for public, private, and ExtremeCloud Edge cloud management capabilities
- ExtremeCloud IQ Controller for onpremises requirements
Features:
Wi-Fi 6E (802.11ax) Technology
Wi-Fi 6 ushered in a new generation of Wi-Fi. While prior generations emphasized on higher speeds, 802.11ax technology instead focused on improving Wi-Fi efficiency as well as speed, taking Wi-Fi networks to an entirely new level. Now, with addition of the 6 GHz band for unlicensed operation, Wi-Fi 6E has access to up to 1,200 MHz of spectrum*, which is three times that of existing 'usable' spectrum which enables improved quality of service (QoS) in dense environments, new applications and use cases, and an improved user experience.
Security
The AP3000/X delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Leverage Extreme Fabric Attach to securely automate provisioning and deployment by connecting to a Fabric Connect-enabled switch. AP3000/X supports a stateful L2-L7 DPI firewall for context-based access security, tri-frequency security, and Private Pre-Shared Key (PPSK), location analytics sensor and much more.
Management Analytics
In conjunction with Extreme centralized management software, cloud or on-premises, the AP3000/X provides a rich set of data displayed via widgets, representing unlimited historical data or a combination of historical and current data. This provides context- specific granularity with perspective views for locations, network, APs, individual client devices, as well as policy roles. In each context, administrators can make a widget library.
Universal Hardware
The AP3000/X is a universal hardware platform that comes with a multipersona capability allowing user choice of the Wi-Fi operating system (OS). The IQ Engine operating system, the WiNG operating system, or the ExtremeCloud IQ Controller Engine persona can be enabled as required. The desired persona can be selected at start-up or changed at a later stage. Once selected, the AP3000/X assumes the features or capabilities of the selected OS. When first booted, the AP3000/X automatically connects to ExtremeCloud IQ to find its persona. The preprovisioned OS persona is then remotely enabled on the AP3000/X system, eliminating the need for manual selection.
Dual-Radio Programmable AP
Extreme launched the industry's first software defined Wi-Fi 6E access point supporting multiple software programmable modes to optimally manage radios to provide the highest level of client performance. The AP3000/X is a dual radio access point can transmit with two data radios: 2.4 GHz and 5 GHz or 5 GHz and 6 GHz.
Integrated Bluetooth Low Energy and USB Port
To support both IoT and Guest Engagement services integrates Bluetooth® to connect with IoT devices to engage loyalty customers with Apple iBeacon. Enterprises can use API driven applications to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app download pages, captive portals, or site-specific information.
Specifications:
Radio Specifications
Max Users
- SSID per Radio/Total: 16/32
- Users per Radio/total: 512/1024
802.11a
- 5.150–5.850 GHz Operating Frequency
- Orthogonal Frequency Division Multiplexing (OFDM Modulation)
- Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b
- 2.4–2.5 GHz Operating Frequency
- Direct-Sequence Spread-Spectrum (DSSS) Modulation
- Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g
- 2.4–2.5 GHz Operating Frequency
- Orthogonal Frequency Division Multiplexing (OFDM) Modulation
- Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n
- 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
- 802.11n Modulation
- HT20 High-Throughput (HT) Support for both 2.4 GHz and 5 GHz
- HT40 High-Throughput (HT) Support for 5 GHz
- A-MPDU and A-MSDU Frame Aggregation
- Rates (Mbps): MCS0 – MCS15 (6.5MBps - 300Mbps)
802.11ac
- 5.150–5.850 GHz Operating Frequency
- 802.11ac Modulation (256-QAM)
- Rates (Mbps): MCS0 – MCS31 (6.5MBps - 600Mbps)
- 5G: 2x2 Multiple-In, Multiple-Out (MIMO) Radio
- 2.4G: 2x2 Multiple-In, Multiple-Out (MIMO) Radio
- Rates (Mbps): MCS0–MCS9 (6.5Mbps – 1734Mbps), NSS = 1-2.
- 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
- VHT20/VHT40/VHT80 support
- TxBF (Transmit Beamforming)
802.11ax
- 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
- 802.11ax Modulation (1024-QAM)
- Dual-band OFDMA
- Rates (Mbps):
- 6G: HE0-HE11 (8 Mbps – 2400 Mbps)
- 5G: HE0-HE11 (8 Mbps – 1200 Mbps)
- 2.4G: HE0-HE11 (8Mbps – 574 Mbps)
- 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 6GHz
- 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5GHz
- 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio @2.4GHz
- HE20/HE40/HE80/HE160 support for 6 GHz
- HE20/HE40/HE80 support for 5 GHz
- HE20/HE40 support for 2.4 GHz
- DL SU-MIMO and MU-MIMO
- TxBF (Transmit Beamforming)
IOT Radio
- Thread, Bluetooth 5.2 Low Energy, IEEE 802.15.4
Interfaces
- Eth0 is 2.5/1GE with Power over Ethernet (PoE)
- Eth1 is 1GE/100
Power Specifications
- 802.3af Power over Ethernet (PoE) capable w/o USB
- 802.3at Power over Ethernet (PoE) capable w/USB
Power Options
- Typical Power Draw: 12.5W (w/o USB): 15.3W (w/ USB)
- Max Power Draw: 13.9W (w/o USB), 17W (w/ USB)
Physical
- Dimensions: 6.4" x 6.4" x 1.4" (16.2 cm x 16.2 cm x 3.6 cm)
- Weight: 1.15 lb (0.52 kg)
- Kensington lock slot
- Trusted Platform Module(TPM)
Mounting
- Wall/Solid Ceiling/15/16" Tbar:AH-ACC-BKT-AX-TB (included in box)
- Beam: ACC-BKT-AX-BEAM
- Junction Box: ACC-BKT-AX-JB
- 1.5" Tbar: ACC-BKT-AX-TBW
- WiNG: ACC-BKT-AX-WNGADAPT
- 9&15/16" Tbar (flat): AH-ACC-BKT-AX-TB
- 9/16 Tbar (w/rail): AH-ACC-BKT-AX-IL
- Silhouette: AH-ACC-BKT-AX-SL
- Standoff (1.25" ) Wall: AH-ACC-BKT-AX-WL
- 9/16" Protruding Tiles Adapter: AH-ACC-BKT-916-KIT
- 15/16" Protruding Tiles Adapter: ACC-BKT-TB-NF
Environmental
- Operating: AP 3000 0°C to 50°C, AP 3000X -20°C to 55°C
- Storage: -40°C to 70°C (-40°F to 158°F)
- Humidity: 0% to 95% (non-condensing)
Environmental Compliance
- EU RoHS – 2011/65/EU & Amendments (EU) 2015/863
- EU WEEE – 2012/19/EU
- EU REACH - Regulation (EC) No 1907/2006 – Reporting
- EU SCIP – EU Waste Framework Directive
- China RoHS – 2 SJ/T 11364-2014
- Taiwan RoHS CNS 15663 (2013.7)
Regulatory Compliance
- USA
- Part 15C - 15.247
- Part 15E - 15.407
- RF exposure - FCC part 1.1307
- IEC 60601-1-2 EMC for medical devices
- Canada
- RSS 247 for 2.4G & 5GHz
- RSS 248 6GHz RLAN
- RF exposure - RSS-102: Issue 5, 2015
- CE
- 2014/53/EU Radio Equipment Directive
- EN 300 328, EN 301 893, EN 302 502, EN 300 440
- EN 301 489 1, EN 301 489 17, EN 62311, EN 62479
Regulatory and Safety
- North American ITE
- UL 60950-1 2nd edition Listed Device (U.S.)
- CSA 22.2 No. 60950-1 2nd edition 2014(Canada)
- UL/CuL 62368-1 Listed
- UL 2043 Plenum Rated
- European ITE
- EN 62368-1
- 2014/35/EU Low Voltage Directive
- International ITE
- CB Report and Certificate per IEC 60950-1 + National Differences
- CB Report and certificate IEC 62368-1
- AS/NZS 60950-1 (Australia /New Zealand)
EMI/EMC Standards
- North American EMC Standards
- FCC CFR 47 part 15 Class A (USA)
- ICES-003 Class A (Canada)
- European EMC Standards
- EN 55032 Class B
- EN 55024
- EN 55035
- EN 55011, EN 60601-1-2
- EN 61000-3-2 (Harmonics)
- EN 61000-3-3 (Flicker)
- 2014/30/EU EMC Directive
- International EMC Certifications
- CISPR 32 Class B (International Emissions)
- AS/NZS CISPR 32
- CISPR 24/CISPR 35 (International Immunity)
Power and Sensitivity:
| 2.4 GHz Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11b | 1 - 11 Mbps | 18 | -94, -87 |
| 11g | 6 Mbps | 18 | -91 |
| 54 Mbps | 16 | -73 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -91, -72 |
| 11n HT40 | MCS0, 7 | 18, 16 | -88, -69 |
| 11ax HE20 | HE0, 11 | 18, 14 | -90, -60 |
| 11ax HE40 | HE0, 11 | 18, 14 | -87, -57 |
| 5 GHz Radio | 6 GHz Radio | ||||||
|---|---|---|---|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) | Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 18 | -94 | 11a | 6 Mbps | 18 | -93 |
| 54 Mbps | 16 | -75 | 54 Mbps | 15 | -75 | ||
| 11n HT20 | MCS0, 7 | 18, 16 | -94, -75 | 11n HT20 | MCS0, 7 | 18, 15 | -93,-75 |
| 11n HT40 | MCS0, 7 | 18, 16 | -91, -72 | 11n HT40 | MCS0, 7 | 17, 15 | -91, -72 |
| 11ac VHT20 | MCS0, 8 | 18, 15 | -94, -71 | 11ac VHT20 | MCS0, 8 | 18, 14 | -93, -71 |
| 11ac VHT40 | MCS0, 9 | 18, 15 | -91, -67 | 11ac VHT40 | MCS0, 9 | 17, 13 | -91, -67 |
| 11ac VHT80 | MCS0, 9 | 18, 15 | -88, -64 | 11ac VHT80 | MCS0, 9 | 17, 13 | -88, -64 |
| 11ac VHT160 | MCS0, 9 | 17, 15 | -85, -61 | 11ac VHT160 | MCS0, 9 | 17, 13 | -85, -61 |
| 11ax HE20 | HE0, 11 | 18, 14 | -93, -64 | 11ax HE20 | HE0, 11 | 18, 12 | -92, -63 |
| 11ax HE40 | HE0, 11 | 18, 14 | -90, -60 | 11ax HE40 | HE0, 11 | 17, 12 | -90, -60 |
| 11ax HE80 | HE0, 11 | 18, 14 | -87, -57 | 11ax HE80 | HE0, 11 | 17, 12 | -87, -57 |
| 11ax HE160 | HE0, 11 | 17, 14 | -84, -54 | 11ax HE160 | HE0, 11 | 17, 12 | -84, -54 |

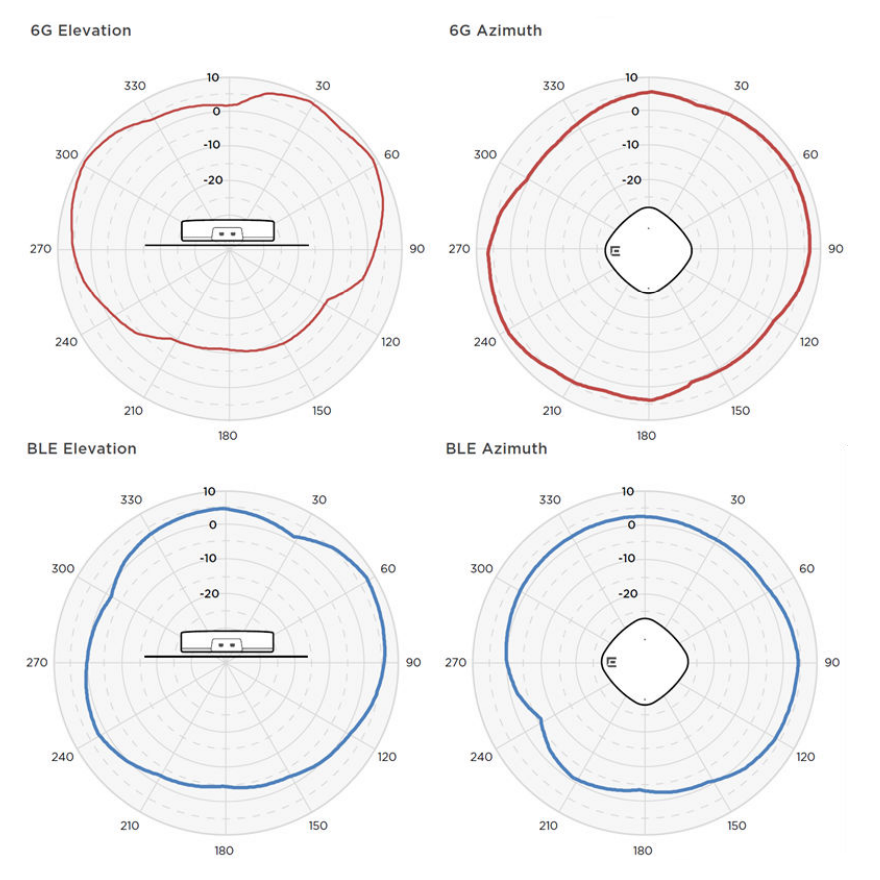

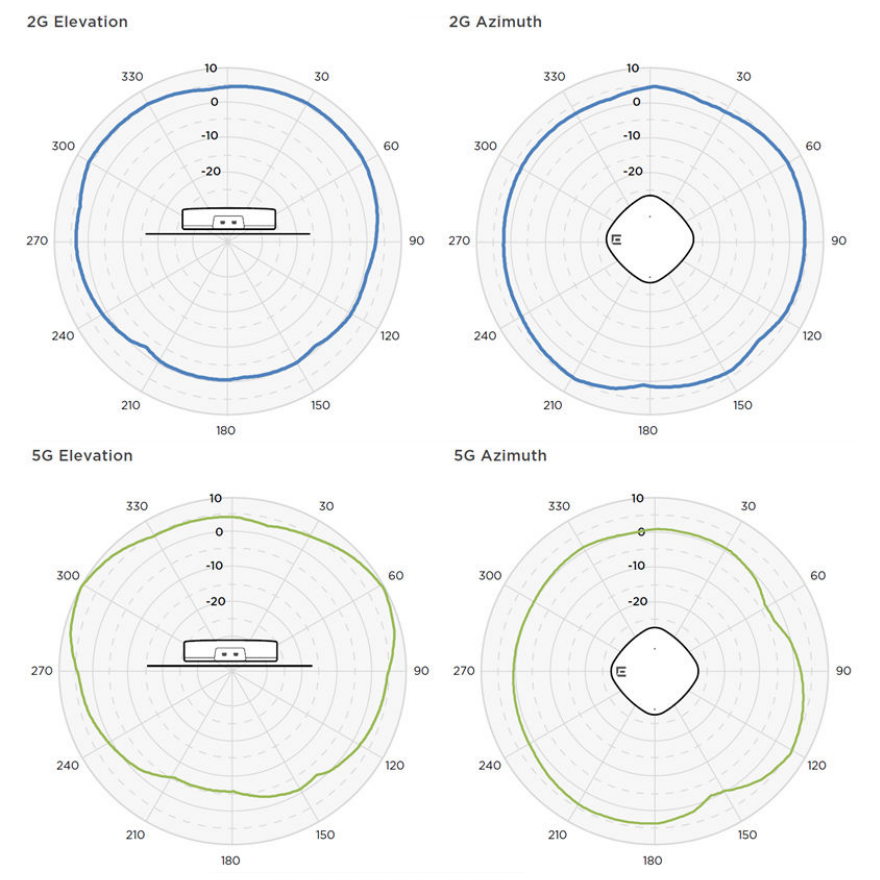

Radiation Patterns:
Documentation:
Download the Extreme Networks Universal Wireless AP3000/X Datasheet (PDF).
