Extreme Networks ExtremeWireless AP302W
Indoor Wallplate, Wi-Fi 6 Dual-Radio 2x2:2 Access Point and Switch

Extreme Networks ExtremeWireless AP302W


Extreme Networks Products
ExtremeWireless AP302W
ExtremeCloud IQ Indoor WiFi6 Wallplate, 2x2 radios with Dual 5GHz and 4 GE Ethernet ports with POE Out
Integrated light/power sensors & BLE, AI/ML green mode, Internal antennas, Domain: US
#AP302W-FCC
Our Price: $574.00

Overview:

Compact enterprise-class wallplate access point and switch with embedded IoT technology designed for wall or desktop mount. Ideal for use-cases such as hotel rooms, cruise ships, residential halls, or other multi-dwellingunit deployments.

The AP302W delivers high-performance wireless access, with aggregate rates of up to 1.6 Gbps, integrated Bluetooth Low Energy (BLE) and Zigbee for IoT connectivity, and 4 Gigabit Ethernet ports that can power digital phones, IoT sensors, or cameras.

The AP302W provides context-based security and performance optimization especially designed for multi-dwelling environments, through an on-board stateful L2-L7 DPI firewall, advanced and customizable Quality of Service (QoS) for traffic optimization, encrypted client tunneling, and much more.

Highlights

Radio Technology

  • 802.11ax - 5 GHz 2x2:2
  • 802.11ax - 2.4 GHz 2x2:2
  • Integrated BLE and Zigbee

Radio Modes - SSR

  • 5 GHz/2.4 GHz - fixed
  • 5 GHz/5 GHz - dual 5 GHz
  • 5 GHz with 2.4 GHz/5 Ghz sensor

Wired Connectivity

  • 4 Gigabit ethernet ports. One with power sourcing to power digital phones, IoT sensors, or cameras

Universal Hardware Platform

  • On-Premise: WiNG OS-Centralized and Distributed
  • ExtremeCloud™ IQ Engine

Management and Analytics with ExtremeCloud IQ

  • Automated deployments
  • Simplified network operations
  • Advanced reporting and network insights

Multi-Dwelling Isolation

  • Industry unique Private Client Groups provide micro-segmentation for multidwelling private networks without complex VLAN management

Secure Network Access

  • Broad range of authentication modes for all devices from guest to IoT
  • Integrated enterprise protection mechanisms including WIPS and VPN

Features:


Multi-Access Modes

Versatile in-room device delivering connectivity across multiple wired and wireless mediums including Wi-Fi, Ethernet, BLE, and Zigbee. Securely connect all of your devices from computers to cameras and games consoles through one convenient access solution.

Microsegmentation

Private Client Groups capability helps to microsegment multi-dwelling environments without complex Wi-Fi or VLAN designs. User, device, and application profiling at the edge of the network identifies and fine-tunes network access and performance based on role and privileges, ensuring secure, compliant, and highperformance wireless connectivity.


Advanced Security

This device delivers the highest level of security services, including a fully stateful L2-L7 DPI firewall for context-based access security, Private PreShared Key (PPSK) authentication, on-board RADIUS services, WIPS, VPN tunnelling, and much more.

Universal Hardware

In today's world, requirements evolve rapidly and businesses must often choose from different operating systems to enhance capabilities, improve product usability, or extend useful lifespan. Universal platforms from Extreme simplify the entire process. The same platforms can run multiple Extreme operating systems, providing flexibility and choice while minimizing total cost of ownership.


Wi-Fi 6 (802.11ax) Technology

Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking Wi-Fi networks to an entirely new level.

Integrated BLE, Zigbee, and USB Port

The AP302W leverages Bluetooth Low Energy (BLE) to connect with wireless IoT devices and engage loyal customers with Apple iBeacons. Enterprises can use API-driven applications to send advertisements directly to shoppers, guests, and conference attendees. Making it ideal for businesses to advertise their app download pages, captive portals, or site-specific information. A USB port adds additional functionality for IoT support.


Specifications:


Radio Specifications

802.11a

  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM Modulation)
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11b

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback

802.11g

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11n

  • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
  • 802.11n Modulation
  • 2.4 GHz: Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 300Mbps)
  • 5 GHz: Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 450Mbps)
  • 2x2:2 Multiple-In, Multiple-Out (MIMO) Radio for 5 GHz
  • 2x2:2 Multiple-In, Multiple-Out (MIMO) Radio for 2.4 GHz
  • HT20 High-Throughput (HT) Support for both 2.4 GHz and 5 GHz
  • HT40 High-Throughput (HT) Support for 5 GHz

802.11ac

  • 5.150–5.850 GHz Operating Frequency
  • 802.11ac Modulation (256-QAM)
  • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2
  • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • 20 MHz channel
  • VHT20/VHT40/VHT80 support
  • TxBF ( Transmit Beamforming)

802.11ax

  • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
  • 802.11ax Modulation (1024-QAM)
  • Downlink and uplink OFDMA
  • 5 GHz: Rates (Mbps): HE0-HE11 (8 Mbps – 1200 Mbps).
  • 2.4 GHz: Rates (Mbps): HE0-HE11 (8 Mbps – 574 Mbps).
  • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • 20/40/80 MHz channel support for 5 GHz
  • HE2020 MHz channel support for 2.4 GHz
  • DL SU-MIMO and MU-MIMO
  • TxBF (Transmit Beamforming)

Interfaces

  • (3) 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45 PoE
  • (1) 10/100/1000 Mbps auto-negotiation Power Over Ethernet (PoE)port, RJ45
  • (2) RJ45 Pass through ports
  • USB 2.0, Type A , 5V/500mA

Power Consumption

  • 802.3af Input: Typical 11.3W, Max 12.4W
  • 802.3at Input: Typical 23.6W, Max 24.9W
  • 12VDC Input: Typical: 10.9W, Max:11.6W (w/ 2.5W USB Load)

Power Options

  • IEEE 802.3af/802.3at (PoE/PoE+)
  • With IEEE 802.3af PoE power, AP302W will power up and the Wi-Fi and Ethernet ports will operate in its full capacity. In this scenario, PoE budget on the down link port is not supported
  • With IEEE 802.3at PoE power, AP302W will power up and the Wi-Fi and Ethernet ports will operate in its full capacity. In this scenario, the available PoE budget on the downlink port is 12.5W
  • Power supply 12VDC, 2.0A (sold as an accessory)
  • With 12VDC input, no support for PSE power

Physical

  • HxWxD: 6.9" x 4.2" x 1.1" (175mm x 105.9mm x 29.2mm)
  • Weight: .95 lb/(.43 kg)
  • Wallplate Bracket Weight: 0.26 lb (0.1 kg)
  • Kensington Lock

Antennas

  • (3) Internal omni-directional 2.4G/5G dual-band antennas (BLE 5.1 Zigbee- IEEE 802.15.4)
  • (1) Internal omni-directional 5G antenna

Mounting

  • Wallplate (included with the AP)
  • Desk mount (sold as an accessory)
  • 20mm wallplate hosuing extention (sold as an accessory)

Environmental

  • Operating: 0 to +40°C, Storage: -40 to +70°C
  • Humidity: 0% to 95% (non-condensing)

Warranty

  • The AP302W is covered under Extreme’s
  • Universal LLW policy.

Power and Sensitivity:


Power and Receive Sensitivity – 2.4 GHz
Channel Data Rate Power (dBm) Sensitivity (dBm)
11b 1 - 11 Mbps 18, 18 -97, -89
11g 6 Mbps  18 -91
54 Mbps  16 -75
11n HT20 MCS0, 7 18, 16 -91, -74
11n HT40 MCS0, 7 18, 16 -89, -72
11ax HE20 HE0, 11 18, 14 -91, -62
11ax HE40 HE0, 11 18, 14 -88, -59
Power and Receive Sensitivity – 5 GHz (Low/high band)
Channel Data Rate Power (dBm) Sensitivity (dBm)
11g 6 Mbps  16 -93
54 Mbps  15 -74
11n HT20 MCS0, 7 16, 14 -92, -74
11n HT40 MCS0, 7 16, 14 -89, -71
11ac VHT20 MCS0, 8 16, 13 -92, -69
11ac VHT40 MCS0, 9 16, 13 -89, -67
11ac VHT80 MCS0, 9 16, 13 -86, -62
11ax HE20 HE0, 11 16, 12 -92, -62
11ax HE40 HE0, 11 16, 12 -89, -59
11ax HE80 HE0, 11 16, 12 -86, -55
Power and Receive Sensitivity – 5 GHz (Low/high band)
Channel Data Rate Power (dBm) Sensitivity (dBm)
11g 6 Mbps  18 -93
54 Mbps  17 -74
11n HT20 MCS0, 7 18, 16 -93, -75
11n HT40 MCS0, 7 18, 16 -90, -72
11ac VHT20 MCS0, 8 18, 15 -93, -70
11ac VHT40 MCS0, 9 18, 15 -90, -68
11ac VHT80 MCS0, 9 18, 15 -87, -65
11ax HE20 HE0, 11 18, 14 -92, -62
11ax HE40 HE0, 11 18, 14 -89, -59
11ax HE80 HE0, 11 18, 14 -86, -56

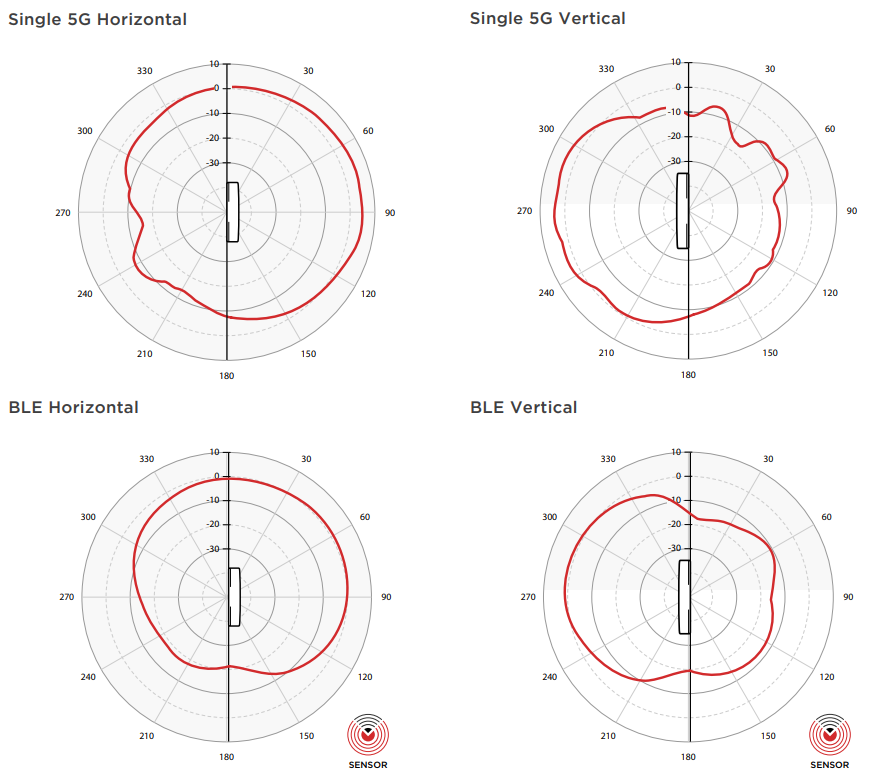

Radiation Patterns:

Documentation:

Download the Extreme Networks ExtremeWireless AP302W Datasheet (PDF).
