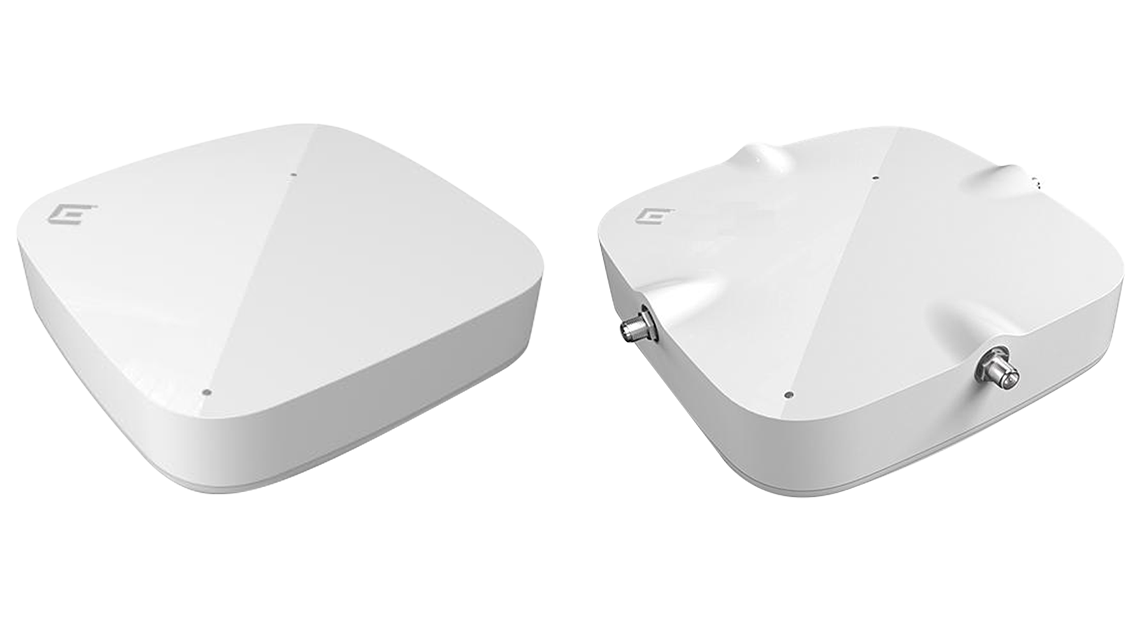

Extreme Networks AP305C/305CX
Cloud-managed Wi-Fi 6 access point based with new SoC (System on a Chip) architecture that is ideal for budget-conscious enterprises who do not want to sacrifice performance

Extreme Networks AP305C-FCC

Extreme Networks Products
Wi-fi 6 Access Point
Extreme Networks AP305C Access Point
ExtremeCloud IQ: Indoor Wi-Fi6 AP, 2x2 radios with Dual 5GHz and 1x1GbE port. Integrated light/power sensors and BLE. AI/ML green mode. Internal antennas. Built-in ceiling mounts. Includes Connect.
#AP305C-FCC
Our Price: $709.00
Extreme Networks AP305CX Access Point
ExtremeCloud IQ: Indoor Wi-Fi 6 AP, 2x2 radios with Dual 5GHz and 1x1GbE port. Integrated light/power sensors and BLE. AI/ML green mode. External antennas. Built-in ceiling mounts. Includes Connect.
#AP305CX-FCC
Our Price: $709.00
Extreme Networks AP305C Access Point (Does not include IoT radio and Bluetooth functionality.)
ExtremeCloud IQ Indoor Wi-Fi 6 AP 2x2 radios with Dual 5GHz and 1x1 GbE port. Integrated light/power sensors. AI/ML green mode. Internal antennas. Includes Connect.
#AP305C-1-FCC
Our Price: $656.00

Click here to jump to more pricing!

Overview:

Wi-Fi 6 (802.11ax) Indoor Access Point with integrated or external antenna options

The AP 305C/CX are indoor enterprise APs based on a new system-ona-chip (SoC) with two built-in dual-band radios providing the best value with Wi-Fi 6 high efficiency. You have your choice of models with either integrated or external antennas. Advanced radio technology delivers 802.11ax 2x2:2 data rates up to 2.4 Gbps concurrently on both the 2.4 GHz and 5 GHz radios. These 2x2:2 APs continue the Extreme tradition of software-selectable radios (SSRs) capable of dual 5 GHz connectivity for indoor and industrial environments.

Priced for the mass-market, this enterprise-grade access point is ideal for budget-conscious enterprises who do not want to sacrifice performance.

The AP 305C/CX comes in an aesthetic design and can fit in the palm of your hand. Both models are eco-friendly APs partially made from recycled materials. Also included is an integrated light sensor and integrated power meter to help conserve power consumption*. The easy install ceiling mount for quick installation and unique way to hide the Ethernet cables for an aesthetically pleasing installation.

Despite the exponential growth of users, BYOD devices, IoT, highbandwidth applications and security threats straining the infrastructure, the AP 305C/CX combines performance, security services and insightful ML/AI management capabilities to deliver an enterprise class solution at a value price.

Features:


ExtremeNetworks

Security

The AP 305C/CX delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, the AP 305C/CX supports a stateful L2-L7 DPI firewall for context-based access security, Private Pre-Shared Key (PPSK) and much more.

ExtremeNetworks

Wi-Fi 6 Technology

Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking Wi-Fi networks to an entirely new level. To learn more about 802.11ax, go to: Are you ready for 802.11ax?

ExtremeNetworks

Programmable Radios

Extreme launched the industry's first software defined 802.11ax access point supporting not only a dual 5 GHz capability but also two software programmable modes to optimally manage radios to provide the highest level of client performance. The AP 305C/CX intelligent monitoring of the software- configurable radios enables network managers to configure network RF technology based on user environment and configure the access points in different modes as required.

ExtremeNetworks

Management Analytics

In conjunction with Extreme Management system, cloud or on-premises, the AP 305C/CX provides a very rich set of data displayed via context driven widgets, representing historical data or a combination of historical and current data. This provides contextspecific granularity with perspective views for locations, network, APs, individual client devices, as well as policy roles. In each context, administrators can adjust dashboards make a widget library.

ExtremeNetworks

RF Monitoring

Network managers will appreciate a powerful choice of RF management for their Wi-Fi networks, with Adaptive RF management with AI/ML-like functionality. Adaptive RF algorithms provide intelligent selection of the best channels and transmit power for unimpaired dual 5 GHz operation. Load balancing, band steering and many other attributes of the RF can all be automated.

ExtremeNetworks

Integrated BLE and USB Port

To support both IoT and Guest Engagement services the AP 305C/CX integrates Bluetooth to connect with IoT devices wireless to engage loyalty customers with Apple iBeacon. Enterprises can use API driven applications to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app download pages, captive portals, or site-specific information.

Specifications:


Radio Specifications

802.11a

  • • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback

802.11b

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallback

802.11g

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback

802.11n

  • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
  • 802.11n Modulation
  • Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps)
  • 2x2 Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
  • HT40 High-Throughput (HT) Support for 5 GHz
  • A-MPDU and A-MSDU Frame Aggregation

802.11ac

  • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
  • 802.11ax Modulation (1024-QAM)
  • Dual-band OFDMA
  • Rates (Mbps)
    • 5G: HE0-HE11 (8 Mbps – 1200 Mbps).
    • 2.4G: HE0-HE11 (8 Mbps – 574 Mbps).
  • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • HE20/HE40/HE80 support for 5 GHz
  • HE20/HE40 support for 2.4 GHz
  • DL SU-MIMO and MU-MIMO
  • TxBF (Transmit Beamforming)

BLE 5 Radio Bluetooth® Low Energy (BLE) and IEEE® 802.15.4 compliant

Interfaces

  • (1) Autosensing 10/100/1000 BASE-T Ethernet PoE (Power over Ethernet 802.3af) Port
  • USB2.0, Type A 5V, 0.9A
    • USB power <= 500 mA - 802.3af
    • USB power > 500 mA - 802.3at

Power Options

  • Power Draw: Typical: 9.98 W; Max: 11.28 W (w/o USB)
    Typical: 14.98 W; Max: 16.28 W (w/ USB)
  • 802.3af Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6)
  • Support 802.3af/802.3at Power over Ethernet injector

Power Specifications

  • IEEE 802.3af PoE Power

Physical

  • AP 305C: 5.2" x 5.2" x 1.5" (133mm x 133mm x 37mm)
  • AP 305CX: 5.8" x 5.8" x 1.5" (147mm x 147mm x 39mm)
  • AP 305C and AP 305CX: .9 lbs (.4kg)
  • TPM Chip for added security

Antennas

AP 305C - Internal Antennas

  • (2) Integrated single band, 2.4-2.5 GHz omnidirectional antennas
  • (2) Integrated single band, 5.1-5.8 GHz omnidirectional antennas

AP 305CX - External Antennas

  • (4) RP SMAs connectors

Mounting

  • AP support 15/16 flush ceiling tile and is integrated to AP
  • Wall Mount sold as an accessory
  • Ceiling Tile Recessed 15/16" sold as an accessory
  • Built-in slot for Kensington type locks

Environmental

  • Operating: 0 to 40 °C, Storage: -40 to 70 °C
  • Humidity: 10% to 95% (non-condensing)

Environmental Discharge

  • +/-8 kV (contact discharge)/ +/-15 kV (Air Discharge)

Environmental COmpliance

  • UL2043 - Plenum Rated

Regulatory Compliance

  • IEC 62368/60950-1, EN 62368/60950-1, USA 62368/60950-1, AS/NZS 62368/60950.1, Intertek NTRL
  • RoHS Directive 2011/65/EU

Radio Approvals

  • FCC CFR 47 Part 15, Class B
  • ICES-003, Class B
  • FCC Subpart C 15.247
  • FCC Subpart E 15.407
  • RSS247
  • AS/NZS4268 + CISPR32
  • IEC/EN 60601-1-2,
  • EN 62479
  • EN 62311
  • EN 50385
  • EN 301 489-1
  • EN 301 489-3
  • EN 301 489-17
  • EN 55032, (Class B)

Power Options

  • EN 55011, (Group 1, Class B)
  • EN 55024
  • EN 60601-1-2
  • EN 61000-3-2
  • EN 61000-3-2
  • EN 300 328
  • EN 301 893
  • EN 300 440
  • EN 50581

Documentation:

Download the Extreme Networks AP305C-FCC Datasheet (PDF).
