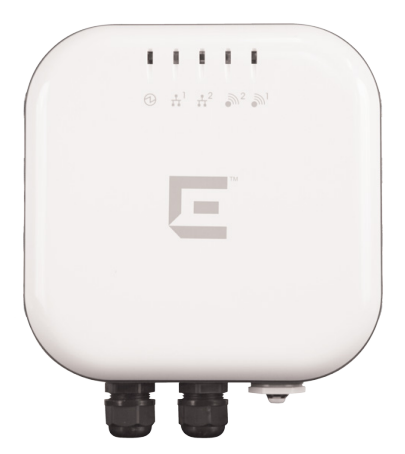

Extreme Networks ExtremeWireless AP3965i
802.11a/b/g/n/ac Wave 2 Outdoor Access Point with Internal Antenna


Extreme Networks ExtremeWireless AP3965i


Sorry, this product is no longer available, please contact us for a replacement.


Overview:

The AP3965i/e is an ultra-high performance 802.11a/b/g/n/ac wave 2 outdoor access point that extends mobility beyond the walls. These outdoor access points are designed to operate in harsh environments such as warehouses, manufacturing plants, parks and stadiums. The AP3965 uses 802.3at Power over Ethernet (PoE+) for maximum performance and can operate within an 803.2af power budget with reduced performance.

The AP3965i/e is available in both internal and external antenna models. The AP3965i comes with an integrated eight port antenna array for ease of installation. The AP3965e requires professional installation and includes eight standard N-type antenna connectors with integrated lightning protection supporting both 2.4GHz and 5GHz band antennas.

The AP3965i/e is built on the latest Wi-Fi technology including 802.11ac wave2, dynamic radio management, and spectrum analysis with interference classification, beamforming, multi-user MIMO, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control. The 4x4:4 platform is capable of delivering up to 2.5 Gbps over-the-air-performance and up to 90,000 packets per second on the wire port. Multiple antenna offerings (e.g., Omni, sector, and panel) for the AP3965e ensure that deployments can be optimized to meet any unique coverage or capacity needs.

Highlights

Business Alignment

  • Support for demanding voice/video/ data applications to enhance mobile worker productivity and convenience
  • Role-based grouping of users, devices, and applications
  • To deliver priority, QoS, and security in accordance with business needs
  • Seamless roaming across an entire multi-subnet
  • Campus without the need for cumbersome client software
  • Integrated management, security, and QoS features reduce operating cost and ensure a consistent user experience regardless of location

Operational Efficiency

  • Centralized visibility and control from NetSight™ accelerates problem resolution, optimize network utilization, and automate management
  • Adaptive architecture reduces complexity and optimizes information flow for each application
  • Dynamic Radio Management when used for planning and monitoring ensures optimal spectrum coverage resulting in the best end-user quality of experience
  • Flexible Client Access optimizes throughput for 802.11ac/n clients in today’s mixed ac, n, and a/b/g client environments

Features:


Designed to operate in harsh environments

The AP 3965i/e is an ultra-high performance 802.11abgn/ac wave 2 outdoor access point that extends mobility beyond the walls. These outdoor access points are designed to operate in harsh environments such as warehouses, manufacturing plants, parks and stadiums.


Ease of Installation

The AP 3965i/e is available in both internal and external antenna models. The AP 3965i comes with an integrated eight port antenna array for ease of installation.


Built on the latest Wi-Fi technology

The AP 3965i/e is built on the latest Wi-Fi technology including 802.11ac wave2, dynamic radio management, and spectrum analysis with interference classification, beamforming, multi-user MIMO, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control.


Specifications:


General

  • High Performance Enterprise Class AP
  • 2 Wi-Fi Radios
  • 4x4 MIMO Implementation for High-Performance 11ac & 11n Throughputs
  • 4 Spatial Streams
  • 3 Simultaneous Users (MU-MIMO)
  • 800 Mbps Maximum Throughput 2.4GHz Radio
  • 1.733 Gbps Maximum Throughput 5GHz Radio
  • 2.532 Gbps Maximum Throughput Per AP
  • 90,000 pps RFC2285 Wire/Wireless Forwarding Rate
  • 8/16 SSIDs Supported Per Radio/Total
  • 240/480 Per AP Simultaneous Users Per Radio/Total
  • 12 or greater Simultaneous Voice calls (802.11b, G711, R>80)
  • Semi-Autonomous Mode of Operation
  • Plug and Play Operation/Zero Touch Deployment
  • Security and Standards: WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12, SSL

Multiple Operating Modes

  • Intelligent Thin AP: Encryption, Security, QoS and RF Management Services done at AP
  • Distributed and Centralized Data Paths Within Same SSID
  • Application Based Distributed and Centralized Data Paths Within Same User / Device Session
  • Simultaneous RF Monitoring and Client Services
  • In-Channel WIDS
  • In-Channel WIPS
  • Dedicated Multi-Channel WIDS (Guardian Mode)
  • Dedicated Multi-Channel WIPS (Guardian mode)
  • Dedicated Multi-Channel RF Spectrum Analysis and Fingerprinting
  • Locates Devices and Threats via RF Triangulation
  • Self-Forming and Self-Healing Meshing
  • Remote Access Point
  • Hardware-Based, End-to-End Data and Control Plane Encryption
  • Private and Public Cloud Deployments
  • SSL

Radio Characteristics - Max Conductive Power

  • Radio 1 (5GHz): 29 dBm
  • Radio 2 (2.4GHz): 27 dBm

Max Total Conducted Power (Integrated Antenna)

  • Radio 1 (5GHz): 5 dBi (AP3935i)
  • Radio 2 (2.4GHz): 3 dBi (AP3935i)

Adaptive Radio Management

  • Dynamic Channel Control: 802.11h: DFS and TPC support (ETSI)
  • Efficient Use of the Spectrum with A Multi-Channel Architecture
  • Automatic Transmit Power and Channel Control
  • Self-Healing with Coverage Gap Detection
  • Band Steering with Multiple Steering Modes
  • Spectrum Load Balancing of Clients
  • Airtime Fairness
  • Performance Protection In Congested RF Environments
  • Fast Transition Roaming (802.11k)
  • Mitigates Co-Channel Interference with Coordinated Access
  • Mitigates Adjacent Channel Interference with Optimized Receive Sensitivity
  • Efficient Reuse of Channels At Shorter Intervals
  • Mitigates Non 802.11 Interference Without Dedicated Radios
  • Probe Suppression and Client Link Monitoring
  • Management Frame Protection (802.11w)
  • Automatic Discovery of Networks by Pre-Authenticated Devices (802.11u)

Quality of Service

  • Quality of Service (WMM, 802.11e)
  • Power Save (U-APSD)
  • Fast Secure Roaming and Handover Between APs (802.11r)
  • Pre-Authentication (Pre-Auth)
  • Opportunistic Key Caching (OKC)
  • Bonjour/LLMNR/UPNP Identification, Containment and Control
  • Supports Voice, Video, and Data Using the Same SSID
  • Prioritizes Voice Over Data for Both Tagged and Untagged Traffic
  • Rate Limiting (Rule and User-Based)
  • Rule and Role Based Qos Processing

Multicast Rate Control

  • Multicast to Unicast Conversion
  • Adaptable Rate Multicast
  • Power Save Mode Optimization for Multicast

Wireless Services

  • Media Access Protocol
    • CSMA/CA with ACK
  • Data Rates
    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11n: Performance Table, check on datasheet
    • 802.11ac: Performance Table, check on datasheet
    • Receiver Sensitivity 802.11a:
      • -92dBm @ 6Mbps
      • -77dBm @ 54Mbps
    • 802.11g:
      • -91dBm @ 6Mbps
      • -78dBm @ 54Mbps
    • 802.11n: See 802.11n Receiver Sensitivity Table, check on datasheet
    • 802.11ac: See 802.11ac Receiver Sensitivity Table, check on datasheet
  • Frequency Bands
    • 802.11 ac/a/n:
      • 5.15 to 5.25 GHz (FCC/IC/ETSI)
      • 5.25 to 5.35 GHz (FCC/IC/ETSI)*
      • 5.47 to 5.725 GHz (FCC/IC/ETSI)*
      • 5.725 to 5.850 GHz (FCC/IC)
    • 802.11b/g/n:
      • 2.400 to 2.4720 GHz (FCC/IC)
      • 2.400 to 2.4835 GHz (ETSI)
    • *FCC/IC DFS planned after release
  • Wireless Modulation
    • 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM with OFDM
    • 802.11ac Packet Aggregation: A-MPDU, A-MSDU
    • 802.11ac Very HighThroughput (VHT): VHT20/40/80
    • 802.11ac Advanced Features: LDPC, STBC, Maximum Likelihood (ML) Detection
    • 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11n High-throughput (HT) support: HT 20/40 802.11n Packet aggregation: A-MPDU, A-MSDU
    • 802.11n Advanced Features: LDPC, STBC and TxBF
    • 802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM
    • 802.11g: DSSS and OFDM
    • 802.11b: DSSS

Interfaces

  • 2x 10/100/1000 Base T Ethernet autosensing link

Mounting

  • Flat Wall Mounting (Included)

Environmental

  • Protection: IP67 / NEMA6
  • Operating:
    • Temperature -30° C to +60° C (-22° F to + 158° F)
    • Humidity 0%-95% (noncondensing)
  • Storage Temperature: -40° C to +70° C (-58° F to +158° F)
  • Transportation Temperature: -40° C to +70° C (-58° F to +158° F)

Wireless and EMC

  • Compliance
    • FCC CFR 47 Part 15, Class B
    • ICES-003 Class B
    • FCC Subpart C 15.247
    • FCC Subpart E 15.407
    • RSS-210
    • EN 301 893
    • EN 300 328
    • EN 301 489 1 & 17
    • EN 50385
    • EN 55032 (CISPR 32)
    • EN 60601-1-2
    • AS/NZS4268 + CISPR32
  • Safety
    • IEC 60950-1
    • IEC60950-22
    • EN 60950-1
    • UL 60950-1
    • UL 60950-22
    • CSA 22.2 No.60950-1-03
    • CSA 2.2 No. 60950-22
    • AS/NZS 60950.1

Mechanical

  • Dimensions
    • 9.5” x 8.23” x 2.36” - AP3965i
    • 9.5” x 8.23” x 2.36”- AP3965e (including lightning protectors)
  • Weight
    • AP3965e - 4.4lbs (1.99 Kg)
    • AP3965i - 3.4lbs (1.5 Kg)
  • Power Consumption: 17 W (w/o PSE)
  • One Year Hardware Warranty

* Actual available power would vary based on local regulatory requirement and actual channels used for operation


Documentation:

Download the Extreme Networks ExtremeWireless AP3965i/e Datasheet (PDF).
