Extreme Networks Universal Wireless AP460C
Wi-Fi 6 (802.11ax) Tri-Radio IP67 Rated Outdoor Access Point

Extreme Networks ExtremeWireless AP302W


Extreme Networks Products
Universal Wireless AP460C
ExtremeCloud IQ Outdoor Tri Radio WiFi 6 Access Point with ONMI antennas
4x4 5 GHz 2x2 Dual Band 1x1 Sensor with Dual 5GHz and Mulitrate Port, environmentally friendly, Light, power sensors, BLE. AI/ML green mode.
#AP460C-FCC
Our Price: $1,200.00
ExtremeCloud IQ Outdoor Tri Radio WiFi 6 Access Point with Internal 60� Sector
4x4 5 GHz 2x2 Dual Band 1x1 Sensor with Dual 5GHz and Mulitrate Port, environmentally friendly, Light, power sensors, BLE. AI/ML green mode.
#AP460S6C-FCC
Our Price: $1,200.00
ExtremeCloud IQ Outdoor Tri Radio WiFi 6 Access Point with Internal 120� Sector
4x4 5 GHz 2x2 Dual Band 1x1 Sensor with Dual 5GHz and Mulitrate Port, environmentally friendly, Light, power sensors, BLE. AI/ML green mode.
#AP460S12C-FCC
Our Price: $1,200.00

Overview:

In today’s world, as businesses make capital investments in their technology infrastructure, they must have a keen eye on how those investments can improve operational efficiency and reduce cost. With Extreme’s Universal infrastructure, customers can take advantage of hardware agility and reduce the total cost of their network by adopting platforms that allow them to run multiple Extreme operating systems. This multi-persona capability provides increased product flexibility and reduced hardware obsolescence.

The AP460C is part of Extreme’s Universal Wi-Fi platforms and provides users the choice of Wi-Fi operating system (IQ Engine or WiNG Operating System). Customers have the flexibility to select the OS at start-up or at a later stage and the AP will assume the features/capabilities of the selected OS. When first booted, the AP460C automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the AP460C AP and the user can stay in the cloud or select manage the device locally.

The AP460C is a Tri Radio based on advanced radio technology delivers 802.11ax and is designed for harsh environments; from hurricane force winds to sub-zero temperature. The AP460C is IP67 outdoor rated and extends Extreme’s Wi-Fi 6 coverage outdoors in a sleek form factor with three different antenna models: AP460C is based on internal Omni antenna, AP460S6C is a internal 60° Sector, and the AP460S12C is based on a 120° Sector for the most challenging outdoor deployments.

The AP460C is based on Wi-Fi 6 Tri-Radios design delivers 802.11ax 2x2:2 data rates on 2.4 GHz and 4x4:4 data rates on 5 GHz concurrently on both the 2.4 GHz and 5 GHz radios and a 3rd radio for a dedicated full time dual banded sensor. The Tri-Radio APs continue the Extreme tradition of softwareselectable-radios (SSRs) capable of dual 5 GHz connectivity for outdoor harsh environments. The AP460C platforms are the first generation of APs to run multiple Extreme operating systems, providing flexibility and choice of onpremise or cloud deployment, while minimizing total cost of ownershipWith more users, more devices, more things, more applications and more threats straining the infrastructure, the AP460C was engineered to meet those challenges. The AP460C combines powerful 802.11ax Wi-Fi 6 technology, advanced security and ML/AI management capabilities together into an enterprise class solution that allows you to deploy high speed, highly secure Wi-Fi into the toughest environments.

Highlights

Advanced Radio Technology

  • Tri-Radio Design
    • 5 GHz 4x4:4
    • 2.4 GHz 2x2:2
    • 2.4 GHz/5 GHz/Sensor

Multiple Radio Modes - SSR

  • 2.4 GHz/5 GHz/Sensor (2.4 GHz/5GHz)
  • 5 GHz/5 GHz - Dual 5 GHz

Universal Hardware Platform

  • On-Premise: WiNG OS-Centralized and Distributed
  • Cloud: IQ Engine

High Density Environments

  • Delivers exceptional end-user experience even in the densest user environments

WPA3 Support

  • Includes the latest WPA3 Wi-Fi security standard delivering robust protections for users and IoT devices

Fully Functional over 802.3at Designed for Harsh Environments

  • • IP67 Outdoor Rated
  • Extended temp range- 40C to +60C

Smart Management Choices

  • ExtremeCloud IQ delivers powerful, simple and secure public or private cloud management capabilities
  • ExtremeCloud Appliance or VX or NX controller is ideal for on-premises requirements

Features:


Security

The AP460C delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2- L7 DPI firewall for context-based access security.

Management Analytics

In conjunction with management system, cloud or Onpremises the AP460C provides a very rich set of data displayed via context driven widgets, representing historical data or a combination of historical and current data. This provides context-specific granularity with perspective views for locations, network, APs, individual client devices as well as policy roles. In each context, administrators can adjust dashboards from widget library.


Wi-Fi 6 Technology

Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking Wi-Fi networks to an entirely new level.

Programmable Radios

Industry's first tri-radio 802.11ax access point with two software selectable radios to optimally manage radios to provide the highest level of client performance while simultaneously providing continuous RF monitoring for security threats. The AP460C intelligent monitoring of the software selectable radios enables network managers configure network RF topology based on user environment and configure the access points in different modes as required.


Universal Hardware

The AP460C as a universal hardware platform comes with a dual-persona capability allowing user choice of the WiFi operating system (OS). Either the IQ Engine operating system or the WiNG Operating System persona can be enabled as required. The desired persona can be selected at start-up or changed at a later stage. Once selected, the AP460C assumes the features/capabilities of the selected OS. When first booted, the AP460C automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the AP460C system, eliminating the need for manual selection.

Integrated BLE

To support both IoT and Guest Engagement services the AP460C integrates Bluetooth to connect with IoT devices with Thread wireless or engage loyalty customers with Apple iBeacon. Enterprises can use API driven applications to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app-download pages, captive portals, or site-specific information.


Specifications:


Radio Specifications

Max Users

  • SSID per Radio/Total: 8/16
  • Users per Radio/total: 512/1024

802.11a

  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11b

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback

802.11g

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11n

  • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
  • 802.11n Modulation
  • Rates (Mbps): MCS0 – MCS31 (6.5MBps - 600Mbps)
    • 5G: 4x4 Multiple-In, Multiple-Out (MIMO) Radio
    • 2.4G: 2x2 Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
  • HT40 High-Throughput (HT) Support for 5 GHz
  • A-MPDU and A-MSDU Frame Aggregation

802.11ac

  • 5.150–5.850 GHz Operating Frequency
  • 802.11ac Modulation (256-QAM)
  • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4.
  • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • VHT20/VHT40/VHT80 support
  • TxBF (Transmit Beamforming)

802.11ax (for 5 GHz Sensor)

  • 5.150–5.850 GHz Operating Frequency
  • 802.11ax Modulation (1024-QAM)
  • Dual-band OFDMA
  • Rates (Mbps): HE0-HE11 (8 Mbps – 1200 Mbps), NSS = 1-2.
  • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • VHT20/VHT40/VHT80/VHT160 support
  • TxBF (Transmit Beamforming)

802.11ax (for 5 GHz Radio)

  • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
  • 802.11ax Modulation (1024-QAM)
  • Dual-band OFDMA
  • Rates (Mbps):
    • 5G: HE0-HE11 (8 Mbps – 4800 Mbps)
    • 2.4G: HE0-HE11 (8Mbps – 574 Mbps)
  • 4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • HE20/HE40/HE80/HE160 support for 5 GHz
  • HE20/HE40 support for 2.4 GHz
  • DL SU-MIMO and MU-MIMO
  • TxBF (Transmit Beamforming)

Radios

  • BLE 5 Radio Bluetooth Low Energy
  • USB 2.0, Type A , 5V, .5A

Peak Antenna Gain

AP460C Max Antenna Gain (Integrated Antenna)
Software Mode WiFi 0 WiFi 1 WiFi 2 IoT Radio Azimuth Beamwidth Elevation Beamwidth
Dual Band 2.4 Ghz 3.24dBi 5 Ghz 4.21dBi 2.4 Ghz 3.74dBi/
5 Ghz 3.42dBi
3.2dBi 360 150
Dual 5G 5 Ghz 3.56dBi 5 Ghz 4.21dBi 2.4 Ghz 3.74dBi/
5 Ghz 3.42dBi
3.2dBi 360 150
AP460S6C Max Antenna Gain (Integrated Antenna)
Software Mode WiFi 0 WiFi 1 WiFi 2 IoT Radio Azimuth Beamwidth Elevation Beamwidth
Dual Band 2.4 Ghz 7.83dBi 5 Ghz 8.06dBi 2.4 Ghz 7.59dBi/
5 Ghz 7.63dBi
7.9dBi 60 60
Dual 5G 5 Ghz 7.83dBi 5 Ghz 8.06dBi 2.4 Ghz 7.59dBi/
5 Ghz 7.63dBi
7.9dBi 60 60
AP460S12C Max Antenna Gain (Integrated Antenna)
Software Mode WiFi 0 WiFi 1 WiFi 2 IoT Radio Azimuth Beamwidth Elevation Beamwidth
Dual Band 2.4 Ghz 6.46dBi 5 Ghz 6.25dBi 2.4 Ghz 5.53dBi/
5 Ghz 5.54dBi
6.63dBi 120 70
Dual 5G 5 Ghz 6.34dBi 5 Ghz 6.25dBi 2.4 Ghz 5.53dBi/
5 Ghz 5.54dBi
6.63dBi 120 70

Interfaces

  • 100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE (Power over Ethernet 802.3at) Port
  • 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45

Power Specifications

  • IEEE 802.3at PoE Power

Power Options

  • Power Draw:
    • Typical 21.7W, Max: 25.3W (w/USB)
    • Typical 18.2W, Max 20.8W (w/o USB)
  • 802.3at Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6)
  • 802.3af Power over Ethernet injector

Physical

  • AP460C: 9.4" x 9.4" x 2.9" (237.6 mm x 237.6 mm x 72.5 mm) Weight: 3.9 lbs (1.8 kg)
  • AP460S6C: 9.4" x 9.4" x 3.5" (237.6 mm x 237.6 mm x 90mm) Weight: 4 lbs (1.8 kg)
  • AP460S12C: 9.4" x 9.4" x 3.5" (237.6 mm x 237.6 mm x 90mm) Weight: 4 lbs (1.8 kg)

Antennas

  • AP460C - Internal OMNI Antennas
    • (2) Integrated single band, 5.1-5.8 GHz omnidirectional antennas
    • (4) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional
    • (1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
  • AP460S6C - Internal 60° Sector. Antennas
    • (2) Integrated single band, 5.1-5.8 GHz sector antennas
    • (4) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz sector antennas
    • (1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
  • AP460S12C - Internal 120° Sector. Antennas
    • (2) Integrated single band, 5.1-5.8 GHz sector antennas
    • (4) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz sector antennas
    • (1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE

Environmental

  • Operating: -40 to 60°C
  • Storage: -40 to 70°C
  • Humidity: 0% to 95% (non-condensing)

Environmental Discharge

  • +/- 8KV contact and +/- 15 KV air

Environmental Compliance

  • Housing: IP67 rated outdoor use

Regulatory Compliance

  • IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03 AS/NZS 60950.1,
  • RoHS Directive 2011/65/EU

Warranty

  • The AP302W is covered under Extreme’s
  • Universal LLW policy.

Wi-Fi Alliance Certifications

  • Connectivity
    • Wi-Fi CERTIFIED 6
    • Wi-Fi CERTIFIED a, b, g, n, ac
  • Access
    • Passpoint
  • Optimization
    • WMM
    • WMM – Power Save
    • Wi-Fi Agile Multiband
  • Security
    • Protected Management Frames
    • WPA – Enterprise, Personal
    • WPA2 – Enterprise, Personal
    • WPA3 – Enterprise, Person

Power and Sensitivity:


Power and Receive Sensitivity – 2.4 GHz
Channel Data Rate Power (dBm) Sensitivity (dBm)
11b 1 - 11 Mbps 18, 16 -93, -87
11g 6 Mbps  18 -89
54 Mbps  15 -72
11n HT20 MCS0, 7 18, 14 -89, -70
11n HT40 MCS0, 7 18, 14 -86, -68
11ax HE20 HE0, 11 18, 11 -89, -59
11ax HE40 HE0, 11 18, 11 -86, -56
Power and Receive Sensitivity – 5 GHz (Full Band)
Channel Data Rate Power (dBm) Sensitivity (dBm)
11g 6 Mbps  21 -90
54 Mbps  18 -73
11n HT20 MCS0, 7 21, 17 -90, -71
11n HT40 MCS0, 7 20, 17 -87, -69
11ac VHT20 MCS0, 8 21, 16 -90, -67
11ac VHT40 MCS0, 9 20, 16 -87, -62
11ac VHT80 MCS0, 9 19, 16 -85, -55
11ac VHT160 MCS0, 9 18, 15 -79, -50
11ax HE20 HE0, 11 21, 16 -90, -60
11ax HE40 HE0, 11 20, 16 -87, -57
11ax HE80 HE0, 11 19, 16 -85, -54
11ax HE160 HE0, 11 18, 15 -79, -48
Power and Receive Sensitivity – 5 GHz (High Band)
Channel Data Rate Power (dBm) Sensitivity (dBm)
11g 6 Mbps  20 -89
54 Mbps  17 -72
11n HT20 MCS0, 7 20, 16 -89, -70
11n HT40 MCS0, 7 19, 16 -86, -68
11ac VHT20 MCS0, 8 20, 15 -89, -66
11ac VHT40 MCS0, 9 19, 15 -86, -61
11ac VHT80 MCS0, 9 18, 15 -84, -54
11ac VHT160 MCS0, 9 17, 14 -78, -49
11ax HE20 HE0, 11 20, 15 -89, -59
11ax HE40 HE0, 11 19, 15 -86, -56
11ax HE80 HE0, 11 18, 15 -84, -53
11ax HE160 HE0, 11 17, 14 -78, -47
Power and Receive Sensitivity – 5 GHz (Low Band)
Channel Data Rate Power (dBm) Sensitivity (dBm)
0.0525 in 6 Mbps  18 -89
54 Mbps  16 -72
11n HT20 MCS0, 7 18, 15 -89, -70
11n HT40 MCS0, 7 18, 15 -86, -68
11ac VHT20 MCS0, 8 18, 14 -89, -66
11ac VHT40 MCS0, 9 18, 14 -86, -61
11ac VHT80 MCS0, 9 18, 14 -84, -54
11ax HE20 HE0, 11 18, 13 -89, -59
11ax HE40 HE0, 11 18, 13 -86, -56
11ax HE80 HE0, 11 18, 13 -84, -53

Radiation Patterns:

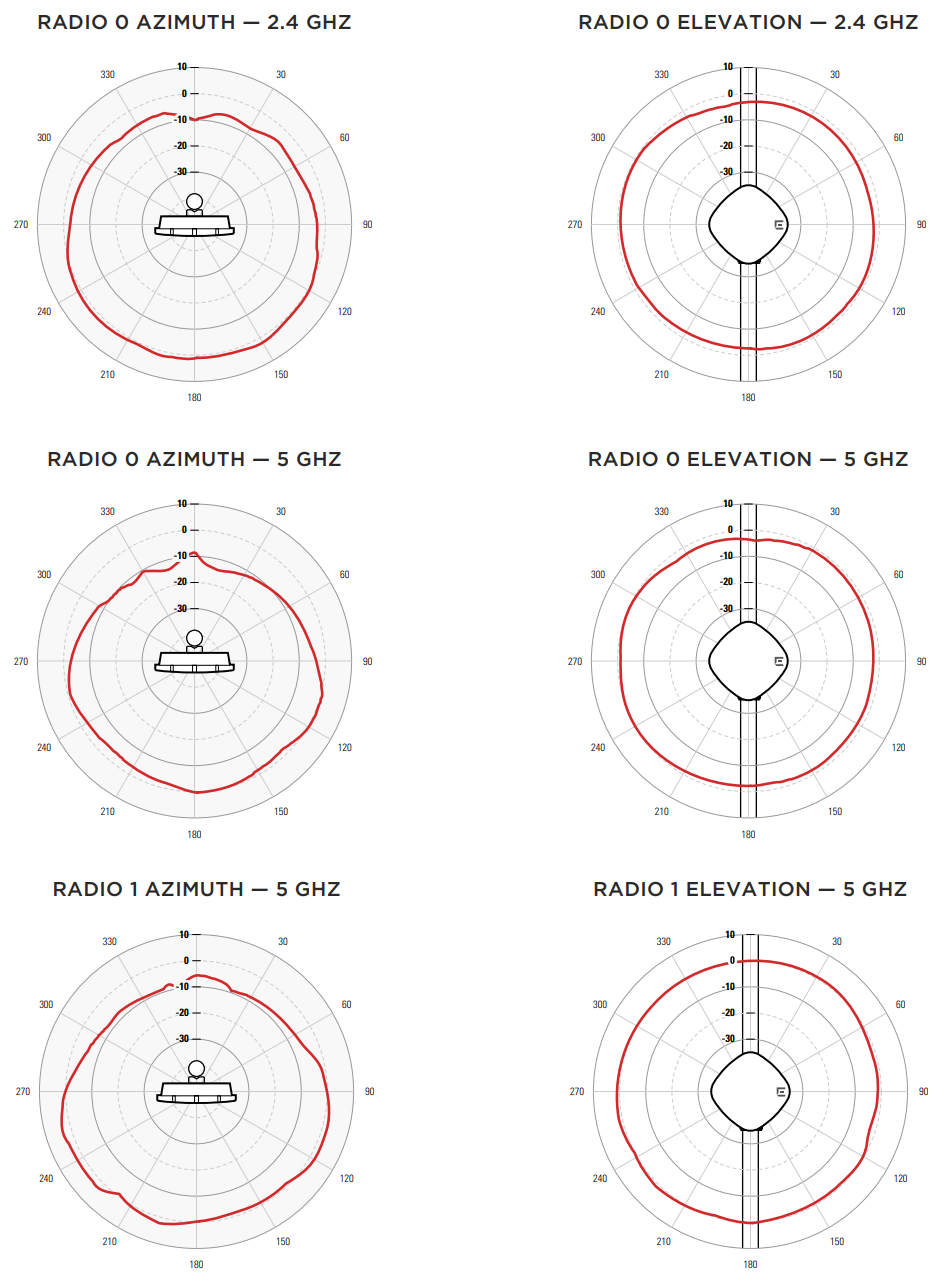

AP460C Radiation Patterns

AP460C Radiation Patterns

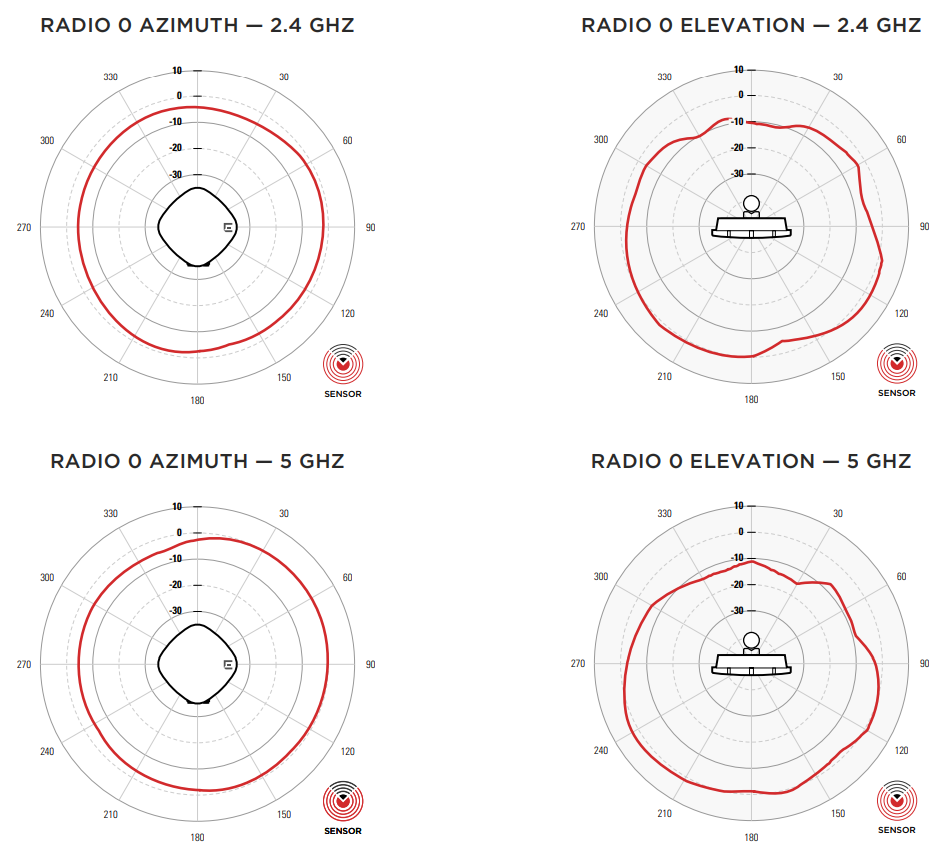

AP460C Sensor Patterns

AP460C Sensor Patterns

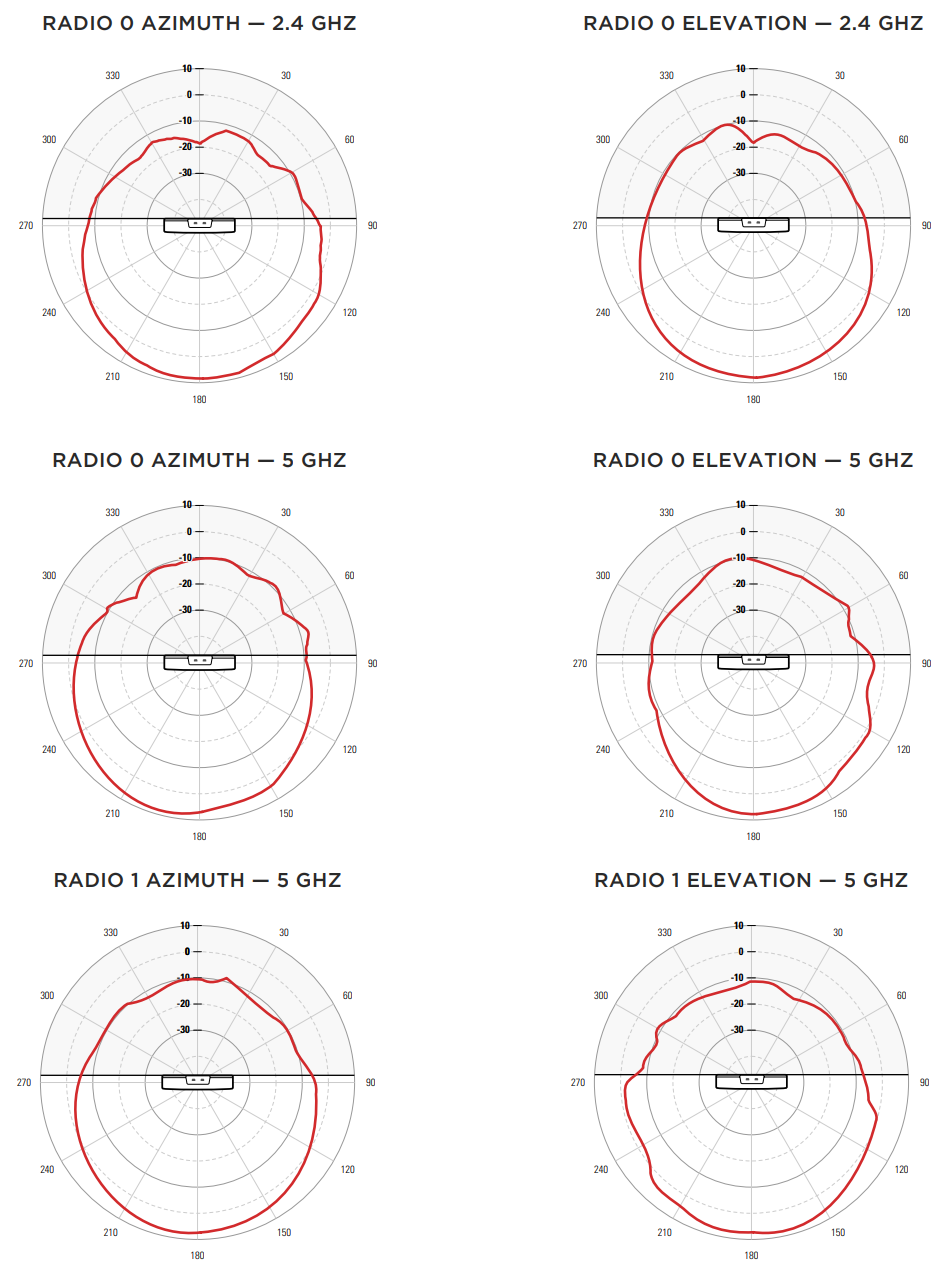

AP460S6C Radiation Patterns

AP460S6C Radiation Patterns

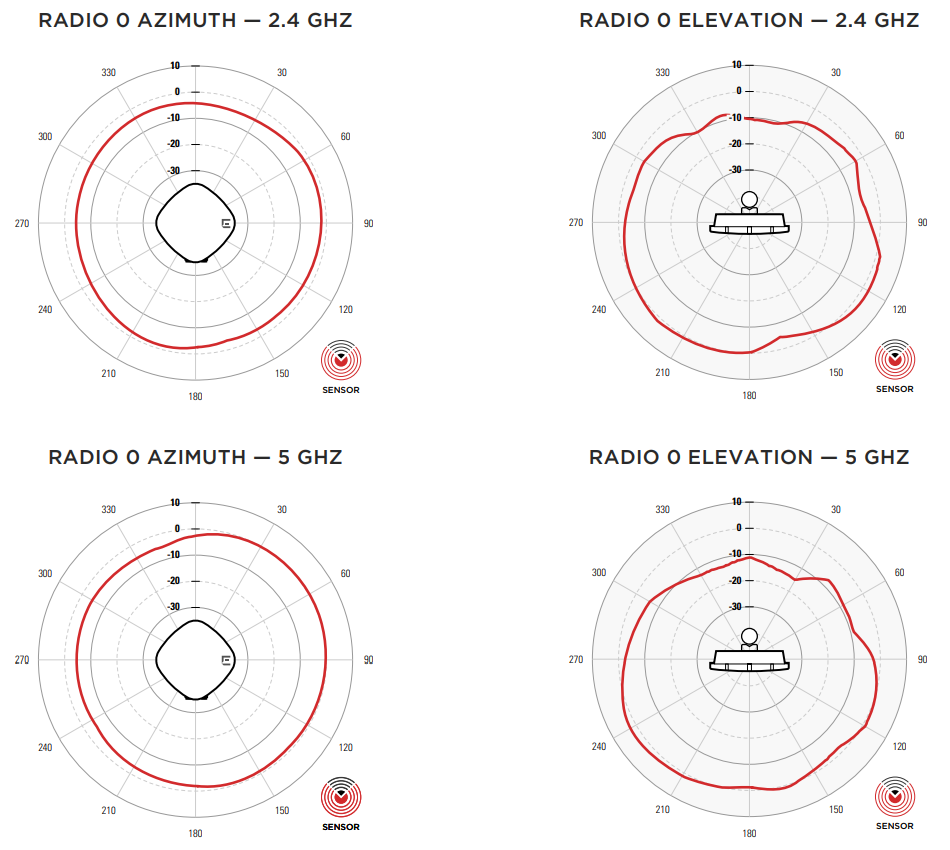

AP460S6C Sensor Patterns

AP460S6C Sensor Patterns

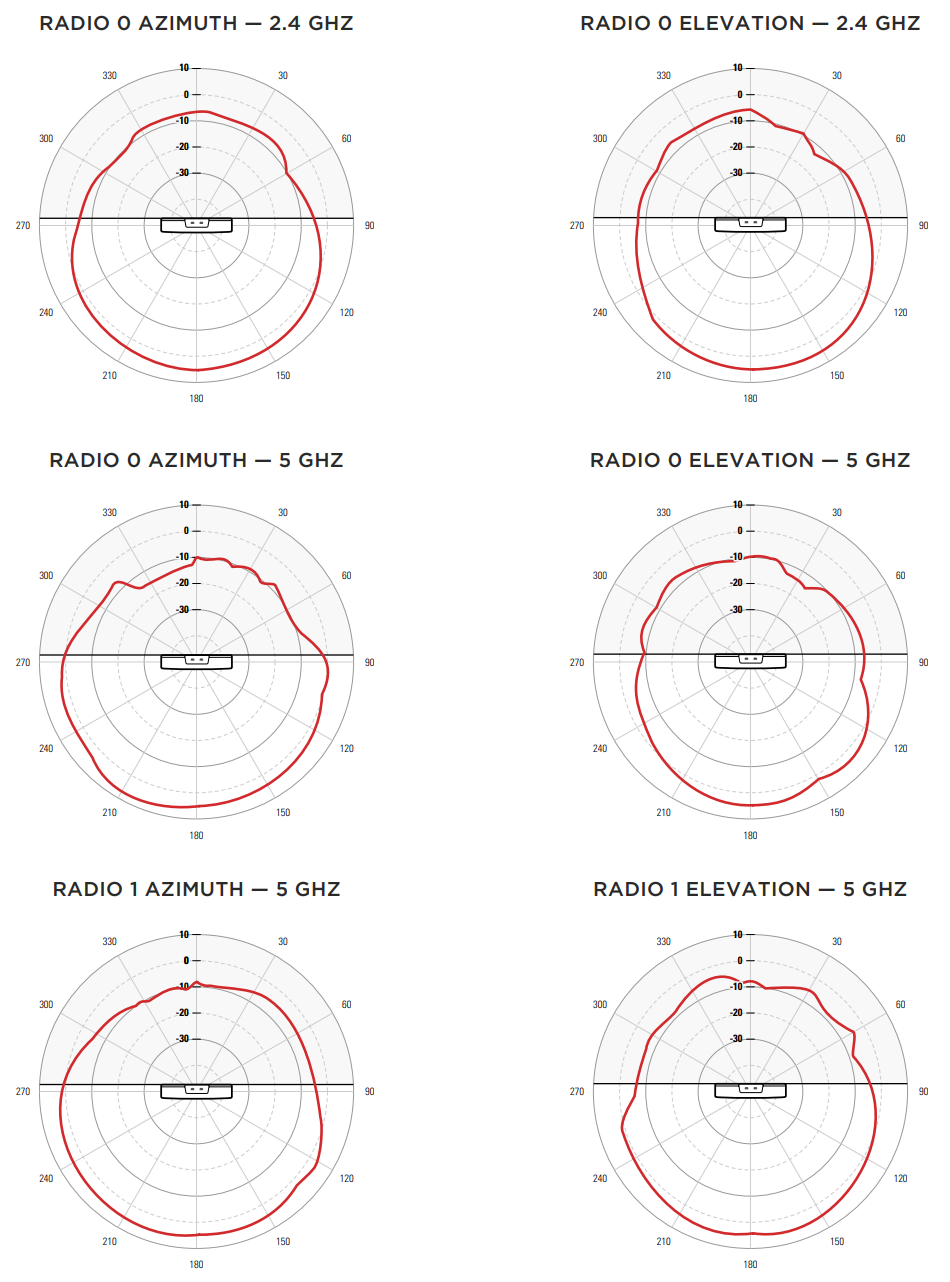

AP460S12C Radiation Patterns

AP460S12C Radiation Patterns

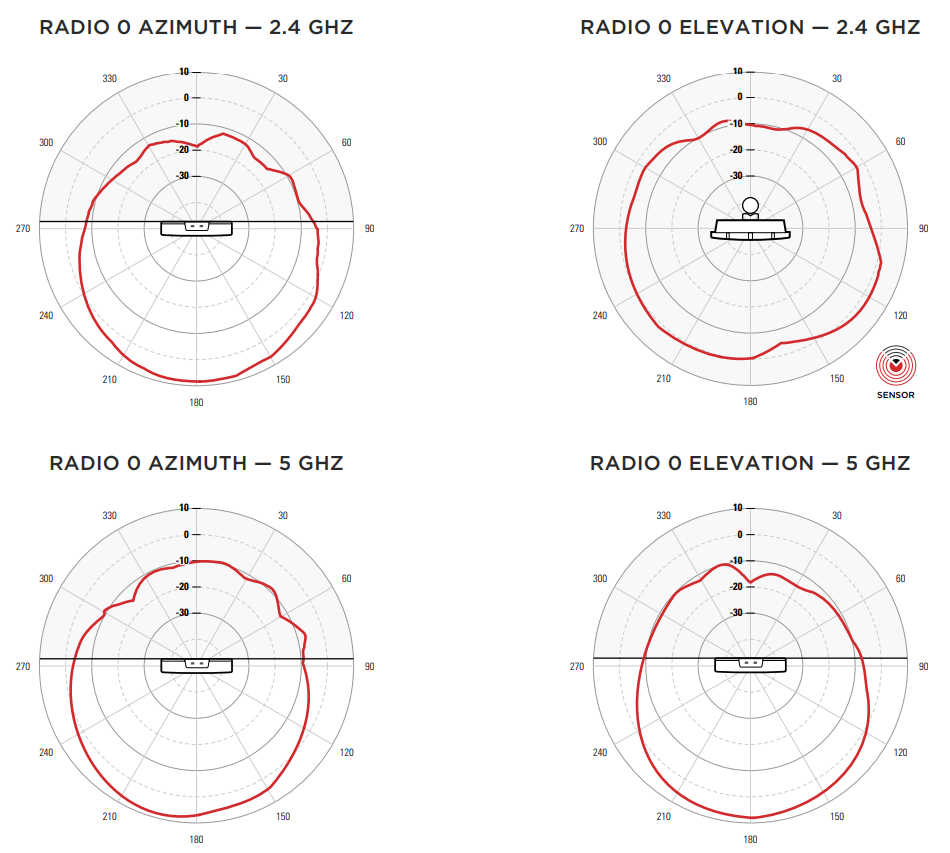

AP460S12C Sensor Patterns

AP460S12C Sensor Patterns
