Extreme Networks AP510i/e 802.11ax Indoor Access Point
Setting The New Standards With AI-Infused Wi-Fi 6 Access Points and software programmable radios supporting dual 5 GHz operation

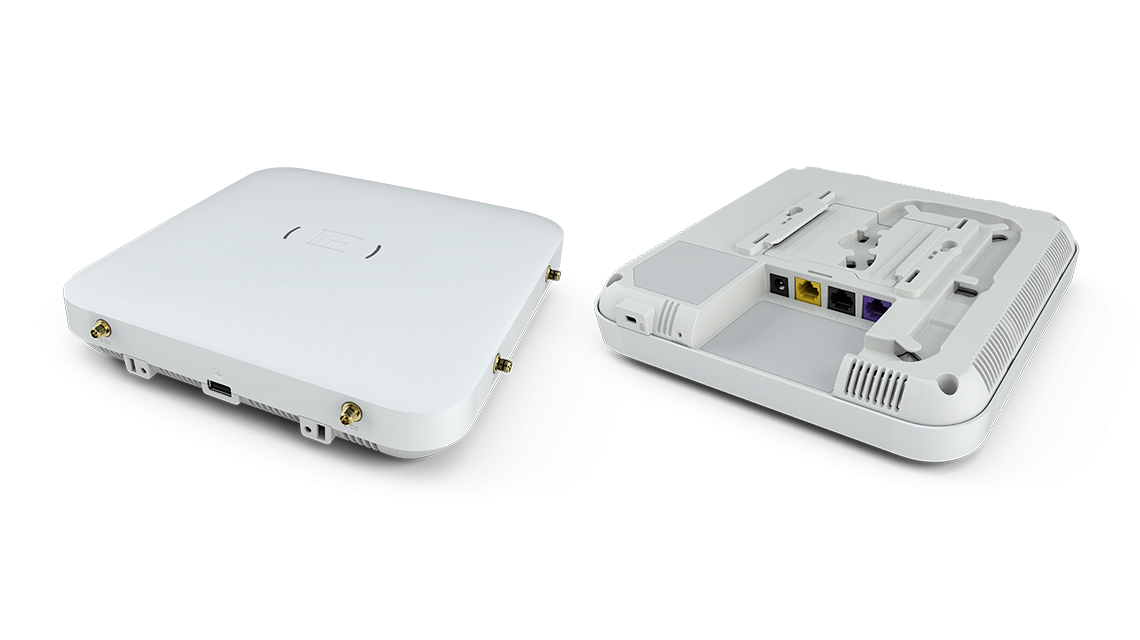

Extreme Networks AP510i/e


Extreme Networks Products
USA: FREE Ground ShippingAP510i Indoor Access Point
Dual Radio 802.11ax - 4x4:4 + 4x4:4, Indoor Internal Antenna Access Point
#AP510i-FCC
List Price: $1,554.00
Our Price: $1,074.61
USA: FREE Ground ShippingAP510e Indoor Access Point
Dual Radio 802.11ax - 4x4:4 + 4x4:4, Indoor External Antenna Access Point
#AP510e-FCC
List Price: $1,658.00
Our Price: $1,146.53

Overview:

Performance-Optimized Indoor 802.11ax Dual-Radio Indoor Access Point, with Integrated BLE radio and USB interfaces supporting IoT and proximity/location-oriented services.

Programable Radios

Software-defined dual 5 GHz radios monitor and automatically adjust Wi-Fi performance to achieve the highest levels of client performance and network optimization in challenging and demanding environments. Further fine tune network health with a granular, customizable QoS engine that adjusts performance based on user, device, and application privileges.

Management Analytics

In conjunction with Extreme’s management system, this access point provides a rich set of data displayed via context driven widgets, detailing historical data and real-time analytics. This provides context-specific granularity with perspective views for locations, network, network devices, individual client devices, as well as policy roles. In each context, administrators can adjust dashboards from the widget library.


Resilient Access

Distributed control Wi-Fi architecture delivers self-organizing, self-healing, and self-optimizing connectivity in the most challenging environments, eliminating single points of failure and bottlenecks, delivering bulletproof stability and unbridled performance, and offering unparalleled scale.

RF Monitoring

Adaptive RF algorithms provide intelligent selection of the best channels and transmit power for unimpaired network access. Load balancing, band steering and many other attributes of the RF can all be automated. In addition, administrators can view network health through Extreme’s management system.


Advanced Security

This access point delivers the highest level of security services, including a fully stateful L2-L7 DPI firewall for context-based access security, Private Pre-Shared Key (PPSK) authentication, on-board RADIUS services, WIPS, VPN tunnelling, and much more.

Automated Deployments

Powered by cloud networking, this access point can easily be deployed alongside thousands of others in no time at all. Extreme’s management system provides granular templates and auto provisioning totenable centralized enterprise plug-and-play rollouts.

Features:


High-Performance Enterprise Wi-Fi 6

Designed to leverage the performance improvements delivered with 802.11ac wave 2, 802.11ax borrows key technology from cellular to increase device capacity and improve spectral efficiency, extracting more out of available Wi-Fi spectrum.

Wifi 6

Resilient

Optimizes RF for the Optimal User Experience

ExtremeAI and SmartRF uses AI/ML technology to monitor and automatically adjust Wi-Fi radios to achieve the best coverage and greatest client performance, even in dynamic RF environments.


802.11ax Technology

Whereas prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements, each building on the prior standard, the new PHY technology of 802.11ax adds a significant level of new technology which takes Wi-Fi networks to an entirely new level.

IoT


Specifications:


Radio Specifications

  • SSID per Radio/Total: 8/16
  • Users per Radio/total: 512/1024
  • TPM (Trusted Platform Module)



  • 802.11a
    • 150–5.850 GHz Operating Frequency
    • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
    • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback



  • 802.11b
    • 4–2.5 GHz Operating Frequency
    • Direct-Sequence Spread-Spectrum (DSSS) Modulation
    • Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallback



  • 802.11g
    • 4–2.5 GHz Operating Frequency
    • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
    • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
    • 11n
    • 4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
    • 11n Modulation
    • HT20 High-Throughput (HT) Support (for both 4 GHz and 5 GHz)
    • HT40 High-Throughput (HT) Support for 5 GHz
    • A-MPDU and A-MSDU Frame Aggregation
    • CSD and CDD



  • 802.11ac
    • 150–5.850 GHz Operating Frequency
    • 11ac Modulation (256-QAM)
    • Rates (Mbps): MCS0 – MCS9 (6.5MBps - 800Mbps)
    • 5G: 4x4 Multiple-In, Multiple-Out (MIMO) Radio (MRC)
    • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4.
    • 4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio
    • VHT20/VHT40/VHT80/VHT160 support
    • TxBF (Transmit Beamforming)



  • 802.11ax
    • 4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
    • 11ax Modulation (1024-QAM)
    • Dual-band OFDMA
    • Rates (Mbps):
    • 5G: HE0-HE11 (8 Mbps – 4800 Mbps)
    • 4G: HE0-HE11 (8Mbps – 1148 Mbps)



Physical

  • 9" x 9" x 89" (229mm x 229mm x 48.15mm)
  • AP510i: 3.4 lbs (1.45 kg)
  • AP510e: 3.45 lbs (1.56 kg)



Antennas

  • AP510i - Internal Antennas
  • (4) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional antennas
  • (4) Integrated single band, 1-5.8 GHz omnidirectional antennas
  • (1) Integrated single band, 4-2.5 GHz omnidirectional antennas for BLE



AP510e - External Antennas

  • 8 RP SMAs connectors
  • 1 RP SMAs connector for BLE



Wi- Fi Alliance Certifications

Wi-Fi Certification a, b, g, n, ac

Wi-Fi Vantage 2

Wi-Fi Certification ax*

•   11ac

WMM, WMM-Power Save

•   Passpoint (Release 2)*

WPA, WPA2 and WPA3

•   Agile Multiband*

Wi-Fi Enhanced Open*

•   Optimized Connectivity*

Wi-Fi Location*



Mounting

  • Wing Bracket Compatible
  • Extreme Multi-Tbar
  • Kensington Lock



Security

  • WPA, WPA2(AES), WPA3, 11i, 802.11x, IPSec, IKEv2, PKCS#10, x509 DER / PKCS #12 SSL



Environmental

  • Operating: AP510i: 0 to 40°C

AP510e: -20 to 55°C

  • Storage: -40 to 70°C
  • Humidity: 0% to 95% (non-condensing)
  • Electrostatic Discharge: 15kV air, 8kV contact



Environmental Compliance

  • UL2043 - Plenum Rated



IOT Radio

  • BLE Radio Bluetooth® Low Energy (BLE) and IEEE® 802.15.4 compliant



Regulatory Compliance

Product Safety Certifications

  • IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03 AS/NZS

60950.1,

  • RoHS Directive 2011/65/EU



Radio Approvals



  • HE20/HE40/HE80/HE160 support for 5 GHz
  • HE20/HE40 support for 2.4 GHz
  • DL SU-MIMO and MU-MIMO (MRC)
  • TxBF (Transmit Beamforming)



Interfaces

  • (1) 100/1000/2500/5000 Mbps auto-negotiation Ethernet port, RJ45 PoE (Power over Ethernet 3at) Port. (802.3bz supported)
  • (1) 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45
  • 0, Type A, 0.5A



Power Options

  • Power Draw: Typical: 18 W; Max: 22 W
  • 3at Power over Ethernet (PoE) capable (Full Functionality)
  • Gigabit Ethernet port (RJ-45 power input pins:
  • Wires 4,5,7,8 or 1,2,3,6)

Support

  • Limited Lifetime Warranty WiNG



  • EN 301 489-3
  • EN 301 489-17
  • EN 55032, (Class B)
  • EN 55011, (Group 1, Class B) EN 55024
  • EN 60601-1-2
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 300 328
  • EN 301 893
  • EN 300 440
  • EN 50581
  • 3af Power over Ethernet injector (Reduced Functionality)

Documentation:

Download the Extreme Networks AP510i/e Datasheet (PDF).
