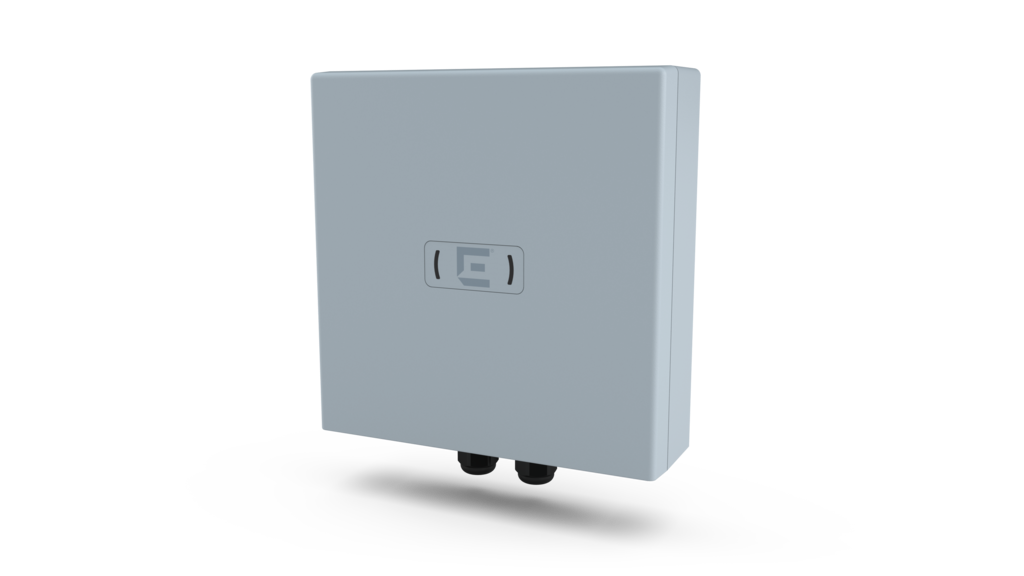

Extreme Networks AP560i Outdoor Access Point
High-Density Outdoor Access Point with Omni-directional antennas and Wifi6

Extreme Networks AP560i


Extreme Networks Products
USA: FREE Ground ShippingAP560i Outdoor Access Point
High-Density Outdoor Access Point with Omni-directional antennas
#AP560i-FCC
List Price: $2,698.00
Our Price: $1,865.70

Overview:

Performance-Optimized 802.11ax Dual-Radio Access Point, with Integrated BLE radio and USB interfaces supporting IoT and proximity/location-oriented services.

Programable Radios

Software-defined dual 5 GHz radios monitor and automatically adjust Wi-Fi performance to achieve the highest levels of client performance and network optimization in challenging and demanding environments. Further fine tune network health with a granular, customizable QoS engine that adjusts performance based on user, device, and application privileges.

Management Analytics

In conjunction with Extreme’s management system, this access point provides a rich set of data displayed via context driven widgets, detailing historical data and real-time analytics. This provides context-specific granularity with perspective views for locations, network, network devices, individual client devices, as well as policy roles. In each context, administrators can adjust dashboards from the widget library.


Resilient Access

Distributed control Wi-Fi architecture delivers self-organizing, self-healing, and self-optimizing connectivity in the most challenging environments, eliminating single points of failure and bottlenecks, delivering bulletproof stability and unbridled performance, and offering unparalleled scale.

RF Monitoring

Adaptive RF algorithms provide intelligent selection of the best channels and transmit power for unimpaired network access. Load balancing, band steering and many other attributes of the RF can all be automated. In addition, administrators can view network health through Extreme’s management system.


Advanced Security

This access point delivers the highest level of security services, including a fully stateful L2-L7 DPI firewall for context-based access security, Private Pre-Shared Key (PPSK) authentication, on-board RADIUS services, WIPS, VPN tunnelling, and much more.

Automated Deployments

Powered by cloud networking, this access point can easily be deployed alongside thousands of others in no time at all. Extreme’s management system provides granular templates and auto provisioning totenable centralized enterprise plug-and-play rollouts.

Features:


High-Performance Enterprise Wi-Fi 6

Designed to leverage the performance improvements delivered with 802.11ac wave 2, 802.11ax borrows key technology from cellular to increase device capacity and improve spectral efficiency, extracting more out of available Wi-Fi spectrum.

Wifi 6

Resilient

Optimizes RF for the Optimal User Experience

ExtremeAI and SmartRF uses AI/ML technology to monitor and automatically adjust Wi-Fi radios to achieve the best coverage and greatest client performance, even in dynamic RF environments.


802.11ax Technology

Whereas prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements, each building on the prior standard, the new PHY technology of 802.11ax adds a significant level of new technology which takes Wi-Fi networks to an entirely new level.

IoT


Specifications:


Product Features

AP560i/AP560h

General

Fully-Featured Enterprise Class AP

Number of Wi-Fi Radios

2



Internet of Things (IoT) Radio

Dual mode selectable (2.4 GHz with coexistence) Bluetooth Low Energy (BLE) 4.1- Single and Dual mode operation (Classic and Low Power Profiles 802.15.4 -2011)

MIMO Implementation for High-Performance 11ax, 11ac, and 11n

4x4

Number of Spatial Streams

4 per radio

Product Features

AP560i/AP560h













Number of Simultaneous Streams

5 GHz radio:

Four spatial stream Multi User (MU) MIMO for up to 4.8 Gbps wireless data rate to up to four 1 SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max)*

Four spatial stream Multi User (MU) MIMO for up to 2.4 Gbps wireless data rate to up to four 1 SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)*

2.4 GHz radio:

Four spatial stream Multi User (MU) MIMO for up to 1.148 Gbps wireless data rate to up to four 1 SS or two 2SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (max)*

Four spatial stream Multi User (MU) MIMO for up to 572 Mbps wireless data rate to up to four 1 SS or two 2SS HE20 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)*

Maximum 2.4 GHz Radio

1.148 Gbps (40 MHz)

Maximum 5 GHz Radio

4.8 Gbps (Full 5 GHz 160 MHz)

Number of SSIDs Supported Per Radio/Total

8/16

Simultaneous Users Per Radio/Total

256/512 Per AP

Mode of Operation

Semi-autonomous/Autonomous

Plug and Play Operation/Zero Touch Deployment

Yes



Security and Standards

WPA, WPA2 (AES), WPA3*, 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER/PKCS #12, SSL

Multiple Operating Modes

Centralized Data Paths Within Same SSID

Application Based Distributed and Centralized Data Paths Within Same User/Device Session

Simultaneous RF Monitoring and Client Services

BYOD/Device Fingerprinting Visibility

Multicast Rate Control

Multicast to Unicast Conversion

Adaptable Rate Multicast

Power Save Mode Optimization for Multicast

Wireless Service

Media Access Protocol

CSMA/CA with ACK













Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps

802.11n: (2.4 GHz); 6.5 to 600 (MCS0 to MCS15, HT20 to HT40)

802.11n: (5 GHz); 6.5 to 600 (MCS0 to MCS15, HT20 to HT40)

802.11ac: 6.5 to 3467 (MCS0 to MCS9, NSS=1 to 4, VHT20 to VHT160)

802.11ax: (2.4 GHz): 3.6 to 574

(MSC0 to MSC11, NSS = 1 to 2, HE20 to HE40) 802.11ax: (5 GHz): 3.6 to 4803

(MSC0 to MSC11, NSS = 1 to 4, HE20 to HE160)

See 802.11n Receiver Sensitivity Table below See 802.11ac Receiver Sensitivity Table below See 802.11ax Receiver Sensitivity Table below







Frequency Bands

802.11ax/ac/a/n:

5.15 to 5.25 GHz (FCC)

5.25 to 5.35 GHz (FCC)

5.47 to 5.725 GHz (FCC) 5.725 to 5.850 GHz (FCC)



802.11b/g/n:

2.400 to 2.4835 GHz (FCC)

Product Features

AP560i/AP560h













Wireless Modulation

802.11ax: OFDMA (1024-QAM)

802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64QAM, 256-QAM)

802.11ac Packet Aggregation: A-MPDU, A-MSDU 802.11ac Very High-Throughput (VHT): VHT20/40/80

802.11ac Advanced Features: LDPC, STBC, Maximum Likelihood (ML) Detection

802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11n High-throughput (HT) support: HT 20/40 802.11n Packet aggregation: A-MPDU, A-MSDU 802.11n Advanced Features: LDPC, STBC and TxBF

802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11g: DSSS and OFDM

802.11b: DSSS

Physical Characteristics



Dimensions

AP560i – 11.3" x 10" x 2.9" (288 mm x 254 mm x 75 mm)

AP560h – 11.3" x 18.9" x 3.5" (288 mm x 481 mm x 88 mm)



Housing

AP560i – 8.99 lbs – 4.08 kg AP560h – 10.5 lbs – 4.77 kg

IP Rating

IP67



LAN Ethernet

1  x 100/1000/2500/5000 Mbps auto-negotiation Ethernet port, RJ45  1 x 10/100/1000 Mpbs auto-negotiation Ethernet port , RJ45

Console port

RJ45

USB Port

USB 3.0 port, Type A for purpose built modules

PoE Failover

Redundant PoE Capable

LEDs Activity Indication

Two top mounted LEDs – multiple LED radio Indicators

Physical Characteristics (cont.)

Energy Efficient

802.3az Energy-Efficient Ethernet



Anti-Theft Locks

Kensington Lock Security Hanger Lock

Warranty

1 Year Warranty (WiNG)

MTBF

319,436 Hours AP560i, 313,544 Hours AP560h


Documentation:

Download the Extreme Networks AP560i Datasheet (PDF).
