Extreme Networks AP650/650X
Wi-Fi 6 (802.11ax) Indoor Access Point with Integrated or External Antenna Options

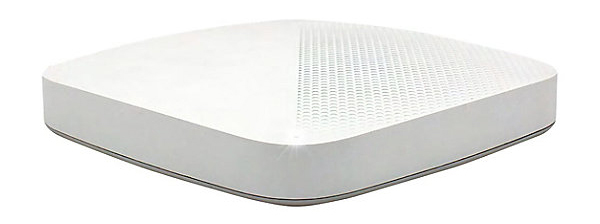

Extreme Networks AP650

Extreme Networks Products
USA: FREE Ground ShippingExtreme Networks AP650 Indoor Plenum Rated Access Point with Internal Antennas
Includes HiveManager Connect and HiveCare Community
#AH-AP-650-AX-FCC
List Price: $1,680.00
Our Price: $1,428.00
USA: FREE Ground ShippingExtreme Networks AP650X Indoor Plenum Rated Access Point with External Antennas
Includes HiveManager Connect and HiveCare Community
#AH-AP-650X-AX-FCC
List Price: $1,680.00
Our Price: $1,428.00

Click here to jump to more pricing!

Overview:

The AP650/X is a high performance, enterprise class Wi-Fi 6 access point that is ideal for many verticals, including; retail, education, hospitality and healthcare. These enterprises need to support a high density of users and IoT devices, while delivering an exceptional user experience.

The AP650/X provides high-efficiency 802.11ax aggregate data rates up to 4.8 Gbps currently in both the 5 GHz band and 2.4 GHz band. It also supports a Software Selectable Radio (SSR), providing the flexibility to simultaneously operate both radios in the 5 GHz band.

Despite the exponential growth of users, BYOD devices, IoT, highbandwidth applications and security threats straining the infrastructure, the AP650 combines performance, security services and insightful ML/AI management capabilities to deliver an enterprise class solution at a value price.

Highlights

Radio Technology

  • 5 GHz 4x4:4
  • 2.4 GHz 4x4:4

Radio Modes – SSR

  • 5 GHz/2.4 GHz – Fixed
  • 5 GHz/5 GHz – Dual 5 GHz
  • 5 GHz/Sensor both bands

High Density Environments

  • Delivers exceptional end-user experience even in the densest user environments

WPA3 Support

  • Includes the latest WPA3 Wi-Fi security standard delivering robust protections for users and IoT devices

Fully Functional over 802.3at

  • Reduced functionality with 802.3af

Smart Management Choices

  • ExtremeCloud™ IQ™ delivers powerful, simple, and secure public or private cloud management capabilities

Features:


ExtremeNetworks

Security

The AP650/X delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for contextbased access security, Private Pre-Shared Key (PPSK) and much more.

ExtremeNetworks

Wi-Fi 6 Technology

The AP650/X delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for contextbased access security, Private Pre-Shared Key (PPSK) and much more.

ExtremeNetworks

Programmable Radios

Extreme launched the industry's first software defined 802.11ax access point supporting not only a dual 5 GHz capability but also three software programmable modes to optimally manage radios to provide the highest level of client performance. The AP650 intelligent monitoring of the software configurable radios enables network administrators to configure network RF topology based on user environment and configure the access points in different modes as required.

ExtremeNetworks

Management Analytics

In conjunction with ExtremeCLoud IQ, the AP650/X provides a very rich set of data displayed via realtime analytics as well as a historial timeline.. The Network 360 and Client 360 views powered by machine learning provide context-specific granularity with perspective views for locations, network, APs, individual client devices as well as policy roles.

ExtremeNetworks

RF Monitoring

Network administrators will appreciate a powerful choice of RF management for their Wi-Fi networks, with Adaptive RF management with AI/ ML like functionality. Adaptive RF algorithms provide intelligent selection of the best channels and transmit power for unimpaired dual 5 GHz operation. Load balancing, band steering and many other attributes of the RF can all be automated.

ExtremeNetworks

Integrated BLE and Zigbee

To support both IoT and Guest Engagement services the AP510C/CX integrates Bluetooth to connect with IoT devices with Thread wireless to engage loyalty customers with Apple iBeacon. Enterprises can use Google Eddystone to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their appdownload pages, captive portals, or site-specific information.

Specifications:


Radio Specifications

Wireless Frequency Range

  • USA: 2.400 ~ 2.483 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz, 5.725 ~ 5.85 GHz
  • Europe: 2.400 ~ 2.483 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz
  • Japan: 2.400 ~ 2.497 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz

Modes

  • IEEE802.11a 5 GHz OFDM
  • IEEE802.11b 2.4 GHz DSSS/CCK
  • IEEE802.11g 2.4 GHz OFDM
  • IEEE802.11n 2.4 GHz/5 GHz OFDM
  • IEEE802.11ac OFDM
  • IEEE802.11ax OFDMA

Channel Support

802.11 b/g/n/ax

  • US/Canada: 11 (1 ~ 11)
  • Europe: 13 (1 ~ 13)
  • Japan: 11b: 14 (1~13 or 14th), 11g: 13 (1 ~ 13)
  • China: 13 (1 ~ 13)

802.11 a/n/ac/ax

  • US/Canada: 24 non-overlapping channels (36,40,44,48,52,56,60,64;100,1 04,108, 112,116,120,124,128,132,136,140; 149,153,157,161,165)
  • Europe: 19 non-overlapping channel (36,40,44,48,52,56,60,64;100,104,10 8,112, 116,120,124,128,132,136,140)
  • Japan: 19 non-overlapping channels (36,40,44,48,52,56,60,64;100,104,10 8,112, 116,120,124,128,132,136,140)
  • China: 5 non-overlapping channels (149,153,157,161,165)

Modulation Technology

802.11 Legacy a/b/g

  • DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
  • DSSS (Direct Sequence Spread Spectrum) with DBPSK (Differential Binary Phase Shift Keying 1 Mbps), DQPSK (Differential Quaternary Phase Shift Keying 2 Mbps), and CCK (Complementary Code Keying 5.5 & 11 Mbps), and OFDM (Orthogonal Frequency Division Multiplexing with BPSK for 6, 9 Mbps. QPSK for 12, 18 Mbps,16QAM for 24, 36 Mbps, 64QAM for 48, 54 Mbps)

802.11n

  • OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11ac

  • OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)

802.11ax

  • OFDMA (1024-QAM)

Interfaces

  • 1x 10/100/1000 Gigabit Ethernet
  • 1x 2.5 mGig
  • RJ-45 Console Port
    • USB Interface
  • 802.3az supported
  • Redundant PoE Capable

Radios

  • Dual Radio AP, 2.4 GHz/5GHz and 5GHz radios supporting dual band or dual 5GHz operation
  • 2.4 GHz/5 GHz, 802.11b/g/n/ax, 4x4
  • 5 GHz, 802.11 a/n/ac/ax, 4x4
  • 160 MHz, 1024-QAM supported
  • 1x Bluetooth/Zigbee radio

Power Consumption

  • DC Power: Typical 18.78 W; Max 20.65 W
  • 802.3at PoE Power: Typical 15.72 W; Max 19.92 W

Environmental

  • Operating Temperature: 0 to 40 °C
  • Storage Temperature: -40 to 70 °C
  • Humidity: 10 to 95%

Physical

  • Dimensions: 225mm x 225mm x 37.5mm
  • Weight: 2.6lb (1.18kg)
  • Wall or ceiling mountable
  • MTBF: 363,162 Hours @ 25 °C (estimate)
  • RoHS: -2 Compliant
  • TPM chip for added security

Antennas

  • 4x integrated dual band 2.4-2.5 GHz/5.1-5.8 GHz omnidirectional antennas
  • 4x integrated single band, 5.1-5.8 GHz omnidirectional antennas
  • 1x internal Bluetooth/ZigBee antenna

Peak Antenna Gain

  • 2.4 GHz omnidirectional, gain 5.0 dBi
  • 5 GHz omnidirectional, gain 6.0 dBi
  • Bluetooth/ZigBee omnidirectional, gain 4.2 dBi

Environmental Compliance

  • UL2043 - Plenum Rated

Regulatory Compliance

Product Safety

  • IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03
  • AS/NZS 60950.1,
  • RoHS Directive 2011/65/EU

Radio Approvals

  • FCC CFR 47 Part 15, Class B
  • ICES-003, Class B
  • FCC Subpart C 15.247
  • FCC Subpart E 15.407
  • RSS247
  • AS/NZS4268 + CISPR32
  • IEC/EN 60601-1-2,
  • EN 50385
  • EN 301 489-1
  • EN 301 489-3
  • EN 301 489-17
  • EN 55032, (Class B)
  • EN 55024
  • EN 300 328
  • EN 301 893
  • EN 300 440

Power & Sensitivity Table:

Power shown is per transmit chain and is a maximum power that the radio is capable of, power limits will be limited by local radio regulations.

Power - 2.4 GHz

Channel Data Rate Power (dBm)
11b 1,2,5.5,11 Mbps 21
11g 6 Mbps
36 Mbps
48 Mbps
54 Mbps
18
17
16
15
HE20 MCS0, 1, 2
MCS3
MCS4, 5
MCS6, 7
MCS8, 9
MCS10, 11
18
17
16
15
14
12
HE40 MCS0, 1, 2
MCS3
MCS4, 5
MCS6, 7
MCS8, 9
MCS10, 11
18
17
16
15
14
12

Receive Sensitivity - 2.4 GHz

Channel Data Rate Power (dBm)
11b 1Mbps
11 Mbps
-98
-90
11g 6 Mbps
54 Mbps
-96
-78
HE20 MCS0
MCS11
-95
-64
HE40 MCS0
MCS11
-92
-62

Power - 5 GHz

Channel Data Rate Power (dBm)
11a 6 Mbps
36 Mbps
48 Mbps
54 Mbps
17
17
18
19
HE20 MCS0, 1, 2
MCS3, 4
MCS5, 6
MCS7, 8
MCS9
MCS10
MCS11
19
17
16
15
14
13
12
HE40 MCS0, 1, 2
MCS3, 4, 5
MCS6, 7, 8
MCS9
MCS10
MCS11
17
16
15
14
13
12
HE80 MCS0, 1, 2
MCS3, 4, 5
MCS6, 7, 8
MCS9
MCS10
MCS11
17
16
15
14
13
12
HE160 MCS0, 1, 2
MCS3, 4, 5
MCS6, 7, 8
MCS9
MCS10
MCS11
17
16
15
14
13
12

Receive Sensitivity - 5 GHz

Channel Data Rate Power (dBm)
11g 6 Mbps
54 Mbps
-86
-73
HE20 MCS0
MCS11
-87
-58
HE40 MCS0
MCS11
-88
-56
HE80 MCS0
MCS11
-83
-53
HE160 MCS0
MCS11
-82
-51

Radiation Patterns:

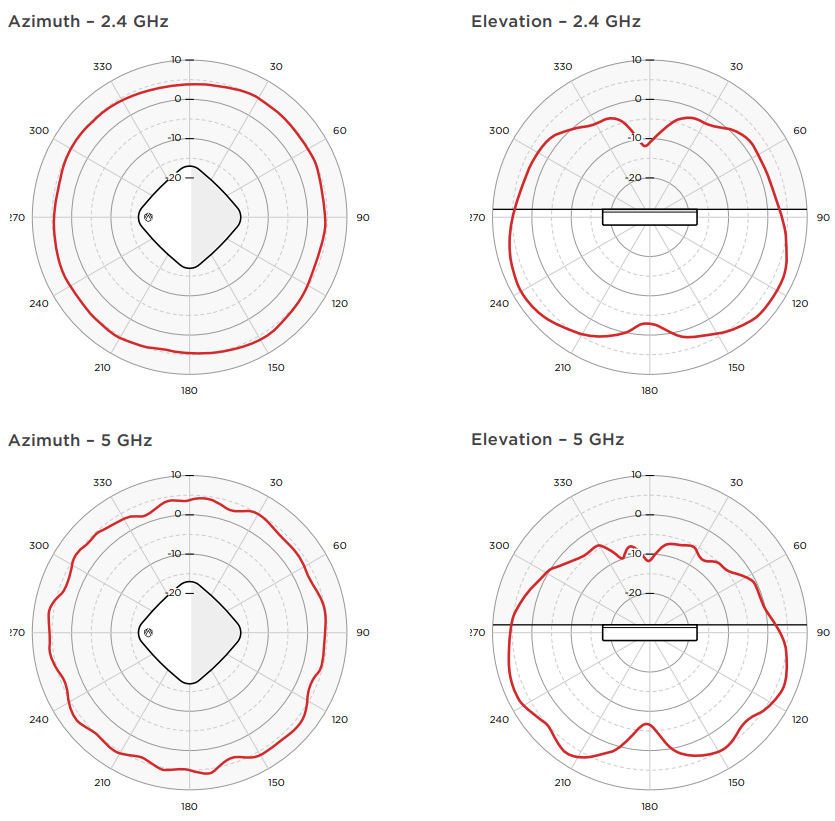

AP650 – Radiation Patterns: Azimuth and Elevation

Documentation:

Download the Extreme Networks AP650/650X Access Point Datasheet (PDF).
