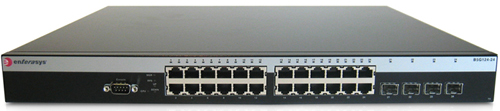

Extreme Networks B-Series B5K125-24
24 Ports Gigabit Ethernet and 2 Ports 10 Gigabit Ethernet Stackable Edge Switch

Extreme Networks B-Series B5K125-24

Sorry, this product is no longer available, please contact us for a replacement.



Overview:

Extreme Networks B-Series AppliancesThe Extreme Networks B5 is a scalable, high-performance Gigabit Ethernet switch that provides support for the bandwidth-intensive and latency-sensitive requirements of today's demanding business applications. The B5 is an excellent choice for environments that require complete multilayer switching capabilities and support for high density 10/100/1000 Ethernet ports, cost effective10GE uplinks, dual IPv4/IPv6 management, basic routing and policy-based automation capabilities for advanced edge deployments.

  • Future-proofed with 802.3at high-power PoE support
  • Automatic discovery and deployment of VoIP services
  • High-availability stacking assures reliable network operations
  • Automated management features reduce operational costs
  • Investment protection via comprehensive lifetime warranty
  • 1.47 Tbps capacity and 809.5 Mpps

The B5 incorporates the new 802.3at high-power PoE on all ports, translating into increased power provisioning for power-hungry devices such as Pan/Tilt/Zoom (PTZ) IP surveillance cameras, IP videophones, third party 802.11n access points and virtual desktops. Built-in high-power PoE support is a cost effective alternative for customers in place of purchasing separate PoE midspans, which can take away valuable rack space, add cost and contribute more cabling to the wiring closet.

The B5 provides high port density in a 1U footprint and is environmentally friendly by design. The B5's overall energy efficiency is further enhanced by a low current draw and an extreme tolerance for high environmental temperatures. A highly-scalable architecture and a comprehensive lifetime warranty ensure that a B5 network investment will sustain a secure, feature-rich and cost-effective network well into the future.

The B5's highly customizable Layer 2/3/4 packet classification capabilities work together with the 8 hardware-based priority queues associated with each Ethernet port to support a suite of differentiated services with as many as 8 distinct priority levels to provide guaranteed Quality of Service (QoS) for critical voice and video network traffic. In conjunction with its non-blocking L2 switching and L3 routing architecture, the B5's intelligent queuing mechanisms ensure that mission-critical applications receive prioritized access to network resources.

Extreme Networks B5 stackable switches address emerging business application needs such as automatically supporting voice, video and unified communications at an attractive price point.

Features:


Reliability and Availability

The B5 design incorporates redundancy and failure protection mechanisms complete with automatic failover and recovery capabilities to provide a reliable network. An integral power supply is the primary source of power for the B5 and complete power redundancy is provided by an optional external power supply. A virtual switch can be created by interconnecting as many as eight B5s in a single stack, which can be managed via a single IP address with redundant management connections. The B5's closed-loop stacking capability utilizes bidirectional switch interconnects to maintain connectivity within the virtual switch despite any physical failures, which includes switches, cables and connections. Flexible Link Aggregation Groups (6 groups of 8, 12 groups of 4 or 24 groups of 2) are supported which allow multiple Ethernet ports (8, 4 or 2) to be grouped together to create a LAG. A LAG's Ethernet ports can be co-located on a single B5 or they can be distributed across multiple B5s within a stack to prevent a switch-level failure from disrupting data communications. The B5 also includes Host CPU Protection support to help prevent Denial of Service (DoS) and BPDU attacks.

Advanced Quality of Service

Robust Quality of Service (QoS) features enable strong support for integrated multimedia networks, as well as all types of data-intensive applications. The B5 is a standards-based solution optimized for multimedia applications, including VoIP, videoconferencing and real-time collaboration. The B5 uses multiple standards-based discovery methods with Extreme Networks policy capabilities to automatically identify and provision VoIP services for IP phones from all major vendors. B5 switches provide dynamic mobility for VoIP clients to reduce operating costs; when an IP phone moves and plugs in elsewhere in the enterprise network, its VoIP service provisioning, security and traffic priority settings move with it, with no manual administration required.

Security

The B5 enables strong network security by utilizing its authentication and security features, which can be applied at the port level or at the user level. Making use of the Extreme Networks Network Management Suite's Policy Manager or a standard CLI, the Extreme Networks role-based architecture enables a network administrator to define distinct roles or profiles that represent operational groups within a business (e.g., employee, executive, guest, etc). Multiple users/devices per port can be authenticated via IEEE 802.1X, MAC address, or web authentication, and then assigned a pre-defined operational role. The B5 now supports increased password security via increased complexity, history tracking and aging. Passwords can now be encrypted using a FIPS 1402 approved algorithm.

Administrators can easily transition from RFC 3580 and complex access control list (ACL) deployments to the Extreme Networks role-based policy framework in a seamless fashion, without the need to make changes to their RADIUS infrastructure (e.g., adding filter-ID). In addition, the B5 also supports ACLs for supplementary network security. Network operations can be easily tailored to meet business-oriented requirements by providing each role with individualized access to network services and applications (e.g., a guest should have different network access privileges than an employee). Utilizing Extreme Networks role-based policy, administrators are able to manipulate DSCP and 802.1p rewrite for classification and prioritization of network traffic.

The B5 allows administrators even more network visibility, with the ability to audit their network for adherence to compliance regulations, such as PCI or HIPAA. The B5 is able to segment roles down to group levels, such as supporting a guest access role, helping to protect corporate applications and information.

Investment Protection

The B5 is a cost-effective, feature-rich, stackable switch that provides a broad set of features today and will continue to deliver benefits well into the future. All B-Series products include a lifetime warranty that includes warranty and support services for which many competitors charge additional fees – adding up to 10% of initial deployment costs on an annual basis. Included benefits, such as advanced hardware return, firmware feature upgrades (which most vendors cover at most for 90 days) and telephone support (which most don't include or severely limit) combine to significantly decrease operational costs for customers over the life of their network.

Performance & Scalability

The B5, with support for 32,000 MAC addresses, provides scalable, wire-rate performance in support of the bandwidth-intensive and delaysensitive requirements of today's demanding applications. Along with a switch capacity of 184 Gbps, the B5 provides up to 48 10/100/1000 Ethernet ports as well as two 10 GE ports. Leveraging the B5's stacking capability, as many as 8 B5s (both 24-port and 48-port combinations) can be interconnected in a single stack to create a virtual switch that provides 1.47 Tbps of capacity and up to 384 10/100/1000 Ethernet ports as well as 16 10GE uplink ports.

Benefits:

Business Alignment

  • Aligns network resource utilization with business goals and priorities
  • Reliable network operation for missioncritical applications

Operational Efficiency

  • Management automation capabilities reduce network operational expenses
  • Automatic discovery and deployment of VoIP services

Security

  • Ability to audit network for adherence to compliance regulations, such as PCI or HIPAA
  • Network resources securely allocated according to user roles
  • Network security maintained concurrently with user mobility

Support and Service

  • Industry-leading customer satisfaction and first call resolution rates
  • Personalized services, including site surveys, network design, installation, and training
  • Comprehensive lifetime warranty, including feature upgrades and more

Standards and Protocols:


MAC Address Table Size
  • 32,000

VLANs

  • 4,094 VLAN IDs
  • 1,024 VLAN Entries per Stack

Switching Services

  • ANSI/TIA-1057 – LLDP-MED
  • IEEE 802.1AB – LLDP
  • IEEE 802.1D – MAC Bridges
  • IEEE 802.1s – Multiple Spanning Trees
  • IEEE 802.1t – 802.1D Maintenance
  • IEEE 802.1w – Rapid Spanning Tree Reconvergence
  • IEEE 802.3 – Ethernet
  • IEEE 802.3ab – GE over Twisted Pair
  • IEEE 802.3ad – Link Aggregation
  • IEEE 802.3af – PoE
  • IEEE 802.3at – High Power PoE (up to 30W per port)
  • IEEE 802.3i - 10Base-T
  • IEEE 802.3u - 100Base-T, 100Base-FX
  • IEEE 802.3z - GE over Fiber
  • Full/half duplex auto-sense support on all ports
  • IGMP Snooping v1/v2/v3
  • Jumbo Frame support (9,216 bytes)
  • Loop Protection
  • One-to-One and Many-to-One Port Mirroring
  • Port Description
  • Protected Ports
  • Selectable LAG Configuration (6 x 8, 12 x 4, 24 x 2)
  • Host CPUProtection – Broadcast/ Multicast/ Unknown Unicast Suppression
  • Spanning Tree Backup Root
  • STP Pass Thru

Security

  • ARP Spoof Protection
  • DHCP Spoof Protection
  • Dynamic and Static MAC Locking
  • EAP Pass Thru
  • Hybrid Mode
  • IEEE 802.1X Port Authentication
  • MAC-based Port Authentication
  • RADIUS Accounting for network access
  • RADIUS Client
  • IPsec for RADIUS transactions
  • RFC 3580 – IEEE 802.1X RADIUS Usage Guidelines
  • Multi-user Authentication
  • Pre-login banner
  • Password encrypted using a FIPS 1402 approved algorithm
  • Secure Networks Policy
  • Secured Shell (SSHv2)
  • Secured Socket Layer (SSL)
  • User and IP Phone Authentication
  • Web-based Port Authentication
  • Auto Console Disconnect
  • Security Log
  • Secure Directory
IPv4 Routing
  • Standard Access Control List (ACLs)
  • Extended ACLs
  • VLAN-based ACLs
  • Service ACLs
  • MAC-based ACLs - not simultaneously supported with policy
  • ARP & ARP Redirect
  • IP Helper Address
  • RFC 826 – Ethernet ARP
  • RFC 1058 – RIP v1
  • RFC 1256 – ICMP Router Discovery Messages
  • RFC 1519 Classless Inter-Domain Routing
  • RFC 1724 – RIPv2 MIB Extension
  • RFC 2236 – IGMPv2
  • RFC 2453 – RIP v2
  • RFC 3046 – DHCP/BootP Relay
  • RFC 3376 – IGMPv3
  • Static Routes
MIB Support
  • Extreme Networks Entity MIB
  • Extreme Networks Policy MIB
  • Extreme Networks VLAN Authorization MIB
  • Extreme Networks Spanning Tree Diagnostic MIB
  • ANSI/TIA-1057 – LLDP-MED MIB
  • IEEE 802.1AB – LLDP MIB
  • IEEE 802.1X MIB – Port Access
  • IEEE 802.3ad MIB – LAG MIB
  • RFC 826 – ARP and ARP Redirect
  • RFC 951, RFC 1542 – DHCP/BOOTP Relay
  • RFC 1213 – MIB/MIB II
  • RFC 1493 – BRIDGE-MIB
  • RFC 1643 – Ethernet-like MIB
  • RFC 2096 – IP Forwarding Table MIB
  • RFC 2131, RFC 3046 – DHCP Client/Relay
  • RFC 2571 – SNMP Framework MIB
  • RFC 2466 – ICMPv6 MIB
  • RFC 2613 – SMON MIB
  • RFC 2618 – RADIUS Authentication Client MIB
  • RFC 2620 – RADIUS Accounting Client MIB
  • RFC 2668 – Managed Object Definitions for 802.3 MAUs
  • RFC 2674 – P-BRIDGE-MIB
  • RFC 2674 – QBRIDGE-MIB VLAN Bridge MIB
  • RFC 2737 – Entity MIB (physical branch only)
  • RFC 2819 – RMON-MIB
  • RFC 2863 – IfMIB
  • RFC 2933 – IGMP MIB
  • RFC 3413 – SNMP v3 Applications MIB
  • RFC 3414 – SNMP v3 User-based Security Module (USM) MIB
  • RFC 3415 – View-based Access Control Model for SNMP
  • RFC 3584 – SNMP Community MIB
  • RFC 3621 – Power over Ethernet MIB

VLAN Support

  • Generic Attribute Registration Protocol (GARP)
  • Generic VLAN Registration Protocol (GVRP)
  • IEEE 802.1p – Traffic classification
  • IEEE 802.1q – VLAN Tagging
  • IEEE 802.3ac – VLAN Tagging Extensions
  • Port-based VLAN (private port/private VLAN)
  • Tagged-based VLAN
  • VLAN Marking of Mirror Traffic
  • Standalone VLAN Association application for subnet, protocol and MAC based VLAN classification
Quality of Service
  • 8 Priority Queues per Port
  • 802.3x Flow Control
  • Class of Service (CoS)
  • Ingress Rate Limiting
  • IP ToS/DSCP Marking/Remarking
  • IP Precedence
  • IP Protocol
  • Layer 2/3/4 Classification
  • Multi-layer Packet Processing
  • Mixed Queuing Control – Strict and Weighted Round Robin
  • Source/Destination IP Address
  • Source/Destination MAC Address
  • RFC 2474 Definition of Differentiated Services Field
Management
  • Alias Port Naming
  • Command Line Interface (CLI)
  • Configuration Upload/Download
  • Dual IPv4/IPv6 Management Support
  • Editable Text-based Configuration File
  • TFTP Client
  • Command Logging
  • Multi-configuration File Support
  • NMS Automated Security Manager
  • NMS Console
  • NMS Inventory Manager
  • NMS Policy Manager
  • Node/Alias Table
  • RFC 768 – UDP
  • RFC 783 – TFTP
  • RFC 791 – IP
  • RFC 792 – ICMP
  • RFC 793 – TCP
  • RFC 826 – ARP
  • RFC 854 – Telnet
  • RFC 951 – BootP
  • RFC 1157 – SNMP
  • RFC 1901 – Community-based SNMPv2
  • RFC 1981 – Path MTU for IPv6
  • RFC 2030 – Simple Network Time Protocol (SNTP)
  • RFC 2465 – IPv6 MIB
  • RFC 2933 – IGMP MIB
  • RFC 3176 – sFlow
  • RFC 3413 – SNMP Applications MIB
  • RFC 3414 – SNMP User-based Security
  • Module (USM) MIB
  • RFC 3415 – View-based Access Control
  • Model for SNMP
  • RFC 3826 – Advanced Encryption Standard (AES) for SNMP
  • RMON (Stats, History, Alarms, Events)
  • Secure Copy (SCP)
  • Secure FTP (SFTP)
  • Simple Network Management Protocol (SNMP) v1/v2c/v3
  • SSHv2
  • RFC 3164 – The BSD Syslog Protocol
  • TACACS+ for Management Authentication, Authorization and Auditing
  • Web-based Management
  • Webview via SSL Interface

Specifications:


B-Series Models B5K125-24 B5K125-24P2 B5K125-48 B5K125-48P2
  B5K125-24 B5K125-24P2 B5K125-48 B5K125-48P2
Performance
Throughput Capacity wire-speed Mpps
(switch / stack)
65.5 Mpps / 523.8 Mpps 65.5 Mpps / 523.8 Mpps 101.2 Mpps / 809.5 Mpps 101.2 Mpps / 809.5 Mpps
Switching Capacity
(switch / stack)
88 Gbps (65.5 Mpps) / 704 Gbps (523.8 Mpps) 88 Gbps (65.5 Mpps) / 704 Gbps (523.8 Mpps) 136 Gbps (101.2 Mpps) / 1,088 Gbps (809.5 Mpps) 136 Gbps (101.2 Mpps) / 1,088 Gbps (809.5 Mpps)
Stacking Capacity
(switch / stack)

48 Gbps (35.7 Mpps) / 384 Gbps (285.7 Mpps)

Aggregate Throughput Capacity (switch / stack) 136 Gbps (101.2 Mpps) / 1,088 Gbps (809.5 Mpps) 136 Gbps (101.2 Mpps) / 1,088 Gbps (809.5 Mpps) 184 Gbps (136.9 Mpps) / 1,472 Gbps (1,095.2 Mpps) 184 Gbps (136.9 Mpps) / 1,472 Gbps (1,095.2 Mpps)
PoE Specifications
802.3af Interoperable N/A Yes N/A Yes
802.3at Interoperable N/A Yes N/A Yes
System Power N/A

375 watts per switch with up to 30 watts per port
Per-port switch power monitor:

  • Enable/disable
  • Priority safety
  • Overload & short circuit protection
N/A

375 watts per switch with up to 30 watts per port
Per-port switch power monitor:

  • Enable/disable
  • Priority safety
  • Overload & short circuit protection
Physical Specifications
Dimensions (H x W x D) H: 4.4 cm (1.73")
W: 44.1 cm (17.36")
D: 36.85 cm (14.51")
H: 4.4 cm (1.73")
W: 44.1 cm (17.36")
D: 36.85 cm (14.51")
H: 4.4 cm (1.73")
W: 44.1 cm (17.36")
D: 36.85 cm (14.51")
H: 4.4 cm (1.73")
W: 44.1 cm (17.36")
D: 36.85 cm (14.51")
Net Weight 4.92 kg (10.85 lb) 6.10 kg (13.45 lb) 5.31 kg (11.70 lb) 6.49 kg (14.30 lb)
MTBF 374,029 hours 328,905 hours 297,808 hours 252,940 hours
Physical Ports • (24) 10/100/1000 autosensing, auto-negotiating MDI/MDI-X RJ45 ports
• (2) Combo SFP ports
• (2) 10GE ports
• (2) dedicated stacking ports
• (1) DB9 console port
• (1) RPS connector
• (24)10/100/1000 PoE (.af + .at) auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports
• (2) Combo SFP ports
• (2) 10GE ports
• (2) dedicated stacking ports
• (1) DB9 console port
• (1) RPS connector
• (48) 10/100/1000 autosensing, auto-negotiating MDI/MDI-X RJ45 ports
• (2) Combo SFP ports
• (2) 10GE ports
• (2) dedicated stacking ports
• (1) DB9 console port
• (1) RPS connector
• (48)10/100/1000 PoE (.af + .at) auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports
• (2) Combo SFP ports
• (2) 10GE ports
• (2) dedicated stacking ports
• (1) DB9 console port
• (1) RPS connector
Power Requirements
Normal Input Voltage 100 – 240 VAC 100 – 240 VAC 100 – 240 VAC 100 – 240 VAC
Input Frequency 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz
Input Current 2 A Max 7.5 A Max 2 A Max 7.5 A Max
Power Consumption 59 watts 98 watts 94 watts 125 watts
Environmental Specifications
IEC 6-2-1 Standard Operating Temperature 0° to 50° C (32° to 122° F)
IEC 6-2-14 Non-Operating Temperature -40° to 70° C (-40° to 158° F)
Heat Dissipation 200 BTUs/Hr 335 BTUs/Hr 321 BTUs/Hr 427 BTUs/Hr
Operating Humidity 5% - 95% non- condensing
Vibration IEC 68-2-6, IEC68-2-36
Shock IEC 68-2-29
Drop IEC 68-2-32
Operating Altitude 10,000 ft (3,048 m)
Non-operating Altitude 15,000 ft (4,572 m)
Acoustics 45.5 dB 45 dB 46 dB 45.5 dB
Agency & Regulatory Standards Specifications
Safety UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1
EMC FCC Part 15 (Class A), ICES-003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3
Environmental 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS)

Documentation:

Download the Extreme Networks B-Series Datasheet (PDF).
