Extreme Campus Controller
Wired and wireless orchestration for campus and IoT networks


Extreme Networks  WiNG VX 9000


Extreme Networks Products
Wireless Controllers - Physical Appliances
USA: FREE Ground ShippingExtreme Campus Controller - Hardware Appliance - E1120
Manages up to 250 APs and 100 switches
#30137
Contact us for Pricing!
Wireless Controllers - Virtual Appliances
USA: FREE Ground ShippingExtreme Campus Controller - Virtual Appliance - VE6120
Manages up to 500 APs and 400 switches
#VE6120
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Extreme Campus Controller is a key offering within the Extreme solution targeted for the on-premise campus solution. Extreme Campus Controller delivers simplified management with tightly integrated services and features required for on-premise deployments, complemented with simplified licensing. Extreme Campus Controller is also available as a virtual machine (VM) for customers that have their own requirements for this type of service.

  • High-performance, enterprise-class WLAN appliances
  • Scalable to over 10,000 managed devices
  • Seamless roaming with centralized and distributed data forwarding
  • Virtualized management and control planes for cloud deployments
  • High-availability architecture for real-time voice/video/data applications
  • Flexible platform automatically adapts to underlying virtual resources
  • Unified wired and wireless management

Simplified Management

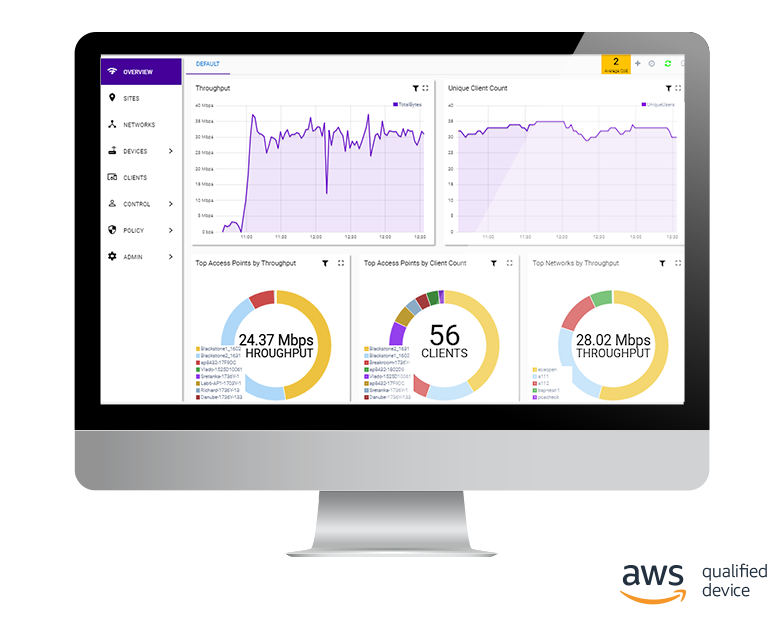

Extreme Campus Controller provides a streamlined configuration paradigm and workflow designed to enhance visibility of the operational state of the deployment, while simplifying typical network management configurations. Enabling quicker rollouts provides a better outcome towards achieving business digital transformation goals faster


Secure Onboarding of BYOD, Guest, and IoT

The Extreme Campus Controller incorporates extensive policy and control to securely manage users and devices. The Extreme Campus Controller includes the flexibility and choices needed for today's users so that you can securely on-board BYOD or guest users on campus with social media credentials. Powerful embedded policy and control also ensures that devices are identified and securely segmented to prevent security breaches and leaks.


Intelligent RF Visibility

One of the key characteristics in providing a more intuitive management experience is visualization of the RF performance at each managed site. The Extreme Campus Controller helps you understand the detailed performance of your Wi-Fi by providing Expert Views of the RF State, including; RxRate, TxRates, RSS, WirelessRTT, NetworkRTT and RFQI, along with planning views to understand your channel plan and the live RF coverage across your floor plan. In addition, the Extreme Campus Controller includes a unique RF Quality Indicator (RFQI) which assigns a multidimensional score to how well a particular AP is serving its associated clients and paints it over the AP's coverage area


Wi-Fi Locationing

With pervasive wireless coverage throughout enterprises today, many businesses want to leverage locationbased services to monitor traffic flow and understand where resources may reside at peak times to help improve efficiency or user experience. Extreme Campus Controller includes an integrated locationing analytics and management system. This embedded capability enables you to understand your locationing coverage, generate heatmaps, or understand the footfall by visitors.


Pervasive APIs

Pervasive APIs across the entire networking portfolio to connect applications to the network. This enables new business insights to be discovered, customer engagements to be personalized, and enables the network to be programmable. The APIs also support third party applications and services to extend business insights.

Features:


Firewall

Streamlined configurations and workflows to enhance network operations.

Designed for dense user environments with policy and role-based BYOD on-boarding.


Strcuture

Stay agile, make network changes quickly.

Makes network enhancements easy with a simple dashboard and workflows.


Simple

ExtremeAI for proactive artificial intelligence.

Adapts RF to your Wi-Fi network for the ultimate customer experience.


Specifications:


Supported Features

VE6120 (VMWare)/VE6120H (Hyper-V)

VE6125

Capacity

Small

Medium

Large

X-Large

Total APs managed in Standalone mode

50

250

500

2000

Additional APs supported in high-availability mode

50

250

500

2000

Total managed APs per Appliance Pair

100

500

1,000

4000

Total Switches managed per Appliance

50/100

100/200

200/400

200/400

Total simultaneous users in Standalone mode

1,000

4,000

8,000

16000

Additional simultaneous users in high-availability mode

1,000

4,000

8,000

16000

Total Simultaneous Users per Appliance Pair

2,000

8,000

16,000

32,000

Hardware Requirements



CPU[1]



4



6



8

32 (physical or hyperthreading cores)

RAM (GB)

8

16

24

32

Hard Disk (GB)

80

80

80

512

Maximum Throughput (Mixed RFC2544)* Open/Encrypted









2x1 Gbps Host

1,870/1,800

1,870/1,800

1,870/1,800

2x10 Gbps Host

5,000/1,870

10,800/5,000

10,800/5,000

Technical Specifications

E1120

E2120

E3120

Length

30.5 cm (12 in)

76.84 cm (32.25 in)

79.38 (31.25 in)

Width

43.1 cm (16.9 in)

43.82 cm (17.25 in)

43.85(17.25 in)

Height

4.4 cm (1.7 in)

4.45 cm (1.75 in) – 1U

4.38 (1.7 in)

Weight

4.3 kg (9.5 lbs)

21.6 kg (47.75 lbs.)

13.26 Kg

Operating Temperature

0° C to 40° C (32° F to 104° F)

10° C to 35° C (50° F to 95° F)

10 ° C to 35° C (50 ° F to 95° F)

Storage Temperature

-20° C to 70° C -4° F to 158° F)

-40° C to 70° C (-40° F to 158° F)

-40 ° C to 70 ° C (-40 ° F to 158° F)

Humidity

5% to 90%, non-condensing

5% to 90%, non-condensing

5% to 90%, non-condensing



19” Rack Mountable

1U configuration to fit standard 19” rack (mounting kit included)

1U configuration to fit standard 19” rack (mounting kit included)

1U configuration to fit standard 19? rack (mounting kit included)



Front and Rear Mount



I/O cabling at back of unit; power cabling and power switch at the rear

I/O cabling and power cabling at back of unit; power switch at the front

I/O cabling and power cabling at back of unit ; power switchat the front



Data Ports



4 x 10/100/1000 Base-T



2 x SFP+ (GBICs sold separately) 2 x 10/100/1000 Base-T

2 x 10/25/40 Gbps QSFP28 (GBICS

Sold Separately) 2x 1/10 Gbps BASE-T



Management Ports

1 x 10/100/1000 Base-T 1 x USB Port

Console Port DB9

1 x 10/100/1000 Base-T

5x USB Ports available. Use one.

Console Port RJ4

1 x 10/100/1000 Mbps Base-T 5 x USB 3.0 ports. Use one.

RJ45 Console Port



Power Specifications



Power (max): 150W Voltage: 100-240 VAC

Frequency: 50-60 Hz

Power (max): 750 W (Redundant Power Supply Sold Separately) Voltage: 110/240 VAC Frequency: 47-63 Hz

Power (max) : 1100 W (Redundant Power Supply Sold Separately) Voltage: 110/240 VAC

Frequency: 47-63 Hz













Regulatory/Safety





•   UL 60950-1, 2nd EditionCSA C22.2 No. 60950-1-07,2nd Edition

•   CB scheme: IEC 60950-1 AS/NZS 60590-1 (Australia/New Zealand)

•   Mexico via NRTL

•   BSMI CNS 14336-1 99 (Taiwan)

•   CCC GB4943.1-2011, GB9254- 2008

•   GB 176251-2012 (China)

•   UL60950 - CSA 60950 (USA/

Canada)EN60950 (Europe)

•   IEC60950 (International)

•   CB Certificate and Report, IEC60950 GS Certification (Germany)

•   GOST R 50377-92 - Certification (Russia)

•   Ukraine Certification (Ukraine)

•   CE - Low Voltage Directive- 2011/65/EU (Europe)

•   IRAM Certification (Argentina)

•   UL60 950 - CSA 60 950 (USA/

Canada)

•   EN60 950 (Europe)

•   IEC60 950 (International)

•   CB Certificate and Report

•   IEC60 950 GS

Certification(Germany)

•   GOST R 50 377-92 - Certification (Russia)

•   Ukraine Certification (Ukraine)

•   CE - Low Voltage Directive

•   20 11/65/EU (Europe)

























Emissions/Immunity

•   FCC Part 15,Subpart B, Class A

•   ICES-003: 2012, Class A

•   CISPR22:2010, Class A

•   EN 55022: 2010/AC:2011, Class A

•   EN 61000-3-2:2006+A2:2009

•   EN 61000-3-3:2008

•   EN 61000-6-4:2007+A1:2011

•   RCM (Australia)

•   VCCI Class A (Japan)

•   MSIP KCC (Korea)

•   BSMI CNS 13438:2006 95

(Taiwan)

•   ANATEL Res. 442, Category III (Brazil)

•   CISPR24:2010

•   EN 55024:2010

•   MSIP KCC (Korea)

•   EN/IEC 61000-4-2:2008

•   EN/IEC 61000-4-3:2010

•   EN/IEC 61000-4-4:2012

•   EN/IEC 61000-4-5:2005

•   EN/IEC 61000-4-6:2008

•   EN/IEC 61000-4-11:2004



•   FCC/ICES-003 - Emissions (USA/ Canada)

•   CISPR 22 - Emissions (International)

•   EN55022 - Emissions (Europe)

•   EN55024 - Immunity (Europe)

•   EN61000-3-2 - Harmonics (Europe)

•   EN61000-3-3 - Voltage Flicker (Europe)

•   CE - EMC Directive 2004/108 EC (Europe)

•   VCCI Emissions (Japan)

•   AS/NZS 3548 Emissions (Australia/New Zealand)

•   BSMI CNS13438 Emissions (Taiwan)

•   GOST R 29216-91 Emissions (Russia)

•   GOST R 50628-95 Immunity (Russia)

•   Ukraine Certification (Ukraine)

•   KC Certification (Korea)



•   FCC/ICES-0 0 3 - Emissions (USA/Canada) CISPR 22 - Emissions (International)

•   EN550 22 - Emissions (Europe)

•   EN550 24 - Immunity (Europe)

•   EN610 0 0 -3-2 - Harmonics (Europe)

•   EN610 0 0 -3-3 - Voltage Flicker (Europe)

•   CE - EMC Directive 20 0 4/10 8 EC (Europe)

•   VCCI Emissions (Japan)

•   AS/NZS 3548 Emissions (Australia/New Zealand)

•   BSMI CNS13438 Emissions (Taiwan)

•   GOST R 29216-91Emissions (Russia

•   GOST R 50 628-95 Immunity (Russia)

•   Ukraine Certification (Ukraine)

•   KC Certification (Korea)


Documentation:

Download the Extreme Networks Campus Controller Datasheet (PDF).
