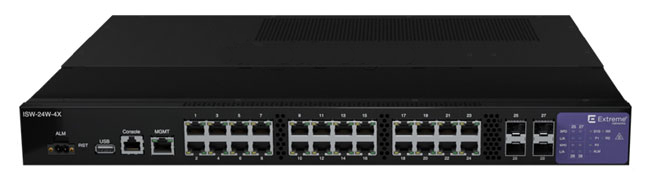

Extreme Networks ISW-28 802.3bt 24GbP 4 SFP+ 1RU (ISW-24W-4X)
Industrial Ethernet Switch
(28-Port Model): ISW Industrial Ethernet Switch 24 10/100/1000BASE-T 90W 802.3bt PoE ports, plus 4 10GBASE-X SFP+ ports dual DC power inputs, fanless, 1RU. Note:This model does not support DIN Rail or Wall Mount options. It is a 1RU rack-mountable unit
Our Price: $6,495.00
More pricing below, click here!
Overview:
Extreme Industrial Switches are a family of ruggedized Layer 2 switches designed to operate under harsh environments and extended temperature conditions. They provide continuous uptime, manageability, and operational efficiency. With flexible PoE options of IEEE 802.3af, 802.3at and 802.3bt supporting up to 90W PoE per port, each switch offers the performance needed for today’s power-hungry surveillance devices and WLAN access points.
Extreme Industrial Switches are an excellent choice for industrial environments, including intelligent transportation systems, utilities, and smart cities. Full redundant ring technology creates fault- tolerant networks with high availability based on industry standard technologies.
Extreme Industrial Switches can automatically connect to a Fabric Connect network via the Fabric Attach software-based feature which enables the switches to be quickly mapped as endpoints within a virtualized Fabric Connect service.
Highlights
- Ruggedized switches that support operations under harsh industrial conditions and extended temperatures from -40°C to 75°C
- Available in several models that offer DIN Rail, Wall Mount and Rack Mount options
- Ruggedized IP30 enclosure for DIN rail mounted switches
- Fanless operation on both DIN Rail and Rack Mount switches
- Flexible PoE support with IEEE 802.3af, 802.3at and 802.3bt offering up to 90W PoE on select models
- Dual DC power input supported by all switch models
- Full wire speed Layer 2 with highly Resilient LACP, Spanning tree STP, RSTP & MSTP, fast Ring fail-over and G.8032 ERPS protection options
- Integrated Fabric Attach capability for secure, automated connection to Extreme Fabric Connect services
- CLI and web-based configuration support
- ExtremeCloud IQ Site Engine based monitoring
Features:
Intelligent and Resilient Layer 2 Services
ISW switches provide intelligent Layer 2 switching including Spanning Tree (STP, RSTP, MSTP), resilient LACP and advanced Ethernet Ring Protection protocols. They support multiple ring topologies such as Single/Dual Ring along with Dual Homing and Balancing Chain capabilities, enabling highly flexible and resilient deployment options. Having a reliable network is very important to Ethernet applications, especially in an Industrial domain. ISW-Series Managed Industrial Ethernet Switches provide fast failover ring protection enabling sub-second convergence, ensuring seamless network operation in the event of a link loss or a network device error.
Quality of Service
QoS (Quality of Service) features allow you to allocate network resources to mission-critical applications at the expense of applications that are less sensitive to such factors as time delays or network congestion. You can configure your network to prioritize specific types of traffic, ensuring that each type receives the appropriate QoS level. The ISW switches can be configured to have 8 output Class of Service (CoS) queues per port and support Strict Priority with Weighted Round Robin scheduling.
Fabric Attach
Fabric Attach capability on the ISW Series helps automate the connection to Extreme’s campus-based Fabric Connect solution. Fabric Attach provides zero-touch edge provisioning and allows ISW switches to take advantage of the virtualized services and inherent security capabilities of the Extreme Fabric Connect infrastructure.
Security
Edge Security is important when connecting 3rd party devices and hosts to the switch. ISW series supports both MAC authentication and 802.1X EAP authentication mechanisms on a per port basis. ISW switches support both RADIUS and TACACS+ for access control.
ACL (Access Control List) function supports access control security for MAC address, IP address, Layer 4 Port, and Type of Service. Each has five actions: Deny, Permit, Queue Mapping, CoS (Class of Service) Marking, and Copy Frame. You can set the default ACL rule to Permit or Deny.
Flexible PoE
The ISW Series offers models that include standards-based IEEE 802.3af, 802.3at and up to IEEE 802.3bt on select models, enabling flexible 15W/30W/60W/90W of PoE (Power over Ethernet) capability per port. PoE eliminates the need for additional electrical cabling and circuits otherwise needed to power Industrial IoT devices or wireless APs.
Specifications:
External Interfaces
| Part Number | Product Description | Interfaces |
|---|---|---|
| 16801 | ISW 4-10/100P, 2-10/100T, 2-SFP |
|
| 16802 | ISW 8-10/100P, 4-SFP |
|
| 16803 | ISW 4GbP, 2GbT, 2-SFP |
|
| 16804 | ISW 8 GbP, 4-SFP |
|
| ISW-4W-4WS-4X | ISW-12 802.3bt 4GbP 4 Combo 4 SFP+ |
|
| ISW-24W-4X | ISW-28 802.3bt 24GbP 4 SFP+ 1RU |
|
Switch Technical Specifications
| 16801, 16802, 16803, 16804 | ISW-4W-4WS-4X | ISW-24W-4X | |
|---|---|---|---|
| Operating Temperature | -40°C to +75°C | -40°C to +75°C | -40°C to +75°C |
| Mounting | DIN Rail, Wall Mount | DIN Rail, Wall Mount | Rack Mount* |
| Power Supply | Dual DC Input**, External PSU | Dual DC Input**, External PSU | Dual DC Input**, External PSU |
| Rated Input | 12-56VDC (46-56V for IEEE 802.3af/at) | 46-57VDC, max. 7.5A (52-57V for IEEE 802.3bt) |
46-57VDC, max. 15A (52-57V for IEEE 802.3bt) |
| Qualified PSUs*** | 240W (16807) 480W (16920) |
240W (16807) 480W (16920) 960W (ISW-AC-DC-PS-960W) |
|
| Fans | Fanless | Fanless | Fanless |
* Refer to Hardware Install Guide for required space clearances for installing rack mounted switch
** Dual DC input offers power supply redundancy only and cannot be used for additive PoE power
*** ISW switches can also be powered by direct DC input available at deployment site, which match the rated input of the switches
Dimensions and Weights
| Part Number | Dimensions (WxHxD) millimeters (mm) | Dimensions (WxHxD) inches (in.) | Weight (kg) | Weight (oz) |
|---|---|---|---|---|
| 16801 | 77 x 154 x 128 | 3.0 x 6.0 x 5.0 | 1.38 | 48.68 |
| 16802 | 77 x 154 x 128 | 3.0 x 6.0 x 5.0 | 1.44 | 50.79 |
| 16803 | 77 x 154 x 128 | 3.0 x 6.0 x 5.0 | 1.38 | 48.68 |
| 16804 | 77 x 154 x 128 | 3.0 x 6.0 x 5.0 | 1.44 | 50.79 |
| ISW-4W-4WS-4X | 77 x 154 x 128 | 3.0 x 6.0 x 5.0 | 1.9 | 67.02 |
| ISW-24W-4X | 86 x 164 x 132 | 3.39 x 6.46 x 5.20 | 5.7 | 201.06 |
Power Consumption
| Part Number | Minimum Power Consumption (W)* | Minimum Heat Dissipation (BTU/hr) | Maximum Power Consumption (W)** | Maximum Heat Dissipation (BTU/hr) |
|---|---|---|---|---|
| 16801 | 15 | 51 | 142 | 75 |
| 16802 | 15 | 51 | 265 | 86 |
| 16803 | 15 | 51 | 142 | 75 |
| 16804 | 15 | 51 | 265 | 86 |
| ISW-4W-4WS-4X | 31 | 106 | 397*** | 127 |
| ISW-24W-4X | 40 | 136 | 777*** | 195 |
* Without PoE PD loading
** Includes PoE load on all ports
*** Includes the power consumption by SFP/SFP+ optics at 1.5W per port
PoE Budget*
| Part Number | PoE Budget with 240W PSU | PoE Budget with 480W PSU | PoE Budget with 960W PSU |
|---|---|---|---|
| 16801 | 120W | 120W | not supported |
| 16802 | 177W | 240W | not supported |
| 16803 | 120W | 120W | not supported |
| 16804 | 177W | 240W | not supported |
| ISW-4W-4WS-4X | 161W | 353W | 360W |
| ISW-24W-4X | 152W | 344W | 720W** |
* The table shows PoE budgets on a per PSU basis assuming 20% derating.
** Max PoE load of 240W per group of 8 ports. Refer to the Hardware Installation Guide for more details
Performance and Scale
| Part Number | Port Counts | Aggregate Bandwidth | Forwarding Rate |
|---|---|---|---|
| 16801 |
|
5.2Gbps | 3.87Mpps |
| 16802 |
|
9.6Gbps | 7.14Mpps |
| 16803 |
|
16 Gbs | 11.90Mpps |
| 16804 |
|
24 Gbs | 17.85Mpps |
| ISW-4W-4WS-4X |
|
96Gbps | 71.4Mpps |
| ISW-24W-4X |
|
128Gbs | 95.2Mpps |
Software Scaling Values:
| 16801, 16802, 16803, 16804 | ISW-4W-4WS-4X | ISW-24W-4X | |
|---|---|---|---|
| VLANs | 4K | 4K | 2K |
| VLAN IDs | 1-4095 | 1-4094 | 1-4094 |
| MAC Table | /8K | 32K | 32K |
| ARP Table | 1K | 4K | 2K |
| IPv4 Route Table | 32 | 128 | 64 |
| IP Interfaces | 8 | 128 | 20 |
| Access Control Entries | 256 | 512 | 256 |
| IGMP Groups | 1024 | 1024 | 1024 |
| Port Mirroring Groups | 1 | 5 | 4 |
Software Features:
L2 and Multicast
- Flow Control IEEE 802.3x (Full Duplex) and Back-Pressure (Half Duplex)
- Protocol-based VLANS and Port-based VLANs; MAC-based VLANs; IP Subnet-based VLANs*
- IEEE 802.1Q tag-based VLANs
- IEEE 802.1ad Double Tagging (Q in Q)
- IGMP v1, v2, v3 with up to 1000 multicast groups
- IGMP snooping and querying
- Immediate leave and leave proxy
- Throttling and filtering
- IEEE 802.1ab Link layer Discovery Protocol (LLDP)
Network Redundancy
- Fast Failover Ring Protection with single and multiple rings, ring coupling, dual homing and chain modes
- IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP
- Static trunk or Dynamic via LACP (Link Aggregation Control Protocol)
- ITU G.8032 Ethernet Ring Protection Switching (ERPS)
Traffic Management and QOS
- Priority - IEEE 802.1p QoS
- Queues per port - 8
- Scheduling - Strict, Weighted Round Robin
- Port-based shaping
Security
- Port Security — IP and MAC-based access control, IEEE 802.1X authentication Network Access Control, RADIUS, and TACACS+ AAA (Authentication, Accounting and Authorization)
- Storm Control — Multicast/Broadcast/Flooding Storm Control
Management
- CLI
- GUI
- SNMP v1, v2c, v3
- Telnet
- Dual Stack IPv4/ IPv6 for management
- Management Security- HTTPs, SSH, RADIUS client for management
- FTP/sFTP - Configuration Import/Export, Firmware Upgrade
- SYSLOG
- Per Port Mirroring
- Ethernet Copper Diagnostics
- Digital Diagnostics for SFP/SFP+ ports
- DHCP- Client, Server, Relay, Snooping, Option 82
- NTP
- PoE scheduling, power control, PoE PD power consumption
Supported MIBs
- Standard MIBs
- RFC 1213 MIB II
- RFC 1215 A Convention for Defining Traps for Use with the SNMP
- RFC 2613 SMON MIB: VLAN statistics and port copy
- RFC 2674 VLAN MIB
- RFC 2819 RMON (Group 1, 2, 3, and 9)
- RFC 2863 Interface Group MIB using SMI v2
- RFC 3411 SNMP Management Frameworks
- RFC 3414 User-based Security Model for SNMPv3
- RFC 3415 View-based Access Control Model for SNMP
- RFC 3635 Ethernet -like MIB
- RFC 3636 802.3 Medium Attachment Unit s (MAUs) MIB
- RFC 4133 Entity MIB v3
- RFC 4188 Bridge MIB
- RFC 4292 IP Forwarding Table MIB
- RFC 4293 Management Information Base for the Internet Protocol (IP)
- RFC 4668 RADIUS Authentication Client MIB
- RFC 4670 RADIUS Accounting MIB
- RFC 5519 Multicast Group Membership Discovery MIB
- IEEE 802.1MSTP MIB
- IEEE 802.1AB LLDP MIB (LLDP MIB included in clause of standard)
- IEEE 802.1X MIB (PAE MIB included in clause of standard)
- IEEE 80 2.1Q Bridge MIB 2008 IEEE 802.3ad MIB (LACP MIB included in clause of standard)
- Private MIBs**
- Access Management MIB
- ACL MIB
- AGGR MIB
- ARP Inspection MIB
- Authentication MIB
- Daylight Saving MIB
- DDMI MIB
- DHCP6 Client MIB
- DHCP Relay MIB
- DHCP Server MIB
- DHCP Snooping MIB
- DNS MIB
- EEE MIB
- ERPS MIB
- Firmware MIB
- GVRP MIB
- HTTPS MIB
- ICFG MIB
- ICMP MVR MIB
- ICMP Profile MIB
- ICMP Snooping IP MIB
- JSON RPC Notification MIB
- LACP MIB
- LLDP MIB
- Loop Protection MIB
- MAC MIB
- MEP MIB
- MSTP MIB
- NAS MIB
- NTP MIB
- POE MIB
- Port MIB
- Privilege MIB
- PSEC MIB
- QOS MIB
- SMI MIB
- SNMP MIB
- SSH MIB
- SYSLOG MIB
- System Utilities MIB
- Textual Convention MIB
- Users MIB
- VLAN MIB
- Voice VLAN MIB
* MAC and subnet VLAN are not supported in the ISW-24W-4X model.
*Private MIB support varies based on switch model.
Documentation:
Download the Extreme Networks Industrial Ethernet Switches Datasheet (PDF).
