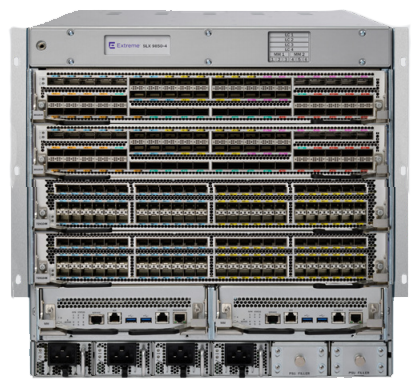

Extreme Networks ExtremeRouting SLX 9850-4
Next-Generation Modular Routing Platform for the Digital Era


Extreme Networks ExtremeRouting SLX 9850-4

Extreme Networks Products
Extreme Networks ExtremeRouting 9850 Series
USA: FREE Ground ShippingExtremeRouting SLX 9850 four-slot chassis with one management module, five switch fabric modules, two 3,000 W AC power supplies, three fan modules, and accessory kit
Power cord not included
#BR-SLX9850-4-BND-AC
Contact us for Pricing!
USA: FREE Ground ShippingExtremeRouting SLX 9850 four-slot chassis with one management module, five switch fabric modules, two 3,000 W DC power supplies, three fan modules, and accessory kit
Power cord not included
#BR-SLX9850-4-BND-DC
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

With mobile connectivity, cloud services, and 4K HD video streaming for billions of devices the norm, and the Internet-of-Things (IoT) and augmented reality and virtual reality on the horizon, organizations must modernize the way they communicate and conduct business. In addition to consuming an enormous amount of network capacity, these services increase operational complexity just as organizations are striving to meet customer demands for greater business agility and performance.

To succeed in the digital era, organizations need network platforms that allow them to simplify and speed up operations, without increasing costs. Such platforms incorporate innovative software to analyze and automate network operations, thereby reducing OpEx, and provide flexible deployment options with forwarding performance and scale to dramatically reduce CapEx.

Extensible Routing Platform

The ExtremeRouting SLX 9850 is designed to cost-effectively deliver the density, scale, and performance needed to address the explosive growth in network bandwidth, devices, and services—today and well into the future. This flexible platform, powered by Extreme SLX-OS, provides carrier-class advanced features that leverage proven Extreme routing technology currently deployed in the most demanding data center, service provider, and enterprise networks. And it is all delivered through best-in-class forwarding hardware. The extensible architecture is designed for investment protection, to readily support future requirements for greater bandwidth, scale, and forwarding capabilities. In addition, the SLX 9850 helps address the increasing agility and analytics needs of digital organizations with innovative network automation and visibility enabled through Extreme Workflow Composer™ and the Extreme SLX Insight Architecture.

Highlights

  • Delivers up to 230 Tbps non-blocking capacity in a midplane-free platform, providing industry-leading 100/40/10 GbE port density, cost-efficiency, scale, and performance with a 1.5U module architecture designed for future growth
  • Supports on-device visibility into data plane traffic with the Extreme Networks SLX Insight Architecture
  • Enables customizable, real-time monitoring via the Extreme Networks SLX Insight Architecture for improved troubleshooting with reduced MTTR, optimized use of off-device Big Data analytics and monitoring platforms, and intelligent automation
  • Incorporates turnkey and customizable cross-domain workflow automation for the entire network lifecycle through Extreme Networks Workflow Composer and network automation suites, helping to improve business agility and innovation

Features:

High Availability with 230 Tbps-scale Forwarding

The SLX 9850 is the industry’s most powerful IPv4, IPv6, MPLS/Multi-VRF and BGP-EVPN data center router, providing a cost-efficient solution that is purpose-built for the most demanding service provider and enterprise data center applications. The robust system architecture, versatile feature set, and high level of flexibility enable it to scale from the data center spine to the data center core.

Designed with state-of-the-art network processing technology, the SLX 9850 has a non-blocking switching capacity of up to 230 Tbps. An advanced distributed hardware architecture with fine-grained QoS support enables full-duplex, high-speed performance for any mix of IPv4, IPv6, MPLS and BGP-EVPN VXLAN Overlay services. This innovative system architecture offers several distinguishing characteristics:

  • Clos-based distributed non-blocking architecture: Provides the foundation for a robust, scalable data center platform.
  • Midplane-free design: Allows interface modules to communicate directly with switch fabric modules, enabling the chassis to have an efficient front-to-back airflow design and no signal integrity degradation.
  • High-availability implementation: Provides a clear separation between the control plane and data plane at 10 Gigabit Ethernet (GbE) speed to enable operational performance at high loads.
  • Distributed network processing, ultra-deep packet buffers, and advanced QoS capabilities across the system: Streamlines execution of a rich feature set at high data rates, even for bursty or long-lived traffic flows.
  • Complete redundancy: Features a fully redundant architecture with redundant power supply modules, management modules, fan modules, and switch fabric modules to minimize single points of failure.

The SLX 9850 is available in two different models: the SLX 9850-4, a four interface-slot system, and the SLX 9850-8, an eight interface-slot system. Management modules, interface modules, and power supply modules are interchangeable across both the four- and eight-slot models, thereby decreasing inventory and maintenance costs. All modules are hot-pluggable, minimizing system disruption when adding or replacing a module.

Future-Ready Platform

Maximize investment protection with cost-efficient density, scale, and performance to handle the exponential growth in network bandwidth, devices, and services.

SLX 9850 Extensible Architecture

The SLX 9850 architecture is designed to support connectivity needs today and well into the future as bandwidth and application workload requirements grow. Its interface modules optimize port density and capabilities, leveraging the latest Intel x86 CPU and merchant silicon packet processor technology for optimal space, power, and cooling in a highly reliable, carrier-class routing platform. The SLX 9850 delivers:

  • Industry-leading 10/40/100 GbE port density/price per blade
  • Interface modules with a 1.5U design for the highest density, routes, statistics, and policy scale
  • Industry-leading deep buffers optimized for bursty traffic patterns
  • Extreme OptiScale™ optimizes the programmable hardware and software capabilities of the adaptive SLX 9850 to accelerate innovation and deliver investment protection
  • Innovative midplane-free design, providing efficient airflow and internal signal integrity for optimal cooling and system performance
  • Chassis capacity up to 230 Tbps to support massive traffic scale

Modular, Virtualized Operating System

The SLX 9850 runs SLX-OS, a fully virtualized Linux-based operating system that delivers process-level resiliency and fault isolation. SLX-OS supports advanced routing and MPLS features, and is highly programmable with support for REST and NETCONF, enabling full network lifecycle automation with Workflow Composer. In addition, SLX-OS is based on Ubuntu Linux, which provides all the advantages of open source and access to commonly used Linux tools.

SLX-OS runs in a virtualized environment over a KVM hypervisor, with the operating system compartmentalized and abstracted from the underlying hardware. The core operating system functions for the SLX 9850 are hosted in the system VM, which runs on both management modules in a redundant operation. The SLX 9850 interface module software is also virtualized, running in a KVM hypervisor on the local processor of the interface module.

This approach provides clean failure domain isolation for the router operating system while leveraging the x86 ecosystem, thereby removing single vendor lock-in for system tools development and delivery. Additionally, it supports a guest VM, which is an open KVM environment for running third-party and customized monitoring, troubleshooting, and analytics applications.

Figure 1: The SLX Insight Architecture, inherent in Extreme SLX switches and routers, delivers pervasive visibility in every device for greater insight into network traffic.
Figure 1: The SLX Insight Architecture, inherent in Extreme SLX switches and routers, delivers pervasive visibility in every device for greater insight into network traffic.

Embedded Network Visibility At-A-Glance

Keep network traffic and operations running smoothly with pervasive, real-time network analytics, monitoring, and troubleshooting.

Extreme Networks SLX Insight Architecture

The SLX Insight Architecture delivers dynamic flow identification, intelligent pre-processing, and flexible data streaming capabilities on each router. It can support the following key network operations use cases without disrupting network traffic:

  • Real-time monitoring
  • Overlay and underlay visibility
  • Intelligent automation

Embedded Network Visibility

The SLX 9850 includes the SLX Insight Architecture delivered through SLX-OS and SLX 9850 hardware innovation. This new approach to network monitoring and troubleshooting provides a highly differentiated solution that makes it faster, easier, and more cost-effective to get the comprehensive, real-time visibility needed for network operations and automation. By embedding network visibility on every switch or router, the SLX Insight Architecture can help organizations achieve pervasive visibility throughout the network to quickly and efficiently identify problems, accelerate mean-time-to-resolution, and improve overall service levels.

The highly flexible SLX Insight Architecture enables required data to be extracted from the network and optimized locally on-device for cost-effective delivery offdevice to cloud-scale management, operational intelligence, and automation systems for additional analysis, action, or archiving.

As seen in Figure 1, the key components of the SLX Insight Architecture include:

  • Flexible packet filtering: The SLX Insight Architecture begins with flexible packet filtering in the packet processors for each interface. Organizations have access to a rich set of filters for capturing the desired traffic type for visibility processing.
  • Guest VM: The SLX Insight Architecture provides an open KVM environment that runs thirdparty applications and customized monitoring, troubleshooting, and analytics tools. Enabled by SLXOS, this preconfigured guest VM is on each SLX 9850 management module. It hosts third-party network operations and analytics applications on every device, extending visibility to the entire network.
  • Dedicated analytics path: The SLX Insight Architecture provides an innovative internal analytics path (up to 10 GbE) between the packet processor for the SLX 9850 interface module and the architecture’s open KVM environment running on the SLX 9850 management module. This enables applications running in the open KVM environment to extract data without disrupting the forwarding or control plane traffic of the SLX 9850.
  • Flexible streaming: The SLX Insight Architecture provides flexible streaming options, enabling captured data to be delivered to analytics applications off the platform. This includes a dedicated 10 GbE services port on each management module for out-of-band streaming, as well as streaming via any interface module port.
  • Dedicated analytics storage: The SLX 9850 provides 256 GB of on-device storage dedicated to the SLX Insight Architecture for applications running in the open KVM environment. This enables real-time data capture for easy and fast access.

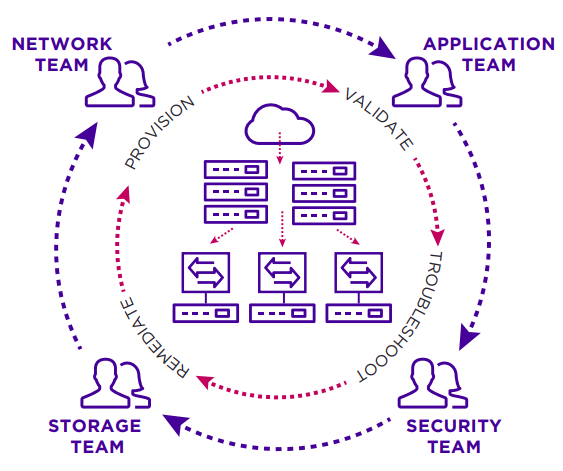

Figure 2: Software-driven workflow automation with Extreme Workflow Composer and the Extreme SLX 9850.
Figure 2: Software-driven workflow automation with Extreme Workflow Composer and the Extreme SLX 9850.

Business Agility with Workflow Automation

With DevOps-style automation, the SLX 9850 and Workflow Composer network automation platform help organizations improve business agility and accelerate innovation by automating the entire network lifecycle — from provisioning, validation, and troubleshooting to the remediation of network services. At the same time, these solutions align workflow automation to IT operations and modern DevOps tool chains.

By automating and orchestrating across domains within the services delivery chain, Extreme Workflow Composer connects functional domains—such as the network, compute, storage, and applications—to minimize the number of transitions between functions. This streamlines the delivery of services and infrastructure changes so that they are fast, reliable, and repeatable (see Figure 2). In addition, turnkey automation suites enable organizations to easily deploy Extreme Workflow Composer with SLX switches and routers using a modular, customizable approach, helping to jumpstart the automation journey.

Devops-Style Automation

Improve business agility and accelerate innovation with cross-domain network automation.

SLX 9850 and Workflow Composer
The SLX 9850 combined with Workflow Composer enables automation of the entire network lifecycle with event-driven automation, including:

  • Automation for provisioning, validation, troubleshooting, and remediation of network services
  • End-to-end IT workflow automation through crossdomain integration
  • Customizable or do-it-yourself workflow automation options in multivendor network environments
  • DevOps methodologies, open source technologies, and a thriving technical community
  • Industry-standard REST/NETCONF-based APIs with Yang models, OpenFlow, scripting languages, and streaming APIs
  • Turnkey automation with Workflow Composer Automation Suites for network essentials, IP fabric and IXP workflows, and SLX switches and routers

Extreme Management Center for Insights, Visibility and Control

The SLX family of switches and routers, including SLX 9850 can be managed by Extreme Management Center (XMC). XMC includes a suite of applications, empowering administrators to deliver a superior quality experience to end users through a single pane of glass and a common set of tools to provision, manage and troubleshoot the network. It works across wired and wireless networks, from the edge to the data center and private cloud.

XMC provides a consolidated view of users, devices and applications for wired and wireless networks – from data center to edge. Zero touch provisioning lets one quickly bring new infrastructure online. A granular view of users, devices and applications with an easy to understand dashboard enables efficient inventory and network topology management.

XMC also provides ecosystem integration, includes off the box integrations with major enterprise data center virtual environments such as VMWare, OpenStack and Nutanix to provide VM visibility and enforce security settings. Get more information on Extreme Management Center.

Extreme Global Services

Extreme Global Services has the expertise to help organizations build scalable, efficient cloud infrastructures. Leveraging 20 years of expertise in storage, networking, and virtualization, Extreme Global Services delivers worldclass professional services, technical support, and education services, enabling organizations to maximize their Extreme investments, accelerate new technology deployments, and optimize the performance of networking infrastructures.

Specifications:


  SLX 9850-4 SLX 9850-8
Interface module slots 4 8
Management module slots 2 2
Power supply module slots 6 12
Fan module slots 3 3
Switch fabric module slots 6 6
Maximum 100 GbE ports 144 288
Maximum 40 GbE ports 240 480
Maximum 10 GbE ports 960 1,920
Maximum 1 GbE ports 288 576
Switch fabric capacity (up to) 115 Tbps 230 Tbps
Management module redundancy 1:1 1:1
Switch fabric module redundancy N+1 N+1
Airflow Front to back Front to back
Typical AC power consumption (W) 4,177 8,099
Maximum AC power consumption (W) 5,947 11,492
Maximum thermal output (BTU/HR) 19,465 37,980
Height 17.50 in./44.45 cm/10 RU 29.75 in./75.57 cm/17 RU
Width 17.22 in./43.74 cm 17.22 in./43.74 cm
Depth chassis only without ejector or fan handles 30.0 in./76.20 cm 30.0 in./76.2 cm
Weight chassis only 107 lb/49 kg 179 lb/82 kg
Weight chassis with all modules 303 lb/138 kg 541 lb/246 kg

  Dual-Speed (D)
72-port 10 GbE
Flex-Speed (D)
36-port 100 GbE
Dual-Speed (M)
72-port 10 GbE
Flex-Speed (M)
36-port 100 GbE
100 GbE ports per module N/A 36 N/A 36
40 GbE ports per module N/A 60 N/A 60
10 GbE ports per module 72 240 72 240
1 GbE ports per module 72 N/A 72 N/A
Port type 10 GbE
1 GbE
100 GbE QSFP-28
40 GbE
10 GbE breakout
10 GbE
1 GbE
100 GbE QSFP-28
40 GbE
10 GbE breakout
Packet buffers per module 8 GB 24 GB 12 GB 36 GB
Route scale 256,000 (IPv4) 256,000 (IPv4) OptiScale 1,500,000 (IPv4)
140,000 (IPv6)
OptiScale 1,500,000 (IPv4)
140,000 (IPv6)
OptiScale™ Internet Routing No No Yes Yes
MPLS No No Yes Yes
Typical AC power consumption (W) 250 617 250 617
Maximum AC power consumption (W) 362 856 362 856

IEEE Compliance

  • Ethernet
    • 802.3-2005 CSMA/CD Access Method and Physical Layer Specifications
    • 802.3ab 1000BASE-T
    • 802.3ae 10 Gigabit Ethernet
    • 802.3u 100BASE-TX, 100BASE-T4, 100BASE-FX Fast Ethernet at 100 Mbps with Auto-Negotiation
    • 802.3x Flow Control
    • 802.3z 1000BASE-X Gigabit Ethernet over fiber optic at 1 Gbps
    • 802.3ad Link Aggregation
    • 802.1Q Virtual Bridged LANs
    • 802.1D MAC Bridges
    • 802.1w Rapid STP
    • 802.1s Multiple Spanning Trees
    • 802.1ag Connectivity Fault Management (CFM)
    • 8023.ba 100 Gigabit Ethernet
    • 802.1ab Link Layer Discovery Protocol
    • 802.1x Port-Based Network Access Control
    • 802.3ah Ethernet in the First Mile Link OAM
    • ITU-T G.8013/Y.1731 OAM mechanisms for Ethernet
    • 802.1ak for MVRP

RFC Compliance

  • General Protocols
    • RFC 768 UDP
    • RFC 791 IP
    • RFC 792 ICMP
    • RFC 793 TCP
    • RFC 826 ARP
    • RFC 854 TELNET
    • RFC 894 IP over Ethernet
    • RFC 903 RARP
    • RFC 906 TFTP Bootstrap
    • RFC 950 Subnet
    • RFC 951 BootP
    • RFC 1027 Proxy ARP
    • RFC 1042 Standard for The Transmission of IP
    • RFC 1166 Internet Numbers
    • RFC 1122 Host Extensions for IP Multicasting
    • RFC 1191 Path MTU Discovery
    • RFC 1340 Assigned Numbers
    • RFC 1542 BootP Extensions
    • RFC 1591 DNS (client)
    • RFC 1812 Requirements for IPv4 Routers
    • RFC 1858 Security Considerations for IP Fragment Filtering
    • RFC 2131 BootP/DHCP Helper
    • RFC 2578 Structure of Management Information Version 2
    • RFC 2784 Generic Routing Encapsulation
    • RFC 3021 Using 31-Bit Prefixes on IPv4 Point-to-Point Links
    • RFC 3768 VRRP
    • RFC 4001 Textual Conventions for Internet Network Addresses
    • RFC 4632 Classless Interdomain Routing (CIDR)
    • RFC 4950 ICMP Extensions for MPLS
    • RFC 5880 Bidirectional Forwarding Detection
    • RFC 5881 Bidirectional Forwarding Detection for IPv4 and IPv6 (Single Hop)
    • RFC 5882 Generic Application of Bidirectional Forwarding Detection
    • RFC 5884 Bidirectional Forwarding Detection for Multihop Paths
  • BGP4
    • RFC 1745 OSPF Interactions
    • RFC 1772 Application of BGP in the Internet
    • RFC 1997 Communities and Attributes
    • RFC 2385 BGP Session Protection via TCP MD5
    • RFC 2439 Route Flap Dampening
    • RFC 2918 Route Refresh Capability
    • RFC 3392 Capability Advertisement
    • RFC 3682 Generalized TT L Security Mechanism for eBGP Session Protection
    • RFC 4271 BGPv4
    • RFC 4364 BGP/MPLS IP Virtual Private Networks
    • RFC 4456 Route Reflection
    • RFC 4486 Sub Codes for BGP Cease Notification Message
    • RFC 4724 Graceful Restart Mechanism for BGP
    • RFC 4893 BGP Support for Four-octet AS Number Space
    • RFC 5065 BGP4 Confederations
    • RFC 5291 Outbound Route Filtering Capability for BGP-4
    • RFC 5396 Textual Representation of Autonomous System (AS) Numbers
    • RFC 5668 4-Octect AS specific BGP Extended Community
  • OSPF
    • RFC 1745 OSPF Interactions
    • RFC 1765 OSPF Database Overflow
    • RFC 2154 OSPF with Digital Signature (Password, MD-5)
    • RFC 2328 OSPF v2
    • RFC 3101 OSPF NSSA
    • RFC 3137 OSPF Stub Router Advertisement
    • RFC 3630 TE Extensions to OSPF v2
    • RFC 3623 Graceful OSPF Restart
    • RFC 4222 Prioritized Treatment of Specific OSPF Version 2
    • RFC 5250 OSPF Opaque LSA Option
  • IS-IS
    • RFC 1195 Routing in TCP/IP and Dual Environments
    • RFC 1142 OSI IS-IS Intra-domain Routing Protocol
    • RFC 3277 IS-IS Blackhole Avoidance
    • RFC 5120 IS-IS Multi-Topology Support
    • RFC 5301 Dynamic Host Name Exchange
    • RFC 5302 Domain-wide Prefix Distribution
    • RFC 5303 Three-Way Handshake for IS-IS Point-to-Point
    • RFC 5304 IS-IS Cryptographic Authentication (MD-5)
    • RFC 5306 Restart Signaling for ISIS (helper mode)
    • RFC 5309 Point-to-point operation over LAN in link state routing protocols
  • IPv4 Multicast
    • RFC 1112 IGMP v1
    • RFC 2236 IGMP v2
    • RFC 4601 PIM-SM
    • RFC 4607 PIM-SSM
    • RFC 4610 Anycast RP using PIM
    • RFC 5059 BSR for PIM
  • QOS
    • RFC 2474 DiffServ Definition
    • RFC 2475 An Architecture for Differentiated Services
    • RFC 2597 Assured Forwarding PHB Group
    • RFC 2697 Single Rate Three-Color Marker
    • RFC 2698 A Two-Rate Three-Color Marker
    • RFC 3246 An Expedited Forwarding PHB
  • IPv6 Core
    • RFC 1887 IPv6 unicast address allocation architecture
    • RFC 1981 IPv6 Path MTU Discovery
    • RFC 2375 IPv6 Multicast Address Assignments
    • RFC 2450 Proposed TLA and NLA Assignment Rules
    • RFC 2460 IPv6 Specification
    • RFC 2462 IPv6 Stateless Address — Auto-Configuration
    • RFC 2464 Transmission of IPv6 over Ethernet Networks
    • RFC 2471 IPv6 Testing Address allocation
    • RFC 2711 IPv6 Router Alert Option
    • RFC 3315 Dynamic Host Configuration Protocol for IPv6 (DHCPv6)
    • RFC 3587 IPv6 Global Unicast — Address Format
    • RFC 4193 Unique Local IPv6 Unicast Addresses
    • RFC 4291 IPv6 Addressing Architecture
    • RFC 4301 IP Security Architecture
    • RFC 4303 Encapsulation Security Payload
    • RFC 4305 ESP and AH cryptography
    • RFC 4443 ICMPv6
    • RFC 4552 Auth for OSPFv3 using AH /ESP
    • RFC 4835 Cryptographic Alg. Req. for ESP
    • RFC 4861 Neighbor Discovery for IP version 6 (IPv6)
  • IPv6 Routing
    • RFC 2740 OSPFv3 for IPv6
    • RFC 2545 Use of BGP-MP for IPv6
    • RFC 5308 Routing IPv6 with IS-IS
    • RFC 6164 Using 127-Bit IPv6 Prefixes on Inter-Router Links
    • RFC 8106 Support for IPv6 Router Advertisements with DNS Attributes
  • MPLS
    • RFC 2205 RSVP v1 Functional Specification
    • RFC 2209 RSVP v1 Message Processing Rules
    • RFC 2702 TE over MPLS
    • RFC 2961 RSVP Refresh Overhead Reduction Extensions
    • RFC 3031 MPLS Architecture
    • RFC 3032 MPLS Label Stack Encoding
    • RFC 3037 LDP Applicability
    • RFC 3097 RSVP Cryptographic Authentication
    • RFC 3209 RSVP-TE
    • RFC 3270 MPLS Support of Differentiated Services
    • RFC 3478 LDP Graceful Restart
    • RFC 3815 Definition of Managed Objects for the MPLS, LDP
    • RFC 4090 Fast Reroute Extensions to RSVP-TE for LSP Tunnels
    • RFC 4364 BGP/MPLS IP Virtual Private Networks
    • RFC 4379 OAM
    • RFC 4448 Encapsulation methods for transport of Ethernet over MPLS networks
    • RFC 5036 LDP Specification
    • RFC 5305 ISIS-TE
    • RFC 5443 LDP IG P Synchronization
    • RFC 5561 LDP Capabilities
    • RFC 5712 MPLS Traffic Engineering Soft Preemption
    • RFC 5918 LDP “Typed Wildcard” FEC
    • RFC 5919 Signaling LDP Label Advertisement Completion
  • Layer 2 VPN and PWE3
    • RFC 3343 TT L Processing in MPLS networks
    • RFC 3985 Pseudowire Emulation Edge to Edge (PWE3) Architecture
    • RFC 4364 BGP/MPLS IP Virtual Private Networks
    • RFC 4447 Pseudowire Setup and Maintenance using LDP4
    • RFC 4448 Encapsulation Methods for Transport of Ethernet over MPLS Networks
    • RFC 4664 Framework for Layer 2 Virtual Private Networks
    • RFC 4665 Service Requirements for Layer 2 Provider-Provisioned Virtual Private Networks
    • RFC 4762 VPLS using LDP Signaling
    • RFC 5542 Definitions of Textual Conventions for Pseudowire (PW) Management
    • RFC 5601 Pseudowire (PW) Management Information Base
    • RFC 6870 PW Preferential Forwarding Status Bit
    • RFC 7432 BGP MPLS-Based Ethernet VPN - Partial
    • draft-sd-l2vpn-evpn-overlay-03 (A Network Virtualization Overlay Solution using EVPN) Partial
    • draft-ietf-bess-evpn-overlay-04 (A Network Virtualization Overlay Solution using EVPN with VXLAN encapsulation) Partial

Management and Visibility

  • Integrated industry-standard Command Line Interface (CLI)
  • RFC 854 Telnet
  • RFC 2068 HTTP
  • RFC 2818 HTTPS
  • RFC 3176 sFlow v5
  • sFlow extension to VXLAN
  • RFC 4253 Secure Shell (SSH)
  • Secure Copy (SCP v2)
  • SFTP
  • RFC 4741 NETCONF (Partial)
  • OpenFlow 1.3
  • Chrome
  • Curl
  • Tcpdump
  • Wireshark
  • SNMP v1, v2c, v3
  • RFC 2819 RMON Groups 1, 2, 3, 9
  • IEEE8021-PAE-MIB
  • IEEE802 LLDP MIB
  • IEEE8023-LAG-MIB
  • RFC 1213 MIB-II
  • RFC 2665 Ethernet Interface MIB
  • RFC 2863 Interfaces Group MIB
  • RFC 3635 Ethernet-like MIB
  • RFC 3811 MPLS TC STD MIB
  • RFC 3812 MPLS TE STD MIB
  • RFC 3813 MPLS LSR MIB
  • RFC 3826 SNMP-USM-AES MIB
  • RFC 4133 Entity MIB (version 3)
  • RFC 4188 Bridge MIB
  • RFC 4273 BGP-4 MIB
  • RFC 4292 IP Forwarding MIB
  • RFC 4293 IP MIB
  • RFC 4363 Dot1q MIB
  • RFC 4444 ISIS MIB
  • RFC 4750 OSPF v2 MIB
  • RFC 7257 VPLS MIB
  • RFC 7331 BFD MIB

Element Security

  • AAA
  • Username/Password (Challenge and Response)
  • Bi-level Access Mode (Standard and EXEC Level)
  • Role-Based Access Control (RBAC)
  • RFC 2865 RADIUS
  • RFC 2866 RADIUS Accounting
  • TACACS/TACACS+
  • RFC 5905 NTP Version 4
  • NTP 4.2.8p10
  • RFC 5961 TCP Security
  • RFC 4253 Secure Shell (SSH)
  • Secure Copy (SCP v2) SFTP
  • HTTPS
  • RFC 4346 TLS 1.1
  • RFC 5246 TLS 1.2
  • Protection against Denial of Service (DoS) attacks such as TCP SYN or Smurf Attacks

Environment

  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: –25°C to 55°C (–13°F to 131°F)
  • Relative humidity: 5% to 90%, at 40°C (104°F), non-condensing
  • Storage humidity: 95% maximum relative humidity, non-condensing
  • Operating altitude: 6,600 ft (2,012 m)
  • Storage altitude: 15,000 ft (4,500 m) maximum

Safety Agency Approvals

  • CAN/CSA-C22.2 No. 60950-1-07
  • ANSI/UL 60950-1
  • IEC 60950-1
  • EN 60950-1 Safety of Information Technology Equipment
  • EN 60825-1
  • EN 60825-2

Power and Grounding

  • ETS 300 132-1 Equipment Requirements for AC Power Equipment Derived from DC Sources
  • ETS 300 132-2 Equipment Requirements for DC Powered Equipment
  • ETS 300 253 Facility Requirements

Physical Design and Mounting

  • 19-inch rack mount supporting racks compliant with:
    • ANSI/EIA -310-D
    • GR-63-CORE Seismic Zone 4

Environmental Regulatory Compliance

  • EU 2011/65/EU RoHS
  • EU 2012/19/EU WEEE
  • EC/1907/2006 REACH


Documentation:

Download the Extreme Networks ExtremeRouting 9850 Series Datasheet (.PDF)

Pricing Notes:

Extreme Networks Products
Extreme Networks ExtremeRouting 9850 Series
USA: FREE Ground ShippingExtremeRouting SLX 9850 four-slot chassis with one management module, five switch fabric modules, two 3,000 W AC power supplies, three fan modules, and accessory kit
Power cord not included
#BR-SLX9850-4-BND-AC
Contact us for Pricing!
USA: FREE Ground ShippingExtremeRouting SLX 9850 four-slot chassis with one management module, five switch fabric modules, two 3,000 W DC power supplies, three fan modules, and accessory kit
Power cord not included
#BR-SLX9850-4-BND-DC
Contact us for Pricing!
SLX 9850 Interface Modules
USA: FREE Ground ShippingExtreme SLX 9850 72-port 10 GbE/1 GbE dual-speed (D) interface module with IPv4/IPv6 hardware support
Requires SFP+ optics for 10 GbE connectivity, and SFP optics for 1 GbE connectivity. Supports 750,000 MAC, 256,000 IPv4 routes, and 64,000 IPv6 routes.
#BR-SLX9850-10GX72S-D
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 36-port 100 GbE, 60-port 40 GbE, or 240-port 10 GbE flex-speed (D) interface module with IPv4/IPv6 hardware support
Requires QSFP28 optics for 100 GbE connectivity, QSFP+ optics for 40 GbE connectivity, and 40 GbE to 10 GbE breakout for 10 GbE connectivity. Supports 750,000 MAC, 256,000 IPv4 routes, and 64,000 IPv6 routes.
#BR-SLX9850-100GX36CQ-D
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 72-port 10 GbE/1 GbE dual-speed (M) interface module with IPv4/IPv6/MPLS hardware support
Requires SFP+ optics for 10 GbE connectivity and SFP optics for 1 GbE connectivity. Supports up to 750,000 MAC. Supports up to 1,500,000 IPv4 routes, 140,000 IPv6 routes with OptiScale™ Internet Routing.
#BR-SLX9850-10GX72S-M
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 36-port 100 GbE, 60-port 40 GbE, or 240-port 10 GbE flex-speed (M) interface module with IPv4/IPv6/MPLS hardware support
Requires QSFP28 optics for 100 GbE, QSFP+ optics for 40 GbE, and 40 GbE to 10 GbE breakout for 10 GbE connectivity. Supports up to 750,000 MAC. Supports up to 1,500,000 IPv4 routes, 140,000 IPv6 routes with OptiScale™ Internet Routing.
#BR-SLX9850-100GX36CQ-M
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 12-port 100 GbE, 20-port 40GbE, or 80-port 10GbE flex-speed (M) interface module with IPv4/IPv6/MPLS hardware support
Requires QSFP28, QSFP+ optics & 40GbE to 10GbE breakout (for 10 GbE) connectivity. Supports up to 750,000 MAC. Supports up to 1,500,000 IPv4 routes, 140,000 IPv6 routes with OptiScale™ Internet Routing.
#BR-SLX9850-100GX12CQ-M
Contact us for Pricing!
SLX 9850 Upgrade Software Licenses
6x100 GbE Ports on Demand (POD) software license to be used only with the Extreme SLX 9850 12-port 100 GbE, 20-port 40GbE, or 80-port 10GbE flex-speed (M) interface module (SLX9850-100Gx12CQ-M)
#BR-SLX9850-100GX6CQ-MUPG
Contact us for Pricing!
Accessories
USA: FREE Ground ShippingExtreme SLX 9850 spare four-slot chassis
#XBR-SLX9850-4-S
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 management module for four-slot and eight-slot systems
Includes 16 GB RAM, two internal Solid State Drives, four-core Intel CPU, two USB 3.0 ports, two RJ-45 console ports, and 10 GbE services port.
#BR-SLX9850-MM
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 switch fabric module for four-slot chassis
#BR-SLX9850-4-SFM
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 AC 3,000 W power supply for four- and eight-slot chassis, 90 V to 270 V AC input
#XBR-SLX9850-ACPWR-3000
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 DC 3,000 W power supply for four- and eight-slot chassis, 48 V DC input
#XBR-SLX9850-DCPWR-3000
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 fan module for four-slot chassis. Fan module has two fans
#XBR-SLX9850-4-FANM
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 Cable Management Kit for four-slot chassis
#XBR-SLX9850-4-CAB
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 switch fabric module blank panel for four-slot chassis
#XBR-SLX9850-4-SFMPNL
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 management module blank panel for four-slot and eight-slot chassis
#XBR-SLX9850-MMPNL
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 four-post rack mounting kit for four-slot chassis
Includes 27 to 31-inch flush and recessed mounting
#XBR-SLX9850-4-4PRM-KIT
Contact us for Pricing!
USA: FREE Ground ShippingExtreme SLX 9850 two-post rack mounting kit for four-slot chassis
Include telco flush and midplane mounting
#XBR-SLX9850-4-2PRM-KIT
Contact us for Pricing!
