ExtremeSwitching X460-G2 Series
Scalable Advanced Aggregation Switch With Extremexos Modular Operating System

Features:

Comprehensive Security Management

• User policy and host integrity enforcement, and identity management
• Universal Port Dynamic Security Profiles to provide fine granular security policies in the network
• Threat detection and response instrumentation to react to network intrusion with CLEAR-Flow Security Rules Engine
• Denial of Service (DoS) protection and IP security against man-in-the-middle and DoS attacks to harden the network infrastructure

Flexible Port Configuration

Summit X460-G2 offers flexible port configurations. For Summit X460-G2 24 port copper models with 10Gb uplinks with four dedicated Gigabit Ethernet fiber ports and four shared Gigabit Ethernet fiber ports, the switch can have up to 8 fiber GbE ports, while still providing 20 Gigabit Ethernet copper ports (PoE-plus or non-PoE). The Summit X460-G2 24 port copper models with 1Gb uplinks can provide up to 12 SFP ports with 20 Gigabit Ethernet ports or eight SFP ports with 24 copper GbE ports.

All models come equipped with either 4 ports of SFP+ 10 GbE or 4 ports of SFP 1GbE resident on the faceplate of each model. Through an optional VIM slot, Summit X460-G2 switches can be equipped with an additional 2 ports of 10 GbE for a total of six 10 Gigabit Ethernet ports on the 10Gb uplink models.

As another option, each unit can be equipped with 2 ports of QSFP+ 40 Gigabit Ethernet for uplinks or stacking.

High-Performance Stacking

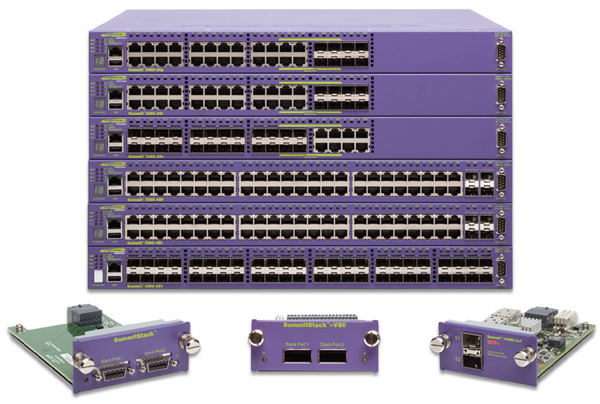

Up to eight Summit X460-G2 switches can be stacked using three different methods of stacking: SummitStack, SummitStack-V, and SummitStack-V160.

Summitstack - Stacking Using Copper CX4 Connections

The Summit X460-G2 supports SummitStack by using the Summit X460-G2-VIM-2ss module, which offers high-speed 40 Gbps stacking performance and provides compatibility with the Summit X440, X460, X460-G2 and X480 stackable switches running the same version of ExtremeXOS.

Summitstack-V - Flexible Stacking Over 10GbE

ExtremeXOS supports the SummitStack-V capability using 2 of the native 10 GbE ports on the faceplate as stacking ports, enabling the use of standard cabling and optics technologies used for 10 GbE SFP+, SummitStack-V provides long-distance 40 Gbps stacking connectivity of up to 40 km while reducing the cable complexity of implementing a stacking solution. SummitStack-V is compatible with Summit X440, X460, X460-G2, X480, X670, X670V, X670-G2 and X770 switches running the same version of ExtremeXOS. SummitStack-V enabled 10 GbE ports must be physically direct-connected.

Note: Stacking will NOT be supported on the 10GbE fiber VIM and the 10GbE copper VIM with initial X460-G2 shipments.

Note: SummitStack-V is NOT supported on the 1GbE (SFP) front panel faceplate ports of non-10Gb X460-G2 models.

Summitstack-V160 - Flexible Stacking Over 40GbE

The Summit X460-G2 also supports high-speed 160 Gbps stacking, which is ideal for demanding applications where a high volume of traffic traverses through the stacking links, yet bandwidth is not compromised through stacking.

SummitStack-V160 can support passive copper cable (up to 3m), active multi-mode fiber cable (up to 100m), and QSFP+ optical transceivers for 40 GbE up to 10km. With SummitStack-V160, the Summit X460-G2 provides a flexible stacking solution inside the data center or central office to create a virtualized switching infrastructure across rows of racks. SummitStack-V160 is compatible with Summit X460-G2, X480, X670V, X670-G2 and X770 switches running the same version of ExtremeXOS.

Intelligent Switching and MPLS/H-VPLS Support

Summit X460-G2 supports sophisticated and intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing including policy-based switching/routing, Provider Bridges, bidirectional ingress and egress Access Control Lists, and bandwidth control by 8 Kbps granularity both for ingress and egress.

To provide scalable network architectures used mainly for Carrier Ethernet network deployment, Summit X460-G2 supports MPLS LSP-based Layer 3 forwarding and Hierarchical VPLS (H-VPLS) for transparent LAN services. With H-VPLS, transparent Layer 3 networks can be extended throughout the Layer 3 network cloud by using a VPLS tunnel between the regional transparent LAN services typically built by Provider Bridges (IEEE 802.1ad) technology.

IEEE 802.3at PoE-plus

IEEE 802.3af Power over Ethernet has been widely used in the campus enterprise edge network for Ethernet-powered devices such as wireless access points, Voice over IP phones, and security cameras. Ethernet port extenders such as Extreme Networks ReachNXT™ 100-8t can also utilize PoE, making installation and management easier and reducing maintenance costs. The newer IEEE 802.3at PoE-plus standard expands upon Power over Ethernet by increasing the power limit up to 30 watts, and by standardizing power negotiation by using LLDP. Summit X460-G2 supports IEEE 802.3at PoE-plus and supports standards-compliant PoE devices today and into the future.

1588 Precision Time Protocol (PTP)

Summit X460-G2 offers Boundary Clock (BC), Transparent Clock (TC), and Ordinary Clock (OC) for synchronizing phase and frequency and allowing the network and the connected devices to be synchronized down to microseconds of accuracy over Ethernet connection.

Audio Video Bridging (AVB)

The X460-G2 series supports IEEE 802.1 Audio Video Bridging to enable reliable, real-time audio/video transmission over Ethernet. AVB technology delivers the quality of service required for today’s high-definition and time-sensitive multimedia streams.

Ordering Notes

The X460-G2 base switches do not ship with fan trays or power supplies. The fan tray and power supplies must be ordered separately as well as any of the optional VIMS. There is only one optional VIM slot on each X460-G2 switch. The optional Timing Module has a separate dedicated slot on the back of the X460-G2 switch.

Specifications:

Performance/Scale

• Less than 4 microsecond latency (64-byte)
• Layer 2/MAC Addresses: 98K
• IPv4 LPM Entries: 12K
• IPv6 LPM Entries: 6K
• 4096 VLAN/VMANs
• 9216 Byte Max Packet Size (Jumbo Frame)
• 128 load sharing trunks, up to 32 members per trunk
• 4,096 ingress bandwidth meters
• Ingress and egress bandwidth policing/rate limiting per flow/ACL
• 8 QoS egress queues/port
• Egress bandwidth rate shaping per egress queue and per port
• Rate Limiting Granularity: 8 Kbps

CPU/Memory

• 64-bit MIPS Processor, 1 GHz clock
• 1GB ECC DDR3 DRAM
• 4GB eMMC Flash
• 4MB packet buffer

LED Indicators

• Per port status LED including power status
• System Status LEDs: management, fan and power

Environmental Specifications

• EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage
• EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transportation
• EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational
• EN/ETSI 300 753 (1997-10) - Acoustic Noise
• ASTM D3580 Random Vibration Unpackaged 1.5 G

Operating Conditions

• Temp: 0° C to 50° C (32° F to 122° F)
• Humidity: 10% to 95% relative humidity, non-condensing
• Altitude: 0 to 3,000 meters (9,850 feet)
• Shock (half sine): 30 m/s2 (3 G), 11 ms, 60 shocks
• Random vibration: 3 to 500 Hz at 1.5 G rms

Packaging and Storage Specifications

• Temp: -40° C to 70° C (-40° F to 158° F)
• Humidity: 10% to 95% relative humidity, non-condensing
• Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
• Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G
• Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz
• Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)

Regulatory and Safety

North American ITE

• UL 60950-1 2nd Ed., Listed Device (U.S.)
• CSA 22.2 #60950-1-03 2nd Ed. (Canada)
• Complies with FCC 21CFR 1040.10 (U.S. Laser Safety)
• CDRH Letter of Approval (US FDA Approval)

European ITE

• EN 60950-1:2007 2nd Ed.
• EN 60825-1+A2:2001 (Lasers Safety)
• TUV-R GS Mark by German Notified Body
• 2006/95/EC Low Voltage Directive

International ITE

• CB Report & Certificate per IEC 60950-1 2nd Ed. + National Differences
• AS/NZX 60950-1 (Australia /New Zealand)

EMI/EMC Standards

North American EMC for ITE

• FCC CFR 47 part 15 Class A (USA)
• ICES-003 Class A (Canada)

European EMC Standards

• EN 55022:2006+A1:2007 Class A
• EN 55024:A2-2003 Class A includes IEC 61000-4-2, 3, 4, 5, 6, 11
• EN 61000-3-2,8-2006 (Harmonics)
• EN 61000-3-3 2008 (Flicker)
• ETSI EN 300 386 v1.4.1, 2008-04 (EMC Telecommunications)
• 2004/108/EC EMC Directive

International EMC Certifications

• CISPR 22: 2006 Ed 5.2, Class A (International Emissions)
• CISPR 24:A2:2003 Class A (International Immunity)
• IEC 61000-4-2:2008/EN 61000-4-2:2009 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria A
• IEC 61000-4-3:2008/EN 61000-4-3:2006+A1:2008 Radiated Immunity 10V/m, Criteria A
• IEC 61000-4-4:2004 am1 ed.2./EN 61000-4-4:2004/A1:2010 Transient Burst, 1 kV, Criteria A
• IEC 61000-4-5:2005 /EN 61000-4-5:2006 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A
• IEC 61000-4-6:2008/EN 61000-4-6:2009 Conducted Immunity, 0.15-80 MHz, 10V/m unmod. RMS, Criteria A
• IEC/EN 61000-4-11:2004 Power Dips & Interruptions, >30%, 25 periods, Criteria C

Country Specific

• VCCI Class A (Japan Emissions)
• ACMA (C-Tick) (Australia Emissions)
• CCC Mark
• KCC Mark, EMC Approval (Korea)

Telecom Standards

• ETSI EN 300 386:2001 (EMC Telecommunications)
• ETSI EN 300 019 (Environmental for Telecommunications)
• NEBS Level 3 compliant to portions of GR-1089 Issue 4 & GR-63 Issue 3 as defined in SR3580 with exception to filter requirement
• CE 2.0 Compliant

IEEE 802.3 Media Access Standards

• IEEE 802.3ab 1000BASE-T
• IEEE 802.3z 1000BASE-X
• IEEE 802.3ae 10GBASE-X
• IEEE 802.3at PoE Plus
• IEEE 802.3az (EEE)

Switch Views:

Summit X460-24t

Summit X460-24p

Summit X460-24x

Summit X460-48t

Summit X460-48p

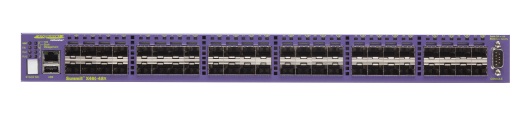

Summit X440-48x
