Extreme Networks ExtremeSwitching V400-24p 24-port PoE+ Edge Switch
Simplified Edge Switch Operation Leveraging The Power of ExtremeXOS Aggregation Switches

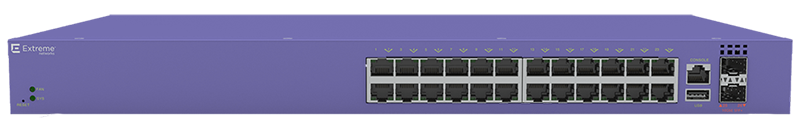

ExtremeSwitching V400-24p 24-port PoE+ Edge Switch

Extreme Networks Products
Extreme Networks ExtremeSwitching V400 Series
ExtremeSwitching V400-24p-10GE2 24-port PoE+ Edge Switch
24 x 10/100/1000BASE-T PoE+, 2 x 1000/10GBaseX unpopulated SFP+ ports, fixed power supply and fans
#18102
Our Price: $5,205.00

Click here to jump to more pricing!

Overview:

The ExtremeSwitching V400 Series is a scalable cost-effective family of edge switches powered by Extreme Networks ExtremeXOS (EXOS) software, a highly resilient OS providing continuous uptime, advanced services and operational efficiency.

As the edge component of Extreme's Extended Edge Switching solution, the V400 provides access switch capabilities, while being controlled by a remote EXOS aggregation switch. This allows the V400 to seamlessly extend all the feature-rich services of the EXOS aggregation switch, including Layer 3 routing and policy, to the network edge.

Highlights

Key Features

  • Scalable family of edge switches centrally powered by ExtremeXOS software
  • Edge component of Extreme's Extended Edge Switching solution
  • Seamlessly runs advanced services residing on ExtremeXOS aggregation switch
  • Centralized, single point of control reduces complexit y and operational costs
  • Plug and play edge installation - just connect and power-up

Hardware Summary

  • 24 or 48-port Gigabit Ethernet (non-PoE) models
  • 24 or 48-port 80 2.3at PoE models
  • 2 or 4-port 10 Gbase-X SFP+ uplink ports
  • Redundant Power Supply (RPS) option

Features:

Centralized Management and Control

All V400 models support standards-based control and data plane technology based on the IEEE 802.1BR specification, allowing for centralized management and intelligent service delivery from a central EXOS aggregation switch. The EXOS aggregation switch also act s as a single point of V400 configuration and control for reduced complexity and operational cost s (see Figure 1).

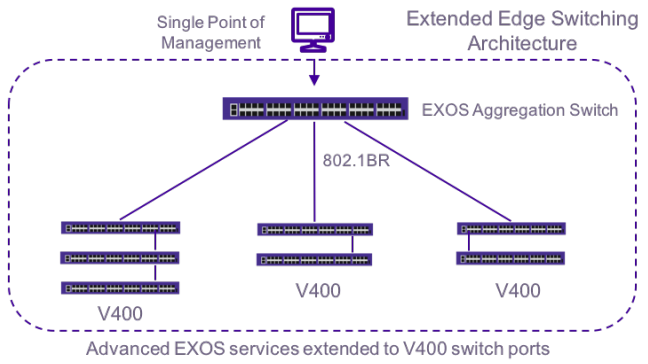

Figure 1: The V400 Series is the edge component of Extreme's Extended Edge Switching solution

Plug and Play Installation

V300 Series units can be quickly installed in a plug and play manner. Once the unit is physically connected to the ExtremeXOS aggregation switch, the V400 automatically identifies itself and downloads its configuration. There’s no need to connect a local console for set-up of the V400 device or its ports.

Diverse Models with 10 Gb Uplinks

The V400 family consist s of both 24 and 48-port Gigabit Ethernet and 24 and 48-port Gigabit PoE+ models. All models include either 2 or 4 SFP+ port s on the faceplate of each base unit, which can be provisioned either as uplink, cascade or ring ports. This gives administrators the option to create redundant links or downstream cascade/ ring port s to other V400 units.

Ring Support for Edge Resiliency

Cascaded V400 devices can also be configured in a ring design for additional resiliency. In a ring, the first and last V400 devices in a cascade can be connected to the EXOS aggregation switch. If any V400 device in the ring should fail, traffic can be re-routed in the other direction across the ring back to the EXOS aggregation switch.

Power over Ethernet Support

V400 Series switches support both IEEE 802.3at PoE+ and IEEE 802.3af PoE to enable connection of standards compliant PoE devices today. The V400 offers up to 740 W PoE budget on 48-port models and 380 W on 24-port models.

PoE Power from Upstream EXOS Aggregation Switch

In addition to standard PoE models, the V300 Series includes a PoE pass-through model—the V300-8P2T-W. This model draws all its required power from an upstream EXOS aggregation switch over either of its two Ethernet IEEE 802.3bt Type 4 (30W/60W/90W) links. This eliminates the need for a separate power supply unit, while still enabling the delivery of downstream PoE power. By drawing power over both of its 90W uplinks, the X435-8P2T-W can deliver up to 105W of downstream PoE power.

EXOS Aggregation Switches

The V400 operates in conjunction with ExtremeSwitching X465, X590, X670-G2 and X690 Series switches which act as the "controlling" aggregation switch within the Techn Extended Edge Switching architecture.

Specifications:


  V400-24t-10GE2 V400-24p-10GE2 V400-48t-10GE4 V400-48p-10GE4
Ports
  • 24 x 10/100/1000BASE-T (RJ-45) Half, Full, Auto Duplex
  • 2 x 10GBASE-X SFP+
  • 1 x Serial (console port RJ-45)
  • USB
  • 24 x 10/100/1000BASE-T (RJ-45) PoE-Plus Half, Full, Auto Duplex
  • 2 x 10GBASE-X SFP+
  • 1 x Serial (console port RJ-45)
  • USB
  • RPS port
  • 48 x 10/100/1000BASE-T (RJ-45) Half, Full, Auto Duplex
  • 4 x 10GBASE-X SFP+
  • 1 x Serial (console port RJ-45) with RTS/CTS modem control
  • USB
  • 48 x 10/100/1000BASE-T (RJ-45) PoE-Plus Half, Full, Auto Duplex
  • 4 x 10 GBASE-X SFP+
  • 1 x Serial (console port RJ-45) with RTS/CTS modem control
  • USB
  • RPS port
Performance and Scale
Maximum 10/100/1000 Base-T Ports 24 24 48 48
Maximum Active 1Gb SFP ports 2* 2 4 4
Maximum Active 10Gb SFP+ Ports 0 2 4 4
Aggregated Switch Bandwidth 40 Gbps 40 Gbps 80 Gbps 80 Gbps
Frame Forwarding Rate 59 Mpps 59 Mpps 119 Mpps 119 Mpps
Physical
Dimensions 1RU / 1.70 inches (4.32 cm) H
17.34 inches (44.0 cm) W
9.97 inches (25.3 cm) D
1RU / 1.70 inches (4.32 cm) H
17.34 inches (44.0 cm) W
9.97 inches (25.3 cm) D
1RU / 1.70 inches (4.32 cm) H
17.34 inches (44.0 cm) W
9.97 inches (25.3 cm) D
1RU / 1.70 inches (4.32 cm) H
17.34 inches (44.0 cm) W
15.25 inches (38.7 cm) D
Weight 6.62 lb (3.0 0 kg) 9.0 8 lb (4.12 kg) 7.18 lb (3.26 kg) 14.0 6 lb (6.38 kg)
Power and Heat Dissipation
Minimum1 Heat Dissipation (BTU/ HR) 7.2 3.3 7.6
Maximum1 Power Consumption (Watts) 129.1 7.0 214.6
Maximum2 Heat issipation (BTU/ HR) 82.1 23.8 118.2
Maximum2Power Consumption (Watts) 82.1 23.8 118.2
PoE Power Budget
Power Supply   380 W   *380 W
Max PoE Budget   740 W   *740 W
Fan and Acoustic Noise
Acoustic Information Bystander Sound Pressure 41.6 (Dut y 30 %) / 59.4 (max.) 47.5 (Dut y 30 %) / 64.0 (max.) 43.4 (Dut y 30 %) / 61.1(max.) 4.6 (Dut y 30 %) / 6.4 (max.)
Declared Sound Power (LWAD)* 4.4 (Dut y 30 %) / 6.2 (max.) 5.0 (Dut y 30 %) / 6.7 (max.) 48.5 (Dut y 30 %) / 65.5 (max.) 5.1(Dut y 30 %) / 6.8 (max.)

* Redundant power only
1 Idle no port s linked.
2 Fans high all port s 10 0 % traffic.


CPU/ Memory

  • 64-bit ARM Processor, 800MHz clock, dual core
  • 256MB ECC DDR3 DRAM
  • 128MB Flash
  • 1.5MB packet buffer on 24-port switches, 3MB packet buffer on 48-port switches

LED Indicators

  • Per port status LED including power status
  • System Status LEDs: fan and system

Environmental Compliance

  • EU RoHS: 2011/65/EU
  • EU WEEE: 2012/19/EU
  • China RoHS: SJ/T 11363-2006
  • Taiwan RoHS: CNS 15663 (2013.7)

Operating Conditions

  • Temp: 0° C to 50° C (32° F to 122° F) - all models
  • Humidity: 10% to 95% relative humidity, non-condensing
  • Altitude: 0 to 3,0 0 0 meters (9,842 feet) - all models
  • Shock (half sine): 30 m/s2 (3G), 11ms, 6 shocks
  • Random vibration: 3 to 500Hz at 1.5G rms

Packaging and Storing Specifications

  • Temp: -40° C to 70° C (-40° F to 158° F)
  • Humidity: 10% to 95% relative humidity, non-condensing
  • Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
  • Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G
  • Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz
  • Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)

Regulatory and Safety

  • North American ITE
    • UL 60950-12nd edition A2:2014, Listed Device (U.S.)
    • CSA 22.2 No. 60950-12nd edition 20 14(Canada)
    • Complies with FCC 21CFR 1040.10 (U.S. Laser Safety)
    • CDRH Letter of Approval (US FDA Approval)
  • European ITE
    • EN 60950 2nd Ed
    • EN 62368-1
    • EN 60825 Class 1 (Lasers Safety)
    • 2014/35/EU Low Voltage Directive
  • International ITE
    • CB Report & Certificate per IEC 60950-1 + National Differences
    • IEC 62368-1
    • AS/NZS 60950-1(Australia / New Zealand)

EMI/EMC Standards

  • North American EMC for ITE
    • FCC CFR 47 part 15 Class A (USA)
    • ICES-003 Class A (Canada)
  • European EMC Standards
    • EN 55032: Class A
    • EN 55024
    • EN 55011
    • EN 61000-3-2 (Harmonics)
    • EN 61000-3-3 (Flicker)
    • EN 300 386 v1.6.1 (EMC Telecommunications)
    • 2014/30/EU EMC Directive
  • International EMC Certifications
    • CISPR 32 Class A (International Emissions)
    • AS/NZS CISPR32
    • CISPR 24: Class A (International Immunity)
    • IEC 61000-4-2/EN 61000-4-2 Electrostatic Discharge, 6kV Contact, 8 kV Air, Criteria B
    • IEC 61000-4-3/EN 61000-4-3 Radiated Immunity 10V/m, Criteria A
    • IEC 61000-4-4/ EN 61000-4-4 Transient Burst, 1kV, Criteria A
    • IEC 61000-4-5/ EN 61000-4-5 Surge, 1kV L-L, 2 kV L-G, Level 3, Criteria B
    • IEC 61000-4-6/ EN 61000-4-6 Conducted Immunity, 0.15-80 MHz, 10Vrms, 80%AM (1kHz), Criteria A
    • IEC/EN 61000-4-11 Power Dips & Interruptions, >30%, 25 periods, Criteria C

Country Specific

  • VCCI Class A (Japan Emissions)
  • ACMA RCM (Australia Emissions)
  • CCC Mark
  • KCC Mark, EMC Approval (Korea)
  • BSMI (Taiwan)
  • Anatel (Brazil)


Pricing Notes:

Extreme Networks Products
Extreme Networks ExtremeSwitching V400 Series
ExtremeSwitching V400-24p-10GE2 24-port PoE+ Edge Switch
24 x 10/100/1000BASE-T PoE+, 2 x 1000/10GBaseX unpopulated SFP+ ports, fixed power supply and fans
#18102
Our Price: $5,205.00
Accessories
V400 RPS 3-Slot Modular Shelf
#18201
Our Price: $379.00
VX-RPS-1000 redundant power supply for use with V400 RPS 3-Slot Modular shelf
#18202
Our Price: $3,015.00
