Extreme Networks ExtremeRouting VPN Gateway Virtual Appliance (VGVA)
VMware-based VPN Tunnel Termination




Extreme Networks Products
ExtremeRouting VPN Gateway Virtual Appliance
Extreme Networks VPN Gateway Virtual Appliance
#AH-VG-VA
Get a Quote!

Click here to jump to more pricing!

Overview:

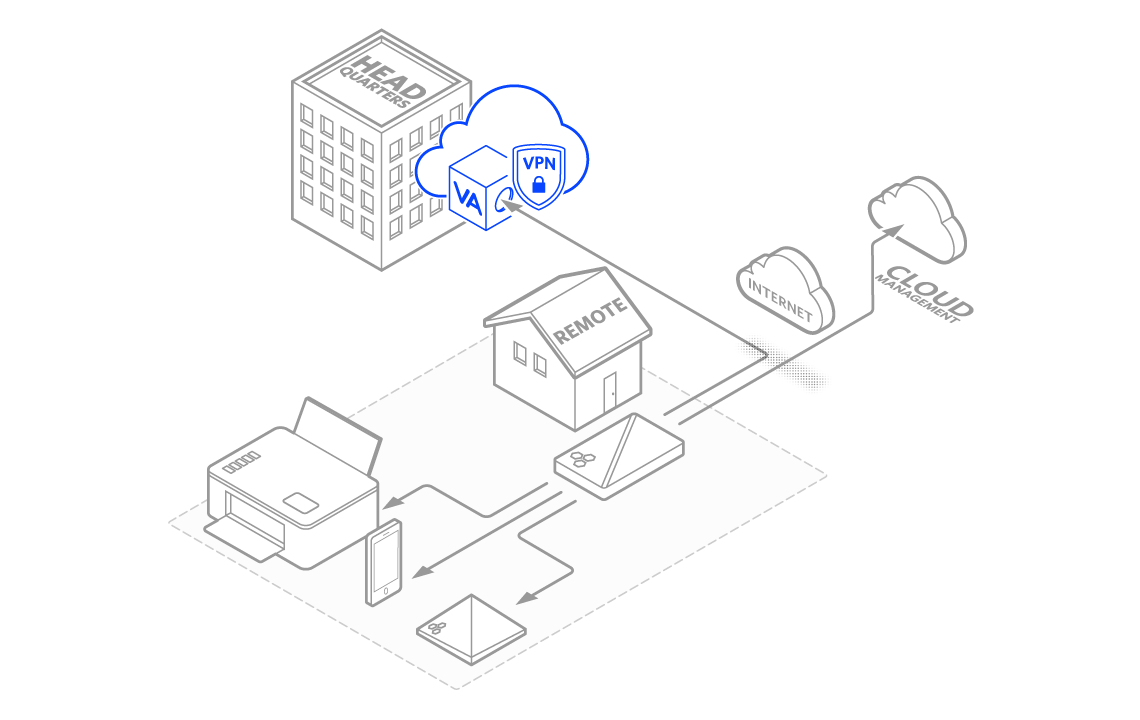

The VPN Gateway Virtual Appliance (VGVA) is designed to simplify VPN and GRE termination, and is a key component of Extreme’s branch solution. As a software-based VMware-compliant solution, the VGVA provides scalable enterprise-class VPN termination for thousands of layer 2/3 VPN tunnels from remote access locations.

Underpinned by ExtremeCloud IQ management and software-defined device intelligence, highly distributed organizations benefit from simplified provisioning, increased network resilience, end-to-end visibility and control, and reduced cost and complexity.

Highlights

  • Management and Analytics with ExtremeCloud IQ
    • Simplified network operations
    • Link state visibility monitoring
    • Advanced reporting and network insights
  • Secure Network Access
    • Layer 2-7 policy enforcement
    • Identify, prioritize, and restrict traffic flows
  • Dynamic Path Selection
    • User and application flow control
    • Link state monitoring
    • Multi-path optimization

Features:


Reduce operational costs and Inrease Performance

Combined with the Extreme Branch Routers, dynamic path selection distributes packets across multiple connections in real-time, based on current link metrics including RTT, jitter and link utilization. More than simply providing link redundancy, it ensures traffic is passed over the most optimal path at all times. This provides a platform for dramatic cost savings where dedicated MPLS links can be swapped in favour more affordable broadband lines.


Contextualized Security and Performance Optimization

IT can easily assign forwarding policies by application, user group, client OS, client Mac address, client location, and schedules. This allows corporate headquarters’ network usage and security policies to be consistency enforced on every device, wired or wireless, regardless of their location.


Cloud-Managed Assurance, Intelligence, and Simplicity

Managed by ExtremeCloud IQ, this virtual gateway can be quickly and easily provisioned with advanced configurations, deliver granular user, device, and application reporting, and be supported from any location in minutes.


Deployment Options:

Option 1 – General Purpose VMWARE ESXi Platform

  • Memory: 32+ GB (3 GB for VM)
  • CPU: Intel Xeon Processor E5 v3 or later
  • Ethernet NICs: 1 or 2
  • VMware Verion: ESXi 6.5 or later
  • Hard Disk Size: 256+ GB (256MB for VM)
  • VGVA version: 6.9r7 or later
  • Up to 1000 tunnels
  • Max throughput - 1 Gbps

Option 2 – Extreme Networks 4120C

  • Private RDC solution only
  • Up to 4 VGVAs installed
  • Max number of tunnels per VGVA - 50,000, per system - 200,000
  • Max throughput per VGVA - 2 Gbps, per system - 8 Gbps
  • Professional Services recommended

Specifications:

Layer 3 IPsec VPN (When combined with Extreme router(s))

  • Remote office IPsec-based VPN solution
  • Extend local subnet or create unique subnets per remote site
  • Redundant tunnel support
  • Per packet dynamic WAN path selection
  • User and application aware routing policies

Layer 2 IPsec VPN (When combined with Extreme AP(s))

  • Remote AP IPsec-based VPN solution
  • Redundant tunnel support

Layer 2 GRE Tunnel (When combined with Extreme Aps)

  • Identity-based traffic tunneling" of all guest traffic
  • Redundant tunnel support

Routing Protocols

  • OSPF
  • RIPv2
