Extreme Networks ExtremeSwitching VSP7400 48-port 1/10/25Gbps SFP and 8-port 100 Gbps QSFP Switch
High-Performance 25GB and 100 Gb Fabric-Enabled Core and Aggregation Switches
8-core CPU, 16GB RAM, 128GB SSD, 4-post rack mount kit No PSU No Fans
8-core CPU, 16GB RAM, 128GB SSD, Single 750W AC PSU, six fans, 4-post rack mount kit, Front to Back Airflow
8-core CPU, 16GB RAM, 128GB SSD, Single 750W AC PSU, six fans, 4-post rack mount kit, Back to Front Airflow
Click here to jump to more pricing!
Overview:
The Virtual Services Platform (VSP) 7400 Series are space-efficient, high-performance Ethernet switches, available delivering wire-speed 100 Gigabit and 25Gb Ethernet connectivity. Supporting a range of interface speeds, including 1Gb, 10Gb, 25Gb, 40 Gb and 100Gb, all in a compact 1RU form factor, the VSP 7400 Series can be flexibly deployed in either core/aggregation or spine/leaf high-density top-of-rack architectures. It also support s Extreme Fabric Connect for simplified, automated network services delivery.
Two models of the VSP 7400 Series are available:
- VSP7400-32C: Core or spine switch with 32 x 100Gb QSFP28 ports. QSFP28 ports can also be optionally run at 10Gb, 25Gb or 40Gb with channelization for high-density applications.

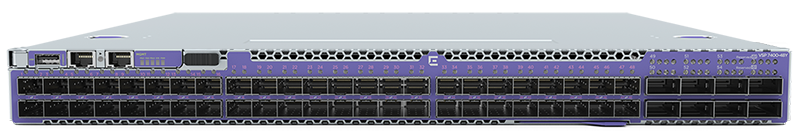

- VSP7400-48Y-8C: Aggregation or leaf switch with 48 x 25Gb SFP28 port s and 8 x 40/100Gb QSFP28 uplink ports. SFP28 ports on the VSP7400-48Y can also run at 1Gb, 10Gb or 25Gb to support a range of connectivity options.
The VSP 7400 can handle a variety of high bandwidth applications, including high-density 10Gb, emerging 25Gb, as well as 40Gb and 100Gb core/aggregation and spine/leaf fabric deployments. A variety of QSFP28, QSFP+, SFP28 and SFP+ transceivers are also available to support a range of fiber interface needs.
Target Applications
- High-Densit y 25 Gigabit and 100 Gigabit fixed-form switches for core, aggregation, and spine/leaf applications
- 32 ports of 100 Gigabit or 48 port s of 25 Gigabit Ethernet connectivity
- Compact 1U form factor for reduced power and footprint
- Non-blocking, wire-speed switching architecture
- Wide range of port speeds including 1Gb, 10 Gb, 25Gb, 40Gb and 100Gb
- Support s both Fabric Connect and/ or conventional Routed IP deployments
- Extreme Insight Architecture for real-time monitoring, streamlined analysis and troubleshooting
- Hot-swappable modular power and fans
- Front-to-back and back-to-front air flow options
- AC and DC power supply options
Features:
Extreme Fabric Connect
The VSP7400 Series natively support s the Extreme Fabric Connect technology. Based on an extended implementation of Shortest Path Bridging (SPB) standards of IEEE 80 2.1aq and IETF RFC 6329, Fabric Connect offers the ability to create a simplified virtualized network that simplifies network provisioning and reduces the strain on network and IT personnel. Benefit s include:
- Eliminates need to configure network-wide VLANs
- Replaces legacy protocols with a single unified protocol
- Removes the risk of network loops
- Delivers an edge-only provisioning model that seamlessly integrates with orchestration and automation
- Support s both L2 and L3 virtualization, including IP multicast routing
Traditionally, provisioning new network services required engineers to touch every device in the service path, configuring each device to enable both the active and redundant links. The bigger the network the more complex this task becomes.
Leveraging Fabric Connect delivers fundamental change. Rather than the network appearing as a mass of individual devices, it becomes a single cloud, so that engineers only need to touch the unique device that is providing service directly to the end-point. Fabric Connect instantly propagates all the end-point?s service attributes to every other node within the fabric.
Specific Fabric Connect features supported on the VSP7400 Series include: L2 Virtual Service Networks (VSNs), Layer 3 Virtual Service Networks, Inter-VSN Routing, IPv4/ IPv6 IP Shortcuts, IP Multicast over Fabric Connect, Fabric Extend and Fabric Attach Server.
Advanced Layer 3 Services
The VSP7400 Series also support s advanced Layer 3 services that enable it to satisfy conventional IP routing deployment s, in addition to it s fabric-based services. Layer 3 services include IPv4 and IPv6 dynamic routing, as well as IP multicast services.
Specific IP routing technologies supported include RIPv1/ 2, RIPng, OSPFv2/ v3, BGP/ BGP+ and VRF. Multicast services include PIM-SM/ SSM, IGMP v1/ v2/ v3, as well as Fabric Connect to PIM gateway. The VSP7400 also support s Distributed Virtual Routing (DvR) and VXLAN Gateway services.
Extreme Insight Architecture
Extreme's Insight Architecture leverages an innovative combination of VSP7400 Series operating software and hardware features to provide pervasive visibility without impacting switching or network performance. This flexible and open solution enables organizations to deploy Extreme-provided and/ or third-party applications and tools directly on the VSP7400 system for realtime visibility.
The Insight Architecture on the VSP7400 Series consist s of a pre-configured Virtual Machine (VM) environment with support for multiple VMs. These VMs leverage the high-performance VSP7400 multi-core processor design and can be used to host applications for monitoring, troubleshooting or extended visibility into the network, based on customer need.

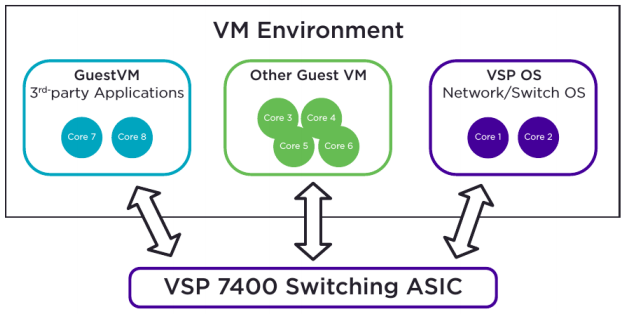

Figure 1: Extreme Insight Architecture on VSP7400 Series
Benefit s of the Extreme Insight Architecture on the VSP7400 Series include:
- Flexible deployment of VM-based applications within the network using the hardware resources of the VSP7400
- Ability of VM-based applications to extract data without disrupting forwarding or control plane traffic within the VSP7400
- Availabilit y of dedicated memory and SSD storage for flexible packet capture and off-line visibilit y processing
Network Intelligence
The VSP7400 Series can provide insight and intelligence into the network via it s native analytics capabilities. This includes deep packet inspection via the ExtremeAnalytics engine provided as part of the VSP7400 Insight Architecture. The VSP7400 Series also provides line-rate, hardware-accelerated IPFIX and sFlow. With these tools, the VSP7400 Series can deliver actionable insight s into both network and application performance without the need for expensive sensors or collectors.
Management
The VSP7400 Series can be managed in a variety of ways. Simple on-box management functions are delivered by a web-based GUI and a generic CLI is available for manual configuration.
For centralized management, the Extreme Management Center (XMC) delivers a comprehensive unified management capability. XMC provides a consolidated view of users, devices and applications for wired and wireless networks - from data center to edge. Zero touch provisioning let s one quickly bring new infrastructure online. A granular view of users, devices and applications with an easy to understand dashboard enables efficient inventory and network topology management.
Specifications:
| VSP7400-32C | VSP7400-48Y-8C | |
|---|---|---|
| Ports |
|
|
| Performance | 6.4 Tbps Line-Rate Switching Capacit y (3.2 Tbps ingress, 3.2 Tbps egress) / 1,929 Mpps forwarding | 4.0 Tbps Line-Rate Switching Capacit y (2.0 Tbps ingress, 2.0 Tbps egress) / 971Mpps forwarding |
| Dimensions | 17.3in W / 22.43in D / 1.7in H (44.0 cm / 57.0 cm / 4.3cm) |
17.3in W / 20 .9in D / 1.7in H (44.0 cm / 53.2cm / 4.3cm) |
| Weight | 16.3lb (7.39kg) no PSU / 19.9lb (8.20 kg) with single PSU | 16.4lb (7.42kg) no PSU / 20 .0 lb (9.07kg) with single PSU |
| Power Supply Options |
|
|
| Fan Tray |
|
|
| CPU/ Memory |
|
|
| Operating Conditions |
|
|
| Power and Heat Dissipation | ||
| Minimum Heat Dissipation (BTU/ hr) (Idle, no port s linked) | 734 BTU/hr | 553 BTU/hr |
| Minimum Power Consumption (Watt s) (Idle, no port s linked) | 215W | 167W |
| Maximum Heat Dissipation (BTU/ hr) (100% fans, 30 ports, 100% traffic) | 1573 BTU/hr | 1600 BTU/hr |
| Maximum Power Consumption (Watts) (100% fans, 30 ports, 100% traffic) | 461W | 469W |
General
- VSP7400-32C
- Physical Connectivity: 32 x QSFP28 ports
- Switch Fabric Architecture: 6.4 Tbps total capacity (3.2 Tbps ingress, 3.2 Tbps egress)
- Jumbo Frame support up to 9.600 bytes
- VSP7400-48Y-8C
- Physical Connectivit y: 48 X SFP28 port s + 8 x QSFP28 ports
- Switch Fabric Architecture: 4.0 Tbps total capacity (2.0 Tbps ingress, 2.0 Tbps egress)
- Jumbo Frame support up to 9,600 bytes
Performance and Scale
- Layer 2
- MAC Address: up to 160,000
- Port-based VLANs: 4,0 59
- MSTP Instances: 64
- LACP Links per Group: 8 Active
- Layer 3 IPv4 Routing Services
- ARP Entries: up to 56,000
- IP Routes: up to 16,000
- RIP Interfaces: 200
- OSPF Interfaces: 512
- BGP Peers: 256
- VRF Instances: up to 256
- Layer 3 IPv6 Routing Services
- Neighbors: up to 32,000
- IP Routes: up to 7,500
- RIPng Interfaces: 48
- OSPFv3 Interfaces: 500
- BGPv6 Peers: 256
- VRF Instances: up to 256
- Multicast
- IGMP Interfaces: 4,059
- PIM Active Interfaces: 128
- MLD Interfaces: 4,059
- IP Multicast Streams: 6,000
- Fabric Connect
- MAC Address: 80,000
- NNI Interfaces/Adjacencies: up to 256
- BEB Nodes per VSN: 2,000
- BCB/ BEB Nodes per Region: 2,000
- L2 Virtual Service Networks: 4,000
- L3 Virtual Service Networks: up to 256
- IP Shortcut Routes: IPv4 up to 16,000 and IPv6 7,500
- L2 Multicast Virtual Service Networks: 2,000
- L3 Multicast Virtual Service Networks: 256
- QoS and Filtering
- ACL non-IPv6: 512 Ingress and 254 Egress
- ACL IPv6: 384 Ingress and 256 Egress
- IPv4 ACE (Ingress): 768 each for Security and QoS (total of 1536)
- IPv4 ACE (Egress): 507
- IPv6 ACE (Ingress): 767
- IPv6 ACE (Egress): 511
- Egress Port Shaper Granularity: 1Mbps to 100 Gbps per Port
- Operations and Management
- Mirrored Ports: up to 125 when all applicable port s are channelized
- sFlow: up to 3,000 samples per second
- Fabric RSPAN: up to 1,000 VSN IDs per Region
Environmental
- Environmental Specifications
- EN/ETSI 3000 19-2-1v2.1.2 - Class 1.2 Storage
- EN/ETSI 3000 19-2-2 v2.1.2 - Class 2.3 Transportation
- EN/ETSI 3000 19-2-3 v2.1.2 - Class 3.1e Operational
- EN/ETSI 300 753 (1997-10 ) - Acoustic Noise ASTM D3580 Random Vibration Unpackaged 1.5 G
- Environmental Compliance
- EU RoHS: 20 11/ 65/ EU
- EU W EEE: 20 12/ 19/ EU
- China RoHS: SJ/ T 11363-2006
- Taiwan RoHS: CNS 15663(2013.7)
- Packaging and Storage Specifications
- Temp: -40 ° C to 70 ° C (-40 ° F to 158° F)
- Humidity: 10 % to 95% relative humidity, non-condensing
- Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
- Packaged Vibration: 5 to 62 Hz at velocity 5 mm/ s, 62 to 500 Hz at0.2G
- Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/ -3 dB/ oct. from 20 to 200Hz
- Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)
Regulatory and Safety
- North American ITE
- UL 60950-1
- UL 62368-1
- Complies with FCC 21CFR 1040.10 (U.S. Laser Safety)
- CDRH Letter of Approval (US FDA Approval)
- CAN/CSA 22.2 No. 60950-1
- CAN/CSA No. 22.2 62368-1-14
- European ITE
- EN 60950-1, EN 62368-1
- EN 60825-1Class 1 (Lasers Safety)
- 2014 / 35/ EU Low Voltage Directive
- International ITE
- CB Report & Certificate per IEC 60950-1 AS/NZS 60950-1 (Australia /New Zealand)
- IEC 62368-1
- GB 4943.1-2011
- CNS 14336-1
- EMI/EMC Standards North American EMC for ITE
- FCC CFR 47 Part 15 Class A (USA)
- ICES-003 Class A (Canada)
- European EMC Standards
- EN 55032 Class A
- EN 55024
- EN 61000-3-2,2014 (Harmonics)
- EN 61000 -3-32013 (Flicker)
- EN 300 386 v1.6.1(EMC Telecommunications)
- 2014/30/EU EMC Directive
- EN 55011Class A
- International EMC Certifications
- CISPR 32, Class A (International Emissions)
- AS/ NZS CISPR32
- CISPR 24 Class A (International Immunity)
- IEC 61000-4-2 / EN 61000-4-2 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria A
- IEC 61000-4-3 / EN 61000-4-3 Radiated Immunit y 10V/ m, Criteria A
- IEC 61000-4-4 / EN 61000-4-4 Transient Burst, 1kV, Criteria A
- IEC 61000-4-5 / EN 61000-4-5 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A
- IEC 61000-4-6 Conducted Immunit y,0 .15-80 MHz, 10V/ m unmod. RMS, Criteria A
- IEC/ EN 61000 -4-11Power Dips & Interruptions, >30 %, 25 periods, Criteria C
- IEC 61000-4-8 / EN 61000-4-8
- CISPER 11Class A
- GB/T 9254-200 8
- Country Specific
- VCCI Class A (Japan Emissions)
- ACMA RCM (Australia Emissions)
- CCC Mark (China)
- KCC Mark, EMC Approval (Korea)
- EAC Mark (Custom Union)
- NRCS / SABS Mark (South Africa)
- BSMI Mark (Taiwan)
- Telecom Standards
- CE 2.0 Compliant
Standards Compliance
- IEEE 802.1Bridging (Networking) and Network Management
- 802.1D MAC Bridges (a.k.a. Spanning Tree Protocol)
- 802.1p Traffic Class Expediting and Dynamic Multicast Filtering
- 802.1t 802.1D Maintenance
- 802.1w Rapid Reconfiguration of Spanning Tree (RSTP)
- 802.1Q Virtual Local Area Networking (VLAN)
- 802.1Qbp Equal-Cost Multi-Path (Shortest Path Bridging)
- 802.1Qcj Automatic Attachment to Provider Backbone Bridging (PBB) Services (Partial Support)
- 802.1s Multiple Spanning Trees (MSTP)
- 802.1v VLAN Classification by Protocol & Port
- 802.1ag Connectivit y Fault Management
- 802.1ah Provider Backbone Bridges
- 802.1aq Shortest Path Bridging (SPB) MAC-in-MAC
- 802.1X Port-based Network Access Control
- 802.1AB-2005 Station & Media Access Control Connectivit y Discovery; aka LLDP (partial support)
- 802.1AX Link Aggregation
- 802.3 Ethernet
- 802.3-1983 CSMA/ CD Ethernet (ISO/ IEC 8802-3)
- 802.3i-1990 10Mb/ s Operation, 10BASE-T Copper
- 802.3u-1995 100Mb/ s Operation, 100BASE-T Copper, with Auto-Negotiation
- 802.3x-1997 Full Duplex Operation
- 802.3z-1998 1000Mb/s Operation, implemented as 1000BASE-X
- 802.3ab-1999 1000Mb/s Operation, 1000BASE-T Copper
- 802.3ae-2002 10Gb/s Operation, implemented as 10GBASE-SFP+
- 802.3an-2006 10Gb/s Operation, 10GBASE-T Copper
- 802.3ba-2010 40Gb/s and 100Gb/s Operation
- 802.3bm-2015 40Gb/ s and 100Gb/s Operation, implemented as 40GBASE-QSFP+ & 100 GBASE-QSFP28
- IETF
- 768 UDP
- 783 TFTP
- 791 IP
- 792 ICMP
- 793 TCP
- 826 ARP
- 854 Telnet
- 894 Transmission of IP Datagrams over Ethernet Networks
- 896 Congestion Control in IP/ TCP internetworks
- 906 Boot strap Loading using TFTP
- 950 Internet Standard Subnetting Procedure
- 951 BOOTP: Relay Agent-only
- 959 FTP
- 1027 Using ARP to Implement Transparent Subnet Gateways
- 1058 RIP
- 1112 Host Extensions for IP Multicasting
- 1122 Requirement s for Internet Host s - Communication Layers
- 1155 Structure and Identification of Management Information for TCP/ IP-based Internets
- 1156 MIB for Network Management of TCP/ IP
- 1157 SNMP
- 1212 Concise MIB Definitions
- 1213 MIB for Network Management of TCP/ IP-based Internets: MIB-II
- 1215 Convention for Defining Traps for use with the SNMP
- 1256 ICMP Router Discovery
- 1258 BSD Rlogin
- 1271 Remote Network Monitoring MIB
- 1305 NTPv3
- 1321 MD5 Message-Digest Algorithm
- 1340 Assigned Numbers
- 1350 TFTPv2
- 1398 Ethernet MIB
- 1442 SMIv2 of SNMPv2
- 1450 SNMPv2 MIB
- 1519 CIDR
- 1541 DHCP
- 1542 Clarifications and Extensions for BOOTP
- 1573 Evolution of the Interfaces Group of MIB-II
- 1587 OSPF NSSA Option
- 1591 DNS Client
- 1650 Definitions of Managed Object s for the Ethernet-like Interface Types
- 1657 Definitions of Managed Object s for BGP-4 using SMIv2
- 1723 RIPv2 Carrying Additional Information
- 1812 Router Requirements
- 1850 OSPFv2 MIB
- 1866 HTMLv2
- 1907 SNMPv2 MIB
- 1930 Guidelines for creation, selection, and registration of an AS
- 1981 Path MTU Discovery for IPv6
- 2021Remote Network Monitoring MIBv2 using SMIv2
- 2068 HTTP
- 2080 RIPng for IPv6
- 2131 DHCP
- 2138 RADIUS Authentication
- 2139 RADIUS Accounting
- 2139 RADIUS Accounting
- 2236 IGMPv2 Snooping
- 2284 PPP Extensible Authentication Protocol
- 2328 OSPFv2
- 2362 PIM-SM
- 2404 HMAC-SHA-1-96 within ESP and AH6
- 2407 Internet IP Securit y Domain of Interpretation for ISAKMP6
- 2408 Internet Securit y Association and Key Management Protocol
- 2428 FTP Extensions for IPv6 and NAT
- 2452 TCP IPv6 MIB
- 2453 RIPv2
- 2454 UDP IPv6 MIB
- 2460 IPv6 Basic Specification
- 2463 ICMPv6
- 2464 Transmission of IPv6 Packet s over Ethernet Networks
- 2466 MIB for IPv6: ICMPv6 Group
- 2474 Differentiated Services Field Definitions in IPv4 and IPv6 Header
- 2575 VACM for SNMP
- 2576 Coexistence between v1/ v2/ v3 of the Internet-standard Network Management Framework
- 2578 SMIv2
- 2579 Textual Conventions for SMIv2
- 2580 Conformance Statement s for SMIv2
- 2597 Assured Forwarding PHB Group
- 2598 Expedited Forwarding PHB
- 2616 HTTPv1.1
- 2710 MLD for IPv6
- 2716 PPP EAP TLS Authentication Protocol
- 2787 Definitions of Managed Object s for VRRP
- 2818 HTTP over TLS
- 2819 Remote Network Monitoring MIB
- 2863 Interfaces Group MIB
- 2865 RADIUS
- 2869 RADIUS Extensions (partial support)
- 2874 DNS Extensions for IPv6
- 2925 Definitions of Managed Object s for Remote Ping, Traceroute, and Lookup Operations
- 2933 IGMP MIB
- 2934 PIM MIB for IPv4
- 2992 ECMP Algorithm 30 46 DHCP Relay Agent Information Option 82
- 3162 RADIUS and IPv6
- 3246 Expedited Forwarding PHB
- 3315 DHCPv6
- 3339 Date and Time on The Internet: Timestamps
- 3376 IGMPv3
- 3411Architecture for Describing SNMP Management Frameworks
- 3412 Message Processing and Dispatching for SNMP
- 3413 SNMP Applications
- 3414 USM for SNMPv3
- 3415 VACM for SNMP
- 3416 Protocol Operations v2 for SNMP
- 3417 Transport Mappings for SNMP
- 3418 MIB for SNMP
- 3484 Default Address Selection for IPv6
- 3513 IPv6 Addressing Architecture
- 3569 Overview of SSM
- 3579 RADIUS Support for EAP
- 3587 IPv6 Global Unicast Address Format
- 3596 DNS Extensions to support IPv6
- 3748 Extensible Authentication Protocol
- 3810 MLDv2 for IPv6
- 3879 Deprecating Site Local Addresses
- 4007 IPv6 Scoped Address Architecture
- 4022 TCP MIB
- 4087 IP Tunnel MIB
- 4113 UDP MIB
- 4133 Entit y MIB Version 3 (partial support)
- 4193 Unique Local IPv6 Unicast Addresses
- 4213 Basic Transit ion Mechanisms for IPv6 Hosts and Routers
- 4250 SSH Assigned Numbers
- 4251 SSH Protocol Architecture
- 4252 SSH Authentication Protocol
- 4253 SSH Transport Layer Protocol
- 4254 SSH Connection Protocol
- 4255 DNS to Securely Publish SSH Key Fingerprints
- 4256 Generic Message Exchange Authentication for SSH
- 4291 IPv6 Addressing Architecture
- 4292 IP Forwarding Table MIB
- 4293 IP MIB
- 4301 Securit y Architecture for IP1
- 4302 IP Authentication Header1
- 4303 IP Encapsulating Securit y Payload1
- 4308 Cryptographic Suites for IPsec
- 4363 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering and VLAN Extensions (partial support)
- 4429 Optimistic DAD for IPv6 (partial support)
- 4443 ICMP for IPv6
- 4541Considerations for IGMP and MLD Snooping Switches
- 4552 Authentication/ Confidentiality for OSPFv3
- 4601 PIM-SM: Revised Protocol Specification
- 4607 Source-Specific Multicast for IP
- 4675 RADIUS Attributes for Virtual LAN and Priority Support (partial support)
- 4835 Cryptographic Algorithm Implementation Requirement s for ESP and AH
- 4861Neighbor Discovery for IPv6
- 4862 IPv6 Stateless Address Auto-Configuration
- 5095 Deprecation of Type 0 Routing Headers in IPv6
- 5176 Dynamic Authorization Extensions to RADIUS
- 5187 OSPFv3 Graceful Restart (Helper-mode)
- 5308 Routing IPv6 with IS-IS 5340 OSPF for IPv6
- 5424 The Syslog Protocol
- 5798 VRRPv3 for IPv4 and IPv6
- 5905 NTPv4: Protocol and Algorithms Specification
- 5997 Use of Status-Server Packets in RADIUS
- 6105 IPv6 Router Advertisement Guard
- 6329 IS-IS Extensions supporting IEEE 80 2.1aq SPB
- 6933 Entit y MIBv4 (partial support)
- 7358 VXLAN: A Framework for Overlaying Virtualized L2 Networks over L3 Networks (partial support)
- 7610 DHCPv6 Shield: Protecting against Rogue
- DHCPv6 Servers
- Iernet-Draft IP/ IPVPN services with IEEE 80 2.1aq SPB networks (draft-unbehagen-spb-ip-ipvpn-00)
- Internet-Draft SPB Deployment Considerations (draft-lapuh-spb-deployment-03)
1 Implemented to deliver IPsec capabilit y for Control Plane traffic only.
Power Supply Specifications:
| 750W AC PSU XN-ACPWR-750 W-F/R |
750W DC PSU XN-DCPWR-750 W-F/R |
|
|---|---|---|
| Dimensions | 3.15in W x 1.57in H x 8.11in D (8.0 cm x 4.0 cm x 20 .6 cm) |
3.15in W x 1.57in H x 8.11in D (8.0 cm x 4.0 cm x 20.6 cm) |
| Weight | 1.79lb (0 .81kg) | 1.85lb (0.85 kg) |
| Voltage Input Range | 100-127 VAC / 200 -240 VAC | -40 to -75 VDC |
| Line Frequency Range | 50 ? 60 HZ | N/A |
| PSU Input Socket | IEC 320 C14 | Terminal Block |
| PSU Output Cord | IEC 320 C13 | N/A |
| Operating Conditions | 0º to 55º operation | 0º to 50º operation |
Documentation:
Download the Extreme Networks ExtremeSwitching VSP7400 Series Datasheet (.PDF)
Pricing Notes:
- Pricing and product availability subject to change without notice.
8-core CPU, 16GB RAM, 128GB SSD, 4-post rack mount kit No PSU No Fans
8-core CPU, 16GB RAM, 128GB SSD, Single 750W AC PSU, six fans, 4-post rack mount kit, Front to Back Airflow
8-core CPU, 16GB RAM, 128GB SSD, Single 750W AC PSU, six fans, 4-post rack mount kit, Back to Front Airflow
Our Price: $8,500.00
