Extreme Networks ExtremeWireless WiNG AP7522
802.11ac Access Point

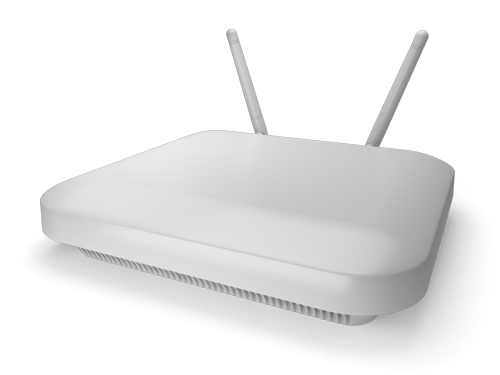

Extreme Networks Compact Wireless WiNG AP7522


Sorry, this product is no longer available, please contact us for a replacement.


Overview:

Your WLAN keeps your business moving, empowering your workers to achieve maximum productivity and providing your customers with the high-performance wireless services they expect inside your walls. Yet your wireless LAN is constantly pressured by the steady increase in number of users — as well as the bandwidth-heavy and latency-sensitive voice and multimedia applications they use. Upgrading to 802.11ac could solve the problem, but cost has always been an issue — until now.

Introducing the ExtremeWireless WiNG AP 7522 Access Point from Extreme Networks, delivering 802.11ac speeds at half the cost of many of its competitors. Now you can support virtually any of the mobile devices on your network running today’s demanding applications, with a design that fits right into any area in your environment. The 802.11n radio ensures backward compatibility with every mobile device in use in your operation today — and 256 QAM modulation boosts the bandwidth of the 802.11n radio to 802.11ac levels. Choose internal antennas for a sleek understated look that is ideal in customer-facing or carpeted office areas, or external antennas that allow you to choose the antennas you need to achieve maximum range and performance in demanding industrial areas. If you need sensor capability, the AP 7522 gives you the flexibility to meet different business needs — you can deploy a single AP 7522 as both a sensor and an access point for maximum cost-efficiency, or as a dedicated sensor for the most robust sensing functionality. And with our highpowered radios, you’ll need fewer access points. The result? A new level of capacity and performance for your wireless LAN — at a new low cost.

The Bandwith and Application Performance You Need to Support all of Your Users

802.11ac technology builds on the advances of 802.11n — the 802.11ac radio delivers more bandwidth and faster speeds through new technology enhancements such as MultipleInput Multiple-Output (MIMO). 256 QAM modulation gives the 2X2 MIMO 802.11ac radio an additional performance boost, and increases the bandwidth of the 802.11n radio to 802.11ac speeds. In addition, interference from 2.4 GHz devices is finally eliminated. Since 802.11ac operates only in the 5 GHz band, Bluetooth® headsets, microwave ovens, and other devices will no longer impact Wi-Fi network performance. The result? Your WLAN can support an unprecedented number of users and applications— including voice and video—allowing you to confidently deploy Bring Your Own Device (BYOD) initiatives and empower new workgroups with mobility.

Easy Migration to Fifth-Generation 802.11ac Wi-Fi

The dual-radio AP 7522 provides the simplest path to nextgeneration Wi-Fi. The 802.11ac radio readies you to support new 5 GHz mobile devices, while the 802.11n radio ensures support for all existing mobile devices — including 2.4 GHz clients. The radios work together to allow you to migrate to 802.11ac at your own pace — and without the high cost of "rip and replace."

More Robust Wireless Connections

Your users will experience a wireless connection that is more robust than ever before, thanks to improved beamforming. Beamforming creates the most efficient path for data transmission between an access point and a mobile device. Until now, the transmitting beamformer worked alone to define this path. Now, the receiver also assists, a process known as sounding. The result is a stronger connection that enables faster data transmission. Application throughput and performance is improved, along with mobile device battery power.

Gap-Free Security

The AP 7522 secures all your wireless transmissions, ensuring compliance with the government or industry regulations your business may be subject to, such as PCI in retail and HIPAA in healthcare. Your network is protected every second of every day with comprehensive integrated security features that include layer 2-7 stateful packet filtering firewall, AAA RADIUS services, a VPN gateway, and location-based access control.

Flexibile WIPS Sensor Support

You choose how you want to implement sensing to support AirDefense Network Assurance features. While you can always choose to deploy an AP 7522 as a dedicated sensor, Radio Share and Off-Channel Scan features work handin-hand to allow either or both radios to carry client data and act as a sensor, providing dual-band sensing without adding cost.

Voice, Locationing, and Guest Access

Support for Voice-over-wireless LAN (VoWLAN) quality of service (QoS) ensures toll quality, even with many simultaneous calls on a single access point. In addition, you can leverage locationing services to locate and track people and assets, as well as control network and application access. And since you can ensure that users are only able to access authorized networks, sites, and applications, it’s easy to provide hotspot and guest access.

The Extreme Networks Advantage: A Turboboost for Performance and Superior Scalability

Since the AP 7522 802.11ac Access Point is part of our ExtremeWireless WiNG 5 family of WLAN infrastructure, it is "network-aware," able to work in concert with all other ExtremeWireless WiNG 5 controllers and access points to define the route that will enable the fastest and most robust path for every transmission. And since the AP 7522 can be adopted by our controllers for easy centralized management, your network is easy to scale. No matter how many access points and controllers you need, or where in the world they are located, you can deploy, monitor, troubleshoot, and manage them all from a single location. No matter how many users you need to support today or tomorrow, you get the peace of mind that comes from knowing your network is always ready and waiting.

Support Services Bring Our Expertise Right to Your Door

Reduce risk, lower your capital investment, and reduce operational costs with from-the-manufacturer support services. Our family of services can help you get and keep your WLAN up and running at peak performance by providing the assistance you need at every phase of the network lifecycle — from planning and implementation to post-deployment everyday support.

Highlights

  • 802.11r Fast Roaming: Supports fast roaming between access points for mobile clients.
  • Roaming Assistance: Enables a sticky-free client WLAN network and improves network performance.
  • SMART RF: Allows the WLAN to automatically and intelligently adapt to changes in the RF environment to protect performance and eliminate unforeseen gaps in coverage. Senses potential interference from Wi-Fi and non Wi-Fi sources (such as faulty antennas and neighboring access point failures) and automatically adjusts channels and power as needed.
  • Smart Load Balancing: Distributes clients evenly across access points and bands, improving overall network performance.

Features:


High-performance Enterprise-class AP

The WiNG AP 7522 is a multi-role, high performance and cost-effective 802.11ac/802.11n that serves multiple market segments with next-generation wireless LAN. Ideally suited for small retail stores, quick serve, and transportation and logistics.


The Bandwidth and Application Performance You Need

802.11ac technology builds on the advances of 802.11n — the 802.11ac radio delivers more bandwidth and faster speeds through new technology enhancements such as Multiple-Input Multiple-Output (MIMO).


More Robust Wireless Connections

Your users will experience a more robust wireless connection than ever before, thanks to improved beamforming. Beamforming creates the most efficient path for data transmission between an access point and a mobile device. The result is a stronger connection that enables faster data transmission.


Specifications:


802.11ac Capabilities
Capabilities
  • Dual-band radios; supports 256-QAM 2X2 MIMO with 2 Spatial Streams 20, 40, and 80 MHz Channels
  • 1.267 Gbps data rates on dual concurrent radio operations
  • Packet Aggregation (AMSDU, AMPDU)
  • Reduced Interface Spacing
  • 802.11 DFS
  • MIMO Power Save (Static and Dynamic)
  • Advanced forward error correction coding: STBC, LDPC
  • 802.11ac transmit beamforming
  • Maximal Ratio Combining (MRC)
Product Fatures AP 7522
Physical Characteristics
Dimensions 7.1 in. L x 6.5 in. W x 1.6 in. H, 180 mm L x 165 mm W x 41 mm H
Weight 1.8 lbs/0.82 kg
Housing Plenum-rated housing (UL2043)
Mounting No additional hardware required to mount
Configurations Above drop ceiling, under ceiling or on wall
LEDs Activity Indication 2 top-mounted LEDs; activity indication
LAN Ethernet 1x IEEE 802.3 Gigabit Ethernet auto-sensing
Antenna 4dBi - 2.4 GHz band; 6 dBi - 5GHz band
Antenna Connectors Two RP SMAs (External only — AP-7522-67040-xx)
Console Port RJ45
Power Specifications
Operating Voltage 48V
Operating Current 280mA at 48V
Integrated PoE Support 802.3af
Networking Specification
Layer 2 and Layer 3 Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP
Security Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot)
Quality of Service (QoS) WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS
Radio Specifications
Wireless Medium Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)
Network Standards IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD
Data Rates Supported 802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, and 54Mbps, 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps, 802.11n: MCS 0-23 up to 300Mbps; Turbo mode (256QAM) on 2.4G band: up to 400Mbps, 802.11ac: MCS 0-9 up to 866.7Mbps
Operating Channels
  • 2.4 GHz band: channel 1 through channel 13
  • 5.2 GHz band: channel 36 through channel 165
  • Channel availability depends on local regulatory restrictions
Antenna Configuration 2x2 MIMO (transmit/receive on both antennas)
Transmit Power Adjustment 1dB increment
Operating Frequencies 2412 to 2472 MHz, 5180 to 5825 MHz
Environmental
Operating Temperature Internal antennas: 32° F to 104° F/ 0° C to 40° C
External antennas: -4° F to 104° F/ -20° C to 40° C
Storage Temperature -40°F to 158°F/-40°C to 70°C
Operating Humidity 85% RH non-condensing
Electrostatic Discharge Internal AP-7522-67030-xx: 15kV air, 8kV contact
External AP-7522-67040-xx: 12kV air, 6kV contact
Certifications
  Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
Regulatory
Safety Certifications UL / cUL 60950-1, IEC / EN60950-1, UL2043, RoHS
Radio Approvals FCC (USA), EU, TELEC
Accessories
Power Supply (37215) PWR 12VDC, 2A, 2.5mm x 5.5mm connector
PoE (PD-3501G-ENT) Single Port 802.3AF Midspan Device
Mounting Mounting Plate for Indoor APs (37201) Include in box
Universal Mounting Kit For Ewlan APS (KT-135628-01)
BEAM CLIP for Mounting Plate (BRKT-000147A-01)
Maximum Conducted Transmit Power – One Antenna TX Power*
Internal Antennas (AP-7522-67030-xx) 2.4 GHz Band : 20 dBm
5 GHz Band : 20 dBm
External Antennas (AP-7522-67040-xx) 2.4 GHz Band : 19 dBm
5 GHz Band : 18 dBm
Maximum Conducted Transmit Power – Two Antennas TX Power*
Internal Antennas (AP-7522-67030-xx) 2.4 GHz Band : 23 dBm
5 GHz Band : 23 dBm
External Antennas (AP-7522-67040-xx) 2.4 GHz Band : 22 dBm
5 GHz Band : 21 dBm

* Maximum ERIP may vary based upon deployed country
