Extreme Networks ExtremeWireless WiNG AP7612
Indoor Wall Plate Access Point


Extreme Networks Compact Wireless WiNG AP7612


Sorry, this product is no longer available, please contact us for a replacement.


Overview:

Give your guest an “At Home” experience with one enterprise-grade access point per guest room – that’s the promise of the ExtremeWireless WiNG AP 7612, Wave 2 802.11ac, enterprise-grade wall plate. This surprisingly small AP is rich in functionality that can differentiate your business. Now, you can leap ahead of Wi-Fi demand with such over-the-top services as Bring Your Own Network (BYON), IPTV, and ultra high-definition programs. No need to interrupt business or lose revenue to install. The AP 7612 is so ingeniously designed that it can be installed in minutes.

One AP Per Guest Room For the “At Home” Experience

Having one AP 7612 in each guest room radically improves signal levels and power. Now, every smartphone, wearable device, and laptop a guest brings can be supported with superior connectivity and lightning speeds. Plus, guests can enjoy the latest and coolest technology, such as ultra highdefinition streaming voice and video, gaming, BYON, and IPTV. All this goes far to set your business apart from the rest.

Rapid Installation

Imagine a deployment with no disruption to guests, residents, or revenue. The AP 7612’s proven, hook-and-snap mounting system makes it possible to install in less than five minutes. When housekeeping is finished with the room, so too is the installation. With its tapered wedge shaped form factor and unobtrusive aesthetics, the AP 7612 can be placed over any inwall telecommunications junction box or on a flat surface without interfering with the room décor.

Easy Management

With a modern, WiNG distributed operating system, the AP 7612 offers four deployment modes to meet any requirement. Deploy it as a stand-alone AP with no controller, as a virtual controller with up to 25 other AP 7612 access points, or with any of the WiNG Site or NOC controllers to manage up to 25,000 access points from a central network operations center.

ExtremeCloud Management

The AP 7612 is cloud-ready out of the box and supports future secure connectivity to ExtremeCloud™, a single pane of glass for cloud managing both the wired and wireless components of your network. Zero touch provisioning that significantly reduces deployment time. Select models enabled for use with ExtremeCloud in a future release.

Highlights

Ideal Applications

  • Hospitality Guest Rooms
  • One Per Room for the “At Home” Personal Experience
  • Put Wi-Fi Where the Guest is for the Best Performance and Connectivity

Benefits

  • Eliminate Costly Site Surveys
  • Zero Guest Disruption
  • Hook and Snap Mounting – Install During Room Service
  • Eliminate Upgrade Fatigue

Key Product Value

  • Multi User Mimo for Increased Capacity and Performance
  • Integrated Ethernet Port with PoeOut for In-Room Devices
  • Integrated Application Visibility and Control
  • Integrated Sensor
  • Full Performance with 802.3 af

Services

  • WiNG 5 Distributed Intelligence
  • Integrated DPI Engine
  • Nsight Analytics
  • ExtremeLocation
  • BLE Push Notifications
  • ExtremeCloud Cloud-Managed Networking Platform

Features:


A Small Package that Delivers Big Benefits

The ExtremeWireless WiNG AP 7612, Wave 2 802.11ac, enterprise-grade wall plate, may be small in size, but this surprisingly small AP is rich in functionality that can differentiate your business. Now, you can leap ahead of Wi-Fi demand with such over-the-top services as Bring Your Own Network (BYON), IPTV, and ultra high-definition programs.


One AP Per Guest Room For the “At Home” Experience

Having one WiNG AP 7612 in each guest room radically improves signal levels and power. Now, every smartphone, wearable device, and laptop a guest brings can be supported with superior connectivity and lightning speeds.


Cloud-ready out of the Box

The WiNG AP 7612 is cloud-ready out of the box and will support zero-touch provisioning and secure connectivity to ExtremeCloud, a single pane of glass for unified cloud management of Extreme switching wireless LAN across your network.


Specifications:


Product Fatures AP 7612
802.11ac Capabilities
Capabilities 802.11ac 2x2:2, MIMO, MU-MIMO 256-QAM, HT20/40/80 MHz, BLE
Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC MIMO Power Save; 802.11ac Tx beamform; MRC
Physical Characteristics
Dimensions 6.1" x 4.4" x 1.2", 155mm x 112mm x 30mm
Weight 0.6 lbs/0.27kg
Housing ABS Plastic, Aluminum Backplate
Available Mounting Included Wall Mount Bracket
LEDs Activity Indication 3 Side-Mounted LEDs; Radio 1, Radio 2, BLE

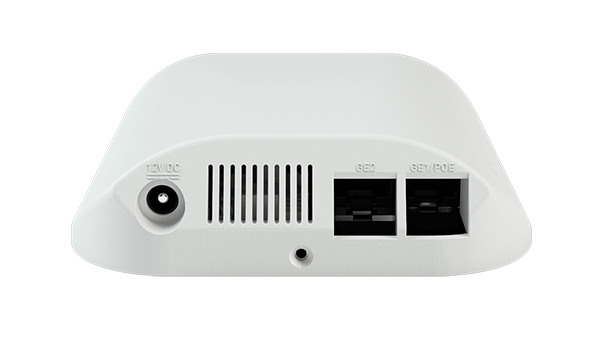

LAN Ethernet 2x IEEE 802.3 Gigabit Ethernet Auto-Sensing. PoE-Out on GE2
Antenna 2.4 GHz Band; 5.4dBi; 5GHz Band, 8.5dBi
Console Port Not User Accessible
User Environment
Operating Temperature 32° F to 104° F/ 0° C to 40° C
Storage Temperature -40°F to 158°F/-40°C to 70°C
Operating Humidity 0% - 95% (noncondensing)
Electrostatic Discharge 8kV Air, 6kV Contact
Power Specifications
Operating Voltage PoE-PD Spec: 48VDC; Wall Brick: 12VDC
Operating Current PoE-PD Spec: 200 mA at 48V typical (9.6W); (w/o PoE daisy chain) : Wall Brick: 1.5a
PoE-PD class 802.3af, 802.3at
PoE-out 802.3af When the Input Power is 802.3at. PoE-Out is Only Available When the Input Power is PoE
Networking Specification
Layer 2 and Layer 3 Layer 3 Routing, 802.1q, DynDNS, DHCP Server / Cient, BOOTP Client, PPPoE, and LLDP
Security Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server
Quality of Service (QoS) WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS
Radio Specifications
Wireless Medium Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)
Network Standards IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH (released in a future version of WiNG), Captive Portal server, Support SNMP v1, v2c, v3
Data Rates Supported 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps;
802.11a: 6,9,12,18,24,36,48, and 54 Mbps;
802.11n: MCS 0-15 up to 300 Mbps;
802.11ac on 2G VHT MCS0-9 up to 400Mbps,
802.11ac on 5G: VHT MCS 0-9 up to 866.7 Mbps
Operating Channels 2.4 GHz Band: Channel 1 through Channel 13
5 GHz Band: Channel 36 through Channel 165
* Channel availability depends on local regulatory restrictions
Antenna Configuration 2x2 MIMO (transmit/receive on both antennas). Transmit Power Adjustment 1dB Increment
Operating Frequencies 2412 to 2472 MHz, 5180 to 5825 MHz
Certifications
Wi-Fi Alliance (WFA) 802.11a/b/g/n/ac
Bluetooth Bluetooth SIG listed
Regulatory
Product Safety Certifications FCC CFR 47 Part 15, Class B, ICES-003 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, RSS247, EN 301 893, EN 300 328, EN 301 489 1 & 17, EN 50385, EN 55032 (CISPR 32), EN 60601-1-2, AS/ NZS4268 + CISPR32
Radio Approvals FCC CFR 47 Part 15, Class B, ICES-003 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, RSS247, EN 301 893, EN 300 328, EN 301 489 1 & 17, EN 50385, EN 55032 (CISPR 32), EN 60601-1-2, AS/ NZS4268 + CISPR32
Maximum Conducted Transmit Power
AP-7612-680B30 2.4 GHz Band: 20 dBm; BLE: 7 dBm
5 GHz Band: 20 dBm

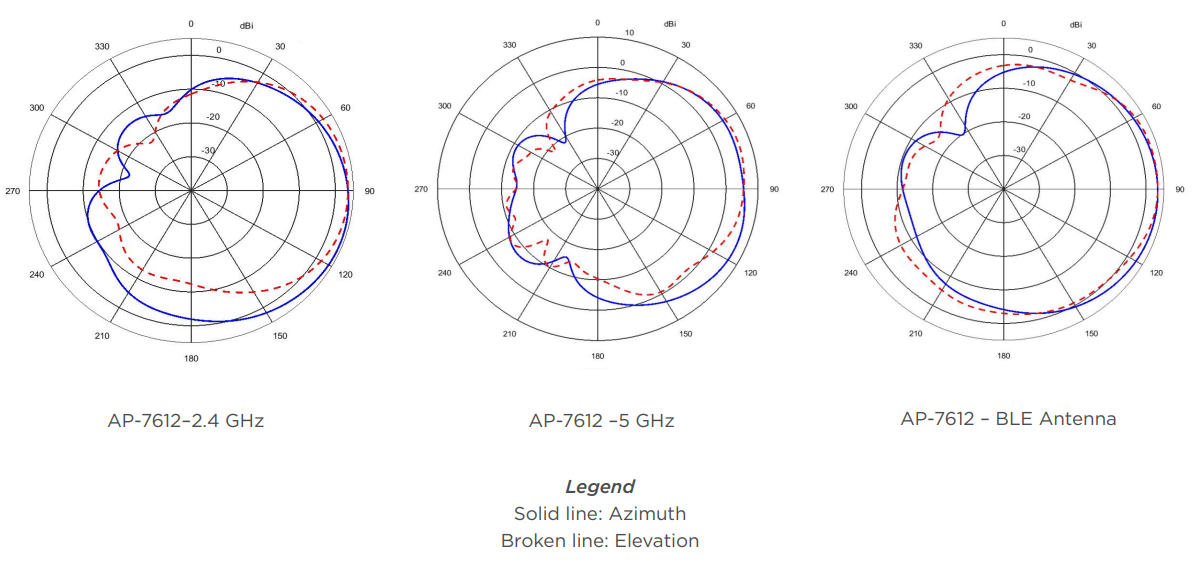

Radiation Patterns:
