Extreme Networks ExtremeWireless WiNG AP7622
802.11ac Enterprise-Grade Access Point

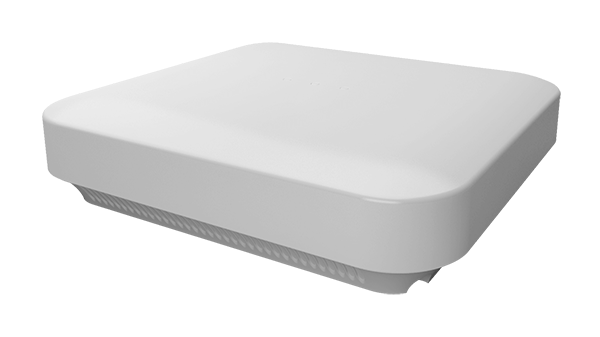

Extreme Networks Compact Wireless WiNG AP7622


Sorry, this product is no longer available, please contact us for a replacement.


Overview:

Priced for the mass market, the enterprise-grade ExtremeWireless WiNG AP 7622 is ideal for budget-conscious business owners like you. While the competition claims to offer value, they strip their APs to the point of being an empty promise. Not so with the AP 7622. Gentle on wallets, its intelligent ExtremeWireless WiNG 5 operating system is aggressive in outwitting interference and congestion that can disappoint your customers and hinder your business. With its non-tech simplicity, installing it, setting it up, and managing it is a no-brainer, whether on-premise or private cloud with Extreme NSight™. Have a chain of shops and restaurants? The sky’s the limit for massive scalability, reliable connectivity, and capabilities no other access point can match.

Best Value Enterprise-Grade 802.11ac

Why compromise quality for price? The AP 7622 doesn’t just lower your expenses; it elevates your wireless experience. You can get the lowestpriced AP on the market offering the most robust set of enterprise-class features, so you can avoid the hidden costs of cheaply-made access points.

Designed for Small Spaces

If you are a small retailer, restaurant, quick serve, or cafe, the AP 7622 is designed for you. Until now, you had little choice. Buy a complex and expensive AP designed for conglomerates or a cheap, consumer-grade product prone to fail. The AP 7622 solves all that. Extreme Networks pared it down so it won’t overwhelm your business or budget. Yet, it’s still incredibly reliable and powerful.

Non-Tech Simplicity

Don’t have an IT department? Don’t worry, the AP 7622 was created for people already busy running their own business– just like you. Out of the box, the AP 7622 can easily fit into your shop or restaurant, as its housing comes with a built-in T-bar mounting clip. Simply twist in place. With zero-touch setup, there’s nothing to it. Whether you install one or one thousand APs across your entire chain, management will be a cinch with WiNG 5 management, with the userfriendly design, auto-provisioning, auto-adoption to a WiNG Controller, and automatic RF management.

Robust Connectivity

The AP 7622’s WiNG 5 operating system ensures your network automatically avoids bottlenecks, interference interruptions, and roaming glitches. Additionally, the AP 7622 includes a flexible radio design that can be easily tailored to the application. For your small shop or restaurant’s wireless network, configure the AP 7622 as a dual-band access point. If you have a small warehouse with mobile inventory, configure it as a 2x2, 2.4GHz AP to increase range and support mobile computers.

Highlights

Quick and Easy Scalability

Need Wi-Fi across your chain of small shops and restaurants? ExtremeWireless WiNG 5 makes scaling and managing a fleet of APs fast and effortless. WiNG 5 lets you build a controller-less solution of up to 25 access points for autonomous sites, while premise-based and distributed branch solutions can easily scale up to thousands of branches and 25,000 APs. All while providing you with a WiNG Assist which guides you through common configuration tasks.

Shopper Engagement

Use mobile marketing to engage your customers in novel ways. The AP 7622’s integrated Bluetooth technology supports Apple iBeacon to communicate with a loyalty app on a customer’s mobile device. Using Google Eddystone, you can send advertisements directly to shoppers’ mobile devices even without a loyalty app pre-installed.

Features:


Best Value Enterprise-Grade 802.11ac

Multi-role, high performance and cost effective 802.11ac/802.11n access point. The WiNG AP 7622 is specifically designed to address the needs of mass market deployments of many small sites with next generation wireless LAN. Ideally suited for small retail stores and quick serve restaurants.


Easy to Install and Manage

The WiNG AP 7622 is aggressive in outwitting interference and congestion that can disappoint your customers and hinder your business. With its non-tech simplicity, installing it, setting it up, and managing it is a no-brainer, whether on-premise or private cloud.


Robust Connectivity

The WiNG AP 7622’s WiNG operating system ensures your network automatically avoids bottlenecks, interference interruptions, and roaming glitches. Additionally, the AP 7622 includes a flexible radio design that can be easily tailored to the application.


Specifications:


802.11ac Capabilities
Capabilities
  • Multi-operational modes including real-time dual-band, dual-concurrent
  • 2.4GHz + 5GHz concurrent single stream (1x1:2.4G + 1x1:5G)
  • 2.4GHz or 5GHz dual stream (2x2:2.4G or 2x2:5G)
  • 20, 40, 80 MHz Channels
  • AMSDU, AMPDU, RFIS, STBC (when running 2x2 single band), LDPC
  • MIMO power save (static and dynamic)
  • Maximal Ratio Combining (MRC) when running single-band mode
  • 802.11ac Wave 2 *
Product Fatures AP 7622
Physical Characteristics
Dimensions 4 “ x 4” x 1.5”; 150mm x 140mm x 39mm
Weight 0.85bs (0.32kg)
Housing Plastic plenum-rated housing
Mounting Included mounting for flush mount or T-bar mount
LEDs Indicate system status Green, Amber, Blue
LAN One IEEE 802.3 Gigabit Ethernet auto-sensing
Antenna Internal
Console RJ45
DC Power Specifications
Typical/Max Power 4.5 watts/6 watts
DC Power 12VDC, 850ma, 2.5mm center positive
Networking Specification
Layer 2 and Layer 3 Layer 3 routing, 802.1q, DynDNS, DHCP server/ client, BOOTP client, PPPoE, and LLDP
Security Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WIDs/WIPs, IPSec, RADIUS svr
Quality of Service (QoS) WMM, WMM-UAPSD, 802.1p, COS, Diffserv. Role-based QoS and packet marking
Radio Specifications
Mode 2.4GHz Maximum conducted Tx power: 19dBm
Mode 5GHz Maximum conducted Tx power: 17dBm
Transmit power increments 1dBm
Operating Channels and Frequencies
  • 2.4 GHz band: channel 1-13; 2412 to 2472 MHz
  • 5.2 GHz band: channel 36-165; 5180 to 5850 MHz
  • 2.4GHz Bluetooth: channel 0-78
  • Channel availability depends on local regulatory restrictions
Wireless Medium DSSS, OFDM, MIMO
Network Standards
  • IEEE 802.11a/b/g/n/ac, 802.11d, and 802.11i
  • WPA2, WMM, WMM-UAPSD, L2TPv3, Client VPN, MESH, Captive Portal server, BT2.0, BLE
  • 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48, and 54 Mbps
  • 802.11a: 6,9,12,18,24,36,48, and 54 Mbps
Environmental
Operating Temperature 32° F to 104° F/ 0° C to 40° C
Storage Temperature -40°F to 158°F/-40°C to 70°C
Operating Humidity 95% RH non-condensing
Electrostatic Discharge 15kV air, 8kV contact
Regulatory
Safety Certifications UL/cUL 60950-1, IEC/EN60950-1, UL2043, RoHS. FCC (USA), EU, TELEC*
Accessories
DC Power Supply (37215) PWR 12VDC, 2A 2.5mm x 5.5mm connector
Extended T-Bar Kit KT-135628-01
I-Beam Clip BRKT-000147A-01

* pending regulatory approval
