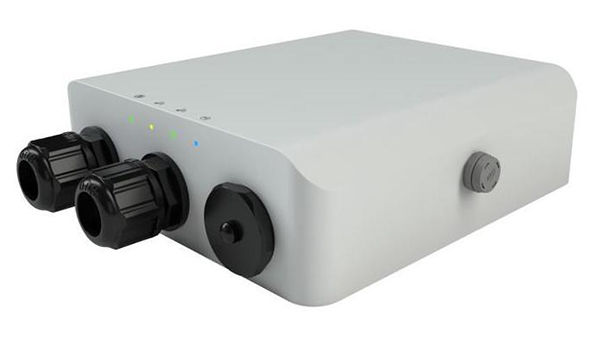

Extreme Networks ExtremeWireless WiNG AP7662i
802.11ac Wave 2 Outdoor Access Point with Internal Antenna


Extreme Networks Compact Wireless WiNG AP7662i


Sorry, this product is no longer available, please contact us for a replacement.


Overview:

Designed for installation in harsh environments; from hurricane force winds to sub-zero temperature. The AP 7662 Wave 2 802.11ac IP67 outdoor rated access point extends the ExtremeWireless WiNG enterprise grade wireless coverage outdoors in a sleek form factor that is easy to install against an exterior wall, pole mounted, or vehicle mounted.

ExtremeWireless WiNG

ExtremeWireless WiNG enterprise grade OS includes a comprehensive feature set that delivers a self-optimizing, self-correcting Wi-Fi network to support devices from a consumer smartphone, enterprise laptop to a mobile computer and mobile printer.

High Performance Application Visibility and Control

With the integrated Deep Packet Inspection engine, the AP 7662 provides on-board application visibility and control right on the AP itself. By running the full application QoS on the AP in realtime, network bottlenecks are avoided when compared to solutions that require tunneling packets to a central access controller. Integrated sensor firmware in the AP extends the Extreme Networks AirDefense™ security suite across the network and outside the building. With the new AP 7662, your network will get dual band, dual radio 802.11a/b/g/n/ac fully compatible with every wireless device from legacy 802.11abgn devices up to the newest 802.11ac MU-MIMO smartphones. Cellular Coexistence Filter(ACF) - Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/ femtocell equipment.

Available in two form factors to meet different deployment use cases. The AP 7662i (internal antenna) features an IP67 outdoor rated enclosure with three distinct mounting options for easy installation. The AP 7662e (external antenna) features an outdoor rated IP67 enclosure and internal circuity to extend the operating temperature from -40C to 70C; ideal for maximum range and performance in demanding industrial applications.

ExtremeCloud Management

The AP 7662i/e is cloud-ready out of the box and supports future secure connectivity to ExtremeCloud™, a single pane of glass for cloud managing both the wired and wireless components of your network. Zero touch provisioning that significantly reduces deployment time. Select models enabled for use with ExtremeCloud in a future release.

Beneftis

Ideal Applications

  • Enterprise WLAN
  • Retail WLAN for Inventory, Staff, and Guest
  • Hospitality
  • Transportation and Logistics Warehouses
  • Manufacturing Plants
  • Warehouse Freezers
  • Outdoor Parks and Sports Fields

Key Value

  • Light Weight, Compact
  • Internal Antenna Option
  • External Antenna Option
  • Multiple Mounting Systems; Wall, Pole, Vehicle Mount
  • 802.3af PoE Mode
  • Extended Temperature Spec; -40C to 70C
  • Public Safety Enable – 4.9 GHz
  • Japan 802.11j
  • Cellular Coexistence Filter (ACF)

Services

  • WiNG 5 Distributed Intelligence
  • Integrated DPI Engine
  • Nsight Analytics
  • AirDefense Security Sensor
  • ExtremeLocation
  • BLE Push Notifications
  • ExtremeCloud Cloud-Managed Networking Platform

Features:


High-performance Even in the Most Demanding Environments

Designed for installation in harsh environments; from hurricane-force winds to sub-zero temperature. The WiNG AP 7662 Wave 2 802.11ac IP67 outdoor rated access point extends the ExtremeMobility WiNG enterprise-grade wireless coverage outdoors in a sleek form factor that is easy to install against an exterior wall, pole mounted, or vehicle mounted.


ExtremeMobility WiNG Operating System

ExtremeMobility WiNG enterprise grade OS includes a comprehensive feature set that delivers a self-optimizing, self-correcting Wi-Fi network to support devices from a consumer smartphone, enterprise laptop to a mobile computer and mobile printer.


Cloud-ready out of the Box

The WiNG AP 7662i/e is cloud-ready out of the box and will support zero-touch provisioning and secure connectivity to ExtremeCloud, a single pane of glass for unified cloud management of Extreme switching wireless LAN across your network.


Specifications:


Product Fatures AP 7662
802.11ac Capabilities
802.11AC 2x2:2, MIMO, MU-MIMO 256-QAM, HT20/40/80 MHz Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC MIMO Power Save; 802.11ac Tx beamform; MRC
Bluetooth Bluetooth Low Energy (BLE) v4.2, and IEEE 802.15.4 compliant
Physical Characteristics
Dimensions AP-7662i - 8.6" x 7.1" x 2.7" - 218 mm x 180 mm x 69mm
AP-7662e - 8.6" x 7.8" x 2.7" - 218 mm x 198 mm x 69mm
Weight AP-7662i - 2.4 lbs/ 1.1 kg
AP-7662e - 2.8 lbs/ 1.3 kg
Housing IP67 rated outdoor use
Available Mounting H-bracket (flush wall), Pole mount
LEDs Activity Indication 4 side-mounted LEDs; activity indication
LAN Ethernet 2xIEEE 802.3 Gigabit Ethernet auto-sensing
Configuration Internal antenna model: AP-7662-680B30
External antenna model, 5 N-type antenna ports: AP-7662-680B40
Antenna AP-7662-680B30: 4.3 dBi - 2.4 GHz band; 5.3 dBi - 5GHz band with dual polarization capability
Antenna connectors AP-7662-680B40: Five N-type connectors. See Antenna Guide for available external antennas
Console Port RJ45
Warranty 1 Year Hardware Replacement
User Environment
Operating Temperature -40° F to 158° F/ -40° C to 70° C No Solar Load
-40° F to 140° F/ -40° C to 60° C with Solar Load
Storage Temperature -40°F to 158°F/-40°C to 70°C
Operating Humidity 0% - 95% (noncondensing)
Electrostatic Discharge Condensing electrostatic
Operating Altitude 8,000 ft. at 54 °F/12 °C
Storage Altitude 30,000 ft. at 82 °F/28 °C
Wind Rating 165 Mph gusts
Power Specifications
Operational Shock IEC60721-3-4, Class 4M3, MIL STD 810G Method 516.6
Operation Vibration ASTM D3580-95, IEC60721-3-4, Class 4M3 (IEC 60068-2-64)
Operating voltage PoE-PD: 48VDC
Operating current PoE-PD: 230 mA at 48V typical
PoE-PD class 802.3af, 802.3at
Networking Specification
Layer 2 and Layer 3 Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP
Security Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server
Quality of Service (QoS) WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS
Radio Specifications
Wireless Medium Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)
Network Standards IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH, Captive Portal server, Support SNMP v1, v2c, v3
Data Rates Supported 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps;
802.11a: 6,9,12,18,24,36,48, and 54 Mbps;
802.11n: MCS 0-15 up to 300 Mbps;
802.11ac on 2G VHT MCS0-9 up to 400Mbps,
802.11ac on 5G: VHT MCS 0-9 up to 867 Mbps
Operating Channels 2.4 GHz band: channel 1 through channel 13
5 GHz band: channel 36 through channel 165
Frequency band 4940 – 4990 GHz IEEE802.11 20MHz non-overlapping Channels 21, 25 (FCC)
Frequency band 4900 – 5000 GHz IEEE802.11 20MHz non-overlapping Channel 184. 188, 192, 196 (Japan)
* Channel availability depends on local regulatory restrictions
Antenna Configuration 802.11: 2X2 MIMO (transmit/receive on both antennas). Transmit power adjustment 1dB increment BTLE radio: 1x1
Operating Frequencies 802.11: 2412 to 2472 MHz, 5180 to 5825 MHz
BTLE radio: 2402 to 24835 MHz in 40 2 MHz wide channels
GPS radio Not available in first release
Performance and Capacity
Concurrent Users 256 per radio
SSID 8 per radio, 16 per AP
Certifications
Wi-Fi Alliance (WFA) 802.11a/b/g/n/ac
IoT Radio Bluetooth Low Energy (BLE) v4.2, and IEEE® 802.15.4 compliant
Regulatory
Product Safety Certifications IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03 AS/NZS 60950.1, RoHS Directive 2011/65/EU
Radio Approvals FCC CFR 47 Part 15, Class B, ICES-003 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, RSS247, EN 301 893, EN 300 328, EN 301 489 1 & 17, EN 50385, EN 55032 (CISPR 32), EN 60601-1-2, AS/ NZS4268 + CISPR32
Maximum Total Conducted Transmit Power One Antenna Tx
Internal Antenna (AP-7662-680B30-xx) 2.4GHz Band: 23 dBm,
5 GHz Band: 23 dBm , BLE: 3dBm
External Antenna (AP-7662-680B40-xx) 2.4GHz Band: 20 dBm,
5 GHz Band: 20 dBm , BLE: 3dBm
Maximum Total Conducted Transmit Power Two Antenna Tx
Internal Antenna (AP-7662-680B30-xx) 2.4GHz Band: 26 dBm,
5 GHz Band: 26 dBm , BLE: 3dBm
External Antenna (AP-7662-680B40-xx) 2.4GHz Band: 23 dBm,
5 GHz Band: 23 dBm , BLE: 3dBm

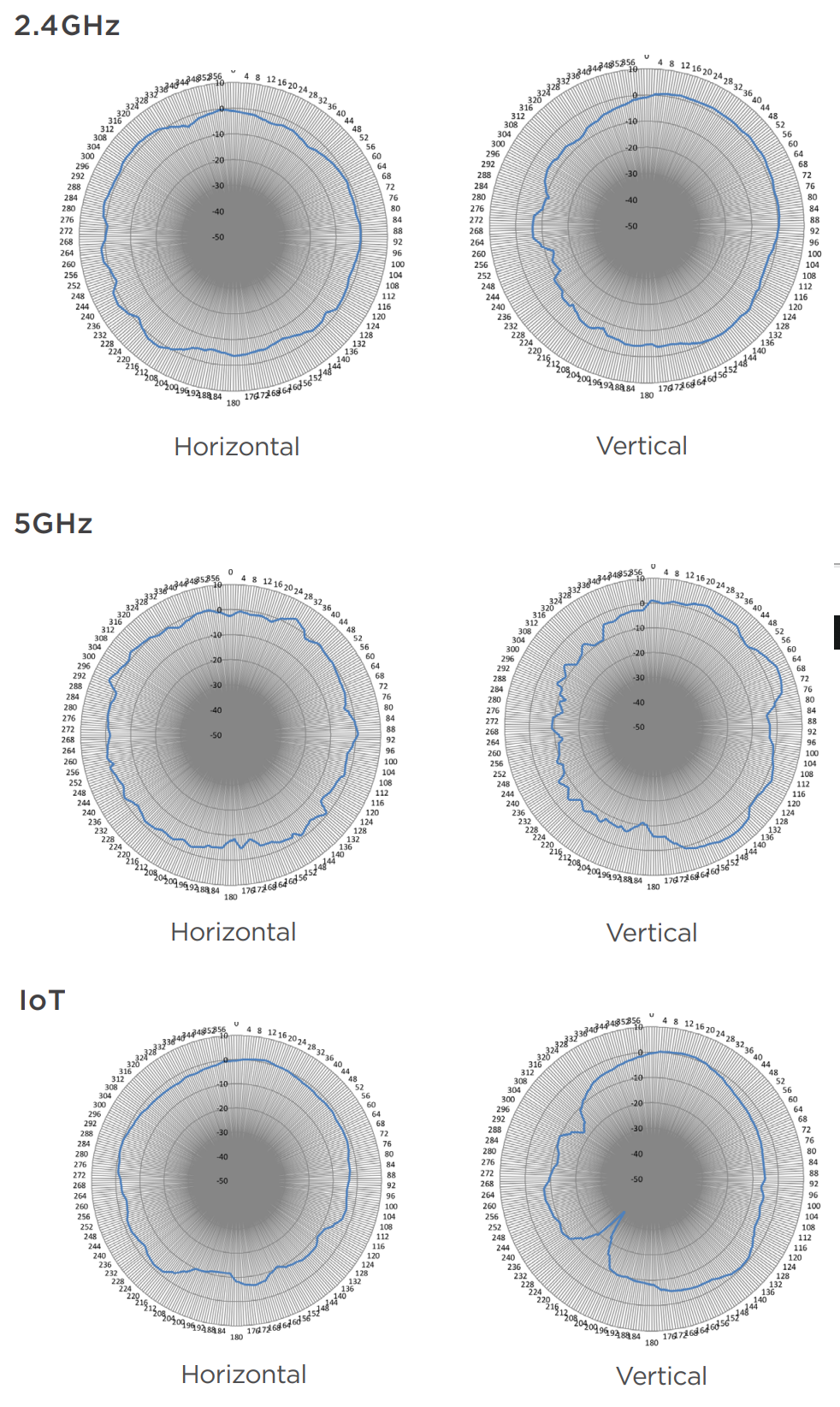

Radiation Patterns:
