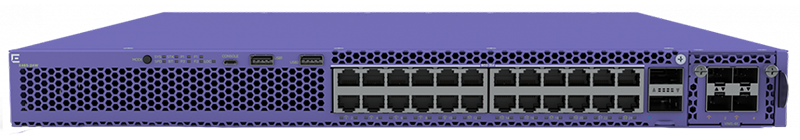

Extreme Networks ExtremeSwitching X465 24-port Switch
Premium Stackable Edge/Aggregation Switch Platform

Extreme Insight Architecture

The X465 Series supports Extreme's Insight Architecture. This architecture leverages the X465 Series hardware and software design to run onboard applications without impacting switch performance. X465 models with a quad-core processor can run a Guest VM directly on the switch in support third-party or customized applications to meet specific business or operational needs. This can help provide additional network insight or enable new network applications without the need for a separate hardware device.

MACsec Link Encryption

The X465 Series supports IEEE 80 2.1AE MACsec on it s 10/100/1000 access ports, as well as on it s modular uplink ports. MACsec is a hop-by-hop security capability which encrypts/decrypts packets between connected switches or devices. As a link-only encryption, the switches can still apply services to the packet, such as policy or QoS, without compromising the security of packet s across the link. With support for both 128-bit and 256-bit Advanced Encryption Standard (AES) support, the X465 provides the most secure link encryption.

Extended Edge Switching

All X465 models support Extended Edge Switching, an innovative solution that simplifies the deployment and operation of edge switches. As the controlling bridge of an Extended Edge solution, the X465 can be combined with Extreme's V300 and V400 Series access devices to create a single logical switch architecture. The result is a simplified operational model that reduces cost s.

Fabric Attach

Fabric Attach on the X465 can be used to automate the connection to Extreme's campus-based Fabric Connect solution. Fabric Attach not only provides zero-touch edge provisioning, it also allows the X465 to take advantage of the virtualized services and inherent securit y capabilities of the Extreme Fabric Connect infrastructure.

VIM Options for Flexible Uplinks

The X465 supports Versatile Interface Modules (VIMs) for it s uplink ports in addition to it s two dedicated stacking ports. Each X465 model has a single VIM slot that can be optionally used for uplinks. VIM options include both 2 and 4-port modules that support 10Gb, 25Gb and 40Gb data rates. VIM modules with LRM and/ or MACsec support are also available.

Role-Based Policy

The X465 supports role-based policies that can be centrally administered through the ExtremeControl policy manager. This policy framework empowers network administrators to define distinct roles or profiles to represent specific operational groups that may exist in an enterprise. Each defined role can then be granted individualized access to specific network services or applications and these access privileges remain associated with users as they move across both wired and wireless network access points.

Management

The X465 can be managed in a variety of ways. Simple on-box management functions are delivered by a web-based GUI, and a generic CLI is available for manual configuration. ExtremeCloud IQ along with Extreme Management Center (XMC) also provide a comprehensive unified management capability with a consolidated view of users, devices and applications for wired and wireless networks.

Zero-touch provisioning let s one quickly bring new X465 switches online and a granular view of devices, port s and users enables efficient inventory and network topology management.

Location LED

A location LED on the front panel of the X465 chassis can be used to quickly identify a specific X465 switch deployed in wiring closet or a stack.

Performance

• Layer 2/MAC Addresses: 272K
• IPv4 LPM Entries: 256K max w/ALPM
• IPv4 Hosts
  • With min LPM IPv4 entries: 150K
  • With max LPM IPv4 entries: 1K
• IPv6 LPM (/64) Entries: 128K max w/ ALPM
• IPv6 Host s: 32K max
• IP Multicast Groups: 4K
• IP Multicast (s,v,g) entries 130K max
• Flexible Universal Forwarding Tables (UFT)
• 40 96 VLAN/VMANs
• 9216 Byte Max Packet Size (Jumbo Frame)
• 8 queues per port
• 8K ingress ACL rules
• 1K egress ACL rules
• OnePolicy Scaling
  • Up to 24,576 authenticated policy users per switch
  • Policy Profiles: 63
• Unique Permit/Deny Rules per switch: 1976
• Default OnePolicy Profile
  • MAC Rules: 512
  • IPv4 Rules: 512
  • IPv6 Rules: 512
  • L2 Rules: 400

Key Features

• VxLAN Tunneling End Point (VTEP)
• MPLS/VPLS
• Extended Edge Switching Controlling Bridge
• Priorit y Flow Control (PFC)
• SummitStack-V160 160GB stacking (full duplex)
  • Stacking with up to 8 X465/ X590/ X690 systems
  • 2 dedicated 40 Gb port s for stacking
• SFlow/Application Telemetry
• Y.1731OAM in Hardware

Environmental Specifications

• EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage
• EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transportation
• EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational
• EN/ETSI 300 753 (1997-10) - Acoustic Noise
• ASTM D3580 Random Vibration Unpackaged 1.5 G

Environmental Compliance

• EU RoHS: 2011/65/EU
• EU WEEE: 2012/19/EU
• China RoHS: SJ/T 11363-2006
• Taiwan RoHS: CNS 15663 (2013.7)

Operating Conditions

• Temp: 0° C to 45° C (32° F to 113° F)
• Humidity: 10% to 95% relative humidity, non-condensing
• Altitude: 0 to 3,000 meters (9,850 feet)
• Shock (half sine): 30 m/s2 (3G), 11 ms, 60 shocks
• Random vibration: 3 to 500 Hz at 1.5 G rms

Packaging and Storing Specifications

• Temp: -40° C to 70° C (-40° F to 158° F)
• Humidity: 10% to 95% relative humidity, non-condensing
• Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
• Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G
• Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz
• Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)

Regulatory and Safety

• North American ITE
  • UL 60 950-1
  • UL 62368-1
  • Complies with FCC 21CFR 1040.10 (U.S. Laser Safety)
  • CDRH Letter of Approval (US FDA Approval)
  • CAN/CSA 22.2 No. 60 950-1
  • CAN/CSA No. 22.2 62368-1-14
• European ITE
  • EN 60950-1, EN 62368-1
  • EN 60825-1 Class 1 (Lasers Safety)
  • 2014/35/EU Low Voltage Directive
• International ITE
  • CB Report & Certificate per IEC 60950-1 AS/NZS 60950-1 (Australia / New Zealand)
  • IEC 62368-1
  • GB 4943.1-2011
  • CNS 14336-1

EMI/EMC Standards

• North American EMC for ITE
  • FCC CFR 47 part 15 Class A (USA)
  • ICES-003 Class A (Canada)
• European EMC Standards
  • EN 55032 Class A
  • EN 55024
  • EN 61000-3-2,2014 (Harmonics)
  • EN 61000-3-3 2013 (Flicker)
  • EN 300 386 v1.6.1(EMC Telecommunications)
  • 2014/30/ EU EMC Directive
  • EN 55011 Class A
• International EMC Certifications
  • CISPR 22 Class A (International Emissions)
  • AS/NZS CISPR32
  • CISPR 24 Class A (International Immunity)
  • IEC 61000-4-2/EN 61000-4-2 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria A
  • IEC 61000-4-3/EN 61000-4-3 Radiated Immunity 10V/m, Criteria A
  • IEC 61000-4-4/EN 61000-4-4 Transient Burst, 1 kV, Criteria A
  • IEC 61000-4-5/EN 61000-4-5 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A
  • IEC 61000-4-6/EN 61000-4-6 Conducted Immunity, 0.15- 80 MHz, 10V/m unmod. RMS, Criteria A
  • IEC 61000-4-8/EN 61000-4-8
  • CISPER 11 Class A
  • GB/T 9254-2008

Country Specific

• VCCI Class A (Japan Emissions)
• ACMA RCM (Australia Emissions)
• CCC Mark (China)
• KCC Mark, EMC Approval (Korea)
• EAC Mark (Custom Union)
• NRCS / SABS Mark (South Africa)
• BSMI Mark (Taiwan)

Telecom Standards

• CE 2.0 Compliant

IEEE 802.3 Media Access Standards

• IEEE 802.3ab 1000BASE-T
• IEEE 802.3bz 2.5G/ 5GBASE-T
• IEEE 802.3ae 10GBASE-X
• IEEE 802.3aq 10GBASE-LRM
• IEEE 802.3at PoE Plus
• IEEE 802.3bt Type3/Type4 PoE
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.3by 25GBASE-X
• IEEE 802.3ba/802.3bm 40GBASE-X
