Extreme Networks ExtremeSwitching X870-96x-8c Spine Switch
100Gb Spine Switch and High Densit y 10Gb Leaf Switch

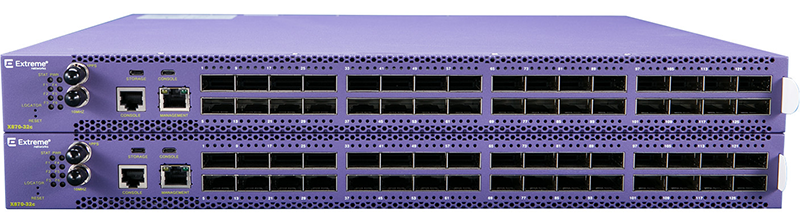

Extreme Networks ExtremeSwitching X870-96x-8c Spine Switch

Extreme Networks Products
Extreme Networks ExtremeSwitching X870 Series
ExtremeSwitching X870-96x-8c Spine Switch
96 10 Gb port s on 24 QSFP28 ports, unpopulated, 8 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports, unpopulated, ExtremeXOS Advanced Edge License, 2 unpopulated power supply slots, 6 unpopulated fan module slots
#17810
Our Price: $40,525.00
Call For Lowest Price!

Click here to jump to more pricing!

Overview:

High Density, Advanced 100Gb Enterprise LAN and Data Center Spine Switching

The ExtremeSwitching X870 product family are high-densit y, purpose-built 100Gb switches designed for high-performance enterprise and cloud data centers. With 32 QSFP28 ports, the X870 can support a range of interface speeds, including 10Gb, 25Gb, 40Gb, 50Gb and 100Gb, all in a compact 1RU form factor. This enables the ExtremeSwitching X870 to be flexibly deployed in either spine/leaf or high-densit y top of rack architectures. Low-latency cut-through switching and an advanced feature set make it ideal for high-performance data center applications.

X870-96x-8c - High densit y 10Gb leaf switch with 96 10Gb ports on 24 QSFP28 ports and 8 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports.

  • 10Gb Ethernet connectivit y is supported via QSFP+ transceivers and direct attach cables with a 4 x 10Gb Ethernet configuration
  • 10Gb QSFP+ Ethernet port s can be enabled to add 25Gb/40Gb/50Gb/100Gb capabilit y with a license for groups of 6 QSFP ports. Up to four licenses can be applied per system.
  • 8 ports of 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 in base system

Highlights

Family of 10Gb/100Gb Switches with Advanced Enterprise Capabilities

  • Full featured ExtremeXOS operating system with advanced features supporting switching, routing, SDN, and VXLAN
  • Spine and high density leaf applications
  • Non-blocking 6.4Tbps switching capacity per system
  • ExtremeFabric network fabric

Ease of Use - Flexible Management Options

  • Enterprise Extreme Management Center application support
  • Advanced command line interface
  • Zero Touch Provisioning (ZTP+)
  • Integrated web based management application

Flexible System Configurations

  • Wide range of port speeds from 1Gb, 10Gb, 25Gb, 40Gb, 50Gb, and 100Gb
  • Hot-swappable modular power and fans
  • AC and DC power supply options
  • Front to Back and Back to Front air flow options
  • Redundancy options for high availability

High-Performance 32 Port 100Gb Ethernet Switch ideal for Spine and Leaf Applications

  • 32 QSFP28 100Gb ports
  • Hot-swappable modular power and fans
  • Up to 128 10Gb or 25Gb Ethernet ports using breakout of QSFP28 ports

Features:

Flexible Deployment Options

The X870 can handle a wide range of high bandwidth applications, including high-density 10Gb top of rack aggregation, emerging 25Gb and 50Gb Ethernet, and 100Gb spineleaf fabric deployments. The X870 offers unique flexibility for high bandwidth 100Gb spine fabric applications and high densit y 10Gb and 25Gb edge leaf aggregation, all with a proven ExtremeXOS operating system. A wide variet y of QSFP+ optical transceivers and cables can be used to support 10Gb and 40Gb Ethernet, while QSFP28 optical transceivers can be used to support 25Gb, 50Gb and 100Gb Ethernet applications.

ExtremeXOS Intelligent L2/L3 Switching

The ExtremeSwitching X870 family supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/ IPv6 routing, including policy-based switching and routing. The X690 simplifies network operation with the ExtremeXOS modular operating system, which is used across a wide range of ExtremeSwitching networking products. The high availability ExtremeXOS operating system reduces operational overhead through the use of a single OS across the network.

High-Performance 400Gb Stacking

The X870 support s SummitStack-V400 400Gbps high speed stacking using 2 10Gb ports. Up to 8 X590, X690 or X870 systems can be stacked via SummitStack-V400 cables using any of the supported 100Gb QSFP28 direct attach cables for the stacking links.

Comprehensive Network Management

Extreme Networks has developed tools that simplify and help in efficiently managing your network. The ExtremeControl application provides centralized visibility and granular control of enterprise network resources end to end.

Specifications:


  X870 -32c X870 -96x-8c
Ports
  • 32 x QSFP28 10Gb/25Gb/40Gb/50Gb/100Gb ports
    • Up to 32 x 100Gb Ethernet ports
    • Up to 64 x 50Gb Ethernet ports
    • Up to 128 x 25Gb Ethernet ports
    • Up to 32 x 40Gb Ethernet ports
    • Up to 128 x 10Gb Ethernet ports
  • 1x Serial console port RJ-45
  • 1x 10/100/1000BASE-T out-of-band management port
  • Micro-USB Type B console port
  • Micro-USB Type A storage port
  • 96 10Gb Ethernet ports configured via 4 x 10Gb Ethernet
    • 24 x QSFP port s configured for 4 x 10 Gb Ethernet (using QSFP+ 4x10 Gb Ethernet breakout)
    • Optional port speed licenses enable port s to support unrestricted 10/25/40/50/100Gb operation 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports
  • 8 x QSFP28 10Gb/25Gb/40Gb/50Gb/100Gb ports
    • up to 8 x 100Gb Ethernet channels
    • up to 16 x 50Gb Ethernet channels
    • up to 32 x 25Gb Ethernet channels
    • up to 8 x 40Gb Ethernet channels
    • up to 32 x 10Gb Ethernet channels
  • 1x Serial console port RJ-45
  • 1x 10/100/1000BASE-T out-of-band management port
  • Micro-USB Type B console port
  • Micro-USB Type A storage port
Power Supplies
  • Modular 770W AC power supply (up to two PSUs)
  • Modular 1100W DC power supply (up to two PSUs)
  • Front-Back and Back-Front airflow options
  • Modular 770W AC power supply (up to two PSUs)
  • Modular 1100W DC power supply (up to two PSUs)
  • Front-Back and Back-Front airflow options
Fan Modules
  • 6 fan modules
  • Front-Back and Back-Front airflow options
  • 6 fan modules
  • Front-Back and Back-Front airflow options
Dimensions 17.3in W / 20 .5in D / 1.7in H
(44.0 cm / 52.0 cm / 4.3cm)
17.3in W / 20 .5in D / 1.7in H
(44.0 cm / 52.0 cm / 4.3cm)
Weight 18.9 lbs / 8.6 Kg (base system) 18.9 lbs / 8.6 Kg (base system)
Performance 6.4Tbps Switching Capacit y / 3.17Bpps Forwarding Rate 6.4Tbps Switching Capacit y / 3.17Bpps Forwarding Rate
CPU Memory
  • 2.4GHz Quad core CPU
  • 8GB DDR3 ECC memory
  • 32GB SSD memory
  • 2.4GHz Quad core CPU
  • 8GB DDR3 ECC memory
  • 32GB SSD memory
Packet Buffers 16MB 16MB
Operating Conditions 0 º - 45ºC operation
10 % to 95% relative humidity, non-condensing
0 - 3000 meters altitude
Shock (half sine): 98 m/ s2 (10 G), 11ms, 9 shocks
Random vibration: 3 to 500Hz at 1.5 G rms
Power and Heat Dissipation
Minimum Heat Dissipation (BTU/hr) (Idle, no ports linked) AC: 601 BTU/hr
DC: 629 BTU/hr
AC: 601 BTU/hr
DC: 629 BTU/hr
Minimum Power Consumption (Watt s) (Idle, no ports linked) AC: 176 W
DC: 184 W
AC: 176 W
DC: 184 W
Maximum Heat Dissipation (BTU/hr) (Fans high, all ports 100% traffic) AC: 1614 BTU/hr
DC: 1598 BTU/hr
AC: 1614 BTU/hr
DC: 1598 BTU/hr
Maximum Power Consumption (Watts) (Fans high, all ports 100% traffic) AC: 473 W
DC: 469 W
AC: 473 W
DC: 469 W
Acoustic Specifications
Bystander Sound Pressure (Front-Back Airflow) 54.8 dB(A) up to 30 ºC
57.5 dB(A) up to 40 ºC
76.5 dB(A) @ 45ºC (max)
54.8 dB(A) up to 30 ºC
57.5 dB(A) up to 40 ºC
76.5 dB(A) @ 45ºC (max)
Bystander Sound Pressure (Back-Front Airflow) 58.9 dB(A) up to 30 ºC
62.8 dB(A) up to 40 ºC
76.4 dB(A) @ 45ºC (max)
58.9 dB(A) up to 30 ºC
62.8 dB(A) up to 40 ºC
76.4 dB(A) @ 45ºC (max)
Declared Sound Power (Front-Back Airflow) 7.0 bels up to 30 ºC
7.2 bels up to 40 ºC
9.2 bels @ 45ºC (max)
7.0 bels up to 30 ºC
7.2 bels up to 40 ºC
9.2 bels @ 45ºC (max)
Declared Sound Power (Back-Front Airflow) 7.4 bels up to 30 ºC
7.8 bels up to 40 ºC
9.1 bels @ 45ºC (max)
7.4 bels up to 30 ºC
7.8 bels up to 40 ºC
9.1 bels @ 45ºC (max)

Scaling and Performance

  • MAC Addresses: 136K
  • IPv4 LPM Entries: 192K max (ALPM)
  • IPv4 Hosts:
    • with min LPM IPv4 entries: 72K max
    • with max LPM IPv4 entries: 6K
  • IPv6 LPM (/64) Entries: 64K max (ALPM)
  • IPv6 Hosts: 24K max
  • IP Multicast Groups - 4K
  • IP Multicast (s,v,g) entries ? 68K max
  • Flexible Universal Forwarding Tables (UFT)
  • 40 92 user-created VLAN/ VMANs
  • 9216 Byte Max Packet Size (Jumbo Frame)
  • 8 queues per port
  • up to 12k ingress rules per system (3K rules per group of 8 QSFP port s)
  • 1K egress rules
  • sFlow
  • 40 0 Gb stacking (full duplex) with up to 8 X870 systems
  • Data Center Bridging
  • DCBx Data Center Bridging Exchange Protocol
  • Priorit y Flow Control (PFC)
  • Enhanced Transmission Selection (ETS)
  • VxLAN Tunneling End Point (VTEP)
  • Configurable Store & Forward and Cut Through forwarding modes
  • IEEE 80 2.3 Media Access Standards
  • EEE 80 2.3ba / 80 2.3bm 40 GBASE-X and 10 0 GBASE-X
  • IEEE 80 2.3ae 10 GBASE-X
  • IEEE 80 2.3bj 10 0 Gb Ethernet with Clause 91FEC
  • 25Gb and 50 Gb Ethernet implemented per 25G/ 50 G Ethernet Consortium

Environmental Specifications

  • EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage
  • EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transportation
  • EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational
  • EN/ETSI 300 753 (1997-10) - Acoustic Noise
  • ASTM D3580 Random Vibration Unpackaged 1.5 G

Environmental Compliance

  • EU RoHS: 2011/65/EU
  • EU WEEE: 2012/19/EU
  • China RoHS: SJ/T 11363-2006
  • Taiwan RoHS: CNS 15663 (2013.7)

Packaging and Storing Specifications

  • Temp: -40° C to 70° C (-40° F to 158° F)
  • Humidity: 10% to 95% relative humidity, non-condensing
  • Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
  • Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G
  • Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz
  • Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)

Regulatory and Safety

  • North American ITE
    • UL 60950-12nd edition A2:2014, Listed Device (U.S.)
    • CSA 22.2 No. 60950-12nd edition 20 14(Canada)
    • Complies with FCC 21CFR 1040.10 (U.S. Laser Safet y)
    • CDRH Letter of Approval (US FDA Approval)
  • European ITE
    • 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 2nd Ed.
    • EN 60825-1:2007 / IEC 60825-1:2007 Class 1 (Lasers Safety)
    • 2014/35/ EU Low Voltage Directive
  • International ITE
    • CB Report & Certificate per IEC 60950-1 : 2005+A1:2009+A2:2013 + National Differences
    • AS/NZS 60950-1(Australia / New Zealand)

EMI/EMC Standards

  • North American EMC for ITE
    • FCC CFR 47 part 15 Class A (USA)
    • ICES-003 Class A (Canada)
  • European EMC Standards
    • EN 55032:2015 Class A
    • EN 55024:2010
    • EN 61000-3-2,2014 (Harmonics)
    • EN 61000-3-3 2013 (Flicker)
    • EN 300 386 v1.6.1(EMC Telecommunications)
    • 2014/30/ EU EMC Directive
  • International EMC Certifications
    • CISPR 22 Class A (International Emissions)
    • AS/NZS CISPR32:2015
    • CISPR 24:2010 Class A (International Immunity)
    • IEC 61000-4-2:2008/EN 61000-4-2 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria A
    • IEC 61000-4-3:2010/EN 61000-4-3 Radiated Immunity 10V/m, Criteria A
    • IEC 61000-4-4:2012/EN 61000-4-4 Transient Burst, 1 kV, Criteria A
    • IEC 61000-4-5:2014/EN 61000-4-5 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A
    • IEC 61000-4-6:20 13/ EN 61000-4-6:20 14 Conducted Immunity, 0.15-80 MHz, 10V/m unmod. RMS, Criteria A
    • IEC/ EN 61000-4-11:2004 Power Dips & Interruptions, >30 %, 25 periods, Criteria C

Country Specific

  • VCCI Class A (Japan Emissions)
  • ACMA RCM (Australia Emissions)
  • CCC Mark
  • KCC Mark, EMC Approval (Korea)

Telecom Standards

  • CE 2.0 Compliant


Power Supply Specifications:


  770W AC PSU
10960/10961
1100W DC PSU
10962/10963
Dimensions 2.3 in W x 1.6 in H x 14.1in D
(5.9 cm x 4.1cm x 35.9 cm)
2.3 in W x 1.6 in H x 14.1in D
(5.9 cm x 4.1cm x 35.9 cm)
Weight 2.2 lb (1Kg) 2.2 lb (1Kg)
Voltage Input Range 100 - 240 VAC +/- 10 % -48 VDC -15% +20 %
Line Frequency Range 50 - 60 Hz +/- 5% N/A
PSU Input Socket IEC 320 C14 Terminal Block
Power Cord Input Plug IEC 320 C13 N/A
Operating Conditions 0º - 45ºC Operation 0º - 45ºC Operation

Pricing Notes:

Extreme Networks Products
Extreme Networks ExtremeSwitching X870 Series
ExtremeSwitching X870-96x-8c Spine Switch
96 10 Gb port s on 24 QSFP28 ports, unpopulated, 8 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports, unpopulated, ExtremeXOS Advanced Edge License, 2 unpopulated power supply slots, 6 unpopulated fan module slots
#17810
Our Price: $40,525.00
Call For Lowest Price!
Accessories
Fan module, Front to Back airflow
#17115
Our Price: $373.00
Fan module, Back to Front airflow
#17116
Our Price: $373.00
770W AC power supply, Front-to-Back airflow
#10960
Our Price: $785.00
770W AC power supply, Back-to-Front airflow
#10961
Our Price: $785.00
1100W DC power supply, Front-to-Back airflow
#10962
Our Price: $1,265.00
1100W DC power supply, Back-to-Front airflow
#10963
Our Price: $1,265.00
Spare Four Piece Rack Mount compatible with X590
#16777
Our Price: $160.00
Firmware Licenses
ExtremeXOS X870 Series Core License
#17825
Our Price: $6,216.00
ExtremeXOS X870 MPLS Feature Pack
#17828
Our Price: $4,142.00
ExtremeXOS X870-96x-8c Port Speed License, upgrades 6 QSFP 10Gb ports to 10Gb/25Gb/40Gb/50Gb/100Gb support
#17830
Our Price: $3,105.00
