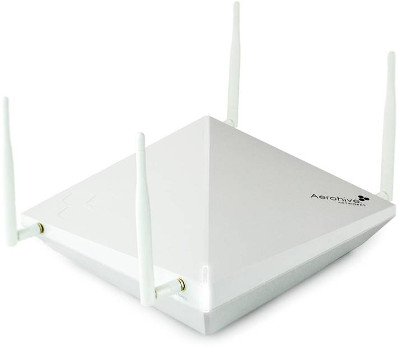

Extreme Networks AP122X
2x2 802.11ac (Wifi5) Dual Radio Access Point
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Enterprise-Grade 2x2, 2-Stream, 802.11n/ac Access Points with External Antennas for Medium-Density Environments, as well as IoT and Location-Based Services
AP122X provides the full breadth of enterprise-grade feature set and IoT readiness in medium density environments, achieving 802.11ac performance with data rates up to 867 Mbps, along with built-in BLE and USB port using existing 802.3af PoE infrastructure.
Powered by HiveOS and the innovative distributed Cooperative Control architecture, AP122X brings the best of coverage and advanced 802.11ac technology. In addition, the integrated BLE radio and a USB interface in the access point opens up a multitude of deployment use-cases in IoT and proximity/location-oriented services.
The AP122X benefits from an AI-driven Wi-Fi architecture capable of self-organizing, self-learning, self-healing and self-optimizing in the most challenging environments. Cooperative Control eliminates single points of failure and bottlenecks, delivering bulletproof stability and unbridled performance, perfectly complimenting the unrivalled capabilities of HiveOS - a stateful L2-L7 DPI firewall for context-based access security, advanced and customizable QoS for traffic optimization, intelligent meshing algorithms, Private Pre-Shared Key (PPSK) and much more.
Features:
Resilient Connectivity for Demanding Environments
Distributed control Wi-Fi architecture delivers self-organizing, self-healing, and self-optimizing connectivity in the most challenging environments, eliminating single points of failure and bottlenecks, delivering bulletproof stability and unbridled performance, and offering unparalleled scale.
Contextualized Security and Performance Optimization
User, device, and application profiling at the edge of the network identifies and fine-tunes network access and performance based on role and privileges, ensuring secure, compliant, and high-performance wireless connectivity.
Cloud-Managed Assurance, Intelligence, and Simplicity
Managed by ExtremeCloud IQ, this device can be quickly and easily provisioned with advanced configurations, deliver granular user, device, and application reporting, and be supported from any location in minutes.
Specifications:
Radio Specifications
802.11a
- 5.150–5.850 GHz Operating Frequency
- Orthogonal Frequency Division Multiplexing (OFDM) Modulation
- Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11b
- 2.4–2.5 GHz Operating Frequency
- Direct-Sequence Spread-Spectrum (DSSS) Modulation
- Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g
- 2.4–2.5 GHz Operating Frequency
- Orthogonal Frequency Division Multiplexing (OFDM) Modulation
- 20 dBm (100 mW) Transmit Power
- Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11n
- 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
- 802.11n Modulation
- Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 300Mbps)
- 2x2 Multiple-In, Multiple-Out (MIMO) Radio
802.11ac
- 5.150–5.850 GHz Operating Frequency
- 802.11ac Modulation (256-QAM)
- Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2.
- 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
- VHT20/VHT40/VHT80 support
- TxBF ( Transmit Beamforming)
Interfaces
- Autosensing 10/100/1000 Base-T Ethernet PoE (Power over Ethernet 802.3af) Port
- RJ-45 console port
- Standard USB port
Power Specifications
- IEEE 802.3af PoE Power
Power Options
- Power Draw: Typical 10.5W, Max 12.9W
- 802.3af / 802.3at (PoE/PoE+)
Physical
- LxWxH 171X171X44.5 mm (6.75x6.75x1.75in). w/o mounting brackets
- Weight: 1.13 lb (0.51 kg)
- Shipping Physical Dimensions:
- WxDxH: 8” x 7” x 3” (194mm x 186mm x 70mm)
- Weight: 1.54 lbs (0.7 Kg)
Antennas
- 2x external single band, 2.4-2.5GHz omnidirectional antennas (sold separately)
- 2x external single band, 5.1-5.8GHz omnidirectional antennas (sold separately)
- 1 x BLE internal antenna
- Antenna Gain:
- 2.4 GHz: 4 dBi
- 5 GHz: 4 dBi
- Max EIRP (dBm):
- 2400 MHz to 2500 MHz: 27 dBm
- 5250 MHz to 5350 MHz: 30 dBm
- 5725 MHz to 5875 MHz :30 dBm
Mounting
- Desktop
- Wall Mount
- Ceiling Tile flush 15/16”
- Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory
- Ceiling Tile Flush 3/8”, 9/16” sold as an accessory
- Suspend Mount sold as an accessory
- TPM chip for added security
Environmental
- Operating: 0 to 40 °C, Storage: -40 to 70 °C
- Humidity: 95%
Environmental / Regulatory Compliance
- Environmental Compliance: UL2043
- Regulatory Model: AP122X
- FCC
- 15.247
- 15.407
- OET65 Supplement C
- UL60950-1
Documentation:
Download the Extreme Networks AP122X Datasheet (PDF).
