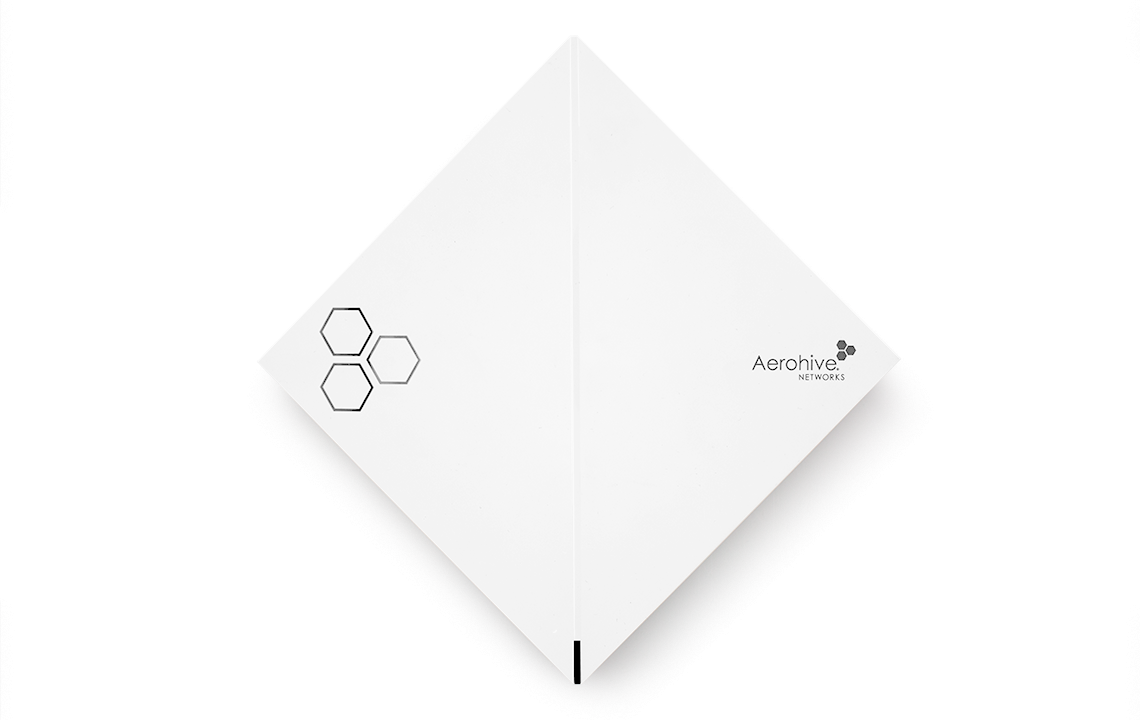

Extreme Networks AP250
AP250 Dual 5 GHz 3x3:3 MIMO Access Point for High Capacity Environments
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Performance-Optimized Indoor 802.11ac Wave 2 Dual-Radio Dual 5 GHz 3x3:3 MIMO Access Point for High Capacity Environments, with Integrated BLE radio and USB interfaces supporting IoT and proximity/location-oriented services.
Programable Radios
Software-defined dual 5 GHz radios monitor and automatically adjust Wi-Fi performance to achieve the highest levels of client performance and network optimization in challenging and demanding environments. Further fine tune network health with a granular, customizable QoS engine that adjusts performance based on user, device, and application privileges.
Management Analytics
In conjunction with Extreme’s management system, this access point provides a rich set of data displayed via context driven widgets, detailing historical data and real-time analytics. This provides context-specific granularity with perspective views for locations, network, network devices, individual client devices, as well as policy roles. In each context, administrators can adjust dashboards from the widget library.
Resilient Access
Distributed control Wi-Fi architecture delivers self-organizing, self-healing, and self-optimizing connectivity in the most challenging environments, eliminating single points of failure and bottlenecks, delivering bulletproof stability and unbridled performance, and offering unparalleled scale.
RF Monitoring
Adaptive RF algorithms provide intelligent selection of the best channels and transmit power for unimpaired network access. Load balancing, band steering and many other attributes of the RF can all be automated. In addition, administrators can view network health through Extreme’s management system.
Advanced Security
This access point delivers the highest level of security services, including a fully stateful L2-L7 DPI firewall for context-based access security, Private Pre-Shared Key (PPSK) authentication, on-board RADIUS services, WIPS, VPN tunnelling, and much more.
Automated Deployments
Powered by cloud networking, this access point can easily be deployed alongside thousands of others in no time at all. Extreme’s management system provides granular templates and auto provisioning totenable centralized enterprise plug-and-play rollouts.
Features:
Resilient Connectivity for Demanding Environments
Distributed control Wi-Fi architecture delivers self-organizing, self-healing, and self-optimizing connectivity in the most challenging environments, eliminating single points of failure and bottlenecks, delivering bulletproof stability and unbridled performance, and offering unparalleled scale.
Contextualized Security and Performance Optimization
User, device, and application profiling at the edge of the network identifies and fine-tunes network access and performance based on role and privileges, ensuring secure, compliant, and high-performance wireless connectivity.
Cloud-Managed Assurance, Intelligence, and Simplicity
Managed by ExtremeCloud IQ, this device can be quickly and easily provisioned with advanced configurations, deliver granular user, device, and application reporting, and be supported from any location in minutes.
Specifications:
Radio Specifications
- 802.11a
- 150–5.850 GHz Operating Frequency
- Orthogonal Frequency Division Multiplexing (OFDM) Modulation
- Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
- 802.11b
- 4–2.5 GHz Operating Frequency
- Direct-Sequence Spread-Spectrum (DSSS) Modulation
- Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
- 802.11g
- 4–2.5 GHz Operating Frequency
- Orthogonal Frequency Division Multiplexing (OFDM) Modulation
- 20 dBm (100 mW) Transmit Power
- Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
- 802.11n
- 4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
- 11n Modulation
- Rates (Mbps): MCS0–MCS23 (6.5Mbps - 450Mbps)
- 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
- HT20 High-Throughput (HT) Support for both 4 GHz and 5 GHz
- A-MPDU and A-MSDU Frame Aggregation
- 802.11ac
- 150–5.850 GHz Operating Frequency
- 11ac Modulation (256-QAM)
- Rates (Mbps): MCS0–MCS9 (6.5Mbps - 1300Mbps), NSS = 1-3.
- 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
- VHT20/VHT40/VHT80 support
Interfaces
- Two Autosensing 10/100/1000 BASE-T Ethernet ports. PoE/ PoE+ capability on one of the ports
- RJ-45 console port
- Standard USB port
- IEEE 802.3af PoE Power: Full 3x3:3 802.11ac MU-MIMO performance, BLE and Dual 5 GHz. No USB port, no 2nd Ethernet
- IEEE 802.3at PoE Power: full set of features (all of the above plus USB port and 2nd Ethernet port).
- 4 GHz typical power draw: 17 dBm, max 20 dBm
- 5 GHz typical power draw: 18 dBm, max 19 dBm
Physical
- WxDxH: 25” x 7.25” x 1.87”(18.4 cm x 18.4 cm x 1.87cm) [plus .25”, mounting hardware – 2.12” (5.4 cm) H total]
- Weight: 1.8 lb ( 0.81 kg)
Antennas
- 6 + 2 internal Wi-Fi antennas for spatial and polarization diversity
- 1x BLE internal antenna
Mounting
- Desktop
- Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory
- Ceiling Tile flush 3/8”, 9/16” sold as an accessory
- Suspend Mount sold as an accessory
- Plenum Mount sold as an accessory
- Silhouette and Interlude sold as an accessory
- TPM chip for added security
Environmental
- Operating: 0 to +40°C, Storage: -40 to +70°C
- Humidity: 95%
Environmental Compliance
- UL2043
Documentation:
Download the Extreme Networks AP250 Datasheet (PDF).
