Extreme Networks ExtremeSwitching X480 24-port Switch
Scalable and Versatile Gigabit and 10 Gigabit Ethernet Switch

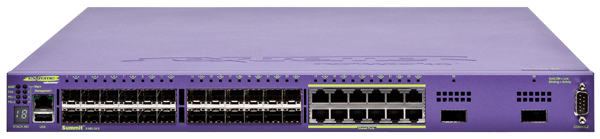

Summit X480-24x

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

The Summit X480 series switch is a versatile, high-end Ethernet switch for data center, enterprise aggregation, and Carrier Ethernet deployments. Summit X480 helps optimize application performance for a variety of network deployments with its rich features and high scalability.

Summit X480 provides high density for Gigabit Ethernet in a small 1RU form factor for up to 48 ports in one system and 384 ports in a stacked system using backward compatible SummitStack™, high-speed SummitStack128 running at 128 gigabits per second, or SummitStack-V, which utilizes 10 GbE ports as stacking ports, enabling the use of standard cabling and optics technologies used for 10 GbE. Summit X480 also offers 10 Gigabit Ethernet connectivity for up to six ports in one system and 16 ports in a stacked system with the industry-standard XFP interface.

For emerging demands from voice/data convergence and storage, Summit X480 provides highly scalable Layer 2/3 switching and MPLS/H-VPLS by supporting up to 512K Layer 2 MAC addresses or 512K IPv4 Longest Prefix Match routing tables. Summit X480 enables data center, enterprise and Carrier Ethernet aggregation and core backbone deployment in AC-powered and DC-powered environments.

Summit X480 simplifies network operation with the ExtremeXOS modular OS, available across a wide range of Extreme Networks Ethernet switches. The ExtremeXOS operating system provides high availability and simplicity with one OS everywhere in the network.

Target Applications

Top-of-rack switch for servers in enterprise data centers
High-performance core switch for a small network
High-performance gigabit aggregation switch in a traditional three-tiered network
Carrier Ethernet network switch that can aggregate connectivity for first mile access concentrators such as DSLAM and CMTS

Features:

High Performance Switching and Routing

48-port Gigabit Ethernet or 24-port gigabit and 2-port 10 Gigabit Ethernet connectivity in a 1RU form factor
Optional 4-port 10 Gigabit Ethernet (GbE) to provide 40 Gbps uplinks
Optional 40 Gbps stacking for up to eight switches in a stack to provide up to 384 Gigabit Ethernet connections in one logically integrated unit
Optional 128 Gbps stacking for up to eight switches in a stack to provide high-speed stacking
Optional stacking via 10 GbE ports (SummitStack-V), or optional SummitStack-V80 80 Gbps stacking
Supports Layer 2 and Layer 3 switching, as well as MPLS/H-VPLS

High Scalability in a 1RU Compact Switch

Up to 512K MAC address support for scalable Layer 2 networks
Up to 512K IPv4 routes for scalable Layer 3 networks
Up to 60K Access Control Lists (ACLs) for secure networks

High Availability

ExtremeXOS® modular OS for highly available network operation
Carrier-grade redundant networking protocol including Ethernet Automatic Protection Switching (EAPS)
Internal redundant AC/DC power supply and field replaceable/hot swappable fan tray

Comprehensive Security Management

Robust IP and MAC Security Framework
Threat Detection and Response
Protocol Anomaly Detection

High-Performance and Highly Scalable Switching and Routing

Summit X480 offers core-class intelligent switching and routing with exceptional port density and high-performance stacking technology powered by the ExtremeXOS modular OS. With its high performance switching and routing, Summit X480 helps enhance the data center, Carrier Ethernet and enterprise aggregation network.

High-Performance Switching and Routing

Summit X480 is available in three different port configuration options: 24-port Gigabit Ethernet and 2-port 10 Gigabit Ethernet (Summit X480-24x), 48-port copper Gigabit Ethernet (Summit X480-48t), or 48-port fiber Gigabit Ethernet (Summit X480-48x). All front panel ports run at non-blocking, wire-speed performance and can carry wire-rate traffic towards the Versatile Interface Module-2 (VIM2) slot. Summit X480 offers flexible configuration by using optional VIM2 modules which are: 4-port 10 Gigabit Ethernet Module (VIM2-10G4X), 2-port SummitStack Module (VIM2-SummitStack), 2-port SummitStack128 Module (VIM2-SummitStack128) or 2-port SummitStack-V80 Module (VIM2-SummitStack-V80) (see Figure 1: Port configuration options for Summit X480 switches).

Flexible Port Configuration

Summit X480 offers flexible port configurations from standard configuration to optional VIM2 modules. For Summit X480-24x, half of the Gigabit Ethernet ports can handle dual personality— select from either 10/100/1000BASE-T copper Gigabit Ethernet or 100/1000BASE-X fiber Gigabit Ethernet connectivity. In the case of Summit X480-48t, the last four Gigabit Ethernet ports are configured as dual personality ports to provide flexibility between copper and fiber Gigabit Ethernet.

Through the VIM2 slot, Summit X480 can add an additional four 10 Gigabit Ethernet or SummitStack stacking ports. For stacking, depending upon the needs for bandwidth across the units in a stack, Summit X480 supports 40 Gbps SummitStack, 80 Gbps SummitStack-V80 or 128Gbps SummitStack128 through VIM2 option modules (See Figure 2: Summit X480-24x flexible port configuration). A third option, SummitStack-V, utilizes 10 GbE ports as stacking ports.

Summit X480 supports flexible 10 gigabit optical transceivers such as 10GBASE-SR, LR, ER and ZR as well as tunable DWDM. Tunable DWDM (Dense Wavelength Division Multiplexing) support allows service providers and others to tune XFP 10 Gigabit Ethernet optics to a specific frequency, reducing the need for additional fiber runs and XFP sparing. Digital Diagnostics Monitoring Interface support allows service providers to monitor and diagnose pluggable optics in real-time.

SummitStack – High-Performance Stacking

Summit X480 supports SummitStack, which provides 40 Gbps (VIM2-SummitStack), 80 Gbps (VIM2-SummitStack-V80) or 128 Gbps (VIM2-SummitStack128) of stacking bandwidth. High-speed 128 Gbps stacking is ideal for demanding applications where a high volume of traffic traverses through the stacking links, yet bandwidth is not compromised through stacking. High-speed stacking is very useful in applications such as top of rack when stacked with Summit X480 and Summit X650 (requires optional conversion cable) and gigabit aggregation in large enterprise or data center networks. With the longer stacking cables such as 5-meters, stacking can be configured through different racks horizontally in a row (see Figure 3) as opposed to typical stacking system installed vertically in a rack.

SummitStack-V – Flexible Stacking Over 10 Gigabit Ethernet

SummitStack-V capability utilizes 10 GbE ports as stacking ports, enabling the use of standard cabling and optics technologies used for 10 GbE such as XFP, SFP+, 10GBASE-T and XENPAK. SummitStack-V provides long-distance stacking connectivity of up to 40 km while reducing the cable complexity of implementing a stacking solution. SummitStack-V enabled 10 GbE ports must be physically direct-connected. SummitStack-V is compatible with Summit X450e, X450a, X460, X480, X650, X670 and X670V switches running the same version of ExtremeXOS.

VIM Options	None (default option)	VIM2-10G4X	VIM2-SummitStack	VIM2-SummitStack-V80	VIM2-SummitStack128
Summit X480-24x	• 24 x 100/1000BASE-X (SFP) • 12 x 10/100/1000BASE-T (shared with the last 12 SFP ports) • 2 x 10GBASE-X (XFP)	• 24 x 100/1000BASE-X (SFP) • 12 x 10/100/1000BASE-T (shared with the last 12 SFP ports) • 6 x 10GBASE-X (XFP)	• 24 x 100/1000BASE-X (SFP) • 12 x 10/100/1000BASE-T (shared with the last 12 SFP ports) • 2 x 10GBASE-X (XFP) • 2 x SummitStack	• 24 x 100/1000BASE-X (SFP) • 12 x 10/100/1000BASE-T (shared with the last 12 SFP ports) • 2 x 10GBASE-X (XFP) • 2 x SummitStack-V80	• 24 x 100/1000BASE-X (SFP) • 12 x 10/100/1000BASE-T (shared with the last 12 SFP ports) • 2 x 10GBASE-X (XFP) • 2 x SummitStack128
Summit X480-48t	• 48 x 10/100/1000BASE-T • 4 x 100/1000BASE-X (shared with the last 4 10/100/1000BASE-T ports)	• 48 x 10/100/1000BASE-T • 4 x 100/1000BASE-X (shared with the last 4 10/100/1000BASE-T ports) • 4 x 10GBASE-X (XFP)	• 48 x 10/100/1000BASE-T • 4 x 100/1000BASE-X (shared with the last 4 10/100/1000BASE-T ports) • 2 x SummitStack	• 48 x 10/100/1000BASE-T • 4 x 100/1000BASE-X (shared with the last 4 10/100/1000BASE-T ports) • 2 x SummitStack-V80	• 48 x 10/100/1000BASE-T (shared with the last 4 10/100/1000BASE-T ports) • 2 x SummitStack128
Summit X480-48x	• 48 x 100/1000BASE-X SFP	• 48 x 100/1000BASE-X SFP • 4 x 10GBASE-X (XFP)	• 48 x 100/1000BASE-X SFP • 2 x SummitStack	• 48 x 100/1000BASE-X SFP • 2 x SummitStack-V80	• 48 x 100/1000BASE-X SFP • 2 x SummitStack128

Figure 1: Port Configuration Options for Summit X480 Switches

Figure 2: Summit X480-24x Flexible Port Configuration

SummitStack Rows Figure 3: SummitStack Across Racks in a Row

Supports Virtualized Data Centers

Summit X480 switches also support Direct Attach™, which eliminates the virtual switch layer, simplifying the network and improving performance. Direct Attach enables data center simplification by reducing network tiers from 4 or 5 tiers to just 3 or 2 tiers, depending on the size of the data center. To further enhance data center operations, Summit X480 switches support XNV™ (ExtremeXOS Network Virtualization), a set of software modules for the ExtremeXOS based switching product portfolio, and available via the Data Center Feature Pack for Extreme Networks Ridgeline™, a network and service management application. XNV brings insight, control and automation for highly virtualized data centers to the network.

Intelligent Switching and MPLS/ H-VPLS Support

Summit X480 supports sophisticated and intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing including policy-based switching/routing, Provider Bridges, bidirectional ingress and egress Access Control Lists, and bandwidth control by 8 Kbps granularity both for ingress and egress. To provide scalable network architectures used mainly for Carrier Ethernet network deployment, through a feature pack Summit X480 supports MPLS LSP based Layer 3 forwarding and Hierarchical VPLS (H-VPLS) for transparent LAN services. With H-VPLS, transparent Layer 3 networks can be extended throughout the Layer 3 network cloud by using a VPLS tunnel between the regional transparent LAN services typically built by Provider Bridges (IEEE 802.1ad) technology (see Figure 5: Summit X480 in a Carrier Ethernet application).

Figure 5: Summit X480 in a Carrier Ethernet Application

High Scalability in 1RU Compact Switch

Summit X480 supports highly scalable Layer 2 or Layer 3 support up to 512K MAC addresses. Similarly for larger Layer 3 networks, as well as highly secure networks. Summit X480 has routing environments, Summit X480 can support core routing expansion memory called TCAM built inside which can be class scalability for up to 512K IPv4 routing LPM entries in partitioned by application types or by deployment scenarios. hardware (See Figure 4: Summit X480 scalability). For larger Layer 2 network deployments, Summit X480 can

Type	L2 MAC	L3 Host (IPv4/v6)	L3 LPM Route (IPv4/v6)	ACL (Ingress/Egress)
Lower Power Mode	32K	16K/8K	16K/8K	8K/1K
Default (Layer 2+Layer 3)	256K	16K/8K	256K/8K	8K/1K
Large Layer 2 Network Configuration	512K	16K/8K	16K/8K	8K/1K
Large Layer 3 Network Configuration	32K	16K/8K	512K/8K	8K/1K
Security Configuration	32K	16K/8K	16K/8K	60K/1K

Figure 4: Summit X480 Scalability

High Availability

Powered by the ExtremeXOS OS, Summit X480 supports process recovery and application upgrades without the need for a system reboot. Summit X480 provides the high network availability required for mission-critical servers and applications through its advanced modular OS, highly available hardware architecture and carrier-grade network redundancy protocols.

Modular Operating System for Continuous Operation

Preemptive Multitasking and Protected Memory
Summit X480 series switches allow each of many applications—such as Open Shortest Path First (OSPF) and Spanning Tree Protocol (STP)—to run as separate OS processes that are protected from each other. This drives increased system integrity and inherently protects against DoS attacks.

Process Monitoring and Restart
ExtremeXOS increases network availability using process monitoring and restart. Each independent OS process is monitored in real time. If a process becomes unresponsive or stops running, it can be automatically restarted.

Loadable Software Modules
The modular design of ExtremeXOS OS allows the upgrading of individual software modules, should this be necessary, leading to higher availability in the network (See Figure 7: ExtremeXOS modular design).

High Availability Network Protocols

Ethernet Automatic Protection Switching (EAPS)
EAPS allows the IP network to provide the level of resiliency and uptime that users expect from their traditional voice network. EAPS is more adaptable than Spanning Tree or Rapid Spanning Tree Protocols and offers sub-second (less than 50 milliseconds) recovery that delivers consistent failover regardless of the number of VLANs, network nodes or network topology. Since EAPS allows the network to recover almost transparently, Voice-over-IP (VoIP) calls will not drop and digital video feeds will not freeze or pixelize in most situations.

Spanning Tree/Rapid Spanning Tree Protocols
Summit X480 supports Spanning Tree (802.1D), Per VLAN Spanning Tree (PVST+), Rapid Spanning Tree (802.1w) and Multiple Instances of Spanning Tree (802.1s) protocols for Layer 2 resiliency.

Software-Enhanced Availability
Software-enhanced availability allows users to remain connected to the network even if part of the network infrastructure is down. Summit X480 continuously checks for problems in the uplink connections using advanced Layer 3 protocols such as OSPF, VRRP and Extreme Standby Router Protocol™ (ESRP, supported in Layer 2 or Layer 3), and dynamically routes traffic around the problem.

Equal Cost Multipath
Equal Cost Multipath (ECMP) routing allows uplinks to be load balanced for performance and cost savings while also supporting redundant failover. If an uplink fails, traffic is automatically routed to the remaining uplinks and connectivity is maintained.

Link Aggregation (802.3ad)
Link aggregation (LAG) allows trunking of up to eight links on a single logical connection. A maximum of 128 link aggregation groups can be created.

Multi-Switch LAG (M-LAG)
M-LAG can address bandwidth limitations and improve network resiliency, in part by routing network traffic around bottlenecks, reducing the risks of a single point of failure, and allowing load balancing across multiple switches.

Voice-Grade Stacking with SummitStack
All SummitStack stacking architecture is designed to support mission-critical applications by its highly available, rapid failover capability with n-1 master redundancy, distributed Layer 2 and Layer 3 switching, link aggregation across the stack, and distributed uplinks. SummitStack supports up to eight units in a stack, including any mix of Summit X650, X480, X460, X450a, X450e and X250e running the same version of ExtremeXOS and provides 50 milliseconds failover for path failure and hitless master/backup failover along with hitless protocol support such as OSPF graceful restart and Network Login user authentication.

Alternatively, you may choose high-speed 80 Gbps stacking, which is ideal for demanding applications where a high volume of traffic traverses through the stacking links, yet bandwidth is not compromised through stacking. SummitStack-V80 also breaks the distance limitation for stacking technology by using QSFP+ technology. SummitStack-V80 can support passive copper cable (up to 5m), active multi-mode fiber cable (up to 100m), and QSFP+ optical transceivers which will be the standard technology for 40 GbE. With SummitStack-V80, the Summit X460 provides a flexible stacking solution inside the data center or central office to create a virtualized switching infrastructure across rows of racks. SummitStack-V80 is compatible with Summit X460, X480 and X670V switches running the same version of ExtremeXOS.

Summit X480 provides chassis-like management and availability with its SummitStack stacking technology (See Figure 8: SummitStack stacking architecture).

Hardware Redundancy
Summit X480 supports a dual redundant AC/DC power supply to provide high availability. The power supply can be hot-swapped and replaced should it fail. Summit X480 supports a hot-swappable, field replaceable fan.

Figure 6: Summit X480 High Availability Design

Modular and Stacking Design Figure 7: ExtremeXOS Modular Design Figure 8: SummitStack Stacking Architecture

Comprehensive Security Management

Implementing a secure network means providing protection at the network perimeter as well as the core. Summit X480 uses advanced security functions in protecting your network from known or potential threats.

Robust IP and MAC Security Framework

NetLogin
Network Login provides three types of authentication—Webbased, MAC-based, and 802.1x—to properly authenticate network users against RADIUS servers. When combined with Extreme Networks Universal Port Manager (UPM), IT administrators can dynamically provision policies to associated network users based on roles or UPM profiles.

Media Access Control (MAC) Security
MAC security allows the lockdown of a port to a given MAC address and limiting the number of MAC addresses on a port. This can be used to dedicate ports to specific hosts or devices and avoid abuse of the port. In addition, an aging timer can be configured for the MAC lockdown, protecting the network from the effects of attacks using (often rapidly) changing MAC addresses.

IP Security
ExtremeXOS IP security framework protects the network infrastructure, network services and host computers from rogue access, spoofing and man-in-the-middle attacks. It also protects the network from statically configured and/or spoofed IP addresses and builds an external trusted database of MAC/IP/port bindings providing the traffic's source from a specific address for immediate defense.

Identity Manager
Identity Manager allows network managers to track users who access their network. User identity is captured based on NetLogin authentication, LLDP discovery and Kerberos snooping. ExtremeXOS uses the information to then report on the MAC, VLAN, computer hostname, and port location of the user. Further, Identity Manager can create both roles and policies, and then bind them together to create role-based profiles based on organizational structure or other logical groupings, and apply them across multiple users to allow appropriate access to network resources.

Private VLANs
Private VLANs provide port-to-port security to prevent unauthorized communication of users within the same VLAN. Unlike normal VLANs, ports enabled for Private VLANs cannot communicate with other ports in the same VLAN over Layer 2 or Layer 3. Private VLAN ports can only communicate with a designated "uplink" port. In addition, a Private VLAN provides separation of broadcast domains within the same VLAN.

Threat Detection and Response

CLEAR-Flow Security Rules Engine
CLEAR-Flow provides first order threat detection and mitigation, and mirrors traffic to appliances for further analysis of suspicious traffic in the network.

Protocol Anomaly Detection

The Extreme Networks chipsets contain built-in hardware protocol checkers that support port security features for security applications, such as stateless DoS protection. The protocol checkers allow users to drop the packets based on conditions, which are checked for ingress packets prior to the Layer 2/Layer 3 entry table.

sFlow
sFlow® is a sampling technology that provides the ability to sample application-level traffic flows on all interfaces simultaneously.

IPFIX
IPFIX (Internet Protocol Flow Information eXport) defines an Internet standards-track protocol for a follow-on protocol to the proprietary Netflow. The technology is a complementary protocol to sFlow. IPFIX gathers information about network flows through the switch and sends the information to an external collector. Summit X480 includes hardware support to keep track of the flow records.

Port Mirroring
Summit X480 supports many-to-one and one-to-many port mirroring. This allows the mirroring of traffic to an external network appliance such as an intrusion detection device for trend analysis or for utilization by a network administrator for diagnostic purposes. Port mirroring can also be enabled across switches in a stack.

Line-Rate ACLs
ACLs are one of the most powerful components used in controlling network resource utilization as well as protecting the network. ACLs are used for filtering the traffic, as well as classifying the traffic flow to control bandwidth, priority, mirroring, and policy-based routing/switching.

Denial of Service Protection
Summit X480 effectively handles Denial of Service (DoS) attacks. If the switch detects an unusually large number of packets in the CPU input queue, it assembles ACLs that automatically stop these packets from reaching the CPU. After a period of time, these ACLs are removed, and reinstalled if the attack continues.

Secure and Comprehensive Network Management
Summit X480 supports comprehensive network management through Command Line Interface (Cli), SNMP v1, v2c, v3, and ExtremeXOS ScreenPlay™ embedded XML-based Web user interface. With a variety of management options and consistency across other Extreme Networks modular and stackable switches, Summit X480 series switches provide ease of management for demanding converged applications.

Extreme Networks has developed tools that simplify and help in efficiently managing your network. Ridgeline network and service management provides fault, configuration, accounting, performance and security functions, allowing more effective management of Extreme Networks products, solutions and third-party devices, in a converged network.

For carrier networks, Ridgeline enables the shift from reactive circuit monitoring to proactive service management. The key features integrated into the Service Advisor Feature Pack unify service fulfillment, service assurance and service engineering to enable carriers to more effectively manage next-generation residential triple play, business Ethernet and Ethernet mobile backhaul services.

Network Diagram:

Top of the rack switch for servers in the enterprise data centers

In the enterprise data center, many servers and storage systems are packed in racks, with all systems needing high-speed connectivity. A top-of-rack architecture is one way to simplify the cabling infrastructure and minimize the space requirements in the enterprise data center. Summit X480 is optimized to support high density Gigabit Ethernet connectivity for servers and other network attached devices and provides high-speed 128Gbps stacking connectivity with Summit X650 10 Gigabit Ethernet switch to provide the hybrid deployment for both gigabit and 10 Gigabit enabled servers in the data centers.

High-performance 10 gigabit core switch for a small network and aggregation switch in a traditional three-tiered network

Summit X480 offers enterprise-core class scalability for both Layer 2 and Layer 3 switching. Summit X480 can support up to 512,000 Layer 2 MAC addresses or 512,000 IPv4 longest prefix matching routes. The Summit X480 switch can also be used in the network aggregation layer in an enterprise network. With its versatile design, Summit X480 simplifies enterprise network deployment.

Carrier Ethernet network switch that can aggregate connectivity for first mile access concentrators

Summit X480 is an ideal service delivery platform for Carrier Ethernet networks. The advanced traffic management, resiliency and scalability features give it the flexibility to be deployed at the Provider Edge or as an aggregation switch. By supporting highly scalable Layer-2 and Layer-3 features along with MPLS/H-VPLS in hardware, Summit X480 simplifies the network deployment.

Specifications:

X480 Series Specification
General Specifications
Performance	176 Gbps switch fabric bandwidth 224 Gbps, 448 Gbps (with VIM2-10G4X) aggregated switch bandwidth 71.4 Mpps, 101.2 Mpps (with VIM2-Summit-Stack), 166.7 Mpps (with VIM2-SummitStack128), 130.9 Mpps (with VIM2-10G4X) frame forwarding rate Less than 4 microsecond latency (64-byte) 9216 Byte maximum packet size (Jumbo Frame) 128 load sharing trunks, up to 8 members per trunk 4,094 VLANs (Port, Protocol, IEEE 802.1Q) 8,192 ingress and 1,024 egress ACL rules/ Front panel ports and /VIM2-10G4X module
Forwarding Tables and ACLs	Summit X480 provides flexible configuration options for various deployments.
CPU, Memory	64bit MIPS Processor Dual Core, 1GHz clock 1GB ECC DRAM 256MB Compact Flash USB port for external USB flash
QoS, Rate Limiting	8,192 ingress bandwidth meters/Front panel ports and /VIM2-10G4X module Ingress and egress bandwidth policing/rate limiting per flow/ACL 8 QoS egress queues/port Egress bandwidth rate shaping per egress queue and per port Rate Limiting Granularity: 8 Kbps
LED Indicators	Per port status LED including power status System Status LEDs: management, fan and power
External Ports	12-port 100/1000BASE-X SFP, 12-port 100/1000BASE-X SFP and 10/100/1000BASE-T Combo, 2-port 10GBASE-X XFP, 1 open slot for VIM2 modules (Summit X480-24x) 44-port 10/100/1000BASE-T, 4-port 100/1000BASE-X SFP and 10/100/1000BASE-T Combo, 1 open slot for VIM2 modules (Summit X480-48t) 48-port 100/1000BASE-X SFP, 1 open slot for VIM2 modules (Summit X480-48x) 1-port RS-232c Serial (control port) 1 10/100/1000BASE-T out-of-band management port
External Ports for VIM2 Modules	4-port 10GBASE-X XFP (VIM2-10G4X) 2-port 20G SummitStack (VIM2-Summit-Stack) 2-port 64G SummitStack (VIM2-SummitStack128)
Option Slots	Slot for Versatile Interface Module 2 (VIM2) available for Summit X480-24x, Summit X480-48t and Summit X480-48x
Power Supply Support	Summit X480 AC PSU and Summit X480 DC PSU
Fan Speed	Minimum speed 4500 RPM Maximum speed 18000 RPM
Physical Specifications
Physical Dimensions	Summit X480-24x switch Summit X480-48x switch Summit X480-48t switch Height: 1.73 inches (4.4 cm) Width: 17.4 inches (44.1 cm) Depth: 19.0 inches (48.3 cm) VIM2-SummitStack module VIM2-10G4X module VIM2-SummitStack128 module Height: 1.7 inches (4.3 cm) Width: 5.2 inches (13.2 cm) Depth: 9.9 inches (25.2 cm) Summit X480 fan module Height: 1.7 inches (4.3 cm) Width: 5.2 inches (13.2 cm) Depth: 9.9 inches (25.2 cm)
Weight	Summit X480-24x switch 20.9 lb (9.5 kg) Summit X480-48x switch 22.7 lb (10.3 kg) Summit X480-48t switch 21.2 lb (9.6 kg) NOTE: Switch weights include installed fan module. They do not include installed VIM2 modules or PSUs. VIM2-SummitStack module 2.03 lb (0.92 kg) VIM2-10G4X module 2.76 lb (1.25 kg) VIM2-SummitStack128 module 2.05 lb (0.93 kg) Summit X480 fan module 0.45 lb (0.99 kg)
Operating Specifications
Operating Temperature Range	0° C to 45° C (32° F to 113° F)
Operating Humidity	10% to 93% relative humidity, non-condensing
Operating Altitude	0-3,000 meters (9,850 feet)
Operational Shock (Half Sine)	30 m/s2 (3 g), 11ms, 60 Shocks
Operational Random Vibration	3-500 MHz @ 1.5g rms
Storage & Transportation Conditions (Packaged)	Yes
Transportation Temperature	-40° C to 70° C (-40° F to 158° F)
Storage & Transportation Humidity	10% TO 95% RH, Non-Condensing
Packaged Shock (Half Sine)	180 m/s2 (18 G), 6ms, 600 shocks
Packaged Sine Vibration	5-62 Hz @ Velocity 5mm/s, 62-500 Hz @ 0.2G
Packaged Random Vibration	5-20 Hz @ 1.0 ASD w/-3dB/oct. from 20-200 Hz
Sides & Corners	14 drops min on sides corners @ 42" (<15 kg box)
Safety Standards
North American Safety of ITE	UL 60950-1 1st Ed., Listed Device (U.S.) CSA 22.2#60950-1-03 1st Ed. (Canada) Complies with FCC 21CFR 1040.10 (U.S. Laser Safety) CDRH Letter of Approval (U.S. FDA Approval)
European Safety of ITE	EN60950-1:2006 EN 60825-1+A2:2001 (Lasers Safety) TUV-R GS Mark by German Notified Body 2006/95/EC Low Voltage Directive
International Safety of ITE	CB Report Certificate per IEC 609501:2006 + National Differences AS/NZS 60950-1 (Australia/New Zealand)
EMI/EMC Standards
North America EMC Standards	FCC CFR 47 part 15 Class A (U.S.) ICES-003 Class A (Canada)
European EMC Standards	EN 55022:2006 Class A EN 55024:A2-2003 Class A includes IEC 61000-4-2, 3, 4, 5, 6, 11 EN 61000-3-2,8-2006 (Harmonics) EN 61000-3-3 1995+A2:2005 (Flicker) ETSI EN 300 386 v1.3.3, 2005-04 (EMC Telecommunications) 2004/108/EC EMC Directive
International EMC Standards	CISPR 22: 2006 Ed 5.2, Class A (International Emissions) CISPR 24:A2:2002 Class A (International Immunity) EC/EN 61000-4-2:2008 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria A EC/EN 61000-4-3:2008 Radiated Immunity 10V/m, Criteria A EC/EN 61000-4-4:2005 Transient Burst, 1 kV, Criteria A IEC/EN 61000-4-5:2005 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A IEC/EN 61000-4-6:2007 Conducted Immunity, 0.15-80 MHz, 10V/m unmod. RMS, Criteria A EC/EN 61000-4-11:2004 Power Dips Interruptions, >30%, 25 periods, Criteria C
Country Specific	VCCI Class A (Japan Emissions) ACMA (C-Tick) (Australia Emissions) CCC Mark KCC Mark EMC Approval (Korea)
Telecom Standards	EN/ETSI 300 386:2005-04 (EMC Telecommunications) EN/ETSI 300 019 (Environmental for Telecommunications) NEBS Level 3 compliant to portions of GR-1089 Issue 4 GR-63 Issue 3 as defined in SR3580 with exception to filter requirement MEF 9 MEF 14
IEEE 802.3 Media Access Standards	IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3ae 10GBASE-X
Environmental Standards	EN/ETSI 300 019-2-1 v2.1.2 (2000-09) – Class 1.2 Storage EN/ETSI 300 019-2-2 v2.1.2 (1999-09) – Class 2.3 Transportation EN/ETSI 300 019-2-3 v2.1.2 (2003-04) – Class 3.1e Operational EN/ETSI 300 753 (1997-10) – Acoustic Noise ASTM D3580 Random Vibration Unpackaged 1.5G
Warranty	Ltd. 1-year on Hardware 90-days on Software For warranty details, visit www.extremenetworks.com/go/warranty

Type	L2 MAC	L3 Host (IPv4/v6)	L3 LPM Route (IPv4/v6)	ACL (Ingress/Egress)
Lower Power Mode	32K	16K/8K	16K/8K	8K/1K
Default (Layer 2+Layer 3)	256K	16K/8K	256K/8K	8K/1K
Large Layer 2 Network Configuration	512K	16K/8K	16K/8K	8K/1K
Large Layer 3 Network Configuration	32K	16K/8K	512K/8K	8K/1K
Security Configuration	32K	16K/8K	16K/8K	60K/1K

ExtremeXOS 12.5 Supported Protocols

Switching

Switching (EAPS) and EAPSv2
IEEE 802.1D – 1998 Spanning Tree Protocol (STP)
IEEE 802.1D – 2004 Spanning Tree Protocol (STP and RSTP)
IEEE 802.1w – 2001 Rapid Reconfiguration for STP, RSTP
IEEE 802.1Q – 2003 (formerly IEEE 802.1s) Multiple Instances of STP, MSTP
EMISTP, Extreme Multiple Instances of Spanning Tree Protocol
PVST+, Per VLAN STP (802.1Q interoperable)
Draft-ietf-bridge-rstpmib-03.txt – Definitions of Managed Objects for Bridges with Rapid Spanning Tree Protocol
Extreme Standby Router Protocol (ESRP)
IEEE 802.1Q – 1998 Virtual Bridged Local Area Networks
IEEE 802.3ad Static load sharing configuration and LACP based dynamic configuration
Software Redundant Ports
Multi-switch Link Aggregation Groups (M-LAG)
IEEE 802.1AB – LLDP Link Layer Discovery Protocol
LLDP Media Endpoint Discovery (LLDP-MED), ANSI/TIA-1057, draft 08
Extreme Discovery Protocol (EDP)
Extreme Loop Recovery Protocol (ELRP)
Extreme Link State Monitoring (ELSM)
IEEE 802.1ag L2 Ping and traceroute, Connectivity Fault Management
ITU-T Y.1731 Frame delay measurements

Management and Traffic Analysis

RFC 2030 SNTP, Simple Network Time Protocol v4
RFC 854 Telnet client and server
RFC 783 TFTP Protocol (revision 2)
RFC 951, 1542 BootP
RFC 2131 BOOTP/DHCP relay agent and DHCP server
RFC 1591 DNS (client operation)
RFC 1155 Structure of Management Information (SMIv1)
RFC 1157 SNMPv1
RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB trAPs
RFC 1573 Evolution of Interface
RFC 1650 Ethernet-Like MIB (update of RFC 1213 for SNMPv2)
RFC 1901, 1905 – 1908 SNMPv2c, SMIv2 and Revised MIB-II
RFC 2576 Coexistence between SNMP Version 1, Version 2 and Version 3
RFC 2578 – 2580 SMIv2 (update to RFC 1902 – 1903)
RFC 3410 – 3415 SNMPv3, user based security, encryption and authentication
RFC 3826 – The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model
RFC 1757 RMON 4 groups: Stats, History, Alarms and Events
RFC 2021 RMON2 (probe configuration)
RFC 2613 SMON MIB
RFC 2925 Ping/Traceroute MIB
RFC 2668 802.3 MAU MIB
draft-ietf-hubmib-mau-mib-v3-02.txt
RFC 1643 Ethernet MIB
RFC 1493 Bridge MIB
RFC 2096 IPv4 Forwarding Table MIB
RFC 2737 Entity MIB v2
RFC 2233 Interface MIB
RFC 3621 PoE-MIB (PoE switches only)
IEEE 802.1ag MIB
Secure Shell (SSH-2) client and server
Secure Copy (SCP-2) client and server
Secure FTP (SFTP) server
sFlow version 5
RFC 3917 IPFIX
Configuration logging
Multiple Images, Multiple Configs
RFC 3164 BSD Syslog Protocol with Multiple Syslog Servers
- 999 Local Messages (criticals stored across reboots)
Extreme Networks vendor MIBs (includes FDB, PoE, CPU, Memory MIBs)
XML APIs over Telnet/SSH and HTTP/HTTPS
Web-based device management interface – ExtremeXOS ScreenPlay^TM
IP Route Compression
SFF-8472 DDMI (Digital Diagnostics Monitoring Interface)
Stacking – SummitStack, SummitStack-V and SummitStack128

Security, Switch and Network Protection

Secure Shell (SSH-2), Secure Copy (SCP-2) and SFTP client/server with encryption/ authentication (requires export controlled encryption module)
SNMPv3 user based security, with encryption/authentication (see above)
RFC 1492 TACACS+
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Accounting
RFC 3579 RADIUS EAP support for 802.1x
RADIUS Per-command Authentication
Access Profiles on All Routing Protocols
Access Policies for Telnet/SSH-2/SCP-2
Network Login – 802.1x, Web and MAC-based mechanisms
IEEE 802.1x – 2001 Port-Based Network Access Control for Network Login
Multiple supplicants with multiple VLANs for Network Login (all modes)
Fallback to local authentication database (MAC and Web-based methods)
Guest VLAN for 802.1x
RFC 1866 HTML – Used for Web-based Network Login and ExtremeXOS ScreenPlay
SSL/TLS transport – used for Web-based Network Login and ExtremeXOS Screen-Play (requires export controlled encryption module)
MAC Security – Lockdown and Limit
IP Security – RFC 3046 DHCP Option 82 with port and VLAN ID
IP Security – Trusted DHCP Server
Layer 2/3/4 Access Control Lists (ACLs)
RFC 2267 Network Ingress Filtering
RPF (Unicast Reverse Path Forwarding) Control via ACLs
Wire-speed ACLs
Rate Limiting/Shaping by ACLs
IP Broadcast Forwarding Control
ICMP and IP-Option Response Control
SYN attack protection
CPU DoS Protection with traffic rate-limiting to management CPU
- Robust against common network attacks:
  - CERT (http://www.cert.org)
  - CA-2003-04: "SQL Slammer"
  - CA-2002-36: "SSHredder"
  - CA-2002-03: SNMP vulnerabilities
  - CA-98-13: tcp-denial-of-service
  - CA-98.01: smurf
  - CA-97.28: Teardrop_Land -Teardrop and "LAND" attack
  - CA-96.26: ping
  - CA-96.21: tcp_syn_flooding
  - CA-96.01: UDP_service_denial
  - CA-95.01: IP_Spoofing_Attacks_and_ Hijacked_ Terminal_Connections
  - IP Options Attack
Host Attack Protection
Teardrop, boink, opentear, jolt2, newtear, nestea, syndrop, smurf, fraggle, papasmurf, synk4, raped, winfreeze, ping –f, ping of death, pepsi5, Latierra, Winnuke, Simping, Sping, Ascend, Stream, Land, Octopus

Security, Router Protection

IP Security – DHCP enforcement via Disable ARP Learning
IP Security – Gratuitous ARP Protection
IP Security – DHCP Secured ARP/ARP Validation
Routing protocol MD5 authentication

Security Detection and Protection

CLEAR-Flow, threshold-based alerts and actions (in non-SummitStack configuration only)
Identity Manager

IPv4 Host Services

RFC 1122 Host Requirements
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 894 IP over Ethernet
RFC 1027 Proxy ARP
RFC 2068 HTTP server
IGMP v1/v2/v3 Snooping with Configurable Router Registration Forwarding
IGMP Filters
PIM Snooping
Static IGMP Membership
Multicast VLAN Registration (MVR)

IPv4 Router Services

RFC 1812 Requirements for IP Version 4 Routers
RFC 1519 CIDR
RFC 1256 IPv4 ICMP Router Discovery (IRDP)
Static Unicast Routes
Static Multicast Routes
RFC 1058 RIP v1
RFC 2453 RIP v2
Static ECMP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2933 IGMP MIB
RFC 2096 IPv4 Forwarding Table MIB
RFC 1724 RIPv2 MIB
RFC 3768 VRRPv2
RFC 2787 VRRP MIB
RFC 2328 OSPF v2 (Edge-mode)
OSPF ECMP
OSPF MD5 Authentication
RFC 1587 OSPF NSSA Option
RFC 1765 OSPF Database Overflow
RFC 2370 OSPF Opaque LSA Option
RFC 3623 OSPF Graceful Restart
RFC 1850 OSPFv2 MIB
RFC 2362 PIM-SM (Edge-mode)
RFC 2934 PIM MIB
RFC 3569, draft-ietf-ssm-arch-06.txt PIM-SSM PIM Source Specific Multicast
draft-ietf-pim-mib-v2-o1.txt
Mtrace, a "traceroute" facility for IP Multicast: draft-ietf-idmr-traceroute-ipm-07
Mrinfo, the multicast router information tool based on Appendix-B of draft-ietf-idmrdvmrp-v3-11

IPv6 Host Services

RFC 3587, Global Unicast Address Format
Ping over IPv6 transport
Traceroute over IPv6 transport
RFC 5095, Internet Protocol, Version 6 (IPv6) Specification
RFC 4861, Neighbor Discovery for IP Version 6, (IPv6)
RFC 2463, Internet Control Message Protocol (ICMPv6) for the IPv6 Specification
RFC 2464, Transmission of IPv6 Packets over Ethernet Networks
RFC 2465, IPv6 MIB, General Group and Textual Conventions
RFC 2466, MIB for ICMPv6
RFC 2462, IPv6 Stateless Address Auto Configuration – Host Requirements
RFC 1981, Path MTU Discovery for IPv6, August 1996 – Host Requirements
RFC 3513, Internet Protocol Version 6 (IPv6) Addressing Architecture
Telnet server over IPv6 transport
SSH-2 server over IPv6 transport

IPv6 Interworking and Migration

RFC 2893, Configured Tunnels
RFC 3056, 6to4

IPv6 Router Services

RFC 2462, IPv6 Stateless Address Auto Configuration – Router Requirements
RFC 1981, Path MTU Discovery for IPv6, August 1996 – Router Requirements
RFC 2710, IPv6 Multicast Listener Discovery v1 (MLDv1) Protocol
Static Unicast routes for IPv6
RFC 2080, RIPng
RFC 2740 OSPF v3 (edge mode)
Static ECMP

Core Protocols for Layer 2, IPv4 and IPv6

Requires Core License

EAPSv2 Shared Ports – multiple interconnections between rings
PIM-DM Draft IETF PIM Dense Mode draft-ietf-idmr-pim-dm-05.txt, draft-ietfpim-dm-new-v2-04.txt
RFC 3618 Multicast Source Discovery Protocol (MSDP)
RFC 3446 Anycast RP using PIM and MSDP
RFC 2740 OSPFv3, OSPF for IPv6
RFC 1771 Border Gateway Protocol 4
RFC 1965 Autonomous System Confederations for BGP
RFC 2796 BGP Route Reflection (supersedes RFC 1966)
RFC 1997 BGP Communities Attribute
RFC 1745 BGP4/IDRP for IP-OSPF Interaction
RFC 2385 TCP MD5 Authentication for BGPv4
RFC 2439 BGP Route Flap Damping
RFC 2918 Route Refresh Capability for BGP-4
RFC 3392 Capabilities Advertisement with BGP-4
RFC 4360 BGP Extended Communities Attribute
RFC 4486 Subcodes for BGP Cease Notification message
draft-ietf-idr-restart-10.txt Graceful Restart Mechanism for BGP
RFC 4760 Multiprotocol extensions for BGP-4
RFC 1657 BGP-4 MIB
RFC 4893 BGP Support for Four-Octet AS Number Space
Draft-ietf-idr-bgp4-mibv2-02.txt – Enhanced BGP-4 MIB
RFC 1195 Use of OSI IS-IS for Routing in TCP/IP and Dual Environments (TCP/IP transport only)
RFC 2763 Dynamic Hostname Exchange Mechanism for IS-IS
RFC 2966 Domain-wide Prefix Distribution with Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 3373 Three-way Handshake for IS-IS Point-to-Point Adjacencies
Draft-ietf-isis-restart-02 Restart Signaling for IS-IS
Draft-ietf-isis-ipv6-06 Routing IPv6 with IS-IS
Draft-ietf-isis-wg-multi-topology-11 Multi Topology (MT) Routing in IS-IS

Quality of Service and Policies

IEEE 802.1D – 1998 (802.1p) Packet Priority
RFC 2474 DiffServ Precedence, including 8 queues/port
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2475 DiffServ Core and Edge Router Functions

Traffic Engineering

RFC 3784 IS-IS Externs for Traffic Engineering (wide metrics only)

VLAN Services: VLANs, vMANs

IEEE 802.1Q VLAN Tagging
IEEE 802.1v: VLAN classification by Protocol and Port
Port-based VLANs
Protocol-based VLANs
MAC-based VLANs
Multiple STP domains per VLAN
Upstream Forwarding Only/Disable Flooding
RFC 5517 Private VLANs
VLAN Translation
IEEE 802.1ad Provider Bridge Network, virtual MANs (vMANs)
vMAN Ethertype Translation/Secondary vMAN Ethertype
Multicast Support for PVLAN
Multicast Support for VLAN Aggregation
VLAN Aggregation

Multi-Protocol Label Switching (MPLS)

Requires MPLS Feature Pack License

RFC 2961 RSVP Refresh Overhead Reduction Extensions
RFC 3031 Multiprotocol Label Switching Architecture
RFC 3032 MPLS Label Stack Encoding
RFC 3036 Label Distribution Protocol (LDP)
RFC 3209 RSVP-TE: Extensions to RSVP for LSP Tunnels
RFC 3630 Traffic Engineering Extensions to OSPFv2
RFC 3811 Definitions of Textual Conventions (TCs) for Multiprotocol Label Switching (MPLS) Management
RFC 3812 Multiprotocol Label Switching (MPLS) Traffic Engineering (TE) Management Information Base (MIB)
RFC 3813 Multiprotocol Label Switching (MPLS) Label Switching Router (LSR) Management Information Base (MIB)
RFC 3815 Definitions of Managed Objects for the Multiprotocol Label Switching (MPLS), Label Distribution Protocol (LDP)
RFC 4090 Fast Re-route Extensions to RSVP-TE for LSP (Detour Paths)
RFC 4379 Detecting Multi-Protocol Label Switched (MPLS) Data Plane Failures (LSP Ping)
draft-ietf-bfd-base-09.txt Bidirectional Forwarding Detection

Layer 2 VPNs
