Extreme Networks AP122
2x2 802.11ac (Wifi5) Dual Radio Access Point

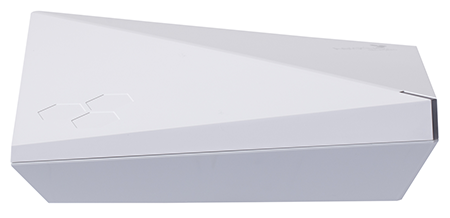

Extreme Networks AP122

Sorry, this product is no longer available, Please contact us for a replacement.


Overview:

Enterprise-grade 2x2, 2-stream, 802.11n/ac access point for coverage oriented environments, as well as IoT and location-based services

AP122 provides dual 802.11n or 11n/ac performance with data rates up to 867 Mbps using existing 802.3af PoE infrastructure. Versatile and cost-effective, AP122 is optimally suited for coverage- oriented, low-to medium capacity environments.

Running powerful HiveOS coupled with innovative distributed Cooper - ative Control architecture, AP122 brings the best of coverage and ad - vanced 802.11ac technology. In addition, the integrated BLE radio and a USB interface in the access point opens up a multitude of deployment use-cases in IoT and proximity/location-oriented services.

Enterprise Connectivity

  • Built-in Bluetooth Low Energy for iBeacon/ other beacon technologies
  • IoT readiness with USB port
  • Trusted Platform Module (TPM) – Hardware-based key storage and encryption
  • Encryption: AES/CCMP, TKIP, and RC4 (WEP only)

Cloud Management

  • Network Device and Client Monitoring
  • Global Search and Filter function
  • Auto-Provisioning Tools for quick and easy deployment
  • Network Health View
  • Versatile RF Planning
  • Guided Network Configuration Setup
  • 802.1X and PSK Secured Networks
  • Guest Access functionality with configurable Captive Web Portal

HiveCare Support

  • HiveCare Community Support: forum-based interactive support
  • HiveCare Connect CallBack service: optional
  • Wide array of online resources and tools

Features:


Resilient Connectivity for Demanding Environments

Distributed control Wi-Fi architecture delivers self-organizing, self-healing, and self-optimizing connectivity in the most challenging environments, eliminating single points of failure and bottlenecks, delivering bulletproof stability and unbridled performance, and offering unparalleled scale.

Resilient

Resilient

Contextualized Security and Performance Optimization

User, device, and application profiling at the edge of the network identifies and fine-tunes network access and performance based on role and privileges, ensuring secure, compliant, and high-performance wireless connectivity.


Cloud-Managed Assurance, Intelligence, and Simplicity

Managed by ExtremeCloud IQ, this device can be quickly and easily provisioned with advanced configurations, deliver granular user, device, and application reporting, and be supported from any location in minutes.

Resilient


Specifications:


AP122 Specifications
Radio Specifications—802.11ac
  • 5.150–5.850 GHz Operating Frequency
  • 802.11ac Modulation (256-QAM)
  • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867 Mbps), NSS = 1-2.
  • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • VHT20/VHT40/VHT80 support
  • TxBF ( Transmit Beamforming)
Radio Specifications—802.11n
  • 2.4–2.5 GHz & 5.150–5.850 GHz Operating
  • 802.11n Modulation
  • Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps)
  • 2x2 Multiple-In, Multiple-Out (MIMO) Radio
Radio Specifications—802.11g
  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
Radio Specifications—802.11b
  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallback
Radio Specifications—802.11a
  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
Antennas
  • 2x Integrated single band, 2.4-2.5 GHz Omni- directional antennas
  • 2x Integrated single band, 5.1-5.8 GHz Omni- directional antennas
  • 1 x BLE internal antenna
Interfaces
  • Autosensing 10/100/1000 Base-T Ethernet PoE (Power over Ethernet 802.3af) Port
  • RJ-45 console port
  • Standard USB port
Physical
  • LxWxH 171X171X44.5 mm (6.75x6.75x1.75in). w/o mounting brackets
  • Weight: 1.13 lb (0.51 kg)
Environmental
  • Operating: 0 to +40°C, Storage: -40 to +70°C
  • Humidity: 95%
Environmental Compliance
  • UL2043
Power Specifications
  • IEEE 802.3af PoE Power
Power Options
  • Power Draw: Typical 10.5W, Max 12.9W
  • 802.3af / 802.3at (PoE/PoE+)
Mounting
  • Desktop
  • Wall Mount
  • Ceiling Tile flush 15/16”
  • Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory
  • Ceiling Tile Flush 3/8”, 9/16” sold as an accessory
    • Suspend Mount sold as an accessory

Documentation:

Download the Extreme Networks AP122 Datasheet (PDF).
