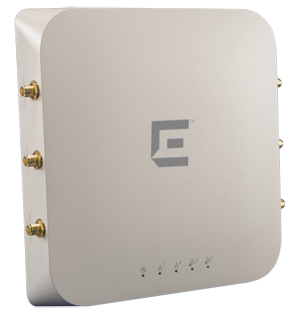

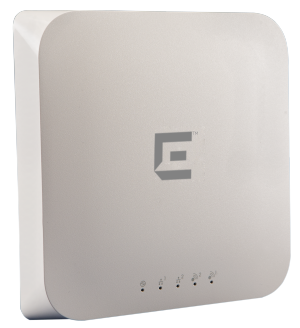

IdentiFi AP3825 Indoor Access Point
High Performance, Enterprise-Grade for Mission Critical Deployments
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The AP3825 is a high-performance 802.11ac and 802.11abgn indoor access point purpose built for high-density deployments. This access point is designed to operate in heavy-user and mission critical environments such as healthcare facilities, universities, conference centers, arenas, and stadiums. Active/active data ports and multiple power options ensure that the AP3825 provides always-on connectivity. This high-performance access point is equally adept at serving high-bandwidth video applications as well as low-latency voice applications. The AP3825i comes with an integrated six antenna array for ease of installation. The AP3825e requires professional installation and includes six RP-SMA antenna connectors supporting both 2.4GHz and 5GHz band antennas. Unique to this class of access point, the power efficient AP3825 uses 802.3af Power over Ethernet (PoE) without reducing its performance nor degrading its enterprise-grade capabilities. An optional external power supply is available for deployments that do not support Power over Ethernet.
The AP3825 is built on the newest Wi-Fi technology including 802.11ac, dynamic radio management, and spectrum analysis with interference classification, beam forming, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control. The 3x3:3 platform is capable of delivering 1.75Gbps over-the-air-performance and up to 75,000 packets per second on the wire port. The use of a dual core CPU and a network co-processor for offloading frame processing ensures that there are no bottlenecks in the data path when packets are processed through the slow path from the air-to-the wire. Multiple antenna offerings (e.g., omni, sector, and panel) ensure that the AP3825e deployment can be optimized to meet any coverage or capacity need.
Key Features
- 1.75 Gbps over the air performance
- 802.11ac, 3x3:3 platform
- Built in wired load-balancing and redundancy, always on connectivity
Benefits:
Business Alignment
- Support for demanding voice/ video/data applications to enhance mobile worker productivity and convenience
- Role-based grouping of users, devices, and applications to deliver priority, QoS, and security in accordance with business needs
- Seamless roaming across an entire multi-subnet campus without the need for cumbersome client software
- Integrated management, security, and QoS features reduce operating cost and ensure a consistent user experience regardless of location
Operational Efficiency
- Centralized visibility and control from NetSight ™ accelerates problem resolution, optimize network utilization, and automate management
- Adaptive architecture reduces complexity and optimizes information flow for each application
- Dynamic Radio Management ensures optimal AP coverage and maximizes the availability and quality of wireless service across the enterprise
- Flexible Client Access optimizes throughput for 802.11ac/n clients in today’s mixed ac, n, and a/b/g client environments
Security
- Authentication and authorization functions include role-based access control (using 802.1X, MAC, and captive portal) and authentication at the AP
- Wireless Intrusion Prevention (WIPS) functions provide continuous scanning, threat classification, rogue AP detection, and countermeasures against possible attacks
- Integration of security policies (NAC, IPS) across the wired/ wireless networks enables quick diagnosing and resolution of security threats
- Integration of Policy Manager across the wired/ wireless networks dynamically oversees user access at the wireless network point of entry
Support and Service
- Industry-leading customer satisfaction and first call resolution rates
- Lifetime warranty for indoor access points
- Personalized services, including site surveys, network design, installation, and training
Specifications:
| AP3825I/E Specifications | |
|---|---|
| General Specifications | |
| High performance enterprise class AP | √ |
| Number of radios | 2 |
| MIMO implementation for high performance 11ac & 11n throughputs | 3x3 |
| Number of spatial streams | 3 |
| Maximum Throughput 2.4GHz Radio | 450Mbps |
| Maximum Throughput 5GHz Radio | 1.3Gbps |
| Maximum Throughput per AP | 1.75Gbps |
| RFC2285 Wire/Wireless Forwarding Rate | 75,000 packets per second |
| Number of SSIDs supported per radio / total | 8 / 16 |
| Simultaneous users per radio / total | 127 / 254 |
| Simultaneous Voice calls (802.11b, G711, R>80) | 12 or greater |
| Mode of operation | Semi-autonomous |
| Plug and play operation/Zero touch deployment | Yes |
| Security and Standards | WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12 |
| Environmental | |
| Intelligent thin AP | Encryption, Security, QoS and RF management done on AP |
| Distributed and centralized data paths within same SSID | Yes |
| Application based distributed and centralized data paths within same user/device session | Yes |
| Simultaneous RF monitoring and client services | Yes |
| In-channel WIDS | Yes |
| In-channel WIPS | Yes |
| Dedicated multi-channel WIDS (Guardian mode) |
9.01.02 |
| Dedicated multi-channel WIPS (Guardian mode) |
9.01.02 |
| Dedicated multi-channel RF spectrum analysis and fingerprinting | 9.01.02 |
| Locates devices and threats via RF triangulation | Yes |
| Self-forming and self-healing meshing | Yes |
| Remote access point | Yes |
| Hardware-based, end-to-end data and control plane encryption | Yes |
| Private and public cloud deployments | Yes |
| Hybrid operation | |
| Security scanning and serve clients on same radio | Yes |
| Security scanning and spectrum analysis on same radio | Yes |
| Spectrum analysis and serve clients on same radio | Yes |
| Multi-channel dedicated security scanning and spectrum analysis | 9.01.02 |
| Radio characteristics | |
| Max radiated power - Radio 1 (5GHz) | 26 dBm |
| Max radiated power - Radio 2 (2.4GHz) | 26 dBm |

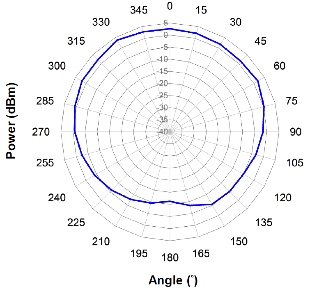

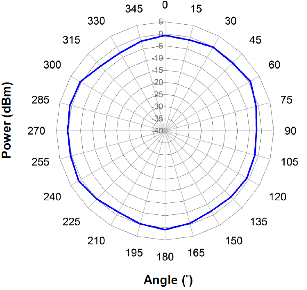

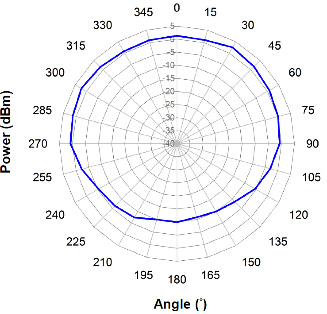

| Max antenna gain (integrated antenna) - Radio 1 (5GHz) | 4 dBi (AP3825i) |

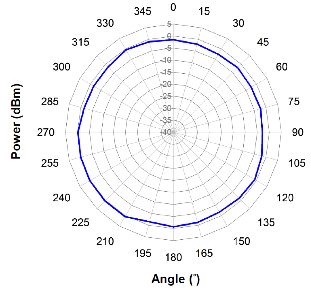

| Max antenna gain (integrated antenna) - Radio 2 (2.4GHz) | 3 dBi (AP3825i) |
| Adaptive Radio Management | |
| Dynamic Channel Control | 802.11h: DFS & TPC support (ETSI) |
| Efficient use of the spectrum with a multi-channel architecture | Yes |
| Automatic transmit power and channel control | Yes |
| Self-healing with coverage gap detection | Yes |
| Band steering with multiple steering modes | Yes |
| Spectrum load balancing of clients | Yes |
| Airtime fairness | Yes |
| Performance protection in congested RF environments | Yes |
| Mitigates co-channel interference with coordinated access | Yes |
| Mitigates adjacent channel interference with optimized receive sensitivity | Yes |
| Efficient reuse of channels at shorter intervals | Yes |
| Mitigates non 802.11 interference without dedicated radios | Yes |
| QoS for Applications | |
| Quality of Service (WMM, 802.11e) | Yes |
| Power Save (U-APSD) | Yes |
| Fast secure roaming and handover between APs | Yes |
| Pre-Authentication (Pre-Auth) | Yes |
| Opportunistic Key Caching (OKC) | Yes |
| Bonjour/LLMNR/UPnP identification, containment and control | Yes |
| Supports voice, video and data using the same SSID | Yes |
| Prioritizes voice over data for both tagged and untagged traffic | Yes |
| Rate limiting (rule and user-based) | Yes |
| Rule and role based QoS processing | Yes |
| Multicate Rate Control | |
| Multicast to unicast Conversion | Yes |
| Adaptable rate multicast | Yes |
| Power save mode optimization for multicast | Yes |
| Wireless Services | |
| Media Access Protocol | CSMA/CA with ACK |
| Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 802.11n: See 802.11n Performance Table below 802.11ac: See 802.11ac Performance Table below Receiver Sensitivity 802.11a:
802.11g:
802.11b:
802.11n: See 802.11n Receiver Sensitivity Table below |
| Frequency Bands | 802.11ac/a/n:
802.11b/g/n:
*FCC/IC DFS certification in progress |
| Wireless Modulation | 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM with OFDM 802.11ac Packet aggregation: A-MPDU, A-MSDU 802.11ac Very High-Throughput (VHT): VHT20/40/80 802.11ac Advanced Features: LDPC, STBC, Maximum Likelihood (ML) Detection 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11n High-throughput (HT) support: HT 20/40 802.11n Packet aggregation: A-MPDU, A-MSDU 802.11n Advanced Features: LDPC, STBC and TxBF 802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11g: DSSS and OFDM 802.11b: DSSS |
| Interfaces | |
| # 10/100/1000 Base T Ethernet autosensing link | 2 |
| Active/active and active/passive with dynamic LAG support (LACP) | Yes |
| Console port for the ease of installation and management | Yes |
| Mounting | |
| Wall mounting | Yes |
| Drop-ceiling mounting bracket (15/16" included, 9/16" optional) | Yes |
| Environmental | |
| Operating Temperature | 0° C to +50° C (+32° F to +122° F) |
| Humidity | 0%-95% (noncondensing) |
| Storage Temperature | -5° C to +50° C (+23° F to +122° F) |
| Transportation Temperature | -40° C to +70° C (-40° F to +158° F) |
| Wireless and EMC | |
| Compliance |
|
| Safety |
|
| Mechanical | 6.56" x 1.34" x 6.56" (AP3825i) |
| Dimensions (W x H x L) | 7.12" x 1.34" x 6.56" (AP3825e) |
| Weight | 1.35lbs (0.6 kg) |
| Max power consumption | 12.95W |
| Warranty | Lifetime |
Performance:
802.11ac Performance
Data Rate (MBPS)| Descriptor | Data Streams | VHT20 | VHT40 | VHT80 | |||
|---|---|---|---|---|---|---|---|
| Normal GI | Short GI | Normal GI | Short GI | Normal GI | Short GI | ||
| MCS0 | 1 | 6.5 | 7.2 | 13.5 | 15 | 29.3 | 32.5 |
| MCS1 | 1 | 13 | 14.4 | 27 | 30 | 85.5 | 65.0 |
| MCS2 | 1 | 19.5 | 21.7 | 40.5 | 45 | 87.8 | 97.5 |
| MCS3 | 1 | 26 | 28.9 | 54 | 60 | 117.0 | 130.0 |
| MCS4 | 1 | 39 | 43.3 | 81 | 90 | 175.5 | 195.0 |
| MCS5 | 1 | 52 | 57.8 | 108 | 120 | 234.0 | 260.0 |
| MCS6 | 1 | 58.5 | 65 | 121.5 | 135 | 263.3 | 292.5 |
| MCS7 | 1 | 65 | 72.2 | 135 | 150 | 292.5 | 325.0 |
| MCS8 | 1 | 78.0 | 86.7 | 162.0 | 180.0 | 351.0 | 390.0 |
| MCS9 | 1 | NA | NA | 180.0 | 200.0 | 390.0 | 433.3 |
| MCS0 | 2 | 13 | 14.4 | 27 | 30 | 58.5 | 65.0 |
| MCS1 | 2 | 26 | 28.9 | 54 | 60 | 117.0 | 130.0 |
| MCS2 | 2 | 39 | 43.3 | 81 | 90 | 175.5 | 195.0 |
| MCS3 | 2 | 52 | 57.8 | 108 | 120 | 234.0 | 260.0 |
| MCS4 | 2 | 78 | 86.7 | 162 | 180 | 351.0 | 390.0 |
| MCS5 | 2 | 104 | 115.6 | 216 | 240 | 468.0 | 520.0 |
| MCS6 | 2 | 117 | 130 | 243 | 270 | 526.5 | 585.0 |
| MCS7 | 2 | 130 | 144.4 | 270 | 300 | 585.0 | 650.0 |
| MCS8 | 2 | 156.0 | 173.3 | 324.0 | 360.0 | 702.0 | 780.0 |
| MCS9 | 2 | NA | NA | 360.0 | 400.0 | 780.0 | 866.7 |
| MCS0 | 3 | 19.5 | 21.7 | 40.5 | 45 | 87.8 | 97.5 |
| MCS1 | 3 | 39 | 43.3 | 81 | 90 | 175.5 | 195.0 |
| MCS2 | 3 | 58.5 | 65 | 121.5 | 135 | 263.3 | 292.5 |
| MCS3 | 3 | 78 | 86.7 | 162 | 180 | 351.0 | 390.0 |
| MCS4 | 3 | 117 | 130 | 243 | 270 | 526.5 | 585.0 |
| MCS5 | 3 | 156 | 173.3 | 324 | 360 | 702.0 | 780.0 |
| MCS6 | 3 | 175.5 | 195 | 364.5 | 405 | NA | NA |
| MCS7 | 3 | 195 | 216.7 | 405 | 450 | 877.5 | 975.0 |
| MCS8 | 3 | 234.0 | 260.0 | 486.0 | 540.0 | 1053.0 | 1170.0 |
| MCS9 | 3 | 260.0 | 288.9 | 540.0 | 600.0 | 1170.0 | 1300.0 |
802.11n Performance
Data Rate (MBPS)| Descriptor | Data Streams | 2.4 GHZ | 5 GHZ | ||
|---|---|---|---|---|---|
| HT20 Normal GI | HT20 Short GI | HT20 Normal GI | HT20 Short GI | ||
| MCS0 | 1 | 6.5 | 7.2 | 13.5 | 15 |
| MCS1 | 1 | 13 | 14.4 | 27 | 30 |
| MCS2 | 1 | 19.5 | 21.7 | 40.5 | 45 |
| MCS3 | 1 | 26 | 28.9 | 54 | 60 |
| MCS4 | 1 | 39 | 43.3 | 81 | 90 |
| MCS5 | 1 | 52 | 57.8 | 108 | 120 |
| MCS6 | 2 | 58.5 | 65 | 121.5 | 135 |
| MCS7 | 2 | 65 | 72.2 | 135 | 150 |
| MCS8 | 2 | 13 | 14.4 | 27 | 30 |
| MCS9 | 2 | 26 | 28.9 | 54 | 60 |
| MCS10 | 2 | 39 | 43.3 | 81 | 90 |
| MCS11 | 2 | 52 | 57.8 | 108 | 120 |
| MCS12 | 2 | 78 | 86.7 | 162 | 180 |
| MCS13 | 2 | 104 | 115.6 | 216 | 240 |
| MCS14 | 2 | 117 | 130 | 243 | 270 |
| MCS15 | 2 | 130 | 144.4 | 270 | 300 |
| MCS16 | 2 | 19.5 | 21.7 | 40.5 | 45 |
| MCS17 | 3 | 39 | 43.3 | 81 | 90 |
| MCS18 | 3 | 58.5 | 65 | 121.5 | 135 |
| MCS19 | 3 | 78 | 86.7 | 162 | 180 |
| MCS20 | 3 | 117 | 130 | 243 | 270 |
| MCS21 | 3 | 156 | 173.3 | 324 | 360 |
| MCS22 | 3 | 175.5 | 195 | 364.5 | 405 |
| MCS23 | 3 | 195 | 216.7 | 405 | 450 |
Receiver Sensitivity (dBm):
| 5GHZ, 11AC | |||
|---|---|---|---|
| Rate | 20 MHZ (DBM) | 40 MHZ (DBM) | 80 MHZ (DBM) |
| (MCS0, 1) | -92 | -90 | -87 |
| (MCS1, 1) | -90 | -88 | -85 |
| (MCS2, 1) | -88 | -86 | -81 |
| (MCS3, 1) | -85 | -82 | -79 |
| (MCS4, 1) | -82 | -79 | -75 |
| (MCS5, 1) | -78 | -75 | -71 |
| (MCS6, 1) | -76 | -74 | -69 |
| (MCS7, 1) | -73 | -70 | -67 |
| (MCS8, 1) | -69 | -66 | -62 |
| (MCS9, 1) | -66 | -64 | -60 |
| (MCS0, 2) | -90 | -88 | -85 |
| (MCS1, 2) | -88 | -86 | -83 |
| (MCS2, 2) | -86 | -84 | -79 |
| (MCS3, 2) | -83 | -80 | -77 |
| (MCS4, 2) | -80 | -77 | -73 |
| (MCS5, 2) | -76 | -73 | -69 |
| (MCS6, 2) | -72 | -72 | -67 |
| (MCS7, 2) | -71 | -68 | -65 |
| (MCS8, 2) | -67 | -64 | -60 |
| (MCS9, 2) | -64 | -62 | -58 |
| (MCS0, 3) | -89 | -86 | -83 |
| (MCS1, 3) | -86 | -84 | -81 |
| (MCS2, 3) | -84 | -82 | -77 |
| (MCS3, 3) | -81 | -78 | -75 |
| (MCS4, 3) | -78 | -75 | -71 |
| (MCS5, 3) | -74 | -71 | -67 |
| (MCS6, 3) | -72 | -70 | -65 |
| (MCS7, 3) | -69 | -66 | -63 |
| (MCS8, 3) | -65 | -62 | -58 |
| (MCS9, 3) | -62 | -60 | -56 |
| 5GHZ, 11A | |
|---|---|
| Rate | DBM |
| 54Mbps | -76 |
| 48Mbps | -77 |
| 36Mbps | -81 |
| 24Mbps | -84 |
| 18Mbps | -88 |
| 11Mbps | -89 |
| 9Mbps | -91 |
| 6Mbps | -92 |
| 2.4GHZ, 11N | ||
|---|---|---|
| Rate | 20 MHZ (DBM) | 40 MHZ (DBM) |
| (MCS0) | -91 | -89 |
| (MCS1) | -89 | -87 |
| (MCS2) | -87 | -85 |
| (MCS3) | -83 | -81 |
| (MCS4) | -79 | -78 |
| (MCS5) | -76 | -74 |
| (MCS6) | -74 | -72 |
| (MCS7) | -72 | -71 |
| (MCS8) | -89 | -87 |
| (MCS9) | -87 | -85 |
| (MCS10) | -85 | -83 |
| (MCS11) | -81 | -79 |
| (MCS12) | -77 | -76 |
| (MCS13) | -74 | -72 |
| (MCS14) | -72 | -70 |
| (MCS15) | -70 | -69 |
| (MCS16) | -87 | -85 |
| (MCS17) | -85 | -83 |
| (MCS18) | -83 | -81 |
| (MCS19) | -79 | -77 |
| (MCS20) | -75 | -74 |
| (MCS21) | -72 | -70 |
| (MCS22) | -70 | -68 |
| (MCS23) | -68 | -67 |
| 2.4GHZ, 11G | |
|---|---|
| Rate | DBM |
| 54Mbps | -77 |
| 48Mbps | -78 |
| 36Mbps | -82 |
| 24Mbps | -85 |
| 18Mbps | -89 |
| 11Mbps | -90 |
| 9Mbps | -91 |
| 6Mbps | -92 |
Antenna Radiation Patterns:
Horizontal Radiation Pattern 2.4GHZ
|
Vertical Radiation Pattern 2.4GHZ
|
Horizontal Radiation Pattern 5GHZ
|
Vertical Radiation Pattern 5GHZ
|
Documentation:
Download the Extreme Networks IdentiFi 3825i/e Indoor Access Point Datasheet (.PDF)
