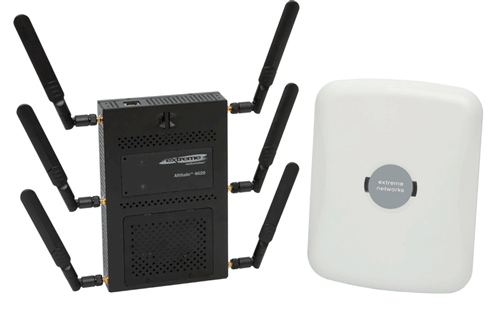

Altitude 4600 Series Access Points
Thin and adaptive access points for campus-wide deployments
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Thin and adaptive access points for campus-wide deployments, distributed worksites and remote branch offices
Altitude™ Access Points (APs) come in form factors designed for a wide variety of deployment needs — high-density or high-interference zones, surface or hidden mounts, centralized or independent management. 802.3af Power over Ethernet (PoE) saves installation time and capital expenses by eliminating separate power and data ports/cables, and power injectors and wiring; PoE also frees installers from being forced to locate APs near a power outlet. Plug-and-play installation and remote control greatly reduce the time needed to bring services online. To help eliminate network bottlenecks and system latencies, traffic can be bridged locally at the AP or tunneled to the controller. Sensorless scanning automatically detects unauthorized sessions and rogue devices.
- Multiple deployment and configuration options
- 802.3af Power over Ethernet (PoE) available
- Plug-and-play installation and remote control
Specifications:
| Thin Access Points | ||||
|---|---|---|---|---|
| Altitude 4021i/e | Altitude 4022i/e | Altitude 4610/4611 | Altitude 4620/4621 | |
| Typical Deployment | Low Cost, light density, campus | Low Cost, Central campus medium density & Indoor | Central campus medium density | Central campus medium density |
| Antenna* | 4021i: Internal Integrated 4021e: Extrernal, not included, options available |
4022i: Internal Integrated 4022e: External, not included, options available |
Internal Integrated | External, included; options available |
| Transmit/Receive Method | 2x2 MIMO; 2 Spatial Streams | 2x2 MIMO; 2 Spatial Streams | 2x3 MIMO; 2 Spatial Streams | 2x3 MIMO; 2 Spatial Streams |
| Mounting | Ceiling, wall | Ceiling, wall | Ceiling, wall | Ceiling, wall, above-ceiling, behind-wall |
| Radios | Single | Dual | 4610: Dual 4611: Single |
4620: Dual 4621: Single |
| RF Bands | Dual band, band unlocked | Dual band, band unlocked | Dual band, band unlocked | Dual band, band unlocked |
| Ports | 1 GE LAN/PoE Port | 1 GE LAN/PoE Port | 1 GE LAN/PoE Port | 1 GE LAN/PoE Port |
| Options | External PSU | External PSU | 4621: Power Supply | |
| Adaptive Access Points | ||||||
|---|---|---|---|---|---|---|
| Altitude 4511 | Altitude 4521i/e | Altitude 4522i/e | Altitude 4532i/e/ede | Altitude 4710/4750 | Altitude 4762/4763 | |
| Typical Deployment | Indoor; school campuses, dormitories, apartment complexes, hotels, hospitals | Low Cost, light density, campus | Low Cost, light density, campus & Indoor | Central campus medium density | Indoor; central campus or survivable remote branch with 3G backhaul mesh services | Outdoor mesh deployments |
| Antenna* | Integrated | 4521i: Integrated 4521e: External, separate; options available |
4522i: Integrated 4522e: External, separate; options available |
4532i: Integrated 4532e/ede: External, separate; options available |
External, separate; options available | External, separate; options available |
| Transmit/Receive | 2x2 MIMO; 2 spatial streams | 2x2 MIMO; 2 spatial streams | 2x2 MIMO; 2 spatial streams | 2x3 MIMO; 2 spatial streams | 3x3 MIMO; 2 spatial streams | 3x3 MIMO; 2 spatial streams |
| Mounting | Wallplate, ceiling, wall, above-ceiling, behind wall | Ceiling, wall 4521e: also above-ceiling, behind-wall |
Ceiling, wall | Ceiling, wall 4532e/ede: also above-ceiling, behind-wall |
Ceiling, wall, above-ceiling, behind-wall | Wall or Pole mount |
| Radios | Single | Single | Dual | Dual | 4710: Dual 4750: Tri, one dedicated as sensor |
4762: Dual 4763: Tri |
| Ports, Slots | 1 FE Lan/PoE Port 1 FE Keystone Port, |
1 GE LAN/PoE Port | 1 GE LAN/PoE Port | 1 GE LAN/PoE Port | 1 GE LAN/PoE Port 1 GE WAN Port 4710: also 1 PCI card slot |
1 GE LAN/PoE Port |
| Other Options | 3-port Snap-on Fast Ethernet Switch | Power Supply | External PSU | Power Supply | ||
| Access Points by Radio | ||
|---|---|---|
| Single Radio | Dual Radio | Tri Radio |
| Altitude 4021 AP Altitude 4511 Wallplate AP Altitude 4521 AP Altitude 4611 AP Altitude 4621 AP |
Altitude 4022 AP Altitude 4522 AP Altitude 4532 AP Altitude 4610 AP Altitude 4620 AP Altitude 4710 AP Altitude 4762 AP |
Altitude 4750 AP Altitude 4763 AP |
