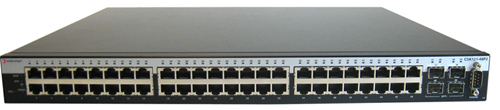

Extreme Networks C-Series C5G124-48
48 Ports Gigabit Ethernet Stackable L2/L3/L4 Switch

Extreme Networks C-Series C5G124-48

Sorry, this product is no longer available, please contact us for a replacement.



Overview:

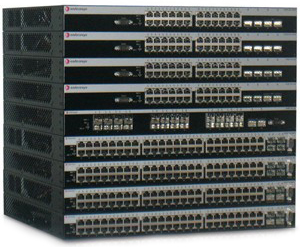

Extreme Networks C-Series AppliancesThe Extreme Networks C5 is a scalable, high-performance Gigabit Ethernet switch that provides support for the bandwidth-intensive and latency-sensitive requirements of today's demanding business applications. The C5 is an excellent choice for environments that require complete multi-layer switching capabilities and support for high density 10/100/1000 Ethernet ports and 10GE uplinks. The C5 also includes dynamic IPv4 and IPv6 routing and switching built into the hardware and policy-based automation capabilities for advanced edge deployments.

  • Future-proofed with 802.3at highpower PoE and IPv6 routing support
  • Automatic discovery and deployment of VoIP services
  • High-availability stacking assures reliable network operations
  • Automated management features reduce operational costs
  • Investment protection via comprehensive lifetime warranty
  • 2.11Tbps capacity and 809.5Mpps

The C5 incorporates the new 802.3at high-power PoE on all ports, which translates into increased power provisioning for power-hungry devices such as Pan/Tilt/Zoom (PTZ) IP surveillance cameras, IP videophones, third party 802.11n access points and virtual desktops. Built-in high-power PoE support is a cost effective alternative for customers in place of purchasing separate PoE midspans, which can take away valuable rack space, add cost and contribute more cabling to the wiring closet.

The C5 provides high port density in a 1U footprint and is environmentally friendly by design. The C5's overall energy efficiency is further enhanced by a low current draw and an extreme tolerance for high environmental temperatures. A highly-scalable architecture and a comprehensive lifetime warranty ensure that a C5 network investment will sustain a secure, feature-rich and cost-effective network well into the future.

The C5's highly customizable Layer 2/3/4 packet classification capabilities work together with the 8 hardware-based priority queues associated with each Ethernet port to support a suite of differentiated services with as many as 8 distinct priority levels to provide guaranteed Quality of Service (QoS) for critical voice and video network traffic. In conjunction with its non-blocking L2 switching and L3 routing architecture, the C5's intelligent queuing mechanisms ensure that mission-critical applications receive prioritized access to network resources.

Extreme Networks C5 stackable switches address emerging business application needs such as automatically supporting voice, video and unified communications at an attractive price point.

Features:


Reliability and Availability

The C5 design incorporates redundancy and failure protection mechanisms complete with automatic failover and recovery capabilities to provide a reliable network. An integral power supply is the primary source of power for the C5 and complete power redundancy is provided by an optional external power supply. The C5 redundant power supply provides load sharing, backup, or additive PoE power to a C5 stackable switch. With the power supply connected, the power requirement for the switch is equally shared by the two power supplies thereby stressing the power supplies less and increasing the lifetime and reliability of the power supplies.

A virtual switch can be created by interconnecting as many as eight C5s in a single stack, which can be managed via a single IP address with redundant management connections. The C5's closed-loop stacking capability utilizes bi-directional switch interconnects to maintain connectivity within the virtual switch despite any physical failures, which includes switches, cables and connections. Flexible Link Aggregation Groups (6 groups of 8, 12 groups of 4 or 24 groups of 2) are supported which allow multiple Ethernet ports (8, 4 or 2) to be grouped together to create a LAG. A LAG's Ethernet ports can be co-located on a single C5 or they can be distributed across multiple C5s within a stack to prevent a switch-level failure from disrupting data communications. The C5 also supports equal cost multipath protocol (ECMP) and virtual router redundancy protocol (VRRP) to strengthen its ability to quickly recover from a network failure. The C5 also includes Host CPU Protection support to help prevent Denial of Service (DoS) and BPDU attacks.

Advanced Quality of Service

Robust Quality of Service features enable strong support for integrated multimedia networks, as well as all types of data-intensive applications. The C5 is a standards-based solution optimized for multimedia applications, including VoIP, videoconferencing and real-time collaboration. The C5 uses multiple standards-based discovery methods with Extreme Networks policy capabilities to automatically identify and provision VoIP services for IP phones from all major vendors. C5 switches provide dynamic mobility for VoIP clients and reduce operating costs; when an IP phone moves and plugs in elsewhere in the enterprise network, its VoIP service provisioning, security and traffic priority settings move with it, with no manual administration required.

Advanced packet buffering on the C5 means less jitter on the network and a greater level of QoS for time-sensitive applications, such as VoIP and IP video, resulting in better network performance.

Security

The C5 enables strong network security by utilizing its authentication and security features, which can be applied at the port level or at the user level. Making use of the Extreme Networks Network Management Suite's Policy Manager or a standard CLI, the Extreme Networks role-based architecture enables a network administrator to define distinct roles or profiles that represent operational groups within a business (e.g., employee, executive, guest, etc). Multiple users/devices per port can be authenticated via IEEE 802.1X, MAC address, or web authentication, and then assigned a pre-defined operational role. The C5 now supports increased password security via increased complexity, history tracking and aging. Passwords can now be encrypted using a FIPS 1402 approved algorithm.

Administrators can easily transition from RFC 3580 and complex access control list (ACL) deployments to the Extreme Networks role-based policy framework in a seamless fashion, without the need to make changes to their RADIUS infrastructure (e.g., adding filter-ID). In addition, the C5 also supports ACLs for supplementary network security. Network operations can be easily tailored to meet business-oriented requirements by providing each role with individualized access to network services and applications (e.g., a guest should have different network access privileges than an employee). Utilizing Extreme Networks role-based policy, administrators are able to manipulate DSCP and 802.1p rewrite for classification and prioritization of network traffic.

The C5 allows administrators even more network visibility, with the ability to audit their network for adherence to compliance regulations, such as PCI or HIPAA. The C5 is able to segment roles down to specific business functions, such as marketing, finance, HR or corporate, tailoring employee access to sensitive information.

The C5 switching line has also successfully completed the Department of Defense's Unified Capabilities (UC) Certification testing at the U.S. Army Technology Integration Center (TIC) in accordance with the Joint Interoperability Test Command (JITC) and is listed on the Unified Capabilities Approved Products List (UC APL). This important milestone means Extreme Networks' premier policy-enabled modular and stackable switches are now available for use in DoD critical infrastructure applications.

Investment Protection

The C5 is a cost-effective, feature-rich, stackable switch that provides a broad set of features today and will continue to deliver benefits well into the future. All C-Series products include a lifetime warranty that includes warranty and support services for which many competitors charge additional fees – adding up to 10% of initial deployment costs on an annual basis. Included benefits, such as advanced hardware return, firmware feature upgrades (which most vendors cover at most for 90 days) and telephone support (which most don't include or severely limit) combine to significantly decrease operational costs for customers over the life of their network.

Performance & Scalability

The C5, with support for 32,000 MAC addresses, provides scalable, wire-rate performance in support of the bandwidth-intensive and delaysensitive requirements of today's demanding applications. Along with a switch capacity of 264 Gbps, the C5 provides up to 48 10/100/1000 Ethernet ports as well as 2 SFP+ ports, with the ability to support both 1GE and 10GE uplinks on the same port. Leveraging the C5's stacking capability, as many as 8 C5s (both 24-port and 48-port combinations) can be interconnected in a single stack to create a virtual switch that provides 2.11 Tbps of capacity and up to 384 10/100/1000 Ethernet ports as well as 16 10GE uplink ports.

Benefits:

Business Alignment

  • Aligns network resource utilization with business goals and priorities
  • Reliable network operation for mission-critical applications

Operational Efficiency

  • Management automation capabilities reduce network operational expenses
  • Automatic discovery and deployment of VoIP services

Security

  • Ability to audit network for adherence to compliance regulations, such as PCI or HIPAA
  • Network resources securely allocated according to user roles
  • Network security maintained concurrently with user mobility

Support and Service

  • Industry-leading customer satisfaction and first call resolution rates
  • Personalized services, including site surveys, network design, installation, and training
  • Comprehensive lifetime warranty, including feature upgrades and more

Standards and Protocols:


MAC Address Table Size
  • 32,000

VLANs

  • 4,094 VLAN IDs
  • 1,024 VLAN Entries per Stack

Switching Services

  • ANSI/TIA-1057 – LLDP-MED
  • IEEE 802.1AB – LLDP
  • IEEE 802.1D – MAC Bridges
  • IEEE 802.1s – Multiple Spanning Trees
  • IEEE 802.1t – 802.1D Maintenance
  • IEEE 802.1w – Rapid Spanning Tree Reconvergence
  • IEEE 802.3 – Ethernet
  • IEEE 802.3ab – GE over Twisted Pair
  • IEEE 802.3ad – Link Aggregation
  • IEEE 802.3ae – 10 Gigabit Ethernet (fiber)
  • IEEE 802.3af – PoE
  • IEEE 802.3at – High Power PoE (up to 30W per port)
  • IEEE 802.3i - 10Base-T
  • IEEE 802.3u - 100Base-T, 100Base-FX
  • IEEE 802.3z - GE over Fiber
  • Full/half duplex auto-sense support on all ports
  • IGMP Snooping v1/v2/v3
  • Jumbo Frame support (9,216 bytes)
  • Loop Protection
  • One-to-One and Many-to-One Port Mirroring
  • Port Description
  • Protected Ports
  • Selectable LAG Configuration (6 x 8, 12 x 4, 24 x 2)
  • Host CPUProtection – Broadcast/ Multicast/Unknown Unicast Suppression
  • Spanning Tree Backup Root
  • STP Pass Thru

Security

  • ARP Spoof Protection
  • DHCP Spoof Protection
  • IEEE 802.1X Port Authentication
  • MAC-based Port Authentication
  • RADIUS Accounting for network access
  • RADIUS Client
  • IPsec for RADIUS transactions
  • RFC 3580 – IEEE 802.1X RADIUS Usage Guidelines
  • Multi-user Authentication
  • Pre-login banner
  • Password Protection (encrypted using a FIPS 1402 approved algorithm)
  • Secure Networks Policy
  • Secured Shell (SSHv2)
  • Secured Socket Layer (SSL)
  • User and IP Phone Authentication
  • Web-based Port Authentication
  • Auto Console Disconnect
  • Security Log
  • Secure Directory

IPv4 Routing

  • Standard Access Control List (ACLs)
  • Extended ACLs
  • VLAN-based ACLs
  • Service ACLs
  • MAC-based ACLs - not simultaneously supported with policy
  • ARP & ARP Redirect
  • DVMRP
  • IP Helper Address
  • OSPF Passive Interface
  • VRRP master-icmp-reply
  • RFC 826 – Ethernet ARP
  • RFC 1058 – RIP v1
  • RFC 1256 – ICMP Router Discovery Messages
  • RFC 1519 Classless Inter-Domain Routing
  • RFC 1724 – RIPv2 MIB Extension
  • RFC 2236 – IGMPv2
  • RFC 2328 – OSPF version 2
  • RFC 2338 – IP Redundancy VRRP
  • RFC 2362 – PIM-SM
  • RFC 2453 – RIP v2
  • RFC 3046 – DHCP/BootP Relay
  • RFC 3376 – IGMPv3
  • RFC 3768 – VRRP – Virtual Router Redundancy Protocol Static Routes
IPv6 Routing
  • IPv6 ACLs - not simultaneously supported with policy
  • RFC 1981 – Path MTU for IPv6
  • RFC 2373 – IPv6 Addressing
  • RFC 2460 – IPv6 Protocol Specification
  • RFC 2461 – Neighbor Discovery
  • RFC 2462 – Stateless Autoconfiguration
  • RFC 2463 – ICMPv6
  • RFC 2464 – IPv6 over Ethernet
  • RFC 2473 – Generic Packet Tunneling in IPv6
  • RFC 2271 – SNMP Framework MIB
  • RFC 2711 – IPv6 Router Alert
  • RFC 2740 – OSPFv3
  • RFC 2893 – Transition Mechanisms for IPv6 Hosts and Routers (6 over 4 configured)
  • RFC 3315 – DHCPv6 (stateless + relay)
  • RFC 3484 – Default Address Selection for IPv6
  • RFC 3493 – Basic Socket Interface for IPv6
  • RFC 3513 – Addressing Architecture for IPv6
  • RFC 3542 – Advanced Sockets API for
  • RFC 3587 – IPv6 Global Unicast Address Format
  • RFC 3736 – Stateless DHCPv6
  • Dual IPv4/IPv6 TCP/IP Stack
MIB Support
  • Extreme Networks Entity MIB
  • Extreme Networks Policy MIB
  • Extreme Networks VLAN Authorization MIB
  • Extreme Networks Spanning Tree Diagnostic MIB
  • ANSI/TIA-1057 – LLDP-MED MIB
  • IEEE 802.1AB – LLDP MIB
  • IEEE 802.1X MIB – Port Access
  • IEEE 802.3ad MIB – LAG MIB
  • RFC 826 – ARP and ARP Redirect
  • RFC 951, RFC 1542 – DHCP/BOOTP Relay
  • RFC 1213 – MIB/MIB II
  • RFC 1493 – BRIDGE-MIB
  • RFC 1643 – Ethernet-like MIB
  • RFC 1724 – RIPv2 MIB Extension
  • RFC 1850 – OSPF MIB
  • RFC 2096 – IP Forwarding Table MIB
  • RFC 2131, RFC 3046 – DHCP Client/Relay
  • RFC 2233 – IF-MIB
  • RFC 2465 – IPv6 MIB
  • RFC 2466 – ICMPv6 MIB
  • RFC 2571 – SNMP Framework MIB
  • RFC 2618 – RADIUS Authentication Client MIB
  • RFC 2620 – RADIUS Accounting Client MIB
  • RFC 2668 – Managed Object Definitions for 802.3 MAUs
  • RFC 2674 – P-BRIDGE-MIB
  • RFC 2674 – QBRIDGE-MIB VLAN Bridge MIB
  • RFC 2737 – Entity MIB (physical branch only)
  • RFC 2787 – VRRP-MIB
  • RFC 2819 – RMON-MIB
  • RFC 2933 – IGMP MIB
  • RFC 2934 – PIM MIB for IPv4
  • RFC 3413 – SNMP v3 Applications MIB
  • RFC 3414 – SNMP v3 User-based
  • Security Module (USM) MIB
  • RFC 3584 – SNMP Community MIB
  • RFC 3621 – Power over Ethernet MIB

VLAN Support

  • Generic Attribute Registration Protocol (GARP)
  • Generic VLAN Registration Protocol (GVRP)
  • IEEE 802.1p – Traffic classification
  • IEEE 802.1q – VLAN Tagging
  • IEEE 802.3ac – VLAN Tagging Extensions
  • Protocol-based VLANs with Extreme Networks Policy
  • Port-based VLAN (private port/private VLAN)
  • Tagged-based VLAN
  • VLAN Marking of Mirror Traffic
  • Standalone VLAN Association application for subnet, protocol and MAC based VLAN classification
Quality of Service
  • 8 Priority Queues per Port
  • 802.3x Flow Control
  • Class of Service (CoS)
  • Ingress Rate Limiting
  • IP ToS/DSCP Marking/Remarking
  • IP Precedence
  • IP Protocol
  • Layer 2/3/4 Classification
  • Multi-layer Packet Processing
  • Mixed Queuing Control – Strict and Weighted Round Robin
  • Source/Destination IP Address
  • Source/Destination MAC Address
  • Dynamic and Static MAC Locking
  • EAP Pass-Thru
  • RFC 2474 Definition of Differentiated Services Field
Management
  • Alias Port Naming
  • Command Line Interface (CLI)
  • Configuration Upload/Download
  • Dual IPv4/IPv6 Management Support
  • Editable Text-based Configuration File
  • TFTP Client
  • Command Logging
  • Multi-configuration File Support
  • NMS Automated Security Manager
  • NMS Console
  • NMS Inventory Manager
  • NMS Policy Manager
  • Node/Alias Table
  • RFC 768 – UDP
  • RFC 783 – TFTP
  • RFC 791 – IP
  • RFC 792 – ICMP
  • RFC 793 – TCP
  • RFC 826 – ARP
  • RFC 854 – Telnet
  • RFC 951 – BootP
  • RFC 1157 – SNMP
  • RFC 1321 – The MD5 Message-Digest Algorithm
  • RFC 1901 – Community-based SNMPv2
  • RFC 1981 – Path MTU for IPv6
  • RFC 2030 – Simple Network Time Protocol (SNTP)
  • RFC 2933 – IGMP MIB
  • RFC 3176 – sFlow
  • RFC 3413 – SNMPV3 Applications
  • RFC 3414 –User-based Security Module (USM) for SNMPv3
  • RFC 3415 – View-based Access Control Model for SNMP
  • RFC 3826 – Advanced Encryption
  • Standard (AES) for SNMP
  • RMON (Stats, History, Alarms, Events, Filters, Packet Capture)
  • Secure Copy (SCP)
  • Secure FTP (SFTP)
  • Simple Network Management Protocol (SNMP) v1/v2c/v3
  • SSHv2
  • RFC 3164 – The BSD Syslog Protocol
  • TACACS+ support
  • Authentication, Authorization and Auditing
  • Web-based Management
  • Webview via SSL Interface

Specifications:


C-Series Models C5G124-24 C5G124-24P2 C5G124-48 C5G124-48P2
  C5G124-24 C5G124-24P2 C5G124-48 C5G124-48P2
Performance
Throughput Capacity wire-speed Mpps
(switch / stack)
35.7 Mpps / 285.7 Mpps 35.7 Mpps / 285.7 Mpps 71.4 Mpps / 571.4 Mpps 71.4 Mpps / 571.4 Mpps
Switching Capacity
(switch / stack)
48 Gbps (35.7 Mpps) / 384 Gbps (285.7 Mpps) 48 Gbps (35.7 Mpps) / 384 Gbps (285.7 Mpps) 96 Gbps (71.4 Mpps) / 768 Gbps (571.4 Mpps) 96 Gbps (71.4 Mpps) / 768 Gbps (571.4 Mpps)
Stacking Capacity
(switch / stack)

128 Gbps (95.2 Mpps) / 1,024 Gbps (761.8 Mpps)

Aggregate Throughput Capacity (switch / stack) 176 Gbps (130.9 Mpps) / 1,408 Gbps (1,047.5 Mpps) 176 Gbps (130.9 Mpps) / 1,408 Gbps (1,047.5 Mpps) 224 Gbps (166.6 Mpps) / 1,792 Gbps (1,333.2 Mpps) 224 Gbps (166.6 Mpps) / 1,792 Gbps (1,333.2 Mpps)
PoE Specifications
802.3af Interoperable N/A Yes N/A Yes
802.3at Interoperable N/A Yes N/A Yes
System Power N/A

850 watts per switch with up to 30 watts per port
Per-port switch power monitor:

  • Enable/disable
  • Priority safety
  • Overload & short circuit protection
N/A

850 watts per switch with up to 30 watts per port
Per-port switch power monitor:

  • Enable/disable
  • Priority safety
  • Overload & short circuit protection
Physical Specifications
Dimensions (H x W x D) H: 4.4 cm (1.73")
W: 44.1 cm (17.36")
D: 36.85 cm (14.51")
H: 4.4 cm (1.73")
W: 44.1 cm (17.36")
D: 36.85 cm (14.51")
H: 4.4 cm (1.73")
W: 44.1 cm (17.36")
D: 36.85 cm (14.51")
H: 4.4 cm (1.73")
W: 44.1 cm (17.36")
D: 36.85 cm (14.51")
Net Weight 5.03 kg (11.10 lb) 6.21 kg (13.70 lb) 5.42 kg (11.95 lb) 6.60 kg (14.55 lb)
MTBF 395,557 hours 289,425 hours 311,897 hours 229,532 hours
Physical Ports • (24) 10/100/1000 autosensing, auto-negotiating MDI/MDI-X RJ45 ports
• (4) Combo SFP ports
• (2) dedicated stacking ports
• (1) DB9 console port
• (1) RPS port
• (24) 10/100/1000 PoE (.af+.at) auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports
• (4) Combo SFP ports
• (2) dedicated stacking ports
• (1) DB9 console port
• (1) RPS port
• (48) 10/100/1000 autosensing, auto-negotiating MDI/MDI-X RJ45 ports
• (4) Combo SFP ports
• (2) dedicated stacking ports
• (1) DB9 console port
• (1) RPS port
• (48) 10/100/1000 PoE (.af+.at) auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports
• (4) Combo SFP ports
• (2) dedicated stacking ports
• (1) DB9 console port
• (1) RPS port
Power Requirements
Normal Input Voltage 100 – 240 VAC 100 – 240 VAC 100 – 240 VAC 100 – 240 VAC
Input Frequency 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz
Input Current 2 A Max 12 A Max 2 A Max 12 A Max
Power Consumption 65 watts 125 watts 101 watts 150 watts
Environmental Specifications
IEC 6-2-1 Standard Operating Temperature 0° to 50° C (32° to 122° F)
IEC 6-2-14 Non-Operating Temperature -40° to 70° C (-40° to 158° F)
Heat Dissipation 222 BTUs/Hr 428 BTUs/Hr 345 BTUs/Hr 513 BTUs/Hr
Operating Humidity 5% - 95% non- condensing
Vibration IEC 68-2-6, IEC68-2-36
Shock IEC 68-2-29
Drop IEC 68-2-32
Operating Altitude 10,000 ft (3,048 m)
Non-operating Altitude 15,000 ft (4,572 m)
Acoustics 44 dB 45.5 dB 46 dB 45.5 dB
Agency & Regulatory Standards Specifications
Safety UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1
EMC FCC Part 15 (Class A), ICES-003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3
Environmental 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS)

Documentation:

Download the Extreme Networks C-Series Datasheet (PDF).



PHP Warning: PHP Startup: Unable to load dynamic library 'C:\Program Files (x86)\PHP\v5.6.34\ext\php_pdo_sqlsrv.dll' - The specified module could not be found. in Unknown on line 0 PHP Warning: PHP Startup: Unable to load dynamic library 'C:\Program Files (x86)\PHP\v5.6.34\ext\php_sqlsrv.dll' - The specified module could not be found. in Unknown on line 0
