Extreme Networks I-Series
Policy-based Industrial Ethernet Switch

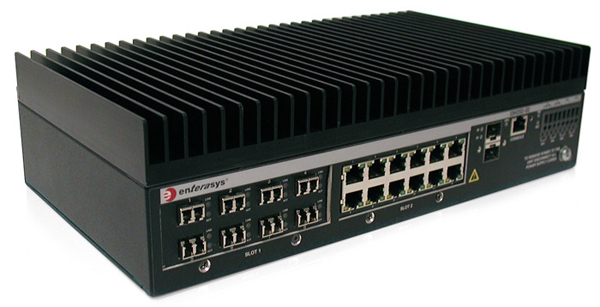

Extreme Networks I-Series

Sorry, this product is no longer available, please contact us for a replacement.



Overview:

The Extreme Networks I-Series is a 2-slot modular, industrially-hardened Ethernet switch with an IP50 dust-resistant design and Class 1 Division 2 support suitable for explosive gas and other physically demanding environments, such as manufacturing plants, oil refineries, and utilities. Along with its operational tolerance for extreme temperatures ranging from -40° C to 60° C, the I-Series combines multi-layer switching capabilities with wire-rate performance to support the demanding requirements of industrial applications. The I-Series provides 2 modular slots which can support up to 24 10/100Base-T Ethernet ports as well as 2 1 Gbps Small Form Factor Pluggable (SFP) Ethernet uplink ports. In order to provide a reliable, high-availability network, all I-Series models support redundant, 24-volt external power supplies as well as Link Aggregation Groups (LAGs) for scalable, redundant uplinks.

  • Industrial Ethernet switch with 2 modular slots for configuration flexibility
  • Industrial-grade components support explosive gas and other physically demanding environments
  • Strong authentication capabilities enable placement in unsecured locations
  • Redundant, 24-volt external power supplies

The DIN-mountable I-Series utilizes industrial-grade components and provides a set of event-driven relay connectors to support external alarms. In addition, the I-Series offers a portable, non-volatile memory card, which is capable of storing the system configuration and may be used by nontechnical personnel to quickly replicate the configuration on a replacement switch thus making it an ideal solution for dynamic environments without requiring dedicated technical support personnel.

In conjunction with its non-blocking architecture, the I-Series provides strong support for a variety of network-attached devices such as Programmable Logic Controllers (PLCs), shop floor workstations, and security cameras. The I-Series' highly customizable Layer 2/3/4 packet classification capabilities together with its intelligent queuing mechanisms ensure that missioncritical devices and applications receive prioritized access to network resources.

Making use of Extreme Networks' policy capabilities, a network administrator can define distinct roles or profiles that represent industry-specific operational groups or devices. Each defined role is granted individualized access to specific network services and applications (e.g., supervisor, operator, PLC, security camera) and these access privileges remain associated with users/devices for both wired and wireless network access. Users and devices are authenticated via IEEE 802.1X, MAC address, or web-based authentication, and then assigned a pre-defined operational role ensuring that each user has access to appropriate information, thus aligning network resource utilization with business goals and priorities.

In order to sustain a secure, feature-rich and cost-effective network well into the future, the I-Series comes with a 5-year warranty.

Features:

  • Industrial-Grade Reliability: Maintenance-free reliability can provide years of uninterrupted service in a wide range of severe temperature and hazardous gas conditions.

  • Advanced Security and Traffic Control Features in a Hardened Switch: No switch vendor matches Extreme Networks for providing a secure infrastructure. This same functionality is now available in a fully-industrialized switch.

  • Fully Managed Solution: The I-Series is securely SNMP-managed to allow control of the device by authorized users from anywhere on the network, while all events and traffic statistics are reported and tracked by the Extreme Networks Network Management Suite (NMS).

  • Easy Installation: Optional memory configuration card allows non-technical personnel to field-replace I-Series switches with a simple removal and reinsertion of a memory configuration card. The card carries a copy of the switch configuration and allows settings to be quickly transferred to another I-Series switch.

Benefits:

Business Alignment

  • Supports a variety of network-attached devices such as Programmable Logic Controllers (PLCs), shop floor workstations, and security cameras
  • DIN-mountable and rack-mountable for flexible installation
  • Portable, non-volatile memory card enables quick configuration of new or replacement switches

Operational Efficiency

  • Operational tolerance for extreme temperatures (-40° C to 60° C) enables placement in uncontrolled temperature environments
  • High-availability design and simple field maintenance minimizes technical support expense
  • External alarm support enables problem notification without physical monitoring

Security

  • Integral security without performance degradation
  • Network security maintained concurrently with user/device mobility
  • Network resources securely allocated according to user/device operational roles

Support and Service

  • Industry-leading customer satisfaction and first call resolution rates
  • Personalized response services
  • 5-year warranty

Standards and Protocols:


Switching Services
  • IEEE 802.1AB – LLDP
  • ANSI/TIA-1057 – LLDP-MED
  • IEEE 802.1D – MAC Bridges
  • IEEE 802.1s – Multiple Spanning Trees
  • IEEE 802.1t – 802.1D Maintenance
  • IEEE 802.1w – Rapid Spanning Tree Reconvergence
  • IEEE 802.3 – Ethernet
  • IEEE 802.3ab – 1000 Base-T
  • IEEE 802.3ad – Link Aggregation
  • IEEE 802.3i – 10Base-T
  • IEEE 802.3u – 100Base-T, 100Base-FX
  • Full/half duplex auto-sense support on all ports
  • IGMP Snooping v1/v2/v3
  • Jumbo Frame support (9,216 bytes)
  • Loop Protection
  • One-to-One and Many-to-One Port Mirroring
  • Port Description
  • Protected Ports
  • Per-port Broadcast/Multicast/Unknown Unicast Suppression
  • Spanning Tree Backup Root
  • STP Pass Thru

VLAN Support

  • Generic Attribute Registration Protocol (GARP)
  • Generic VLAN Registration Protocol (GVRP)
  • IEEE 802.1p – Traffic classification
  • IEEE 802.1Q – VLAN Tagging
  • Protocol-based VLANs with Extreme Networks Policy
  • Private port
  • Tagged-based VLAN
  • VLAN Marking of Mirror Traffic

Quality of Service

  • 8 Priority Queues per Port
  • 802.3x Flow Control
  • IP DSCP – Differentiated Services Code Point
  • IP Precedence
  • IP Protocol
  • Queuing Control – Strict and Weighted Round Robin
  • Source/Destination IP Address
  • Source/Destination MAC Address
Security
  • Dynamic ARP Inspection
  • DHCP Snooping
  • Dynamic and Static MAC Locking
  • EAP Pass Thru
  • IEEE 802.1X Port Authentication
  • MAC-based Port Authentication
  • RADIUS Accounting for MAC Authentication
  • RADIUS Client
  • RFC 3580 – IEEE 802.1X RADIUS
  • Usage Guidelines
  • Password Protection (encryption)
  • Secure Networks Policy
  • Secure Shell (SSHv2)
  • Secure Socket Layer (SSL)
  • Web-based Port Authentication

RFC and MIB Support

  • Extreme Networks Entity MIB
  • Extreme Networks Policy MIB
  • Extreme Networks VLAN Authorization MIB
  • ANSI/TIA-1057 – LLDP-MED MIB
  • IEEE 802.1AB – LLDP MIB
  • IEEE 802.1X MIB – Port Access
  • IEEE 802.3ad MIB – LAG MIB
  • RFC 826 – ARP and ARP Redirect
  • RFC 951, RFC 1542 – DHCP/BOOTP Relay
  • RFC 1213 – MIB/MIB II
  • RFC 1493 – BRIDGE-MIB
  • RFC 1643 – Ethernet-like MIB
  • RFC 2131, RFC 3046 – DHCP Client/Relay
  • RFC 2233 – IF-MIB
  • RFC 2271 – SNMP Framework MIB
  • RFC 2465 – IPv6 MIB
  • RFC 2466 – ICMPv6 MIB
  • RFC 2618 – RADIUS Authentication Client MIB
  • RFC 2620 – RADIUS Accounting Client MIB
  • RFC 2668 – Managed Object Definitions for
  • 802.3 MAUs
  • RFC 2674 – P-BRIDGE-MIB
  • RFC 2674 – QBRIDGE-MIB VLAN Bridge MIB
  • RFC 2737 – Entity MIB (physical branch only)
  • RFC 2819 – RMON-MIB
  • RFC 2863 – ifMib
  • RFC 2933 – IGMP MIB
  • RFC 3289 – DiffServ MIB
  • RFC 3413 – SNMPv3 Applications MIB
  • RFC 3414 – SNMPv3 User-based Security Module (USM) MIB
  • RFC 3415 – View-based Access Control Model for SNMP
  • RFC 3584 – SNMP Community MIB
Management
  • Alias Port Naming
  • Command Line Interface
  • Configuration Upload/Download
  • Editable Configuration File
  • TFTP client
  • Multi-configuration File Support
  • NMS Automated Security Manager
  • NMS Console
  • NMS Inventory Manager
  • NMS Policy Manager
  • Node/Alias Table
  • RFC 768 – UDP
  • RFC 783 – TFTP
  • RFC 791 – IP
  • RFC 792 – ICMP
  • RFC 793 – TCP
  • RFC 826 – ARP
  • RFC 854 – Telnet
  • RFC 951 – BootP
  • RFC 1157 – SNMP
  • RFC 1901 – Community-based SNMPv2
  • RFC 2271 – SNMP Framework MIB
  • RFC 3164 – The BSD Syslog Protocol
  • RFC 3413 – SNMPv3 Applications
  • RFC 3414 – User-based Security Model for SNMPv3
  • RFC 3415 – View-based Access Control Model for SNMP
  • RFC 3826 - Advanced Encryption System (AES) for SNMP
  • RMON (Stats, History, Alarms, Events, Filters, Packet Capture)
  • Secure Copy
  • Secure FTP
  • Simple Network Management Protocol (SNMP) v1/v2c/v3
  • Simple Network Time Protocol (SNTP)
  • Syslog
  • TACACS+ for Management Authentication, Authorization and Auditing
  • Text-based Configuration Upload/Download
  • Web-based Management
  • Webview via SSL Interface

Specifications:


I-Series Specifications
Models I3H252-12TX I3H252-4FXM I3H252-4FX-MEM I3H252-6TX-MEM I3H252-8FXM I3H252-8TX-2FX
Power Supplies 2 slots for 10/100 Mbps I/O modules
2 slots for Gigabit Ethernet SFP uplinks
I/O Modules 12-port 10/100 Base-T 4-port 100 Base-FX 4-port 100 Base-FX with memory configuration slot 6-port 10/100 Base-T with memory configuration slot 8-port 100 Base-FX 8-port 10/100 Base-T and 2-port 100 Base-FX
LED 1 red/green LED showing system status
2 green LEDs showing each power input status
2 green LEDs showing link activity of SFP ports
Capacity & Performance
Address Table Size 8000 MAC Addresses
1024 VLANs Supported
8 Hardware Queues/Port
VLAN Spanning Tree (802.1S)
VLAN Spanning Tree (802.1S) 4 Instances Supported
802.3AD Link Aggregation 8 ports per trunk group, 6 groups supported
Main memory 256 MB
Flash memory 32 MB
Physical Specifications
Dimensions
(H x W x D)
8.89 cm x 33.86 cm x 18.41 cm (3.5" x 13.33" x 7.25")
Weight 4.35 kg
(9.57 lbs)
4.33 kg
(9.53 lbs)
4.34 kg
(9.55 lbs)
4.34 kg
(9.55 lbs)
4.43 kg
(9.75 lbs)
4.31 kg
(9.48 lbs)
MTBF 182,146 hours 184,898 hours 159,144 hours 164,848 hours 164,891 hours 177,472 hours
Environmental Specifications
Operating Temperature -40° C to 60° C (-40° F to 140° F)
Storage Temperature -40° C to 70° C (-40° F to 158° F)
Operating Humidity 95% Relative Humidity Non-Condensing
Power Consumption The I-Series accepts 24 volt DC power only. The customer must provide DC power to the switch or purchase the optional external DC power unit (I3H-PWR).
Operation Shock 50 G Trapezoidal Shock
Agency & Standards Specifications
Standard Safety UL 60950-1, CSA 22.2 60950-1-03, EN 60950-1, and IEC 60950-1
Standard EMC FCC Part 15 Class A, ICES-003 Class A, BSMI, VCCI V-3, AS/NZS CISPR-22 Class A, EN 55022 Class A, EN 55024 Class A
Industrial EMC EN 61000-6-4, EN 61000-6-2, EN 55011
Hazardous Locations ANSI/ISA 12.12.01; CAN/CSA C22.2 No. 213- M1987; EN 60079-0:2006; EN 60079-15:2005; for use in Class 1, Division 2, Groups A, B, C, and D
I/O Modules
  I3H-12TX I3H-4FX-MM I3H-4FXM-MEM I3H-6TX-MEM I3H-8FX-MM I3H-8TX-2FX
I/O Module Dimensions 4.57 cm x 10.7 cm x 11.4 cm (1.8" x 4.21" x 4.5")
Weight 0.24 kg
(0.53 lbs)
0.22 kg
(0.48 lbs)
0.23 kg
(0.51 lbs)
0.23 kg
(0.51 lbs)
0.32 kg
(0.70 lbs)
0.20 kg
(0.44 lbs)
MTBF 657,722 hours 695,075 hours 432,172 hours 819,538 hours 477,350 hours 600,601 hours

Documentation:

Download the Extreme Networks I-Series Datasheet (PDF).
