Extreme Networks Network Access Control (NAC)
End-to-end security and superior user experience

Features:

Fine-Grained Configuration Options

Extreme Networks NAC configuration options provide an unparalleled range of choices for fine grained network control. These configuration options include time, location, authentication types, device and OS type, and end system and user groups. For example, enterprises can write and enforce policies that grant a precise level of network access based on the type of system connecting, an employee’s role in the organization, the location of a user at the time the user is connecting, or the time of day. Device and OS type rules are particularly important in environments where users bring their own devices (BYOD). The enterprise can give these devices network access that is different than the access permitted corporate devices.

An enterprise’s network is more secure with tighter control over who gains access, when and from what location. The granularity of these configuration options also provides flexibility for efficient deployment in large heterogeneous infrastructures.

Guest Account Services Included

Extreme Networks NAC includes automated guest registration access control features to assure secure guest networking without burdening IT staff. NAC capabilities automate or delegate guest access management. Features such as expiration and account validity time control the guest account without any IT involvement. Extreme Networks NAC provides a self-registration portal for users to register multiple devices themselves offers advanced sponsorship capabilities such as email sponsorship and a simple portal for sponsors to use to validate guest registration. Registration capabilities are also available for automatic contact verification through SMS or email, secure wireless guest access providing access to the secured wireless network without an 802.1X certificate or involving any IT intervention. LDAP integration allows dynamic role assignment for authenticated registration. Authenticated registration allows enterprise network users to register devices and receive the proper role for non-802.1X capable devices. Multiple registration groups allow administrators to give different levels of access to different types of guests. Location based registration allows guest access to be limited to specific connection points (SSID, port, switch) or group of connection points.

Identity-Aware Networking

In an identity-aware network a user’s capabilities are controlled based on the user’s identity and the access policies attributed to the user. Extreme Networks NAC provides user identity functionality including discovery, authentication and role based access controls. Extreme Networks NAC integrates with identity sources such as Siemens Enterprise Communications HiPath DirX Identity and Microsoft Active Directory leveraging and extending the organization’s existing directory investments. Users are managed centrally in the identity system for the network and all connected applications. The process of managing the user’s lifecycle (e.g. enrollment, role changes, termination) can be automated and linked to other business processes with LDAP and RADIUS integration. Users can be automatically added or deleted when they join or leave the organization. Extreme Networks identity-aware networking capabilities provide stronger network security and lower operational cost.

Endpoint Baselining and Monitoring

All end systems in the network infrastructure should be incorporated in the network access control system for control to be most effective. Extreme Networks NAC provides agent-based or agent-less endpoint assessment capabilities to determine the security posture of connecting devices. Extreme Networks NAC, aligned with industry standards, works with multiple assessment servers, authentication servers and security software agents to match the needs of organizations who may have existing assessment technology. The agentless capability does not require the installation of a software security agent on the end system and is typically used for end systems such as guest PCs, IP phones, IP cameras or printers. The Extreme Networks agentless assessment scans for operating system and application vulnerabilities. The agent-based capability requires the installation of a software agent on the end system. The endpoint agent scans for anti-virus status, firewall status, operating system patches and peer-to-peer file sharing applications. The agent can look for any process or registry entry and automatically remediate. This combination of agent and agent-less capabilities in the Extreme Networks NAC solution enables more efficient management and reporting

Notifications and Reporting

The advanced notification engine in Extreme Networks NAC provides comprehensive functionality and integrates with the workflows of other alerting tools already in place. Enterprises can leverage and extend their existing automated processes to further reduce operational costs. Notifications occur for end-system additions or state changes, guest registration, any custom field change, and end-system health results. Notification is delivered through traps, syslog, email or web service. The notification engine has the ability to run a program triggered by a notification event. For example, integrated with the help desk application, NAC notification can be used to automatically map changes in the infrastructure to actions.

End-system reporting is simple with Extreme Networks NAC web-based end-system data views. NAC provides easy-to-use dashboards and detailed views of the health of the end systems attached or trying to attach to the network. Analysts responsible for monitoring endsystem compliance can easily tailor the views to present the information in their preferred format. The reports can be generated as PDF files.

In addition, the end-system monitoring and management plays a key role in understanding the network. It allows administrators to understand the “who, what, when, where, and how” for the end-systems on the network providing better visibility, troubleshooting, and security. Now, tracking end-systems to find all information about them, including the NetFlow data is found by simply searching for a username, hostname, or address.

Integrations

The Extreme Networks OneFabric Connect API provides a simple, open, programmable and centrally managed way to implement Software Defined Networking (SDN) for any network. With OneFabric Connect, business applications can be directly controlled from OneFabric Control Center Advanced and managed via NetSight. The result is a complete SDN solution including integrations with the NAC solution such as MDM integrations with vendors such as Airwatch, Mobile Iron, JAMF Software, and more, as well as datacenter management, integrations with iBoss web filters and many other products.

NetSight NAC Management

NetSight NAC Management software provides secure, policy-based NAC management. From one centralized location, IT staff can configure and control the NAC solution, simplifying deployment and ongoing administration. NAC management also aggregates network connectivity and vulnerability statistics, audits network access activities, and provides detailed reports on vulnerabilities in the network. Management is simplified with a hierarchical structure that places end systems into administrative zones.

NAC management provides additional value through its integration with other Extreme Networks NetSight capabilities and Extreme Networks security products. For example, NAC management seamlessly integrates with NetSight policy management to enable “one click” enforcement of role-based access controls. The IP-to-ID Mapping feature binds together the User, Hostname, IP address, MAC and location (switch and port or wireless AP and SSID) along with timestamps for each endpoint—a key requirement for auditing and forensics. IP-to-ID Mapping is also used by NetSight Automated Security Manager to implement location-independent distributed intrusion prevention and by Extreme Networks Security Information and Event Manager (SIEM) or other third party SIEM/IPS solutions to pinpoint the source of a threat. NAC management in NetSight provides centralized visibility and highly efficient anytime, anywhere control of enterprise wired and wireless network resources. OneView, the unified control interface, enables simplified troubleshooting, help desk support tasks, problem solving and reporting. Users of any of the popular mobile devices can use their smart phone or tablet to access NAC end-system view, system location and tracking information and much more, anytime anywhere.

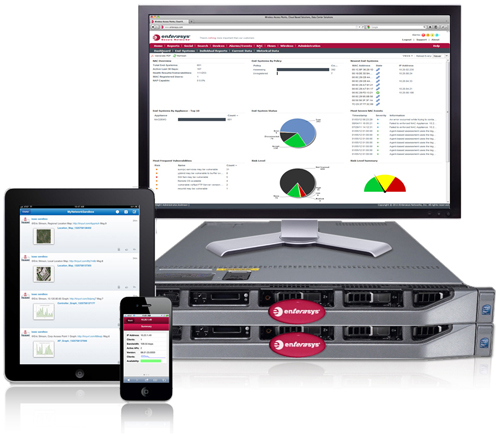

Extreme Networks Identity & Access Appliance

The Identity & Access appliance controls endpoint authentication, security posture assessment and network authorization. For authentication services, the Identity & Access appliance acts as a RADIUS proxy, or RADIUS server for MAC Authentication, which communicates with the organization’s RADIUS authentication services (e.g. interfaces with Microsoft Active Directory or another LDAP-based directory service). The Identity & Access appliance supports 802.1X (Extensible Authentication Protocol), MAC, Web-based and Kerberos Snooping (with certain restrictions) authentication. For endpoint assessment, the Identity & Access appliance connects to multiple security assessment servers.

For authorization services, the Identity & Access appliance communicates RADIUS attributes to the authenticating switch. This allows the switch to dynamically authorize and allocate network resources to the connecting endpoint based on authentication and assessment results.

The Identity & Access appliance also stores NAC configuration information and the physical location of each endpoint. It easily scales to support redundancy and large NAC deployments. Identity & Access appliance models are available to meet the needs of different-sized implementations.

Assessment is separately licensed and includes both agent-based and agent-less assessment.

Extreme Networks Identity & Access Virtual Appliance

The Identity & Access Virtual Appliance provides all the powerful endpoint authentication, security posture assessment and network authorization capabilities built on VMware®. Deploying Identity & Access Virtual Appliance, enterprises gain all the benefits of net-work access control with the advantages of a virtual environment — cost savings from using existing hardwar and reduced time to value. Available with different sizing options for central locations as well as remote sites.

Assessment for NAC Virtual Appliance is separately licensed and includes both agent-based and agent-less assessment.

Additional Features

• “Bring your own device” (BYOD) control features including mobile device registration and session-based user login.
• IPv6 support for NAC implementation in networks with IPv6 end systems.
• Proven interoperability with Microsoft NAP and Trusted Computing Group TNC.
• Automatic endpoint discovery and location tracking by identifying new MAC addresses, new IP addresses, new 802.1X / Web-based authentication sessions, or Kerberos or RADIUS request from access switches.
• Support for Layer 2 deployment modes and support for all five NAC deployment models: intelligent wired edge, intelligent wireless edge, non-intelligent wired edge, non-intelligent wire-less edge, and VPN.
• Extreme Networks NAC provides VPN support and, with an Extreme Networks SSA switch in distribution, provides more flexibility through policy.
• Support for external RADIUS Load Balancers allows the external load balancer to evenly distribute the load for servicing authentication requests and configuring switches across a group of NAC Appliances.
• Management options can be tailored to existing network management schemes and security requirements.
• Support for multiple RADIUS and LDAP server groups allows administrators to identify the server to which a request is directed.
• Macintosh agent support for agent-based assessment.
• Open XML API’s support integration with IT workflows for automated streamlined operations
• Web-service based NAC API simplifies integration with third party applications.
• 1 + 1 Redundancy for Layer 2 deployment modes: provides high-availability and eliminates the Identity & Access appliance as a single point of failure
• Risk level configuration allows flexibility in determining threat presented by the end system. Fine grained control allows NAC administrator to define High Risk, Medium Risk, and Low Risk thresholds based on local security policies and concerns.
• Extreme Networks NAC is upgradable, allowing assessment to be integrated onto a single box with the other NAC functions. The appliances are capable of supporting both network-based and/or agent-based assessment.

System Requirements & Specifications:

Extreme Networks Identity & Access Appliances

Physical Specifications

• Height: 1.75” (4.45 cm) - 1U
• Length: 27.95” (70.9 cm)
• Width 16.93” (43 cm)
• Weight 31.8 lbs (14.4 kg)

Power

• Wattage: 750 Watt (max), each power supply
• Voltage:110/240 VAC;
• Frequency 47- 63Hz

Environmental Specifications

• Operating Temperature: 10° to 35°C (50° to 95°F)
• Storage Temperature: -40° to 70°C (-40° to 158°F)
• Operating Humidity: 5% to 90% (noncondensing)

Standards Compliance

Regulatory/Safety:
UL60950 - CSA 60950 (USA/Canada)
EN60950 (Europe)
IEC60950 (International)
CB Certificate & Report, IEC60950 GS Certification (Germany)
GOST R 50377-92 - Certification (Russia)
Ukraine Certification (Ukraine)
CE - Low Voltage Directive 2006/95/EC (Europe)
IRAM Certification (Argentina)

Emissions/Immunity:

FCC/ICES-003 - Emissions (USA/Canada)
CISPR 22 - Emissions (International)
EN55022 - Emissions (Europe)
EN55024 - Immunity (Europe)
EN61000-3-2 - Harmonics (Europe)
EN61000-3-3 - Voltage Flicker (Europe)
CE - EMC Directive 2004/108 EC (Europe)
VCCI Emissions (Japan)
AS/NZS 3548 Emissions (Australia/New Zealand)
BSMI CNS13438 Emissions (Taiwan)
GOST R 29216-91 Emissions (Russia)
GOST R 50628-95 Immunity (Russia)
Ukraine Certification (Ukraine)
KC Certification (Korea)

Extreme Networks Identity & Access Virtual Appliance

A virtual appliance is a software image that runs on a virtual machine. The Identity & Access Virtual Appliance is packaged in the .OVA file format defined by VMware and must be deployed on a VMware ESXTM 4.0, 4.1, 5.0, or 5.1 server or ESXiTM 4.0, 4.1, 5.0, or 5.1 server with a vSphere(TM) 4.0, 4.1, 5.0, or 5.1 client.

Virtual appliance requires 12 GB of memory, four CPUs, two network adapters, and 40 GB of thick-provisioned hard drive space.

NAC Assessment Agent OS Requirements

Supported operating systems for end systems connecting to the network through an Extreme Networks NAC deployment that is implementing Extreme Networks agent-based assessment.

• Windows 2000
• Windows 2003
• Windows 2008
• Windows XP
• Windows Vista
• Windows 7
• Windows 8
• Windows 8.1
• Mac OS X – Tiger, Leopard, Snow Leopard, Lion, Mountain Lion, and Mavericks

Certain assessment tests require the Windows Action Center (previously known as Windows Security Center) which is supported on Windows XP SP2+, Windows Vista, Windows 7, 8, and 8.1 operating systems.

NetSight NAC Management

Extreme Networks NetSight provides the management capabilities for NAC. A single NetSight server with NAC will support: 100,000 end-systems; 50,000 end-system registrations; 12,000 end-systems with agent-based assessment; 35 appliances.

NetSight Server and Client OS Requirements

These are the operating system requirements for both the NetSight Server and remote NetSight client machines.

Windows (qualified on the English version of the operating systems)

• Windows Server® 2003 w/ Service Pack 2 (64-bit & 32-bit)
• Windows XP® w/ Service Pack 3 (32-bit only)
• Windows Server® 2008 Enterprise & R2 (64-bit & 32-bit)
• Windows Server 2012 Enterprise (64-bit only)
• Windows® 7 (64-bit & 32-bit)
• Windows® 8 & 8.1 (64-bit & 32-bit)

Linux

• Red Hat Enterprise Linux WS and ES v5 & v6 (64-bit & 32-bit)
• SuSE Linux versions 10, 11, and 12.3 (64-bit & 32-bit)
• Ubuntu 11.10 Desktop version (32-bit , remote NetSight client only)
• Ubuntu 11.10, 12.04, and 13.04 (64-bit)

Mac OS X® 64-bit (remote NetSight client only)

Leopard®, Snow Leopard®, Lion®, Mountain Lion®, or Mavericks®

VMware® (64-bit NetSight Virtual Appliance)

VMware ESXi™ 4.0, 4.1, 5.0, 5.1, or 5.5 server

NetSight Server and Client Hardware Requirements

These are the hardware requirements for the NetSight Server and NetSight client machines:

NetSight Server

Minimum - 32-bit Windows 7; Dual-Core 2.4 GHz Processor, 2 GB RAM, 10 GB Free Disk Space

Medium - 64-bit Desktop, Windows 2008 R2 or Linux; QuadCore 2.66 GHz Processor, 8 GB RAM, 40 GB Free Disk Space

Large - 64-bit Server Linux; Dual Quad-Core Intel® Xeon CPU E5530 2.4 GHz Processors,12 GB RAM, 100 GB Free Disk Space

NetSight Client

Recommended-Dual-Core2.4 GHz Processor,2 GB RAM Free Disk Space-100MB (User’s home directory requires50MB for file storage)

Java Runtime Environment (JRE) 6 or 7 (also referred to as 1.6 or 1.7)

Supported Web Browsers:

• Internet Explorer version 8, 9, and 10
• Mozilla Firefox 23 and 24
• Google Chrome 29.x

NetSight NAC Management

Extreme Networks NetSight provides cost-efficient choices enabling enterprises to address their priorities, optimize their budget use and demonstrate quick time-to-value. NetSight models range from a cost-efficient entry solution to full functionality for device intensive enterprises. Flexible upgrade options support deployment growth.

The three NetSight models are:

NMS-BASE-XX which includes basic wired/wireless management features as well as inventory management, policy management and OneViewTM Basic (device management, alarm management and administration). 3 remote clients are included.

NMS-XX which includes basic wired/wireless management features as well as inventory management, policy management, NAC man-agement, automated security management, mobile management, and the full OneViewTM interface. 25 remote clients are included.

NMS-ADV-XX which includes basic wired/wireless management features as well as inventory management, policy management, NAC management, automated security management, mobile management, and the full OneViewTM interface. In addition, NetSight Advanced includes advanced wireless management, the OneFabric Connect API, ability to install on a primary server, redundant server and lab server, a 500 end-system license, and virtual NAC appliances for full NAC deployment flexibility (require end-system licenses if needed in addition to the 500 included). 25 remote clients are included.
