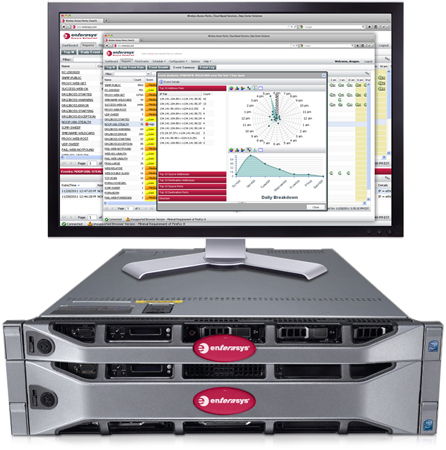

Extreme Networks Security Information & Event Manager (SIEM)
Compliance through Security Information and Event Management, Log Management, and Network Behavioral Analysis
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Delivers fast, accurate data about security threats:
- Severity of an attack
- Importance of the affected asset
- Identity of the attacker
- Credibility of data sources
- Identification of abnormal behavior
The Extreme Networks Security Information and Event Manager (SIEM) product combines best-in-class detection methodologies with behavioral analysis and information from third party vulnerability assessment tools to provide the industry’s most intelligent security management solution. Extreme Networks SIEM delivers actionable information to effectively manage the security posture for organizations of all sizes.
The challenge created by most threat detection systems is the volume of information they generate — making it difficult to determine which vulnerabilities require an immediate, high priority response. The Extreme Networks SIEM solution addresses this challenge and provides powerful tools that enable the security operations team to proactively manage complex IT security infrastructures.
Extreme Networks Security Information and Event Manager:
- Goes beyond traditional security information and event managers and network behavioral analysis products to deliver threat management, log management, compliance reporting, and increased operational efficiency
- Collects and combines network activity data, security events, logs, vulnerability data, and external threat data into a powerful management dashboard that intelligently correlates, normalizes, and prioritizes — greatly improving remediation and response times, and greatly enhancing the effectiveness of IT staf
- Baselines normal network behavior by collecting, analyzing, and aggregating network flows from a broad range of networking and security appliances including JFlow, NetFlow, and SFlow records. It then discerns network traffic patterns that deviate from this norm, flagging potential attacks or vulnerabilities — anomalous behavior is captured and reported for correlation and remediation
- Tracks extensive logging and trend information, and generates a broad range of reports for network security, network optimization, and regulatory compliance purposes; report templates are provided for COBIT, GLB, HIPAA, PCI, and Sarbanes Oxley
All SIEM appliances offer High Availability (HA) functionality that ensures availability of SIEM data in the event of a hardware or network failure. HA provides automatic failover and full disk replication between a primary and secondary host. The secondary host maintains the same data as the primary host by either replicating the data on the primary host or accessing a shared external storage. At regular intervals the secondary host sends a heartbeat ping to the primary host to detect hardware or network failure. If the secondary host detects a failure, the secondary host automatically assumes all responsibilities of the primary host. The Extreme Networks SIEM HA functionality is easily and cost-effectively deployed through appliances and wizards without requiring additional fault management solutions and storage options.
The Extreme Networks SIEM solution portfolio features appliances for quick and easy setup. The Extreme Networks SIEM solution complements its appliances with the Virtual Flow (VFlow) Collector. This virtual flow collector appliance enables application layer traffic monitoring and security intelligence in a virtual infrastructure. Available Extreme Networks SIEM solution components include:
- SIEM Base Appliance
- Flow Anomaly Processor
- Event Processor
- Network Behavioral Flow Sensors
- Virtual Flow Collector
- SIEM Console Manager
- High Availability options
Features:
SIEM All-In-One and Enterprise Base Appliances
Extreme Networks SIEM All-In-One and Base Appliances deliver actionable security intelligence in a rack-mount, network-ready platform. With flexible deployment options, they provide onboard event collection and correlation, Layer 7 traffic analysis, aggregation of flow data from multiple network connected devices, and a feature-rich management interface. Pre-installed software and web-based setup simplifies deployment and configuration for unified security management.
Extreme Networks’ SIEM All-In-One appliances provide easy deployment and cost efficient network monitoring for small offices or enterprise branches. The SIEM Small Office Appliance (model DSIMBA7-GB) suits a small office need to monitor minimal rates of network events and flows where no expansion will be required. A small central site or enterprise department may have higher event and flow collection rate requirements. The SIEM Appliance for Small Enterprises (model DSIMBA7-SE) provides an ideal all-in-one option for these environments.
The SIEM Enterprise Base Appliance models (DSIMBA7-LX and DSIMBA7-LU) provide a range of options for large and geographically dispersed organizations. They are ideal for users that demand a scalable, enterprise-class solution that can be easily upgraded to support additional flow and event monitoring capacity as required.
All SIEM platforms capture event and flow data from a broad range of networked devices including application servers, web servers, workstations, routers, switches, firewalls, VPN tunnel servers, and IDS/IPS appliances. For a listing of supported devices please refer to the SIEM product information at http://www.extremenetworks.com/product/extreme-security-information-event-management/
SEIM Flow Anomaly Processor
The SIEM Flow Anomaly Processor (model DSIMBA7-FAP) is an expansion unit for Extreme Networks SIEM. It offloads and enhances the processing of flow data from the Base Appliances and interfaces with Behavioral Flow Sensors to collect IP traffic flow information from a broad range of devices. Each SIEM Flow Anomaly Processor can process up to 1,200,000 flows per minute (unidirectional).
SIEM Event Processor
The SIEM Event Processor (model DSIMBA7-EVP) is an expansion unit for Extreme Networks SIEM. It offloads and enhances processing of event data from the Base Appliances. Status events are collected from a broad array of network and security devices — including router syslogs, SNMP events, and firewall events. Each SIEM Event Processor can process up to 10,000 events per second and, for added flexibility, multiple Event Processors may be connected to a single Base Appliance.
SIEM Combined Event/Flow Anomaly Processor
The SIEM Combined Event/Flow Anomaly Processor (model DSIMBA7-EVP-FAP) is an expansion unit for Extreme Networks SIEM. It processes both flow data and event data. The Combined Processor supports 1,000 EPS and up to 50,000 FPM when fully licensed. Deployment of the Combined Event/Flow Anomaly Processor enables a highly distributed enterprise to provide cost effective local event and flow collection. It is well suited as an introductory event and network activity processor for remote or branch offices.
SIEM Network Behavioral Flow Sensors
A network traffic flow is a sequence of packets that share common characteristics — such as source/destination IP address, source/destination TCP port, and IP protocol used. SIEM Network Behavioral Flow Sensors are deployed at strategic points in the network to collect IP traffic flow information from a broad range of networked devices — including switches, routers, security appliances, servers, and applications. SIEM Network Behavioral Flow Sensors go beyond traditional flow-based data sources to enable application-layer (L1-L7) flow analysis and anomaly detection. Deep packet and content inspection capabilities identify threats tunneled over standard protocols and ports. Network Behavioral Flow Sensors interface with the Extreme Networks SIEM Base Appliances or the SIEM Flow Anomaly Processor.
SIEM Virtual Flow Collectors
Gain the same visibility and functionality that SIEM Network Behaviorial Flow Sensors provide for the physical environment for the virtual network infrastructure. A SIEM Virtual Flow Collector is a virtual appliance that enables the analysis of network behavior and Layer 7 visibility within the enterprise’s virtual infrastructure. SIEM Virtual Flow Collectors support up to 10,000 flows per minute and monitoring of three virtual interfaces with one additional switch designated as the management interface.
SIEM Console Manager
For large deployments, the SIEM Console Manager distributes the collection and processing of flows and logs while maintaining a global view of the entire network. Console Manager requires a minimum of one Processor Appliance (Event Processor, Flow Processor and/or Combined Event/Flow Processor). NBAD sensors are required for Layer 7 monitoring.
Benefits:
- Enables NOC and SOC staff to focus on actionable information rather than struggle to interpret millions of daily events generated by network security appliances, switches, routers, servers, and applications
- Uses advanced surveillance and forensics analysis to deliver situational awareness of both external and internal threats including inappropriate content, IM, file transfers, traffic from undesirable geographies, data theft, and malicious worm infections
- Leverages existing investments in network and security infrastructure while accelerating time to value through out-of-box functionality, rapid deployment, and staff efficiency gains
- Integrates with Extreme Networks Intrusion Prevention System (IPS), Network Access Control (NAC), and NMS Automated Security Manager solutions to provide a unified, realtime view of the threat landscape and effectively detect, isolate, and automatically remediate threats
- Integrates with a broad array of third party security and network products, including firewalls and routers, for the highest level of visibility and protection
- Virtual Flow Collector allows the analysis of network behavior and enables Layer 7 visibility within virtual infrastructures
- Meets the deployment requirements of the largest enterprises with modular component options and easily deployed high availability functionality
Specifications:
Technical Specifications for all SIEM appliances are shown in the tables below. All appliances support RAID 10 for high availability and redundancy of OS and storage. Extreme Networks SIEM appliances support external storage options including iSCSI SAN and NAS.
| SIEM Base All-In-One Virtual & Hardware Appliances | ||||
|---|---|---|---|---|
| Model | DVSIEM | DSIMBA7-SE DSIMBA7-SE-HA |
DSIMBA7-LX DSIMBA7-LX-HA |
DSIMBA7-LU DSIMBA7-LU-HA |
| Description | All-in-One security information and event management virtual appliance | All-in-One Security Information and Event Management for minimal event and flow rates | All-in-One High performance scalable security information & event management | All-in-One High performance scalable security information & event management for Large Enterprises |
| Upgrade Options* | Software License Upgrades Additional Flow processing: DVSIEM-25KF-UP, DVSIEM-50KF-UP Additional Event processing: DVSIEM-200E-UP, DVSIEM-500E-UP, DVSIEM-1KE-UP |
Software License Upgrade Additional Flow processing: DSSES7-UP |
Software License Upgrades Additional Flow processing: DLX25-50KF-UP, DKX25-100KF-UP, DLX25-200KF-UP, DLX50-100KF-UP, DLX50-200KF-UP, DLX100-200KF-UP Additional Event processing: DLX1-2.5KE-UP, DLX1-5KE-UP, DLX2.5-5KE-UP |
Software License Upgrades Additional Flow & Event processing: DSLUS7-UP |
| Behavioral Flow Sensor | Uses Virtual Flow (VFLOW) Collector | Integrated Flow sensor | Uses External Flow sensor | Uses External Flow sensor |
| Flow per minute (FPM) | Base: 15,000 Flows (Bidirectional) 30,000 Flows (Unidirectional) Maximum: 50,000 Flows (Bidirectional) 100,000 Flows (Unidirectional) |
Base: 25,000 Flows (Bidirectional) 50,000 Flows (Unidirectional) Maximum: 50,000 Flows (Bidirectional) 100,000 Flows (Unidirectional) |
Base: 25,000 Flows (Bidirectional) 50,000 Flows (Unidirectional) Maximum: 200,000 Flows (Bidirectional) 400,000 Flows (Unidirectional) |
Base: 100,000 Flows (Bidirectional) 200,000 Flows (Unidirectional) Maximum: 200,000 Flows (Bidirectional) 400,000 Flows (Unidirectional) |
| Events per second (EPS) Base & Maximum | Base: 100 EPS Maximum: 1000 EPS |
Base: 1000 EPS Maximum: 1000 EPS |
Base: 1000 EPS Maximum: 5000 EPS |
Base: 2500 EPS Maximum: 5000 EPS |
| Appliance Form Factor | - | 1 RU | 2 RU | 2 RU |
| Processor | - | 2 x Quad-Core Intel Xeon Processor; Frequency: 2.4 GHz; L3 Cache: 12 MB | 2 x Quad-Core Intel Xeon Processor; Frequency: 2.4 GHz; L3 Cache: 12 MB | 2 x Quad-Core Intel Xeon Processor; Frequency: 2.4 GHz; L3 Cache: 12 MB |
| Memory | - | 24 GB | 48 GB | 48 GB |
| Hard Disk | - | 6 x 500GB 7200 RPM SATA 2.5" | 9 x 1TB 7200 SATA 3.5'' | 10 x 1TB 7200 SATA 3.5'' |
| Network Interfaces | - | 4x10/100/1000 Base-T (onboard) | 4x10/100/1000 Base-T (onboard) | 4x10/100/1000 Base-T (onboard) |
| Power Supply | - | 675W Redundant | 675W Redundant | 675W Redundant |
* Note: Higher Scalability beyond the upgrade options can be achieved using External Flow Anomaly Processors & Event Processors
| SIEM Console Manager | ||
|---|---|---|
| Model | DVSIEM-CON | DSIMBA7-CON |
| Description | SIEM Virtual Console Manager | SIEM Console Manager Appliance |
| Flow per minute (FPM) | N/A (External Virtual Flow Anamoly Processor Required) | N/A (External Flow Anamoly Processor Appliance Required) |
| Events per second (EPS) | N/A (External Virtual Event Processor Required) | N/A (External Event Processor Applaince Required) |
| Appliance Form Factor | - | 2 RU |
| Processor | - | 2 x Quad-Core Intel Xeon Processor; Frequency: 2.4 GHz; L3 Cache: 12 MB |
| Memory | - | 48 GB |
| Hard Disk | - | 9 x 1TB 7200 SATA 3.5" |
| Network Interfaces | - | 4x10/100/1000 Base-T (on-board) |
| Power Supply | - | 675W Redundant |
| SIEM Combined Event and Flow Anamoly Processor | |
|---|---|
| Model | DSIMBA7-EVP-FAP |
| Description | SIEM EVENT/FLOW Processor Appliance |
| Flow per minute (FPM) | Base: 25,000 Flows (Bidirectional) Maximum: 50,000 Flows (Bidirectional) |
| Events per second (EPS) | 1000 EPS |
| Upgrade Options | Software License Upgrade |
| Upgrade Options | Software License Upgrade Additional Flow processing: DSEVPFAPS-UP |
| Appliance Form Factor | 2 RU |
| Processor | 2 x Quad-Core Intel Xeon Processor; Frequency: 2.4 GHz; L3 Cache: 12 MB |
| Memory | 48 GB |
| Hard Disk | 9 x 1TB 7200 SATA 3.5" |
| Network Interfaces | 4x10/100/1000 Base-T (on-board) |
| Power Supply | 675W Redundant |
| SIEM Event Processor | ||
|---|---|---|
| Model | DVSIEM-EVP | DSIM-EVP2500 DSIM-EVP2500-HA |
| Description | SIEM Virtual Event Processor | SIEM Event Processor Appliance |
| Events per second (EPS) | Base: 100 EPS | Base: 2500 EPS |
| Upgrade Options | Maximum: 1000 EPS | Maximum: 10,000 EPS |
| Appliance Form Factor | Software License Upgrades Additional Event processing: DVEVP-200E-UP, DVEVP-500E-UP, DVEVP-1KE-UP |
Software License Upgrades Additional Event processing: DSEVPS7-UP |
| Processor | - | 2 RU |
| Memory | - | 2 x Quad-Core Intel Xeon Processor; Frequency: 2.4 GHz; L3 Cache: 12 MB |
| Hard Disk | - | 48 GB |
| Network Interfaces | - | 9 x 1TB 7200 SATA 3.5'' |
| Power Supply | - | 4x10/100/1000 Base-T (on-board) |
** The maximum event processing may require an optional license upgrade.
| SIEM Flow Processor | ||
|---|---|---|
| Model | DVSIEM-FAP | DSIM-FAP100K DSIM-FAP100K-HA |
| Description | SIEM Virtual Flow Processor | SIEM Flow Processor Appliance |
| Flow per minute (FPM) | Base: 15,000 Flows Maximum: 50,000 Flows |
Base: 100,000 Flows Maximum: 600,000 Flows |
| Upgrade Options | Software License Upgrades Additional Event processing: DVFAP-25KF-UP, DVFAP-50KF-UP |
Software License Upgrades Additional Event processing: DSFAP-100K-UP |
| Appliance Form Factor | - | 2 RU |
| Processor | - | 2 x Quad-Core Intel Xeon Processor; Frequency: 2.4 GHz; L3 Cache: 12 MB |
| Memory | - | 48 GB |
| Hard Disk | - | 9 x 1TB 7200 SATA 3.5'' |
| Network Interfaces | - | 4x10/100/1000 Base-T (on-board) |
| Power Supply | - | 675W Redundant |
** The maximum event processing may require an optional license upgrade.
| SIEM Network Behavioral Flow Sensor Appliances | |
|---|---|
| Model | DSNBA7-50-TX** / DSNBA7-50-TX-HA** |
| Rated Throughput | 1 Gbps |
| Processor | Quad-Core Intel Xeon Processor; Frequency: 2.4 GHz |
| Memory | 6 GB |
| Hard Disk Drive | 160 GB SATA (x2) |
| Network Interfaces | "4x10/100/1000 Base-T (on-board) 4X1000 Base-SX” |
| Power Supply | 90-264 VAC, Autoranging, 47-63 Hz, 502 W |
| Form Factor | 1 RU |
** Revision 5x appliances
Environmental Specifications
- Operating Temperature: 10º C to 35º C (50º F to 95º F)
- Storage Temperature: -40º C to 65º C (-40º F to 149º F)
- Operating Relative Humidity: 20% to 80% non-condensing
- Storage Relative Humidity: 5% to 95% non-condensing
- Maximum Humidity Gradient: 10% per hour, operational and non-operational
- Operating Altitude: -16 m to 3,048 m (-50 ft to 10,000 ft)
- Storage Altitude: -16 m to 10,600 m (-50 ft to 35,000 ft)
SIEM Virtual Flow Collector System Requirements
(VFlow Collector 7.6.3.1)
- VMware ESXi 4.0
- VMware Infrastructure Client installed on the desktop system (VMware server applications are bundled with client software)
- VMware host requires 512 MB of free memory
- VMware host requires 36 GB of free disk space
- Extreme Networks SIEM Console version 7.6.3.1
Agency and Regulatory Standard Specifications
Safety
- UL 60950-1
- FDA 21 CFR 1040.10 and 1040.11
- CAN/CSA-C22.2 No. 60950-1
- EN 60950-1
- EN 60825-1
- EN 60825-2
- IEC 60950-1
- 2006/95/EC (Low Voltage Directive)
Electromagnetic Compatibility (EMC)
- FCC 47 CFR Part 15 (Class A)
- ICES-003 (Class A)
- EN 55022 (Class A)
- EN 55024
- EN 61000-3-2
- EN 61000-3-3
- AS/NZS CISPR-22 (Class A)
- VCCI V-3
- CNS 13438 (BSMI)
- 2004/108/EC (EMC Directive)
Environmental
- 2002/95/EC (RoHS Directive)
- 2002/96/EC (WEEE Directive)
- Ministry of Information Order #39 (China RoHS)
