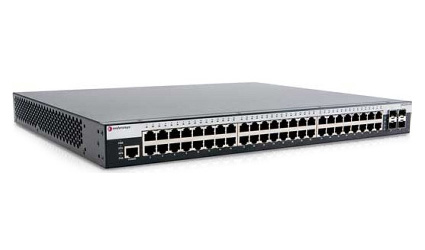

Extreme Networks 800-Series 08G20G4-48
48 port 10/100/1000 Layer 2 Switch with Four SFP Uplinks

Extreme Networks 800-Series 08G20G4-48

Sorry, this product is no longer available, please contact us for a replacement.



Overview:

Extreme Networks 800-Series AppliancesThe Extreme Networks 800-Series is a highly reliable Fast Ethernet and Gigabit Ethernet family of edge switches that provides scalable, wire-rate performance in support of the bandwidth-intensive and delay-sensitive requirements of today's demanding applications.

  • Fully featured 10/100 and 10/100/1000 edge connectivity solution
  • Line rate L2 switching
  • IEEE 802.3at high power PoE options
  • Optional redundant power for all models
  • Extreme Networks award-winning Lifetime Warranty support

Up to eight switches can be interconnected to form a single managed entity thereby creating a virtual switch that can be managed with a single IP address to help minimize management re-quirements. An integral power supply is the primary source of power for all 800-Series switches and complete power redundancy is provided by optional external power supplies.

All PoE switches support IEEE 802.3at which allows up to 30 watts of PoE power to be provided to a single port. Dynamic power allocation is supported which allows unused allocated PoE pow-er to be returned to the central pool for use on other ports. Up to 375 watts of PoE power are available on the 24 port and 48 port PoE models.

End users can be authorized via IEEE 802.1X, MAC address or web-based authentication. Class of service, bandwidth control and Access Control Lists( ACLs) are standard features on all switches.

Most models have fans (the 24 port 10/100 switch is fan-less) but the fans on most of the non-PoE models do not run unless the temperature exceeds 36°C thereby providing quiet operation. There is also built in temperature monitoring that provides high temperature alerts to the end user so that the optimal operating environment can be maintained.

800-Series switches can be managed via a Command Line Interface (CLI) , an excellent web interface or via NetSight, Extreme Networks' advanced management application.

The 800-Series carries an industry-leading Lifetime Warranty which provides next day shipment, telephone support for one year, bug fixes, firmware upgrades and web-based support or five years after the product goes end of sale.

Benefits:

Business Alignment

  • Cost-effective and reliable edge connectivity

Operational Efficiency

  • Consolidated management capabilities
  • Fully featured CLI, web-based, TACACS+ or NetSight management enabling ease of management thereby lowering Total Cost of Ownership (TCO)

Security

  • Network access secured by 802.1x, MAC address and web-based authentication methods

Support and Service

  • Industry leading customer satisfaction and first call resolution rates.
  • Comprehensive lifetime warranty, including feature upgrades and more

Standards and Protocols:


MAC Address Table Size
  • 16,000

VLANs

  • 4,094 VLAN IDs
  • Up to 4094 Static VLANs
  • Up to 255 Dynamic VLANs

Switching Services

  • IEEE 802.1AB – LLDP
  • ANSI/TIA-1057 – LLDP-MED
  • IEEE 802.1D – MAC Bridges
  • IEEE 802.1s – Multiple Spanning Trees
  • IEEE 802.1t – 802.1D Maintenance
  • IEEE 802.1w – Rapid Spanning Tree
  • IEEE 802.3 – Ethernet
  • IEEE 802.3ab – GE over Twisted Pair
  • IEEE 802.3ad – Link Aggregation
    • 8 ports per group
    • 8-port models: 5 groups
  • IEEE 802.3af – PoE
  • IEEE 802.3at – High Power PoE (up to 30W per port)
  • IEEE 802.3i – 10Base-T
  • IEEE 802.3u – 100Base-T, 100Base-FX
  • IEEE 802.3z – GE over Fiber
  • Full/half duplex auto-sense support on all ports (Auto-MDIX)
  • ERPS—Ethernet Ring Protection Switching
  • L2 Multicast Control
  • IGMP Snooping v1/v2/v3
  • MLD Snooping
  • Jumbo Frame support (12,288 bytes)
  • Loop Protection
  • One-to-One and Many-to-One Port Mirroring
  • Port Description
  • STP Pass-Thru

Security

  • ARP Spoof Protection
  • DHCP Spoof Protection
  • EAP Pass Thru
  • IP Source Guard
  • IEEE 802.1X Port Authentication
  • MAC-based Port Authentication
  • Optional Local Database for Authentication
  • RADIUS Accounting for network access
  • RFC 3580 – IEEE 802.1X RADIUS Usage Guide-lines
  • Secured Shell (SSHv2)
  • Secured Socket Layer (SSL)
  • Trusted Host
  • Denial of Service (DoS) Attack Prevention
  • BPDU Attack Protection
  • Multi-user Authentication Per Port
  • Web-based Port Authentication
Routing
  • IPv4 Static Routes
  • IPv6 Default Routing
MIB Support
  • ANSI/TIA-1057 – LLDP-MED MIB
  • IEEE 802.1AB – LLDP MIB
  • IEEE 802.1X MIB – Port Access
  • IEEE 802.3ad MIB – LAG MIB
  • RFC 1213 – MIB/MIB II
  • RFC 1493, RFC 4188 – BRIDGE-MIB
  • RFC 1643 – Ethernet-like MIB
  • RFC 2571-2576 – SNMP Framework MIB
  • RFC 2618 – RADIUS Authentication Client MIB
  • RFC 2620 – RADIUS Accounting Client MIB
  • RFC 2674, RFC 4363 – 802.1p MIB
  • RFC 2674 – QBRIDGE-MIB VLAN Bridge MIB
  • RFC 2737 – Entity MIB (physical branch only)
  • RFC 2819 – RMON-MIB
  • RFC 2863 – IfMIB
  • RFC 2925—Ping & Traceroute MIB
  • RFC 3413 – SNMP v3 Applications MIB
  • RFC 3414 – SNMP v3 User-based Security Module (USM) MIB
  • RFC 3415 – View-based Access Control Model for SNMP
  • RFC 3584 – SNMP Community MIB
  • RFC 3636 MAU MIB — Obsoletes RFC 2668
  • RFC 4022— MIB for TCP
  • RFC 4113—MIB for UDP

VLAN Support

  • Generic Attribute Registration Protocol (GARP)
  • Generic VLAN Registration Protocol (GVRP)
  • IEEE 802.1p – Traffic classification
  • IEEE 802.1q – VLAN Tagging/Trunking
  • Port-based VLAN
  • MAC-based VLAN
  • Private VLAN
  • VLAN Trunking
  • Tagged-based VLAN
Quality of Service
  • 8 Priority Queues per Port
  • 802.3x Flow Control
  • Class of Service (CoS)
  • Rate Limiting/Bandwidth Control
  • Layer 2/3 Classification
  • Multi-layer Packet Processing with ACLs
  • Mixed Queuing Control – Strict and
  • Weighted Round Robin
  • Source/Destination MAC Address with ACLs
  • Source/Destination IP address with ACLs
  • TCP/UDP port number with ACLs
Management & Other RFCs
  • Command Line Interface (CLI) with four access levels
  • Configuration Upload/Download
  • Firmware Download
  • Dual IPv4/IPv6 Management Support
  • Editable Text-based Configuration File
  • TFTP Client
  • Command Logging
  • Multi-configuration File Support
  • System Power & Port Status LEDs
  • NMS Console
  • NMS Inventory Manager
  • Cable Diagnostics
  • Traceroute
  • Network Load Balancing
  • Operation, Administration & Maintenance -(OAM) support
  • RMON (Stats, History, Alarms, Events)
  • Simple Network Management Protocol
  • (SNMP) v1/v2c/v3
  • SSHv2
  • TACACS+ authentication
  • Web-based Management
  • SYSLOG—up to 4 servers supported
  • Authentication, Authorization and Accounting (AAA) management
  • RFC 768 – UDP
  • RFC 783 – TFTP
  • RFC 791 – IP
  • RFC 792 – ICMP
  • RFC 793 – TCP
  • RFC 826 – ARP and ARP Redirect
  • RFC 854 – Telnet
  • RFC 951, RFC 1542 – DHCP/BOOTP Relay
  • RFC 1157 – SNMP
  • RFC 1901 – Community-based SNMPv2
  • RFC 1981 – Path MTU for IPv6
  • RFC 2030 – Simple Network Time Protocol (SNTP)
  • RFC 2131, RFC 3046 – DHCP Client/Relay
  • RFC 2465 – IPv6 MIB
  • RFC 2933 – IGMP MIB
  • RFC 3176 – sFlow
  • RFC 3413 – SNMP Applications MIB
  • RFC 3414 – SNMP User-based Security Module (USM) MIB
  • RFC 3415 – View-based Access Control Model for SNMP

Specifications:


A-Series Models 08G20G4-24 08G20G4-24P 08G20G4-48 08G20G4-48P
  08G20G4-24 08G20G4-24P 08G20G4-48 08G20G4-48P
Performance
Switching Throughput Mpps 41.7 Mpps 41.7 Mpps 77.4 Mpps 77.4 Mpps
Switching Capacity 56 Gbps 56 Gbps 104 Gbps 104 Gbps
MAC Address Table 16K 16K 16K 16K
VLANs Supported 255 255 255 255
PoE Specifications
802.3af Interoperable N/A Yes N/A Yes
802.3at Interoperable N/A Yes N/A Yes
System Power N/A 375 watts per switch with up to 30 watts per port
Per-port switch power monitor:
  • Enable/disable
  • Priority safety
  • Overload & short circuit protection
N/A 375 watts per switch with up to 30 watts per port
Per-port switch power monitor:
  • Enable/disable
  • Priority safety
  • Overload & short circuit protection
Physical Specifications
Dimensions (H x W x D), Rack Units 1.73" H x 17.36" W x 8.125" D, 1U 1.73" H x 17.36" W x 14.51" D, 1U 1.73" H x 17.36" W x 14.51" D, 1U 1.73" H x 17.36" W x 14.51" D, 1U
Net Weight 2.35 kg (5.20 lb) 5.54 kg (12.2 lb) 4.50 kg (9.90 lb) 6.14 kg (13.5 lb)
MTBF 532,023 hours 275,199 hours 369,938 hours 225,591 hours
Physical Ports • (24) 10/100/1000 ports
• (4) 1Gb SFP ports
• (1) Console port
• Max: 28 active ports
• (24) 10/100/1000 PoE ports
• (4) 1Gb SFP ports
• (1) Console port
• Max: 28 active ports
• (48) 10/100/1000 ports
• (4) 1Gb SFP ports
• (1) Console port
• Max: 52 active ports
• (48) 10/100/1000 PoE ports
• (4) 1Gb SFP ports
• (1) Console port
• Max: 52 active ports
Power
Power Supplies 1 Internal, 1 optional RPS 1 Internal, 1 optional RPS 1 Internal, 1 optional RPS 1 Internal, 1 optional RPS
Normal Input Voltage 100 - 240 VAC 100 - 240 VAC 100 - 240 VAC 100 - 240 VAC
Input Frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Input Current 0.8A max 7.65A max 1.2A max 7.65A max
Power Consumption 30.0 W 36.4 W 56.1 W 63.1 W
Environmental Specifications
Operating Temperature 0° to 50° C (32° to 122° F)
Non-Operating Temperature -40° to 70° C (-40° to 158° F)
Heat Dissipation 100 BTUs/Hr 124 BTUs/Hr 190 BTUs/Hr 215BTUs/Hr
Operating Relative Humidity 5% to 95% (non-condensing)
Acoustics Fan Off: 0dB
Fan On: 44dB
Fan Low Speed: 38dB
Fan High Speed: 50dB
Fan Low Speed: 37dB
Fan High Speed: 42dB
Fan Low Speed: 38dB
Fan High Speed: 51dB
Agency Specifications
Vibration IEC 68-2-6, IEC68-2-36
Shock IEC 68-2-29
Drop IEC 68-2-32
Altitude - operating Operational up to 2,000 m 6,561 feet
Safety UL 60950-1, FDA 21 CFR 1040.10 and 1040.11, CAN/CSA C22.2, No. 60950-1, EN 60950-1, EN 60825-1, EN 60825-2, IEC 60950-1, 2006/95/EC (Low Voltage Directive)
EMC FCC 47 CFR Part 15 (Class A), ICES-003 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, EN 61000-3-3, AS/NZ CISPR-22 (Class A). VCCI V-3. CNS 13438 (BSMI), 2004/108/EC (EMC Directive)
Environmental 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS)

Documentation:

Download the Extreme Networks 800-Series Datasheet (PDF).
